TM113219 - John Deere D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, and D170 Lawn Tractors Diagnostic and LA Series Lawn Tractors Riding Lawn Equip manual

  • Brands: John Deere
  • Product Code: TM113219
  • Availability: In Stock

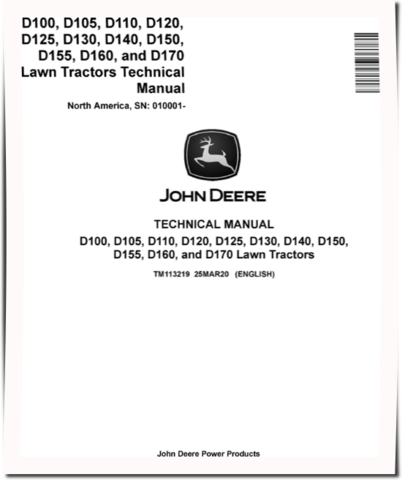

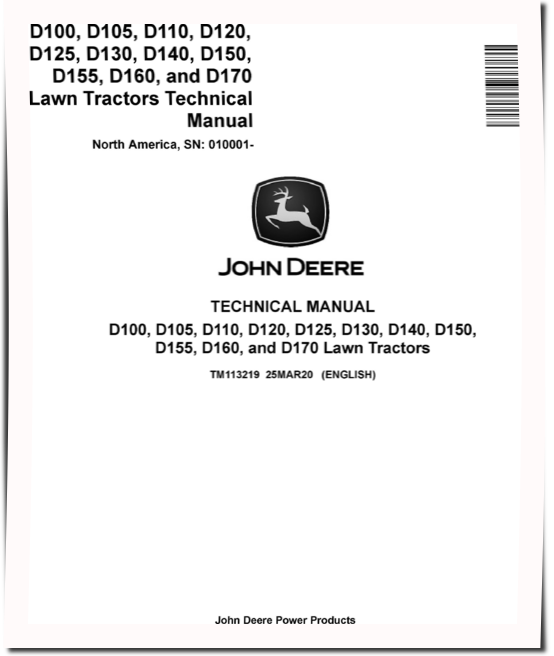

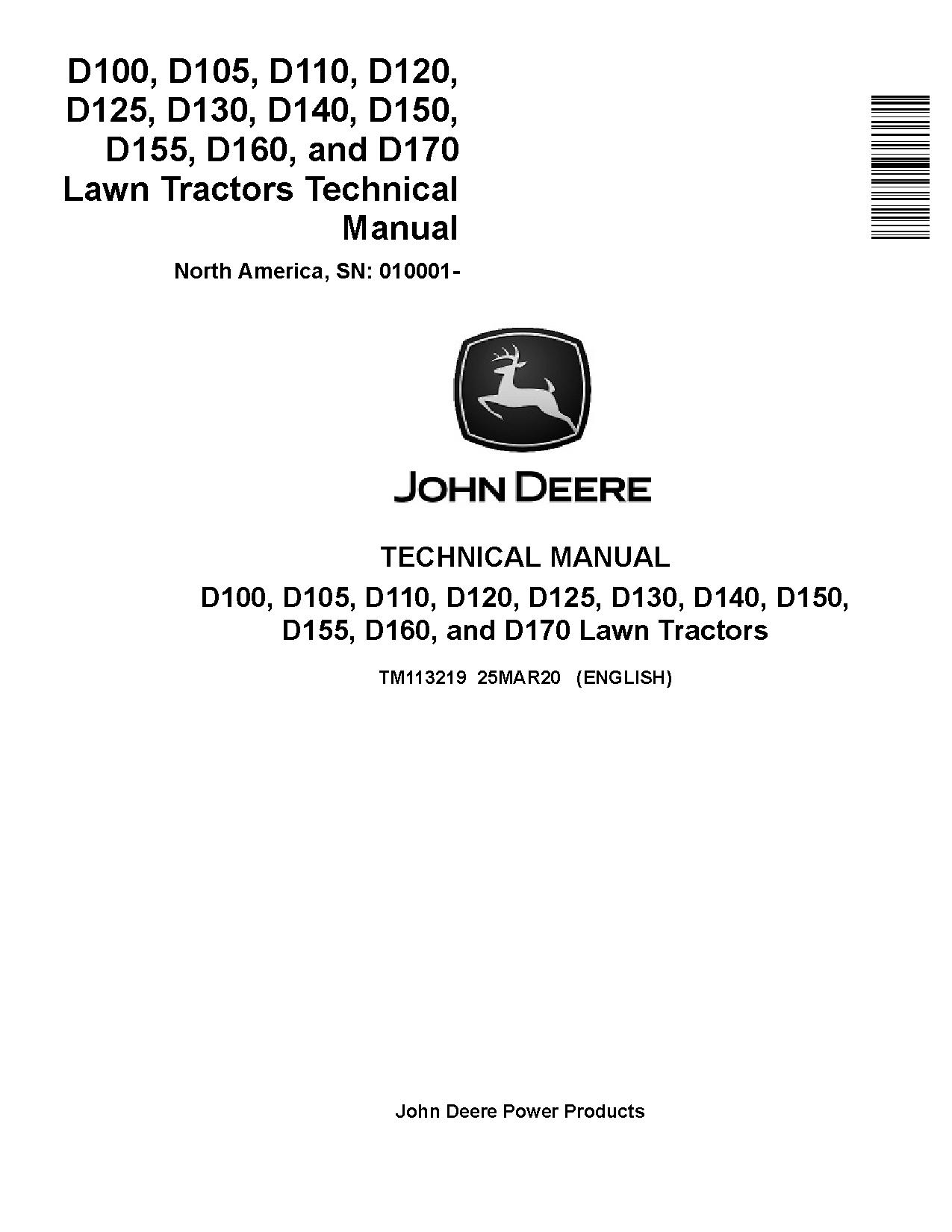

Illustrated Factory Technical Manual for John Deere Lawn Tractors Models D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, and D170

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, troubleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 732 pages

Covered models (SN. 010001-):
  D100
  D110
  D120
  D130
  D140
  D150
  D160
  D170
  D155
  D125
  D105


Contents:



Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications

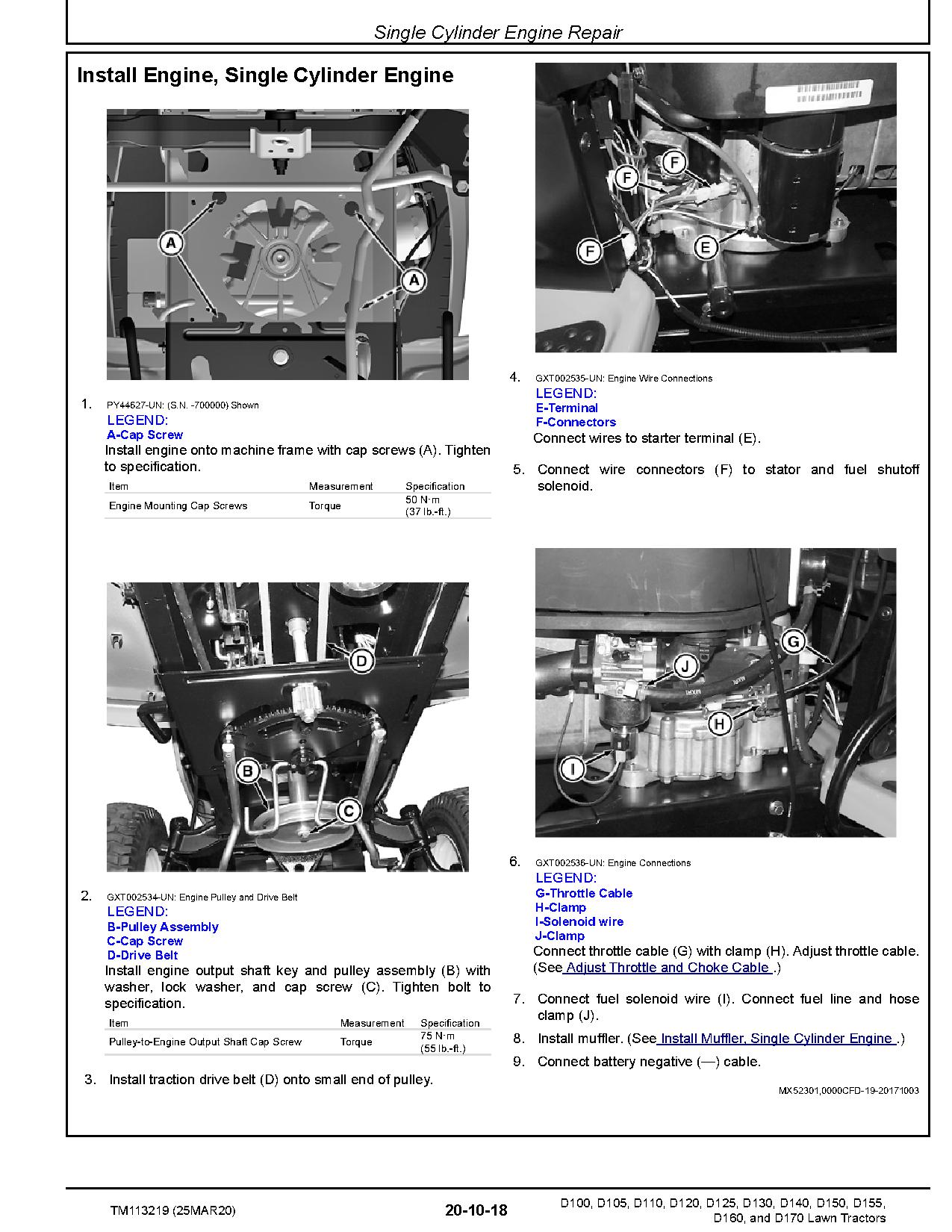

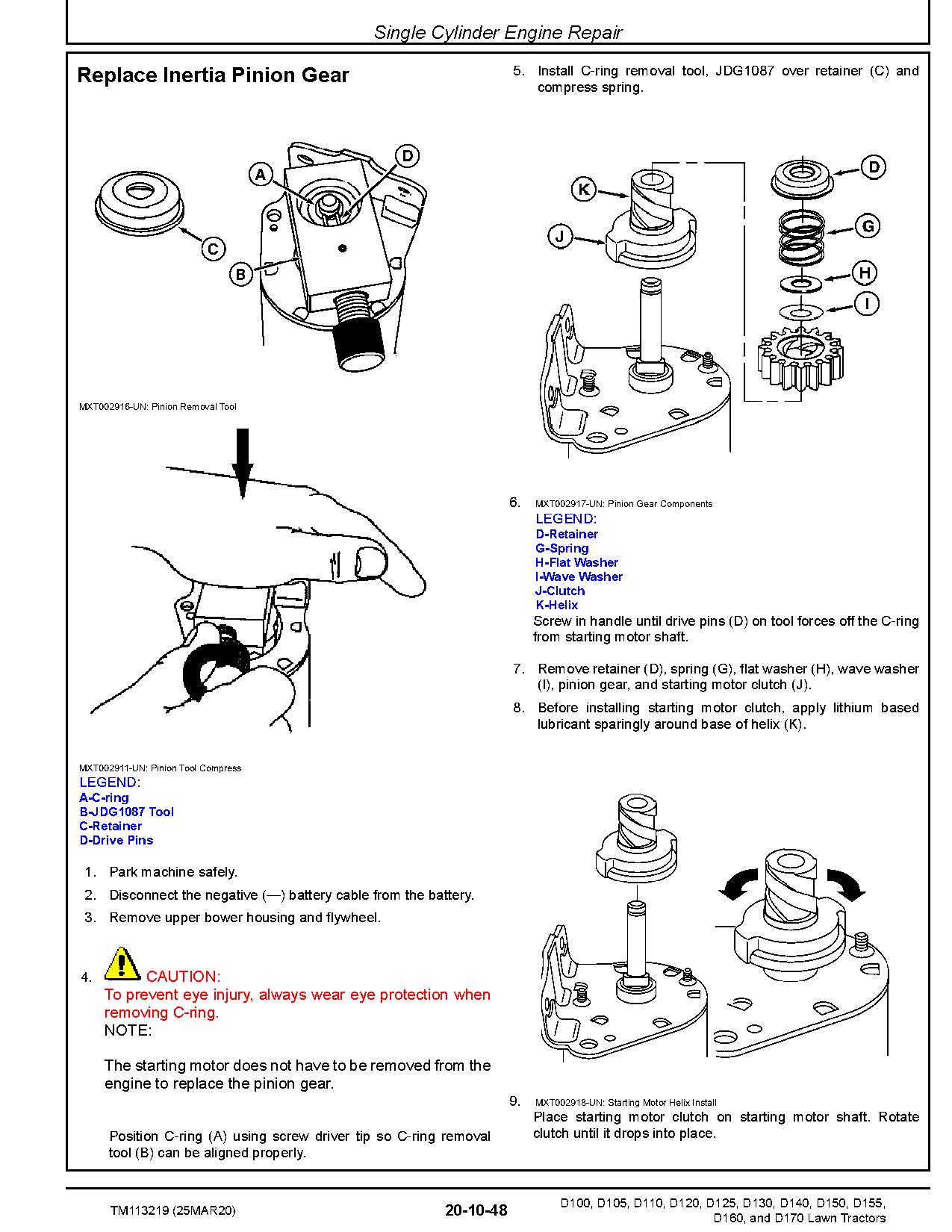

   Single Cylinder Engine Repair
      Single Cylinder Engine Repair
   V-Twin Engine Repair
      V-Twin Engine Repair
   Electrical Repair
      Component Location
      Wiring Harnesses (Model Year -2011)
      Wiring Harnesses (Model Year 2012)
      Wiring Harnesses (Model Year 2013-)
      Common Wiring Harnesses (All Model Years)
   Gear Power Train Repair
      Component Location
      Gear Power Train Repair
   Continuously Variable Transmission (CVT) Repair, D105
      CVT Repair
   Hydrostatic Power Train Repair
      Component Location
      Hydrostatic Power Train Repair
   Steering and Brake Repair
      Steering Repair
      Brake Repair
   Attachments Repair
      Component Location
      Attachments Repair
   Miscellaneous Repair
      Miscellaneous Repair
   Single Cylinder Engine Operation, Tests, and Adjustments
      Diagnostics
      Tests and Adjustments
   V-Twin Engine Operation, Tests, and Adjustments
      Diagnostics
      Tests and Adjustments
   Electrical Operation, Tests, and Adjustments
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Schematics (Model Year -2011)
      Schematics (Model Year 2012-)
      Connector Information

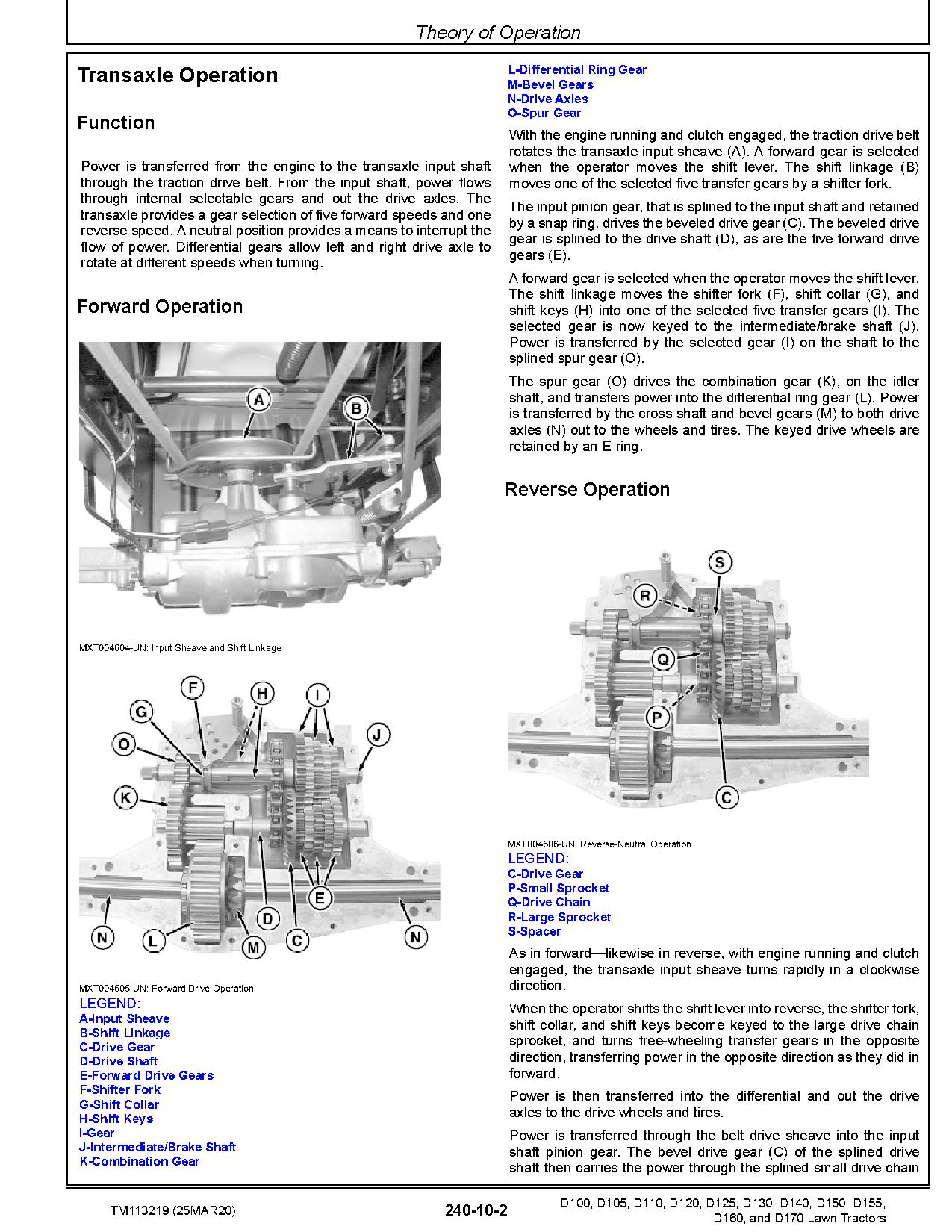

   Gear Power Train Operation, Tests, and Adjustments
      Theory of Operation
      Diagnostics
      Tests and Adjustments
   Continuously Variable Transmission (CVT) Operation, D105
      Component Location
      Theory of Operation
      Diagnostics
   Hydrostatic Power Train Operation, Tests, and Adjustments
      Theory of Operation
      Diagnostics
      Tests and Adjustments
   Steering and Brake Operation, Tests, and Adjustments
      Steering Component Location
      Steering Tests and Adjustments
      Brake Component Location
      Brake Tests and Adjustments
   Attachments Operation, Tests, and Adjustments
      Diagnostics
      Tests and Adjustments
   Service Tools and Kits
      Service Tools
Document
Document type All inclusive Manual
Covered
Type of Truck Lawn Tractor
Models D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170
