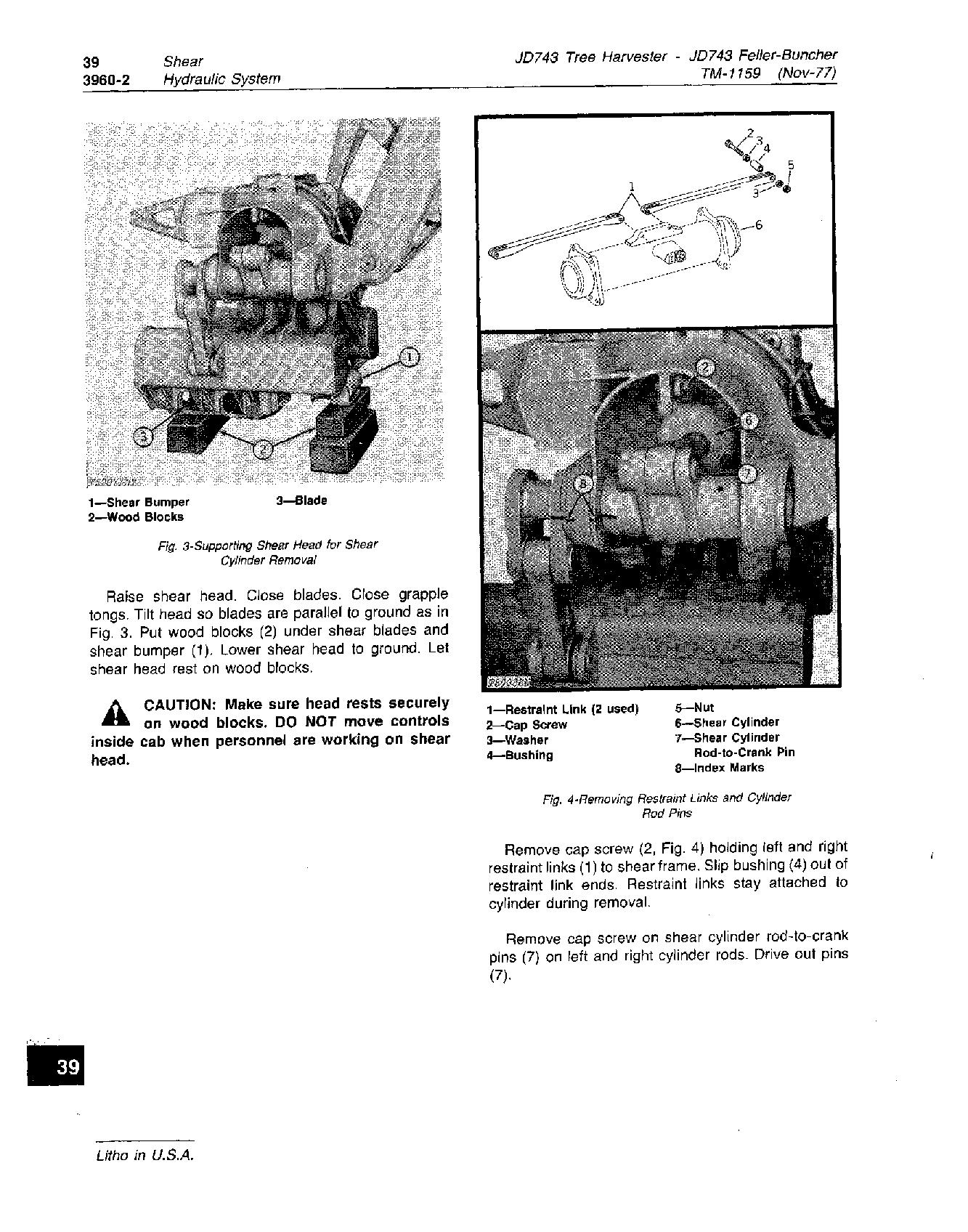

John Deere JD743 Feller Bunchers and JD743 Harvesters Technical Manual (TM1159)

Illustrated factory Technical Manual for John Deere Feller Bunchers Models JD743 and Harvesters Models JD743.

This manual will assist you in diagnosing, and repairing for your draper platform, feller buncher or harvester.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   JD743 Feller Buncher
   JD743 Harvester

Format: PDF, 1313 pages
Language: English
Table of Contents:
   Introduction
   General Information
      General Specifcications
      Predelivery, Delviery, and After-Sale Services
      Lubrication
   Wheels
      Powered Wheels and Fastenings
      Specifications and Special Tools
   Axles and Suspension Systems
      Drive Axle Housing and Support
      Differential or Bevel Drive
      Input Drive Shafts and U-Joints
      Axle Lock Mounting
      Axle Shaft, Bearings, Reduction Gears
      Hydraulic System
      Specifications and Special Tools
   Transmission
      Controls
      Input Drive Shafts and U-Joints
      Housing and Covers
      Mounting Parts
      Gears, Shafts, Bearings and Power Shaft Clutch
      Hydraulic System
      Clutch Disconnect and Controls
      Specifications and Special Tools
   Engine
      Engine Removal and Installation
      Crankshaft and Main Bearings
      Camshaft and Valve Actuating Means
      Connecting Rods and Pistons
      Cylinder Block
      Oiling System
      Ventillating System
      Cylinder Head and Valves
      Exhaust Manifold
      Fuel Injection System
      Intake Manifold
      Turbocharger
      Water Pump
      Thermostats, Housings and Water Piping
      Oil Cooler
      Fuel Filter
      Starting Motor and Fastenings
      Fan Drive
      Flywheel, Housing and Fastenings
      Specifications and Special Tools
   Engine Auxiliary Systems
      Cold Weather Starting Aids
      Cooling Systems
      Speed Controls
      Intake System
      External Exhaust Systems
      Mounting Frame
      External Fuel Supply Systems
      Specifications and Special Tools
   Steering System
      Emergency Steering
      Hydraulic System
      Specifications and Special Tools
   Service Brakes
      Active Elements
      Controls Linkage
      Hydraulic System
      Specifications and Special Tools
   Parking - Emergency Brakes
      Active Elements
      Controls Linkage
      Specifications and Special Tools
   Electrical Systems
      Batteries, Support and Cables
      Alternator, Regulator and Charging System Wiring
      Lighting System
      Wiring Harness and Switches
      System Controls
      Instruments and Indicators
      Specifications and Special Tools
   Frame, Chassis, or Supporting Structure
      Frame Installation
      Frame Bottom Guards
      Specifications and Special Tools
   Operator's Station
      Operator Enclosure
      Heating and Air Conditioning
      Specifications and Special Tools
   Sheet Metal and Styling
      Hood or Engine Enclosure
      Miscellaneous Shields
      Grille and Grille Housing
   Safety, Convenience and Miscellaneous
      Radio
      Mirror
      Fire Extinguisher
      Horn
      Cigar Lighter
   Main Hydraulic System
      Hydraulic System
      Specifications and Special Tools
   Bulldozers
      Blades
      Controls Linkage
      Hydraulic System
      Specifications and Special Tools
   Arch or Boom, or Cranes
      Controls Linkage
      Frames
      Hydraulic System
      Specifications and Special Tools
   Grapple
      Grapple Mechanism
      Hydraulic System
      Specifications and Special Tools
   Shear
      Blades and Cutting Elements
      Tongues and Forks
      Controls Linkage
      Frame
      Hydraulic System
      Specificaitons and Special Tools
   Miscellaneous Function Mechanical Drive
      Input Drive Shafts
      Housing and Covers
      Gears, Shafts and Bearings
      Clutch
      Hydraulic System
      Specificaitons and Special Tools
   Swing, Rotation or Pivoting System
      Controls
      Mechanical Drive Elements
      Hydraulic System
      Specifications and Special Tools
   Cutting Mechanisms
      Blades (Delimber Knives)
      Frames (Delimber Carriage)
      Hydraulic System
      Specifications and Special Tools
   System Testing
      General Information
      Engine
      Electrical System
      Electrical System (Automatic Control)
      Power Train
      Hydraulic System (Flow Meter)
      Hydraulic System Analyzer
      Miscellaneous Components
      Heating and Air Conditioning
      Specifications and Special Tools
   Index

Covered
Type of Truck	Draper Platform
Models	JD743, HARVESTERS MODELS JD743
