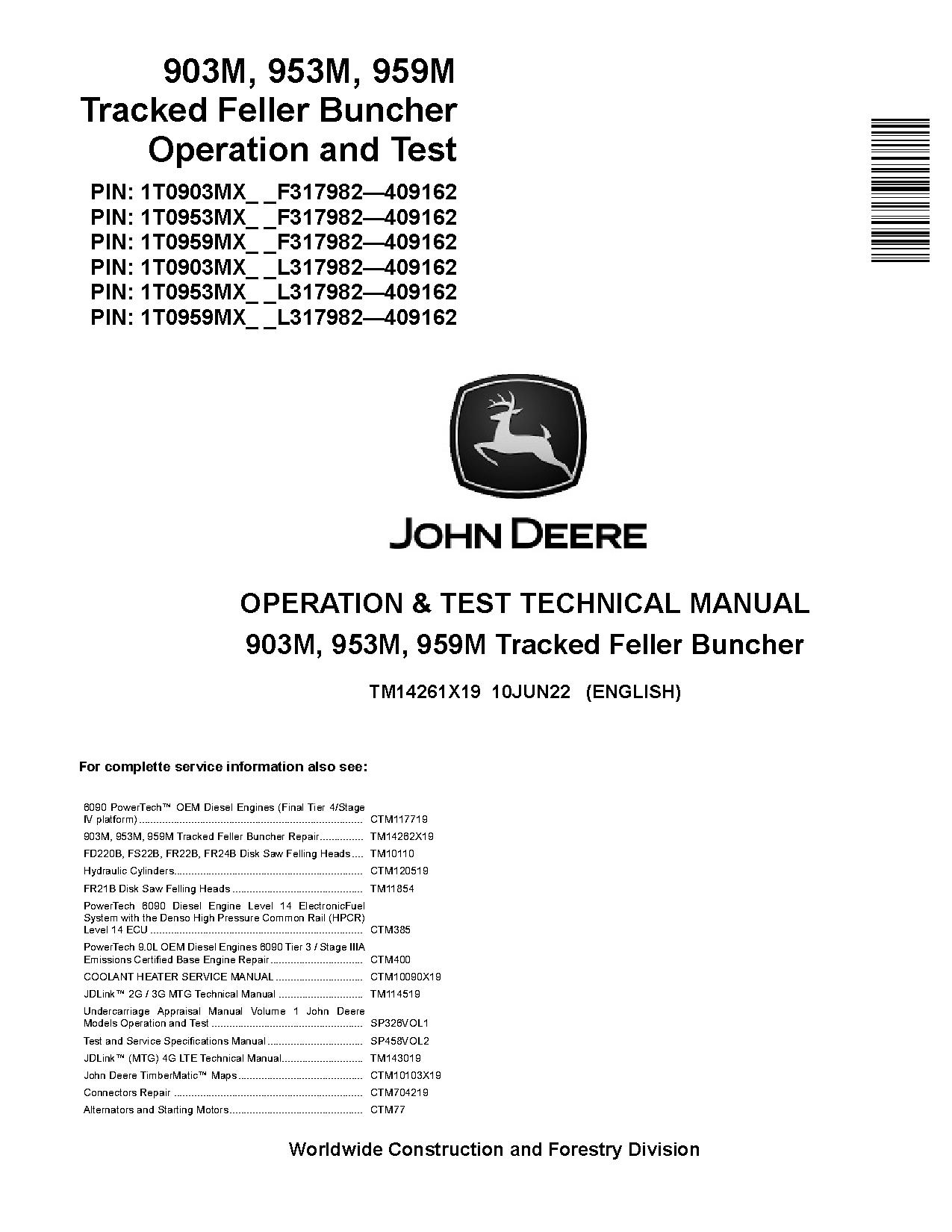

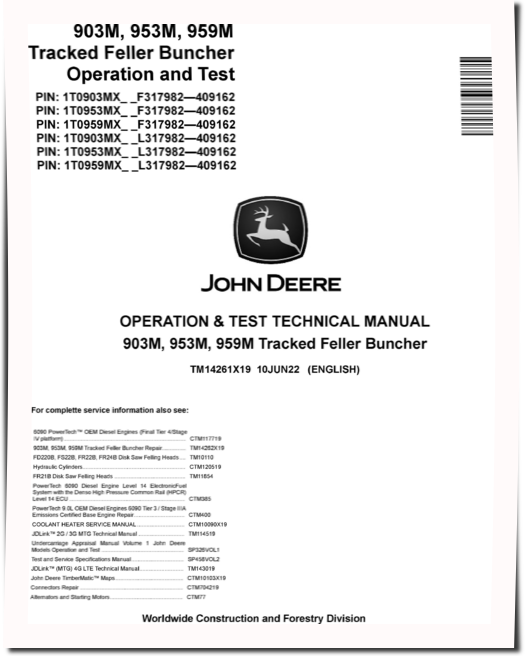

John Deere 903M, 953M, 959M (SN. F317982-, L317982-) Feller Buncher Diagnostic Manual (TM14261X19)

  • Brands: John Deere
  • Product Code: TM14261X19
  • Availability: In Stock
Illustrated Operation and Test Technical Manual for John Deere Tracked Feller Bunchers Models 903M, 953M, 959M

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 872 pages

Covered models:
   903M (PIN: 1T0903MX_ _F317982—; PIN: 1T0903MX_ _L317982—)
   953M (PIN: 1T0953MX_ _F317982—; PIN: 1T0953MX_ _L317982—)
   959M (PIN: 1T0959MX_ _F317982—; PIN: 1T0959MX_ _L317982—)

Contents:


   Foreword
   Manual Identification - READ THIS FIRST!
   General Information
      Safety
   Diagnostic Trouble Codes (DTCs)
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Head Control Unit (HCU) Diagnostic Trouble Codes
      Left Armrest Controller (ACL) Diagnostic Trouble Codes
      Right Armrest Controller (ACR) Diagnostic Trouble Codes
      Sealed Switch Module (SSM) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments

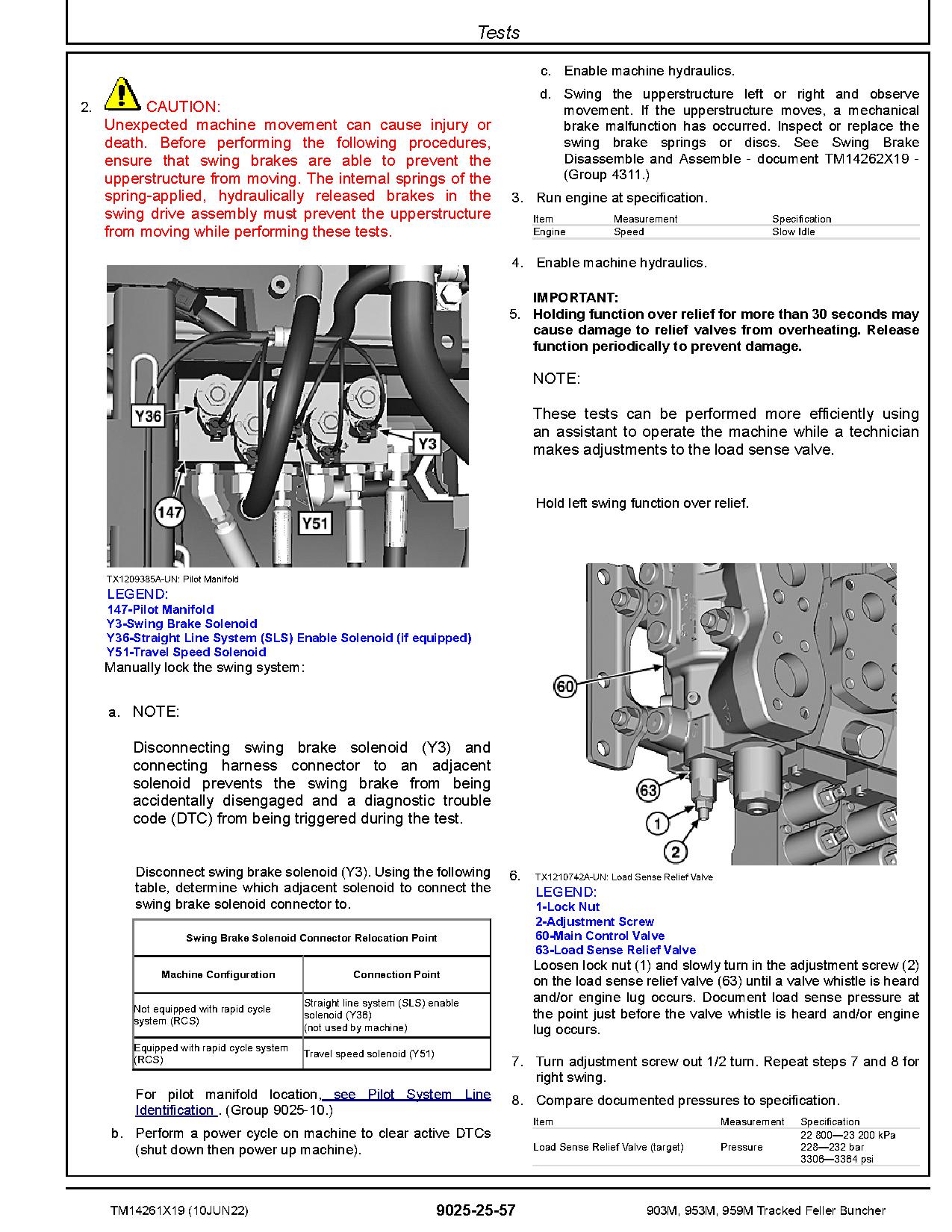

      Tests
   Electrical System
      Theory of Operation

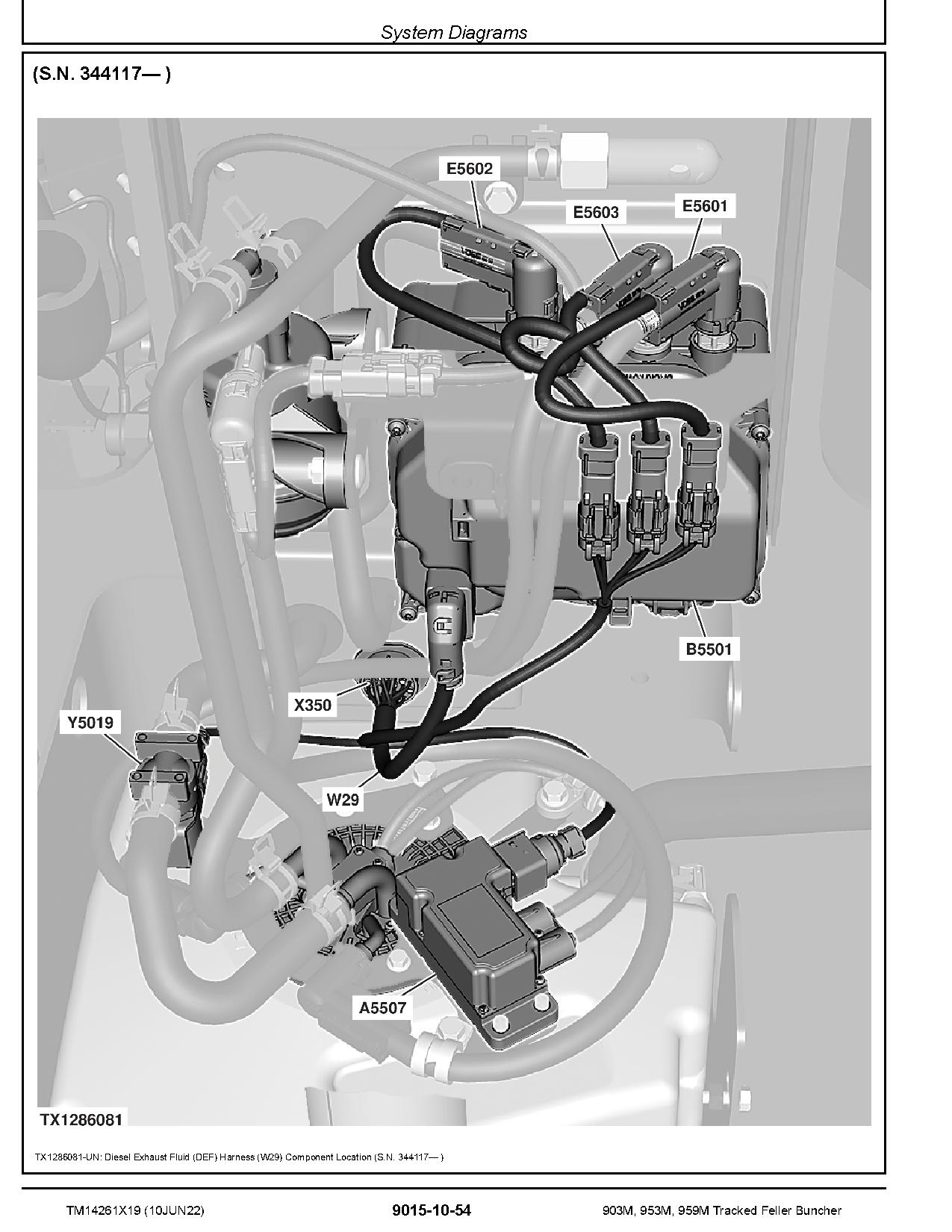

      System Diagrams
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box
      Adjustments
      Tests
   Power Train
      Theory of Operation
      Diagnostic Information
   Hydraulic System

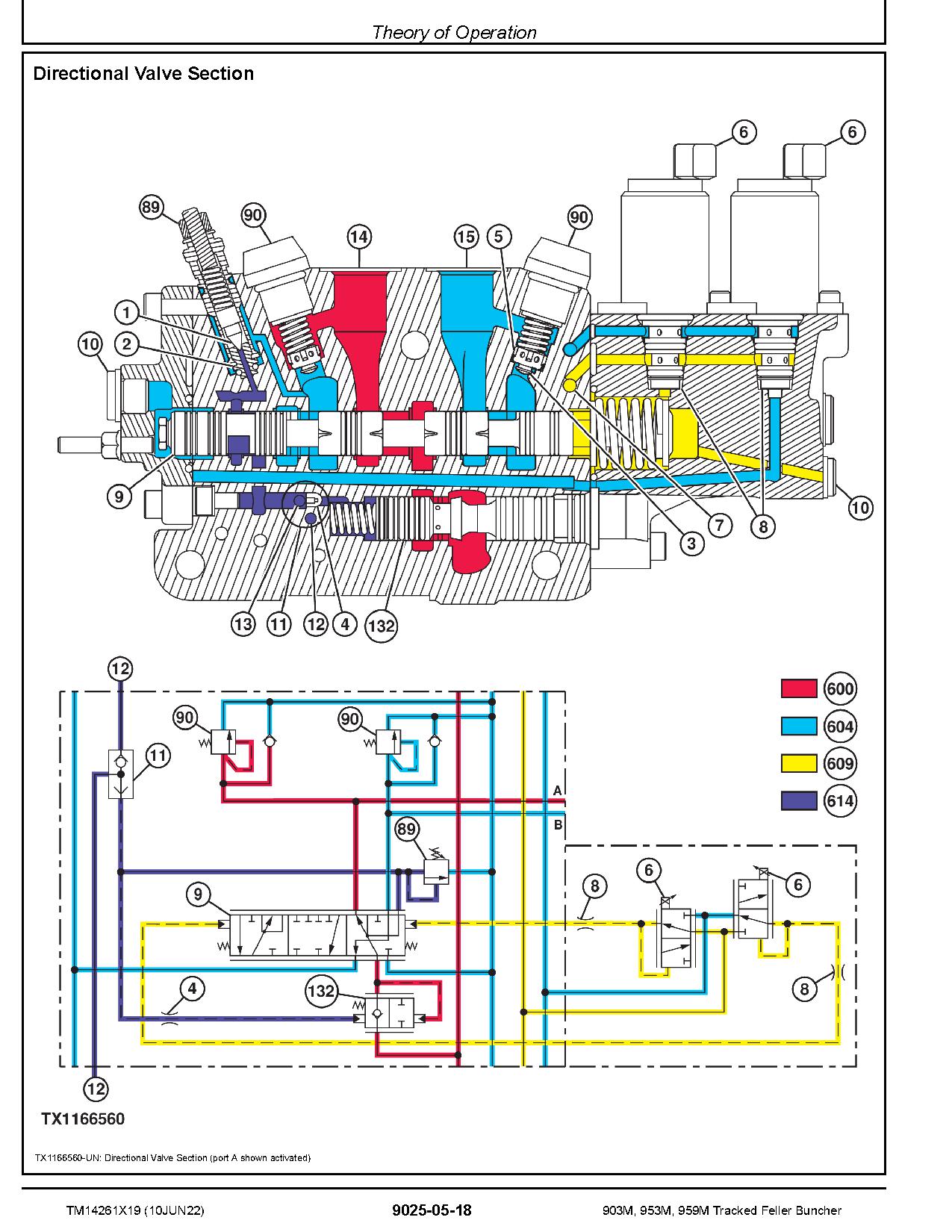

      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Miscellaneous
      Theory of Operation
      System Diagrams
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   APPENDIX
      System Functional Schematic
Document
Document type Diagnostic Manual
Covered
Type of Truck Feller Buncher
Models 903M, 953M, 959M
Tags: 903M, 953M, 959M
