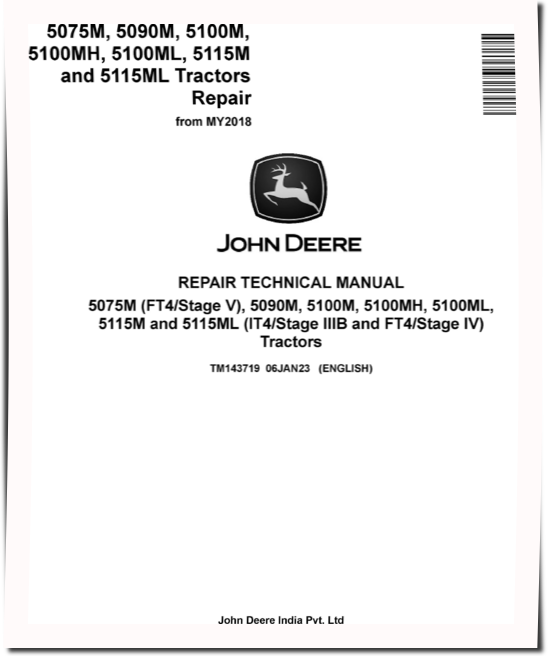

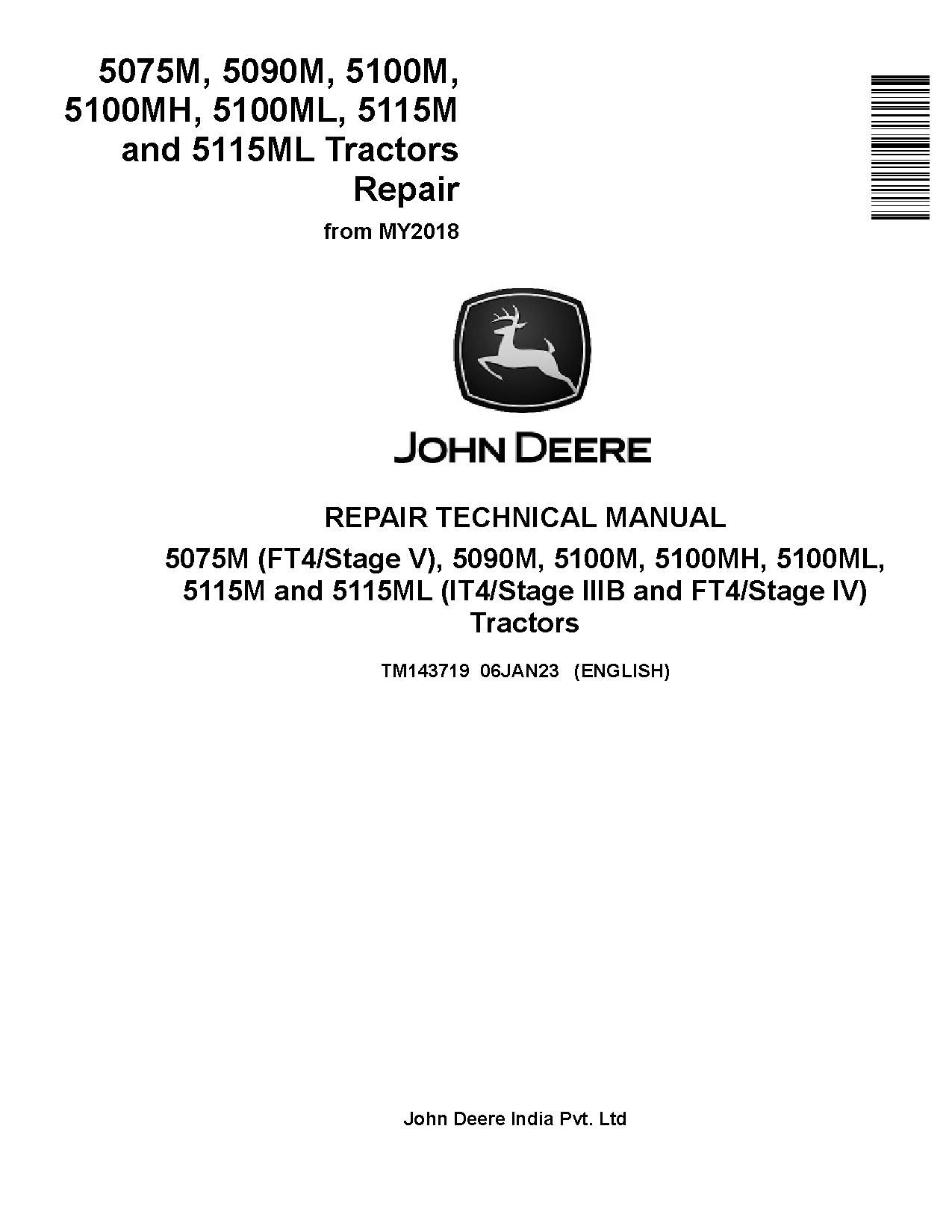

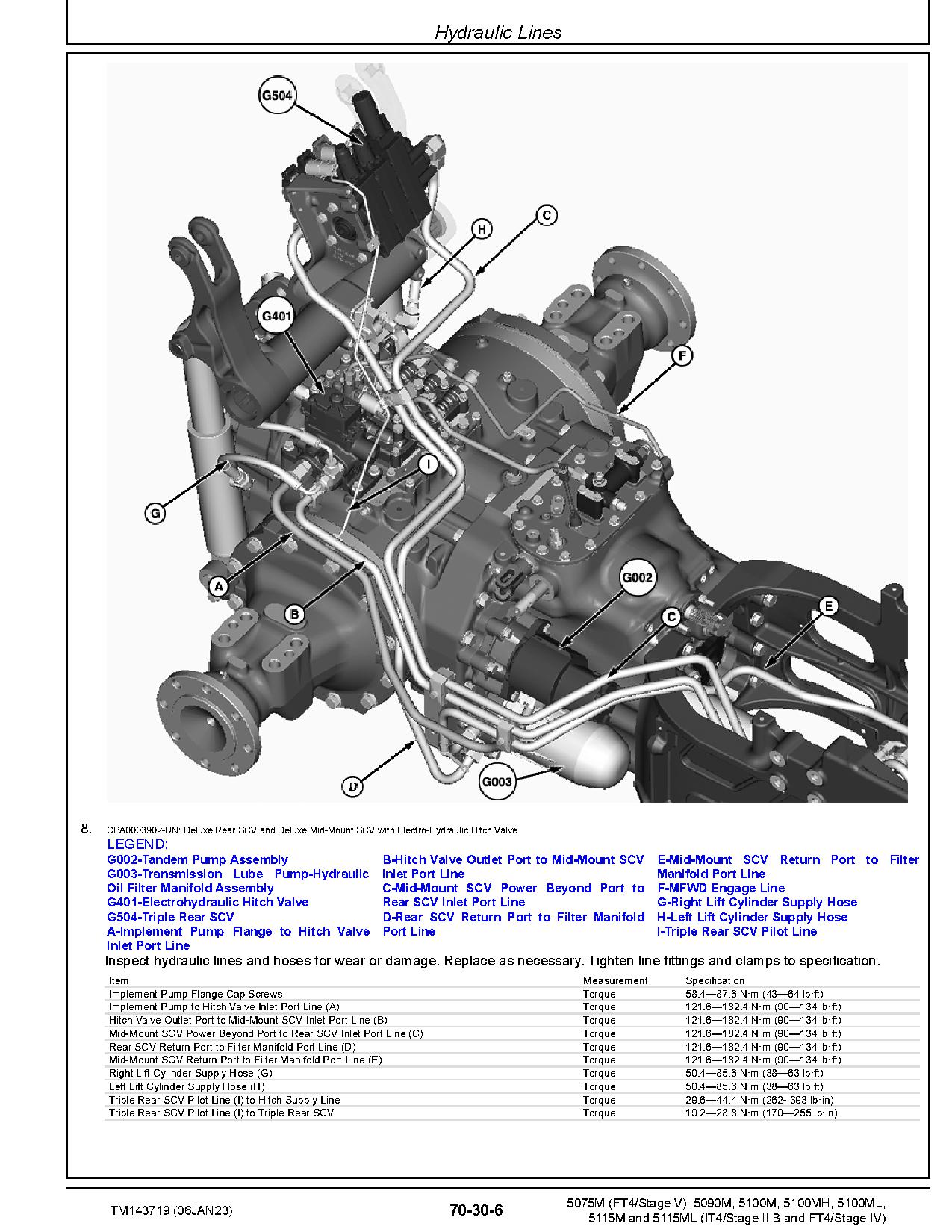

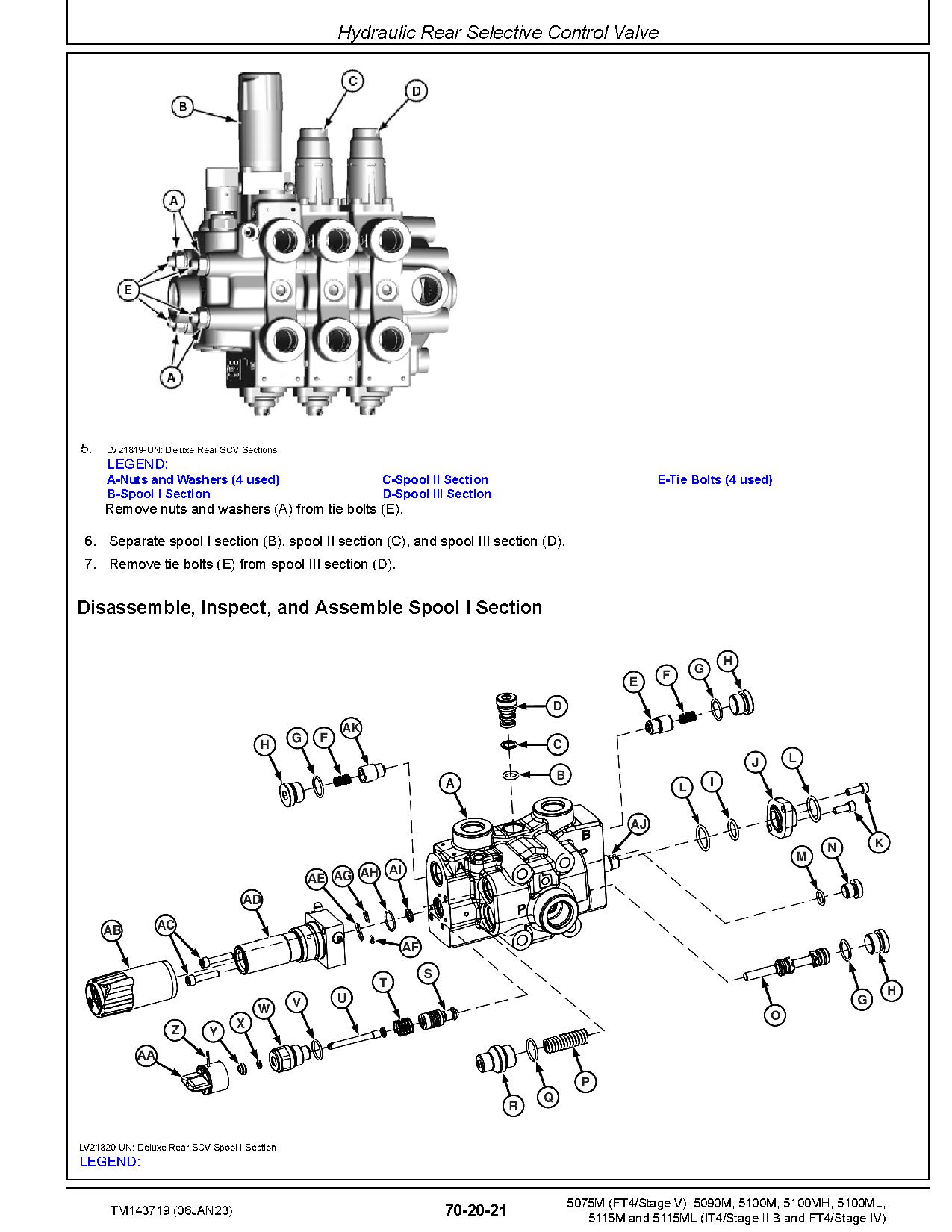

John Deere 5075M 5090M 5100M 5100MH 5100ML 5115M 5115ML Tractors Repair Technical Manual (TM143719)

Illustrated Repair Technical Manual for John Deere Tractors models 5075M (FT4/Stage V), 5090M, 5100M, 5100MH, 5100ML, 5115M and 5115ML (IT4/Stage IIIB and FT4/Stage IV)

This manual contains high quality images, instructions to help you to disaseemble, troubleshoot, repair and assemble your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 773 pages

Covered models:
   5075M
   5090M
   5100M
   5100MH
   5100ML
   5115M
   5115ML

Contents:

   Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Serial Number Locations
   Engine
      Engine
   Fuel, Air Intake, Exhaust, and Cooling
      Fuel System
      Air Intake System
      Exhaust System
      Cooling System
      Aftertreatment System
   Electrical
      Fuses and Relays
      Ground Points
      Connectors
      Wiring Harnesses
      Electrical Components
   Drive Systems and Transmissions
      Transmission Component Identification
      Separation
      SS Transmission
      PR Transmission
      PR Plus Transmission
      Clutch Assembly - SS Transmission
      Clutch Assembly - PR Transmission
      Clutch Assembly - PR Plus Transmission
      Differential

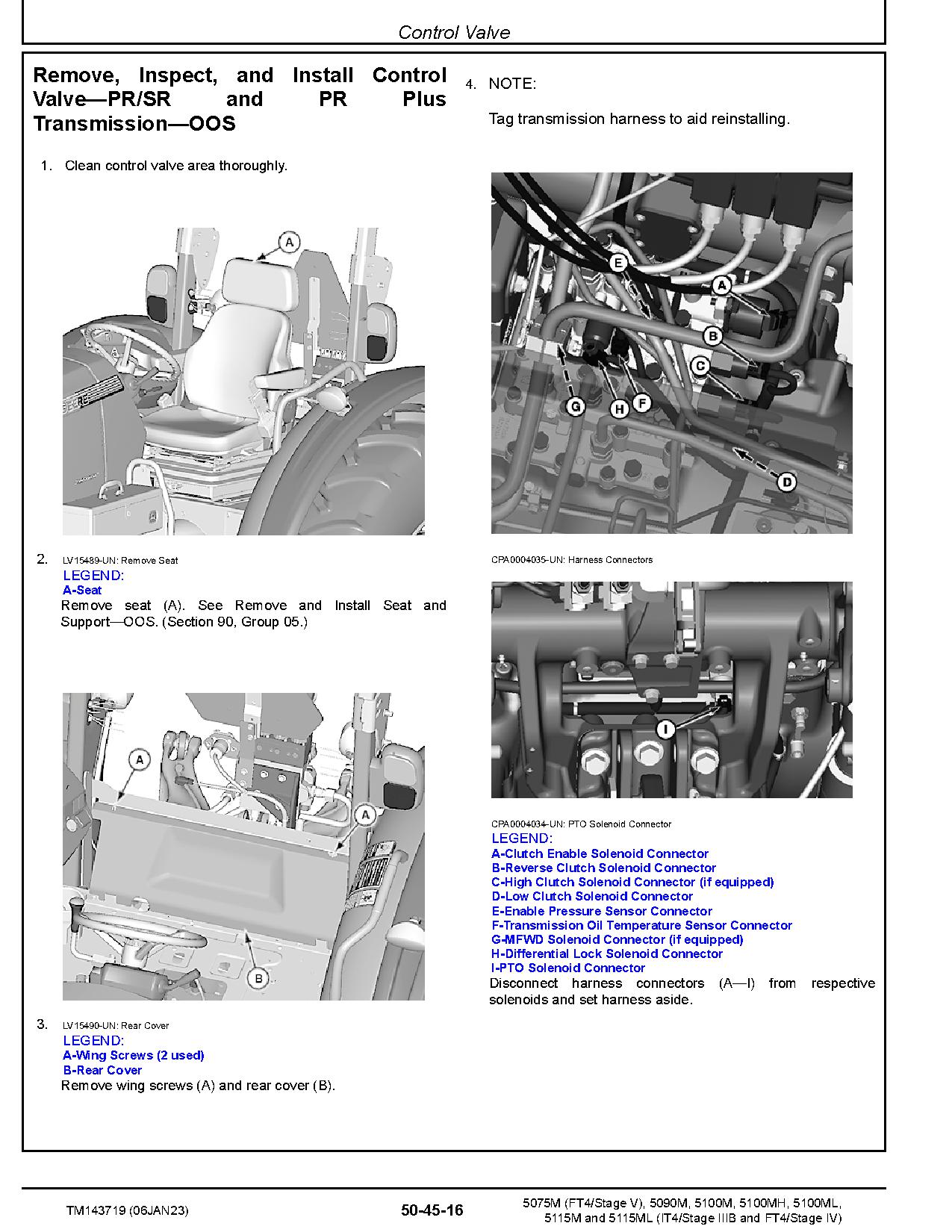

      Control Valve
      Final Drives
      Hi - Crop Final Drives
      Rear PTO
      Mechanical Front - Wheel Drive
      Creeper Assembly
      Front PTO
   Steering and Brakes
      Steering
      S

Document
Document type	Repair Manual
Covered
Type of Truck	5xxx Series Tractors
Models	5075M, 5090M, 5100M, 5100MH, 5100ML, 5115M, 5115ML
