TM1460 - John Deere 4555, 4560, 4755, 4760, 4955, 4960 Tractors Service Repair Technical Manual

  • Brands: John Deere
  • Product Code: tm1460
  • Availability: In Stock

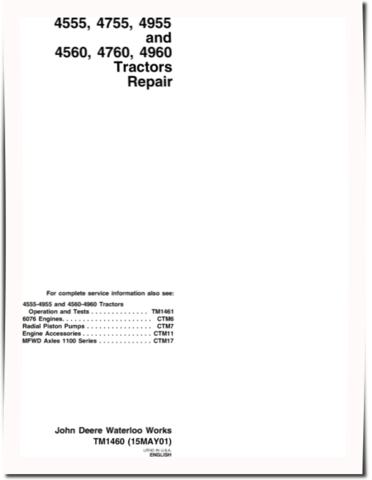

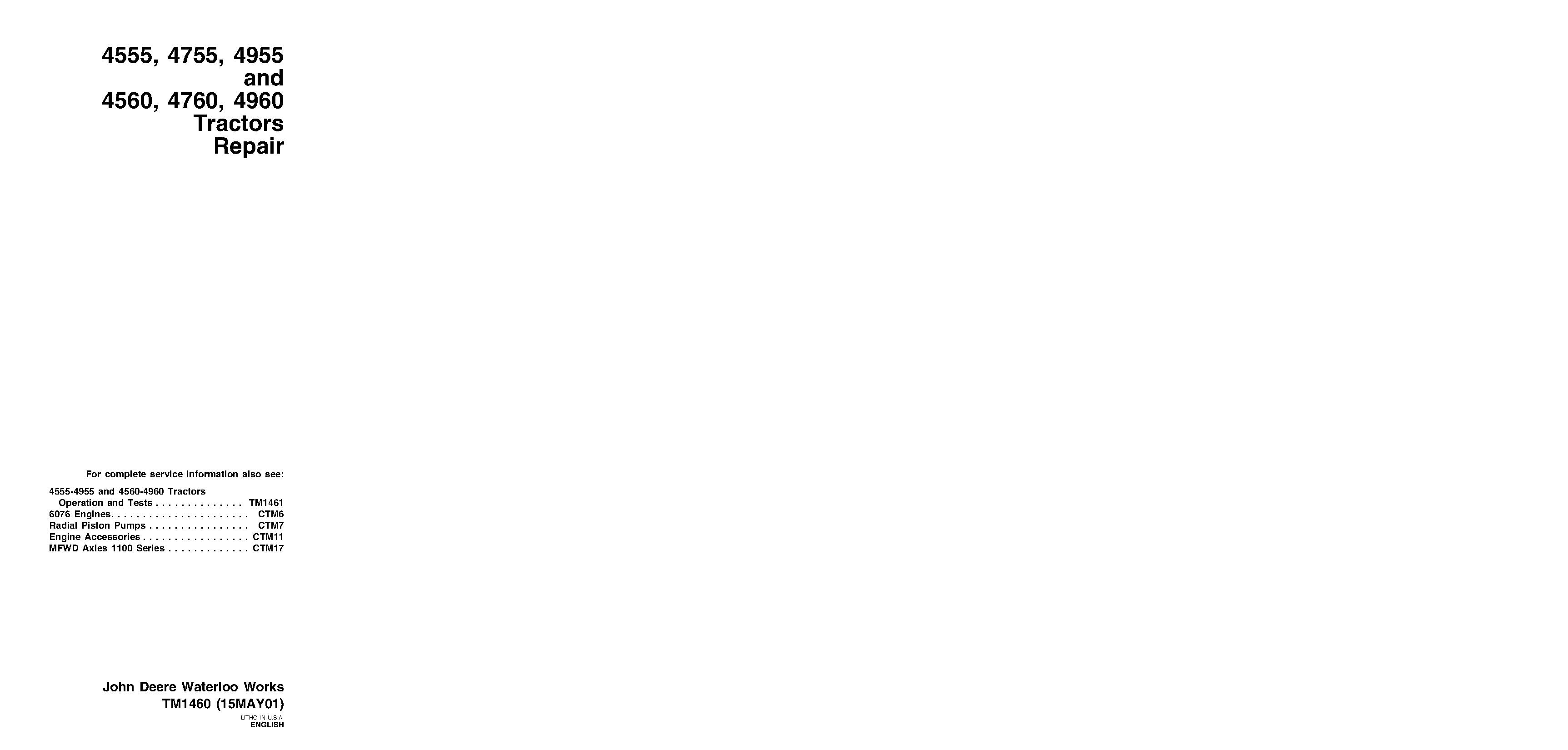

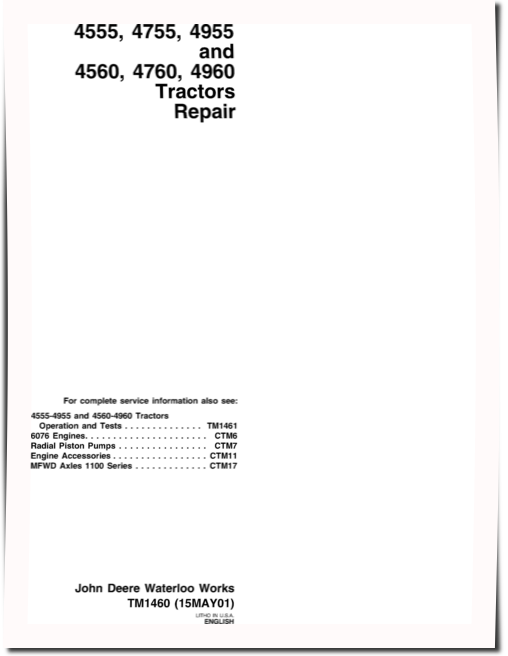

Illustrated Factory Service Repair Technical Manual for John Deere 2WD or MFWD Tractors Models 4555, 4560, 4755, 4760, 4955, 4960

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 906 pages;

Covered models:
  4555
  4560
  4755
  4760
  4955
  4960

Contents:


    SECTION 05-SAFETY
        Group 05-Safety Information
    SECTION 10-GENERAL INFORMATION
        Group 05-Machine Specifications
        Group 10-Predelivery Service
        Group 15-Tune-up
        Group 20-Lubrication
    SECTION 15-SEPARATION

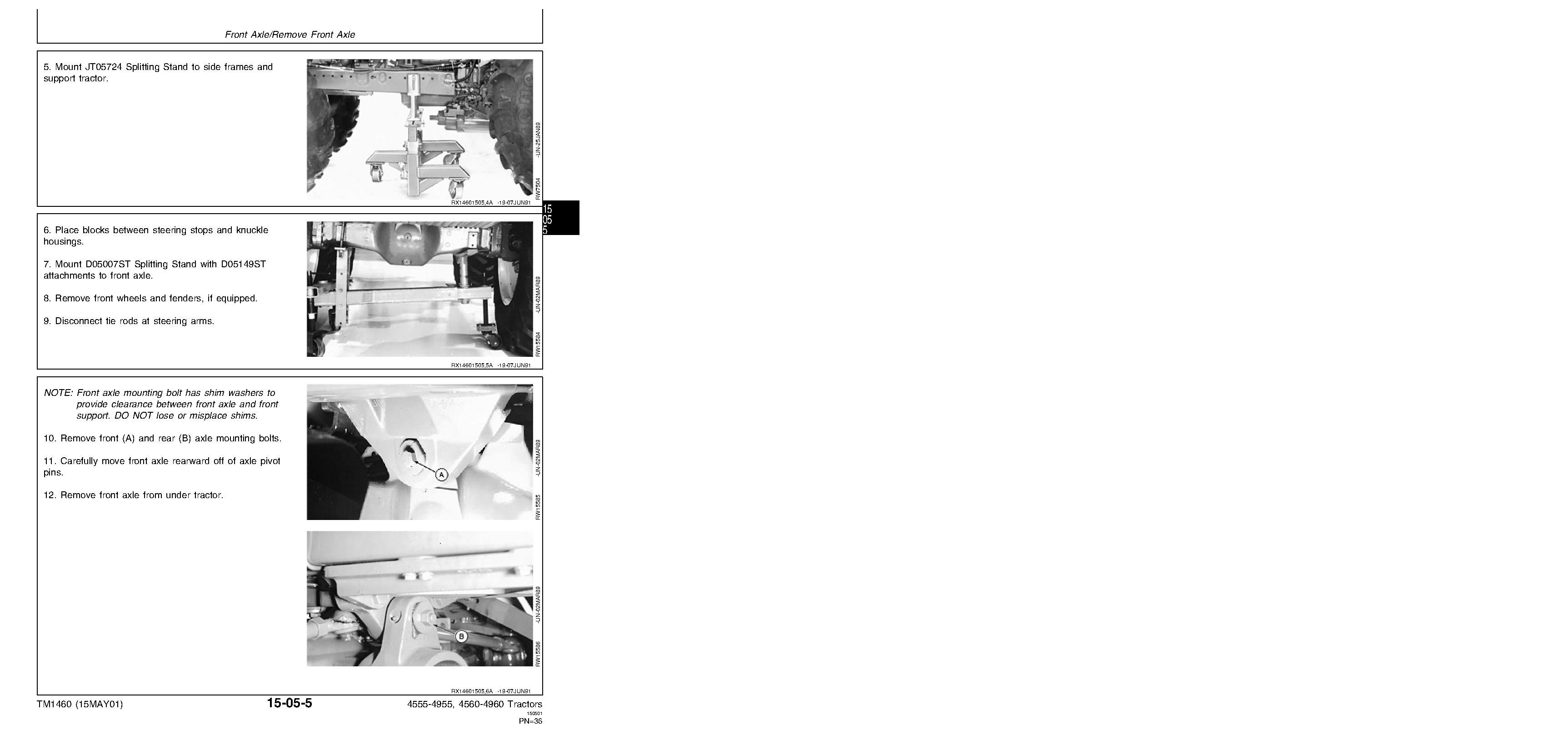

        Group 05-Front Axle
        Group 10-Front End
        Group 15-Front End and Engine
        Group 20-Engine
        Group 25-SOUND-GARD Body
        Group 30-Power Shift Clutch Housing
        Group 31-QUAD-RANGE Clutch Housing
        Group 35-Transmission
        Group 40-Final Drive
    SECTION 20-ENGINE
        Group 05-Service
        Group 10-Cooling System
    SECTION 30-FUEL AND AIR
        Group 05-Air Intake System
        Group 10-Diesel Fuel System
    SECTION 40-ELECTRICAL REPAIR
        Group 05-Connector Repair
        Group 10-Harness Replacement
        Group 15-Alternator
        Group 20-Starting Circuit
        Group 25-Lighting Circuit Repair
        Group 30-INTELLITRAK Monitoring System
        Group 35-Accessory Components
        Group 40-Hitch Electronic Control Components
        Group 45-Electronic Governor Control Components
        Group 50-Auxiliary Lighting and Electrical Components (European)
    SECTION 50-POWER TRAIN-QUAD-RANGE TRANSMISSION
        Group 05-Clutch Oil Pressure Regulating Valve Housing
        Group 10-Clutch Operating Piston Housing
        Group 15-Perma-Clutch
        Group 20-Quad-Range Planetary
        Group 25-Quad-Range Transmission and Charge Pump
        Group 30-Shift Lever Assembly

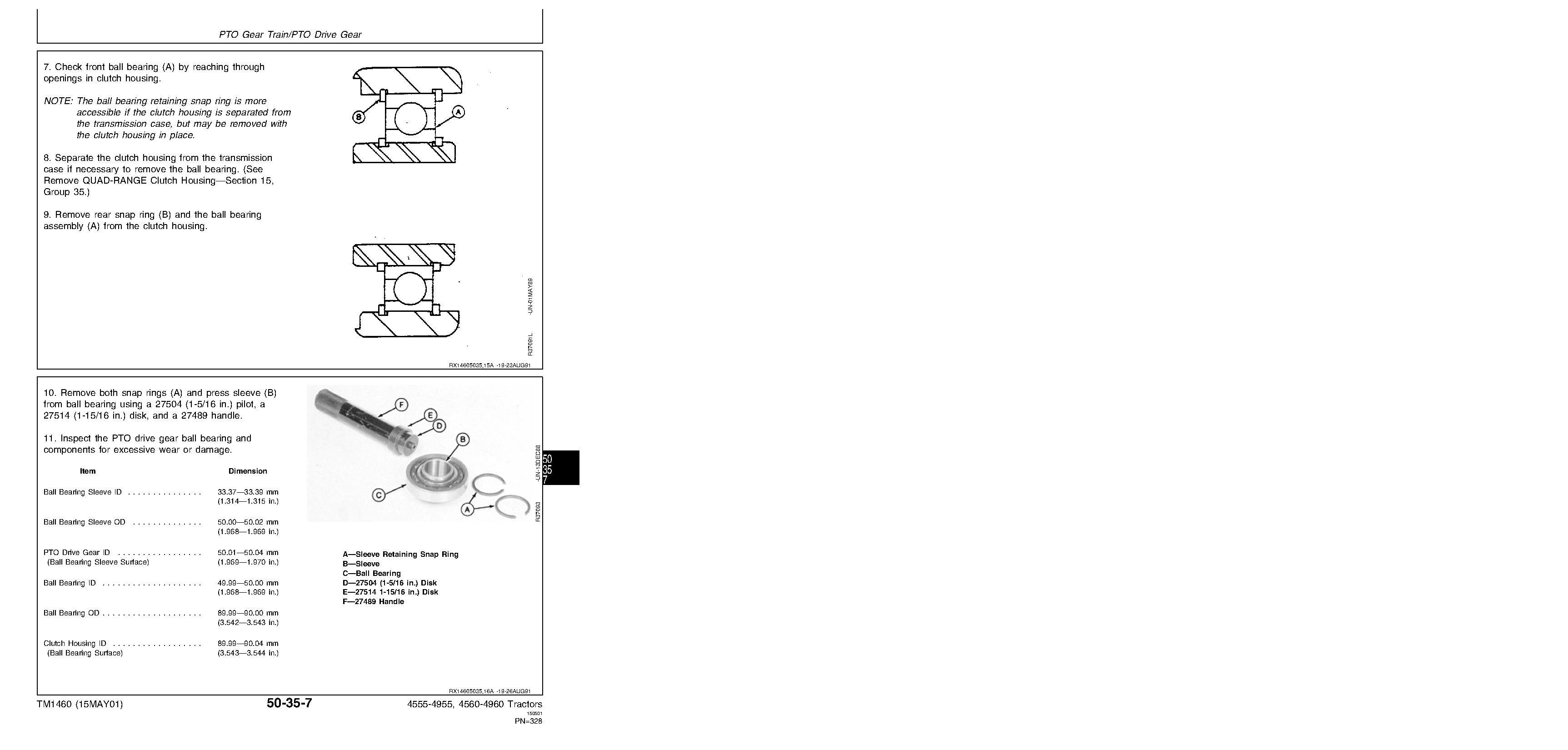

        Group 35-PTO Gear Train
        Group 40-Adjust PTO Clutch Rod
    SECTION 55-POWER TRAIN-POWER SHIFT TRANSMISSION
        Group 05-Remove and Install Traction Clutch Valve Housing
        Group 10-Traction Clutch Valve Housing
        Group 15-Remove and Install Transmission Control Valve Housing
        Group 20-Transmission Control Valves and Accumulators
        Group 25-Remove and Install Traction Clutch
        Group 30-Traction Clutch and Drive Shafts
        Group 35-Input Planetary
        Group 40-Reduction Gear Train
        Group 45-Output Planetary
        Group 50-Speed Selector Assembly
        Group 55-Charge Pump Assembly
        Group 60-PTO Gear Train WITH MFWD
        Group 65-PTO Gear Train WITHOUT MFWD
        Group 70-PTO Clutch Rod
        Group 75-MFWD Gear Train
        Group 80-MFWD Clutch
    SECTION 56-DIFFERENTIAL AND FINAL DRIVE
        Group 05-Differential
        Group 10-Differential Lock Valve
        Group 15-Final Drive
    SECTION 60-STEERING AND BRAKES
        Group 05-Remove and Install Power Steering Components
        Group 10-Steering Column
        Group 15-Metering Pump
        Group 20-Steering Valve
        Group 25-Steering Motor
        Group 30-Remove and Install Brake Valve and Brake Accumulator
        Group 35-Brake Valve
        Group 40-Brake Accumulator
        Group 45-Bleeding Brakes and Testing Brake Accumulator
        Group 50-Brake Pistons, Plates and Disks
        Group 55-Auxiliary Trailer Brake (European)
        Group 60-Secondary Brake (European)
        Group 65-Auxiliary Steering System (European)
    SECTION 70-HYDRAULICS
        Group 05-Hydraulic System Repair
        Group 10-Main Hydraulic Pump
        Group 15-Oil Filter Relief Valve and Return Manifold
        Group 20-Hydraulic Oil Cooler and Bypass Valve
        Group 25-Rockshaft, Draft Control and Lift Assist Cylinders
        Group 30-Hitch Control Valve
        Group 35-Control Valves
        Group 40-Selective Control Valves and Breakaway Couplers
        Group 45-Remote Cylinder
        Group 50-Transmission-Hydraulic Cleanup
    SECTION 80-MISCELLANEOUS
        Group 05-Rear Wheels
        Group 10-Front Axle
    SECTION 90-OPERATOR STATION REPAIR

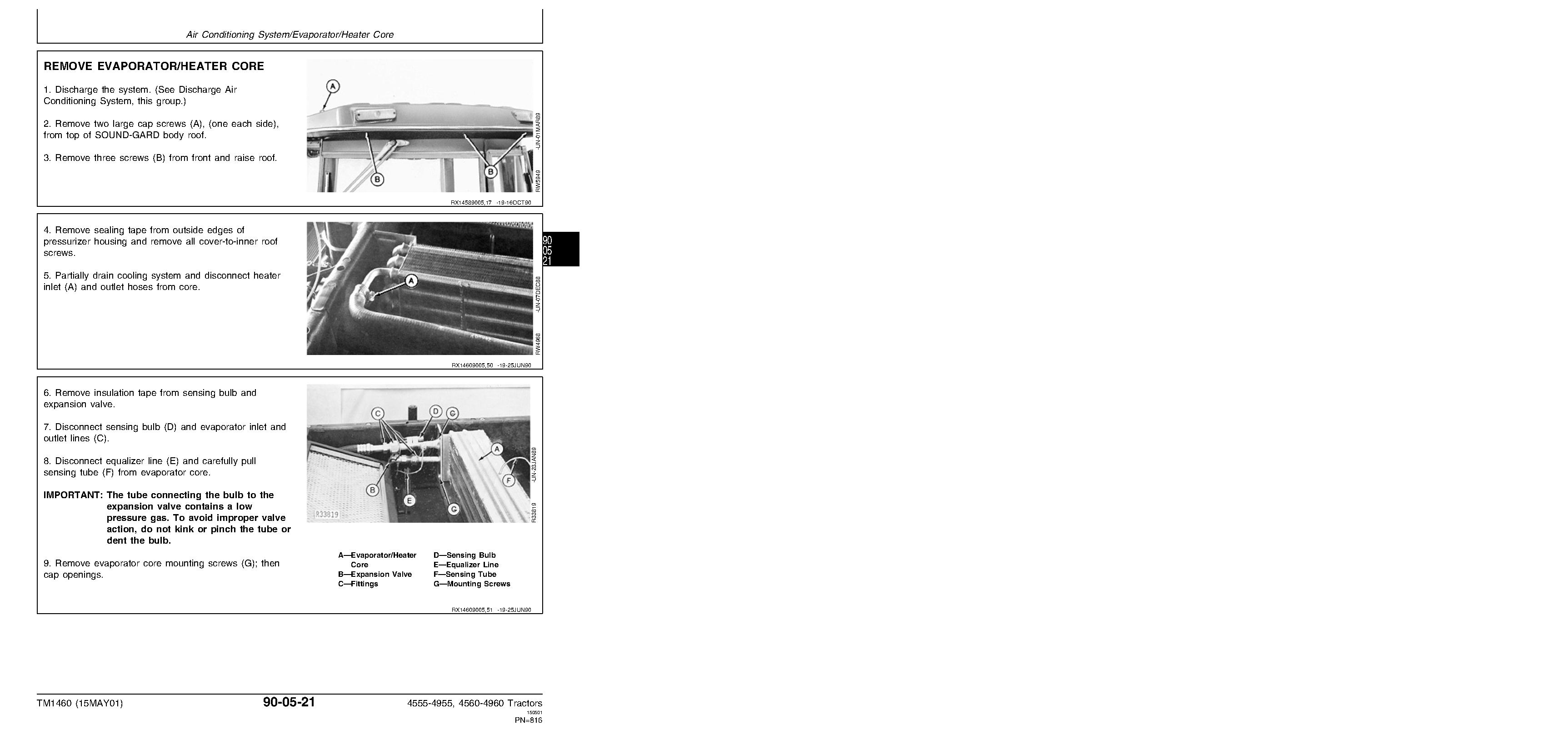

        Group 05-Air Conditioning System
        Group 10-Air Conditioning System Service
        Group 15-Heating System
        Group 20-Seat
        Group 25-ROPS and SOUND-GARD Body
    SECTION 99-DEALER FABRICATED TOOLS
        Group 05-Fabricated Tools
    Index
Document
Document type Repair Manual
Covered
Type of Truck 4xxx Series Tractors
Models 4555, 4560, 4755, 4760, 4955, 4960
