John Deere E100 E110 E120 E130 E140 E150 E160 E170 E180 Lawn Tractors Technical Manual (TM151119)

  • Brands: John Deere
  • Product Code: TM151119
  • Availability: In Stock

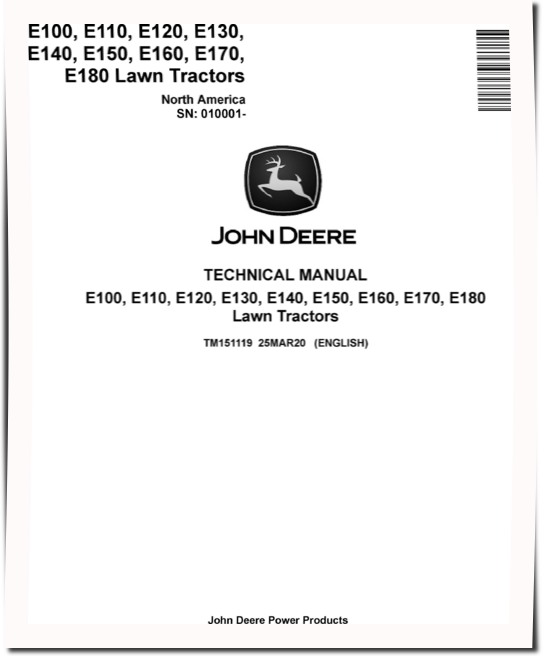

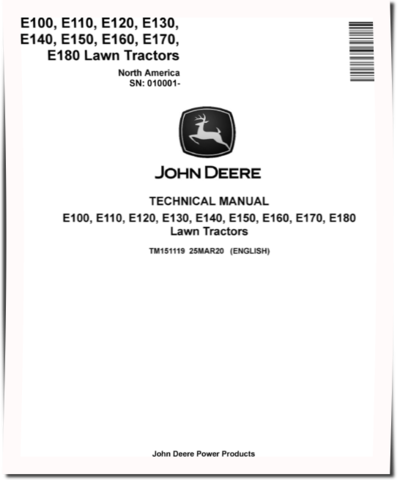

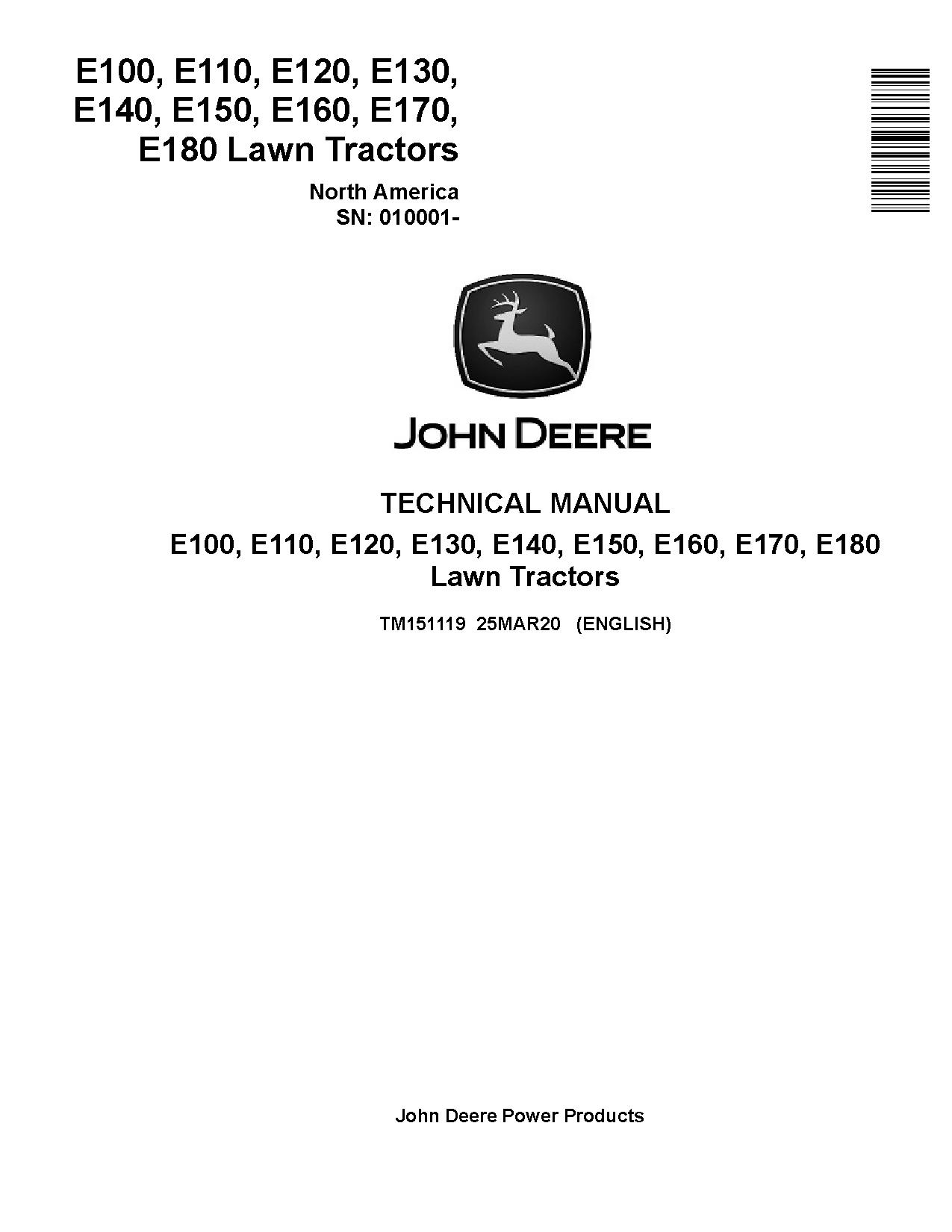

Illustrated Technical Manual for John Deere E100, E110, E120, E130, E140, E150, E160, E170, E180 Lawn Tractors

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, troubleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 458 pages

Covered models (S.N. from 010001):
   E100
   E110
   E120
   E130
   E140
   E150
   E160
   E170
   E180

Contents:


   Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications

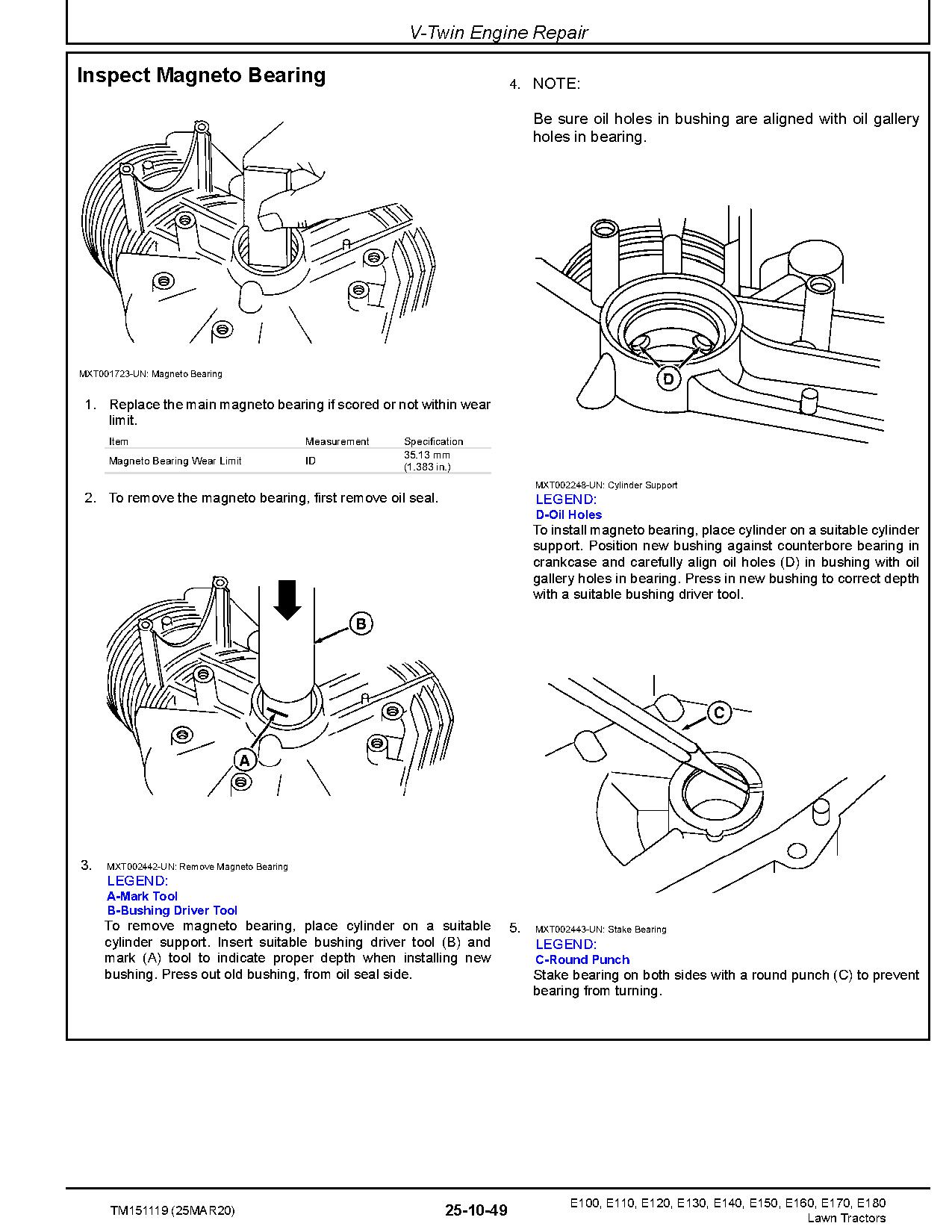

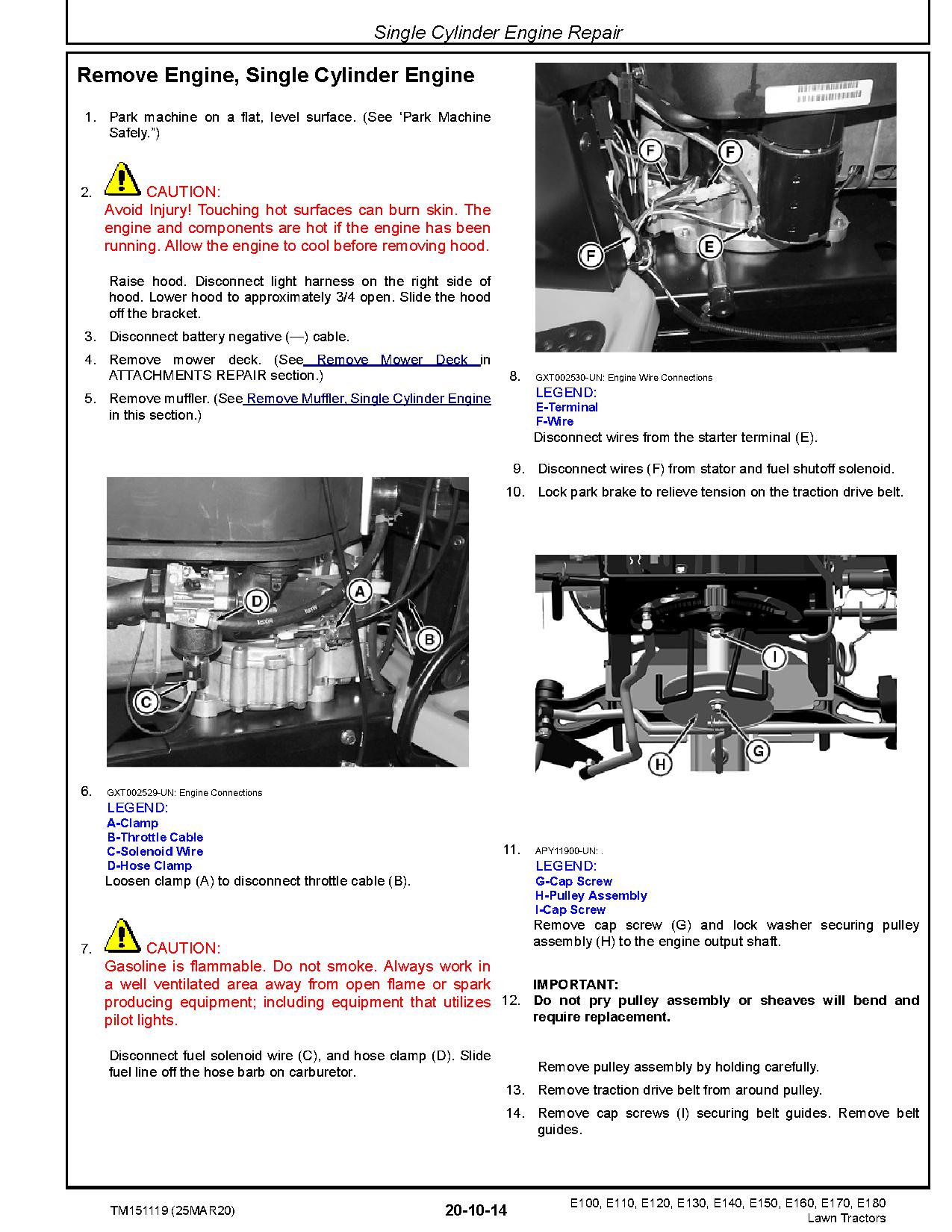

   Single Cylinder Engine Repair
      Single Cylinder Engine Repair
   V - Twin Engine Repair
      V - Twin Engine Repair
   Electrical Repair
      Component Location
      Wiring Harnesses
      Common Wiring Harnesses (All Model Years)
   Gear Power Train Repair
      Component Location
   Continuously Variable Transmission (CVT) Repair
      CVT Repair
   Hydrostatic Power Train Repair
      Component Location
      Hydrostatic Power Train Repair
   Steering and Brake Repair
      Steering Repair
      Brake Repair
   Attachments Repair
      Component Location
      Attachments Repair
   Miscellaneous Repair
      Miscellaneous Repair
   Single Cylinder Engine Operation, Tests, and Adjustments
      Diagnostics
      Tests and Adjustments
   V - Twin Engine Operation, Tests, and Adjustments
      Diagnostics
      Tests and Adjustments
   Electrical Operation, Tests, and Adjustments

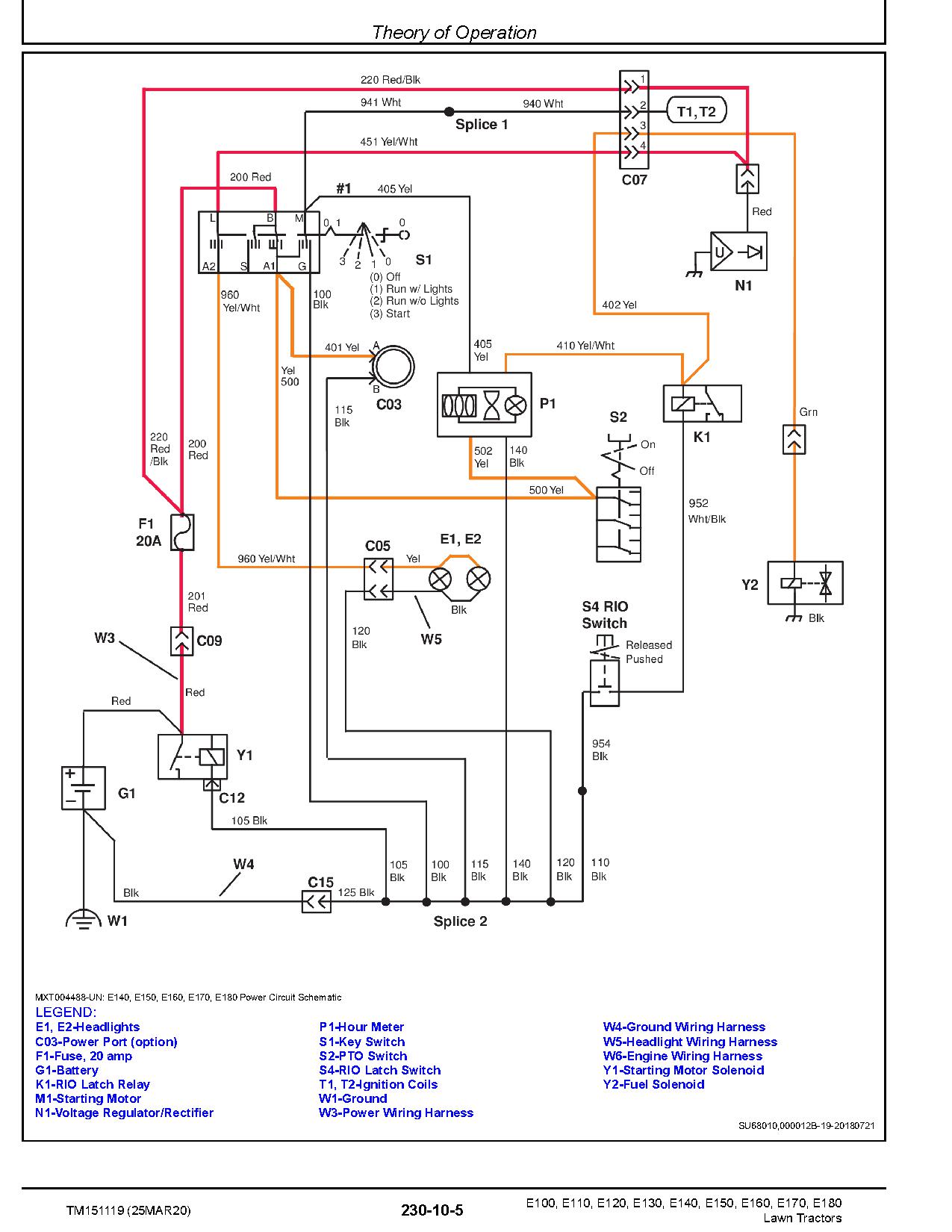

      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Schematics (Model Year - 2011)
      Schematics (Model Year 2012 - )
      Connector Information
   Gear Power Train Operation, Tests, and Adjustments
      Theory of Operation
      Diagnostics
      Tests and Adjustments
   Continuously Variable Transmission (CVT) Operation
      Component Location
      Theory of Operation
      Diagnostics
   Hydrostatic Power Train Operation, Tests, and Adjustments
      Theory of Operation
      Diagnostics
      Tests and Adjustments
   Steering and Brake Operation, Tests, and Adjustments
      Steering Component Location
      Steering Tests and Adjustments
      Brake Component Location
      Brake Tests and Adjustments
   Attachments Operation, Tests, and Adjustments
      Diagnostics
      Tests and Adjustments
   Service Tools and Kits
      Service Tools
Document
Document type All inclusive Manual
Covered
Type of Truck Lawn Tractor
Models E100, E110, E120, E130, E140, E150, E160, E170, E180
