TM2080 - John Deere 7720, 7820, 7920 Tractors Service Repair Technical Manual

  • Brands: John Deere
  • Product Code: TM2080
  • Availability: In Stock

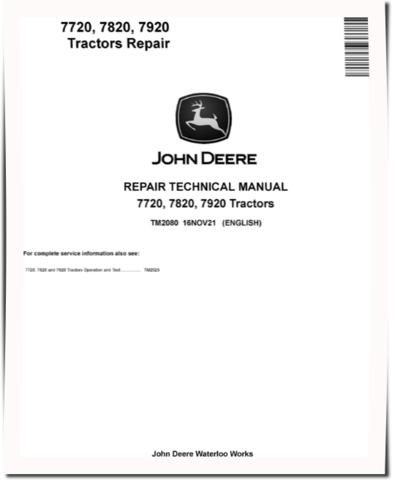

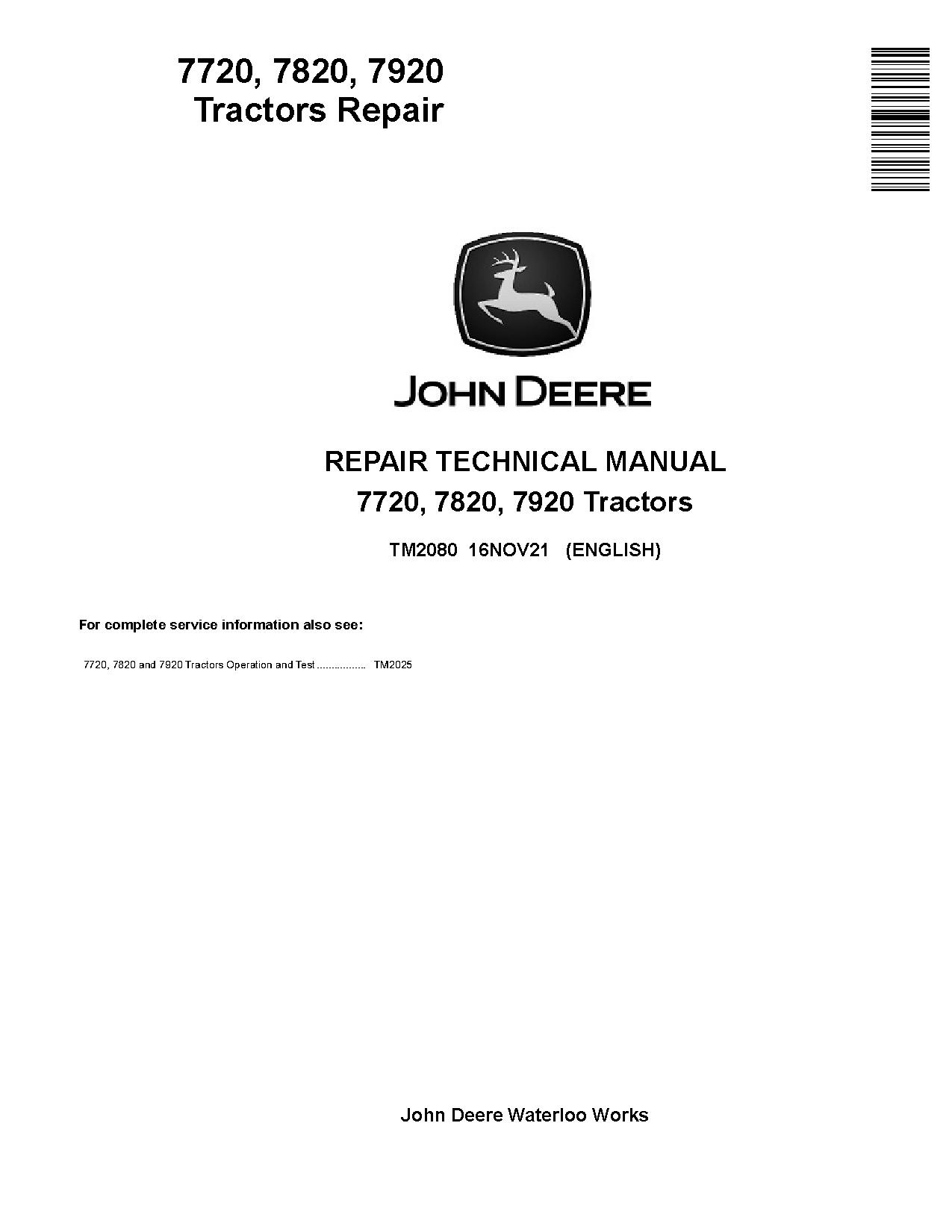

Illustrated Factory Service Repair Manual for John Deere 2WD or MFWD Tractors 7720, 7820, 7920

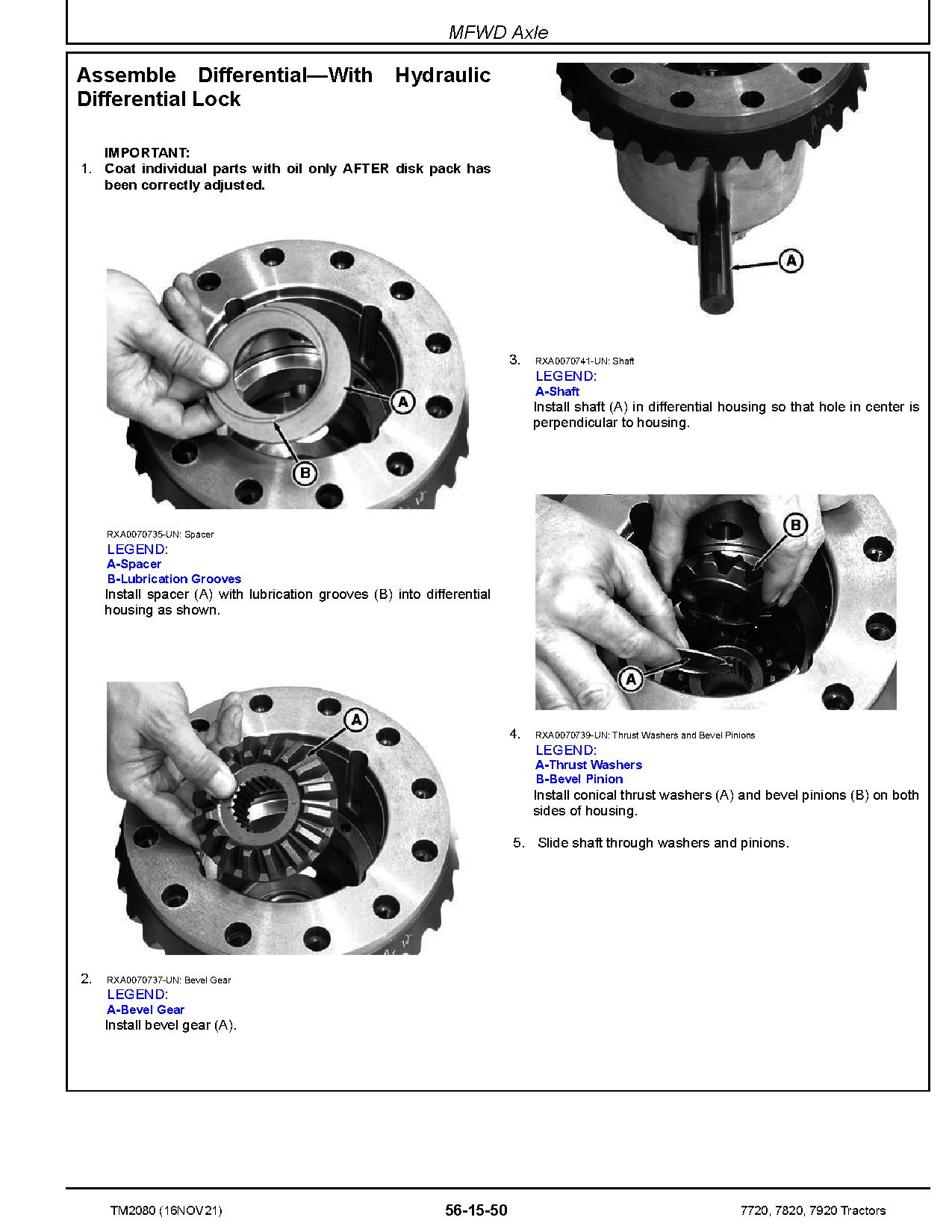

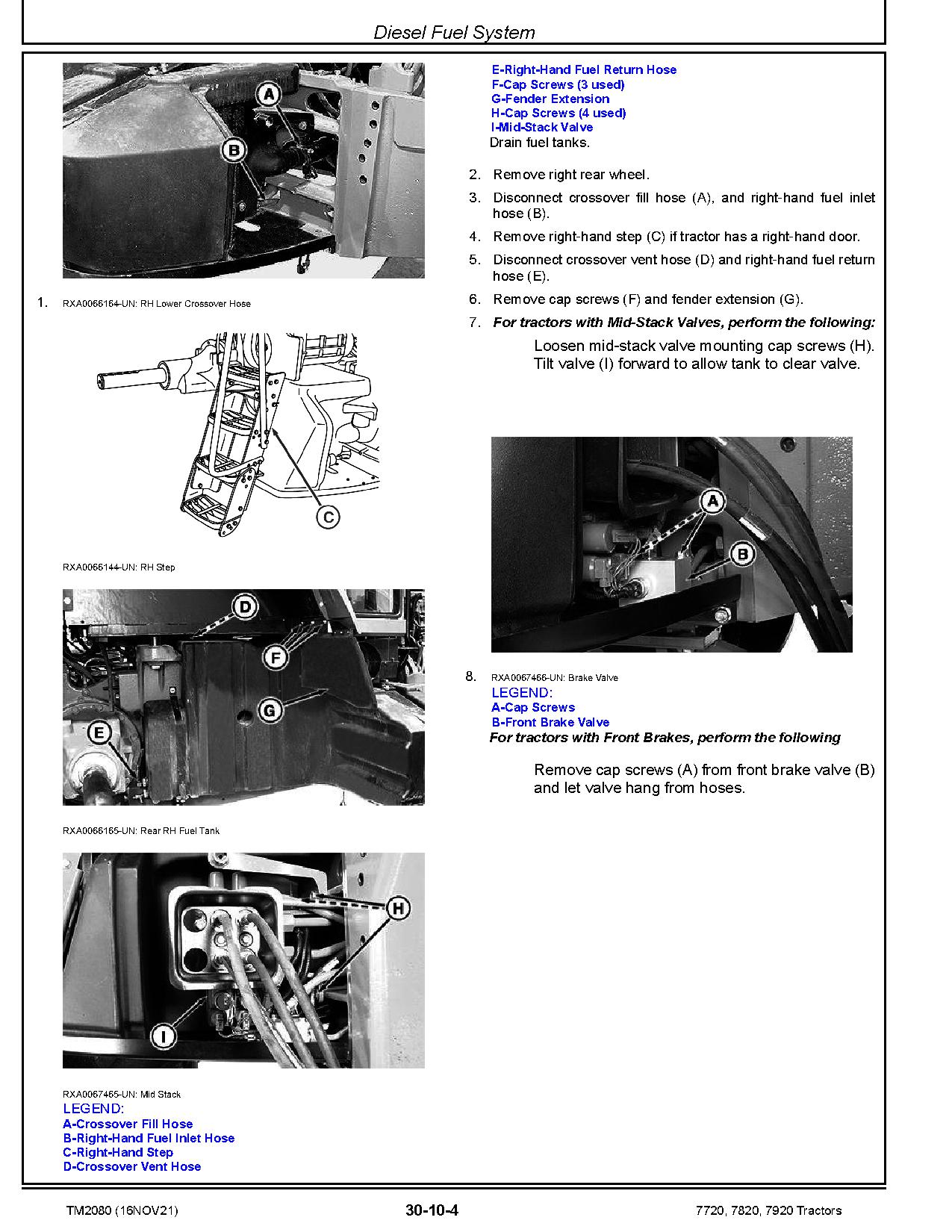

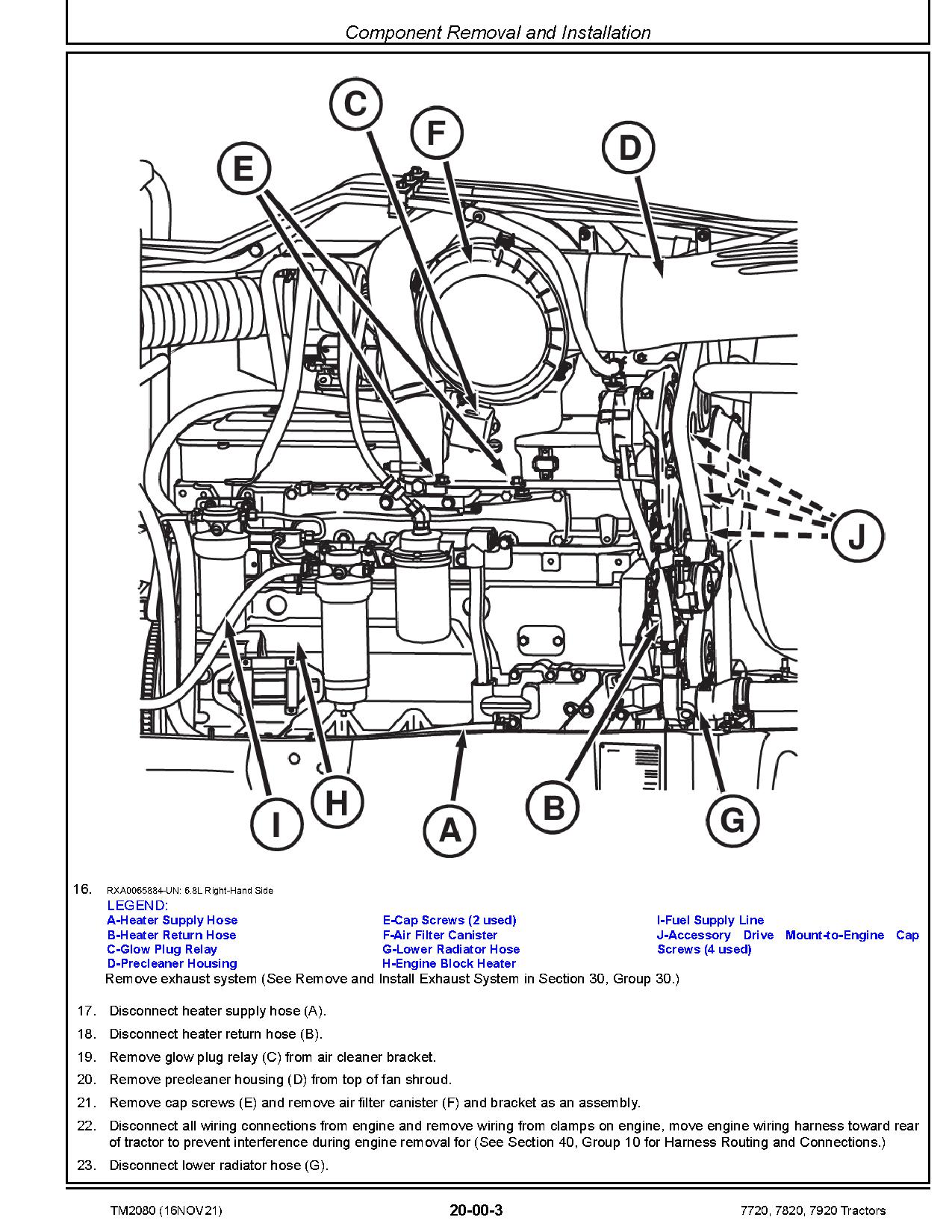

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 1402 pages

Covered models:
  7720
  7820
  7920


Contents:



Foreword
   Notice to Dealers
   Dealer Predelivery Information Form
   General Information
      Safety
      General Information
      General Specifications
   Engine
      Component Removal and Installation
      Engine Repair
   Fuel / Air Intake and Cooling Systems
      Controls
      Diesel Fuel System
      Air Intake System
      Engine Cooling System
      Standard Cooler and Air Conditioning Condenser
      Deluxe Cooler and Air Conditioning Condenser
      Exhaust System
   Electrical
      Connectors
      Wiring Harness Routings
      Charging Circuit
      Starting Circuit
      Solenoids and Switches
      Monitoring System
      Armrest Control
      Auxiliary Lighting and Electrical Components
      Convenience and Accessory Components
   PowrQuad-Plus Transmission
      Component Removal and Installation
      Transmission Shifting Mechanisms
      PowrQuad-Plus Module
      Range Box
   AutoPowr/IVT Transmission
      Component Removal
      Controls
      Front Pump/Control Valve Assembly
      Transmission Front Housing
      Hydrostatic Module
      Shift Valve Assembly
      Transmission Rear Housing
      Differential Input Assembly
   MFWD Drive Systems
      Component Removal And Installation
      Controls
      MFWD Clutch
      MFWD Axle
      Suspended MFWD Axle Components
   Drive Systems
      Component Removal And Installation
      Rear Differential
      Final Drive
      Rear PTO
      Front PTO Repairs
      Primary Brakes
   Steering and Brakes
      Steering Column
      Hydrostatic Steering
      Service Brakes
      Trailer Brakes
   Hydraulics
      Component Removal and Installation
      Hydraulic System Repair
      Hydraulic Pump And Charge Pump
      Hydraulic System Valves
      Selective Control Valves and Couplers
      Rear 3-Point Hitch
      Front 3-Point Hitch
      Bleed Hydraulic System
   Miscellaneous
      Hood
      Front Axle (Two-Wheel Drive)
      Steering Cylinders (Two-Wheel Drive)
      Rear Wheels
      Wagon And Pick-Up Hitch
   Operator Station
      Component Removal and Installation
      Heating, Ventilating, and Air Conditioning (HVAC)
      Air Conditioning System
      Air Suspension Seat
      ACTIVE SEAT™
      Armrest
      Cab Door and Windshield
   Dealer Fabricated Tools
      DFRW
Document
Document type Repair Manual
Covered
Type of Truck 7xxx Series Tractors
Models 7720, 7820, 7920
Tags: 7720, 7820, 7920
