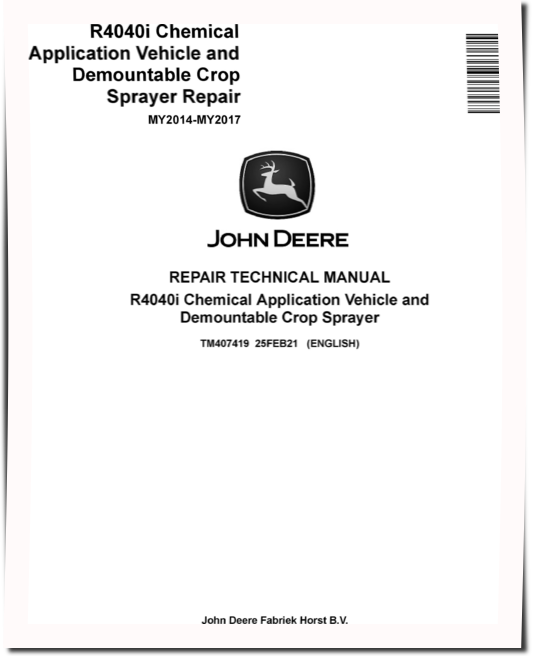

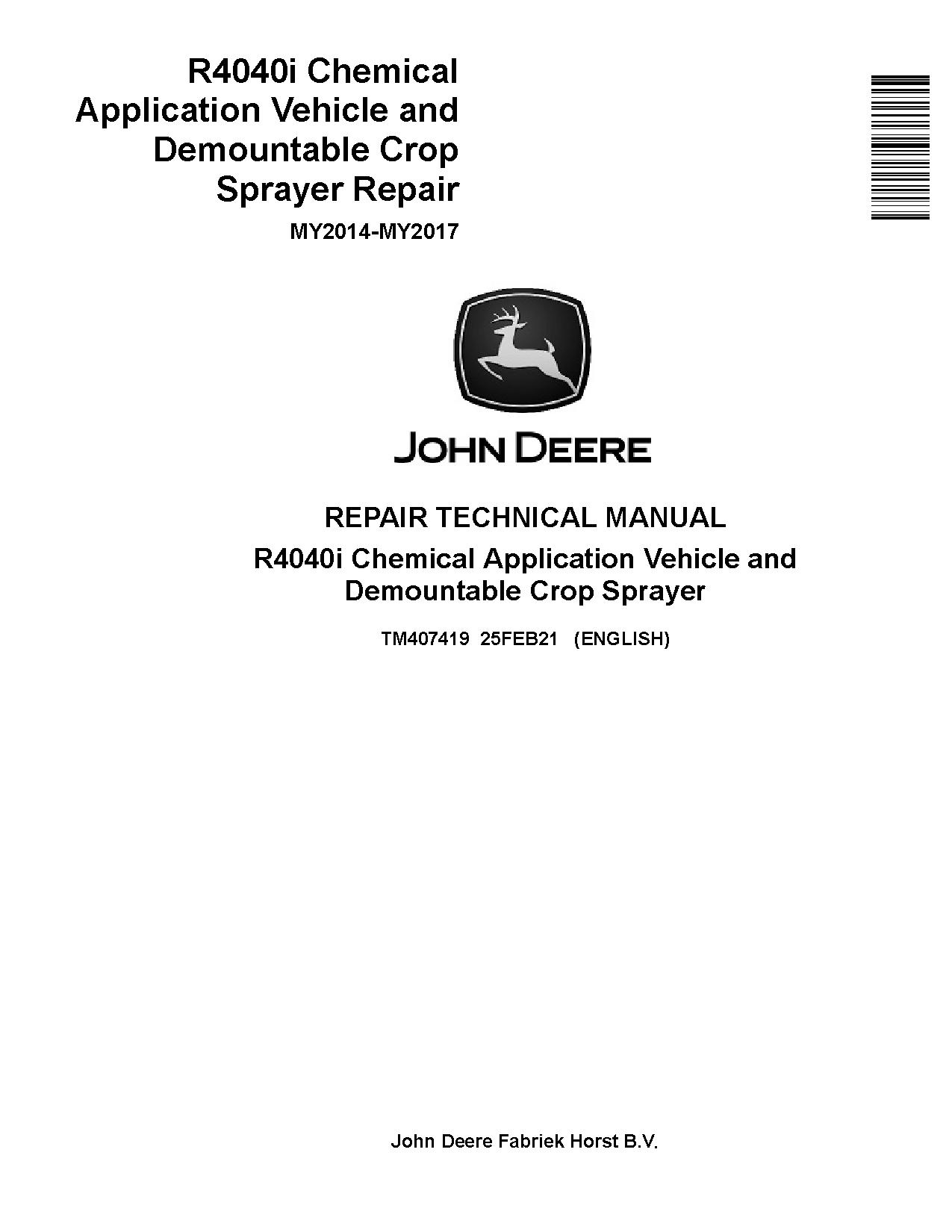

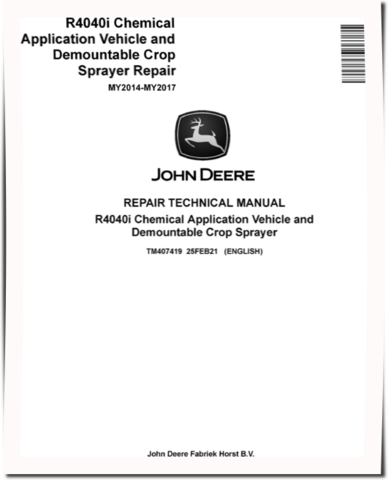

TM407419 - John Deere R4040i Demountable Self-Propelled Crop Sprayer Service Repair Technical Manual

  • Brands: John Deere
  • Product Code: TM407419
  • Availability: In Stock
Illustrated Factory Service Repair Technical Manual for John Deere Chemical Application Vehicle and Demountable Crop Self-Propelled Sprayers Models R4040i

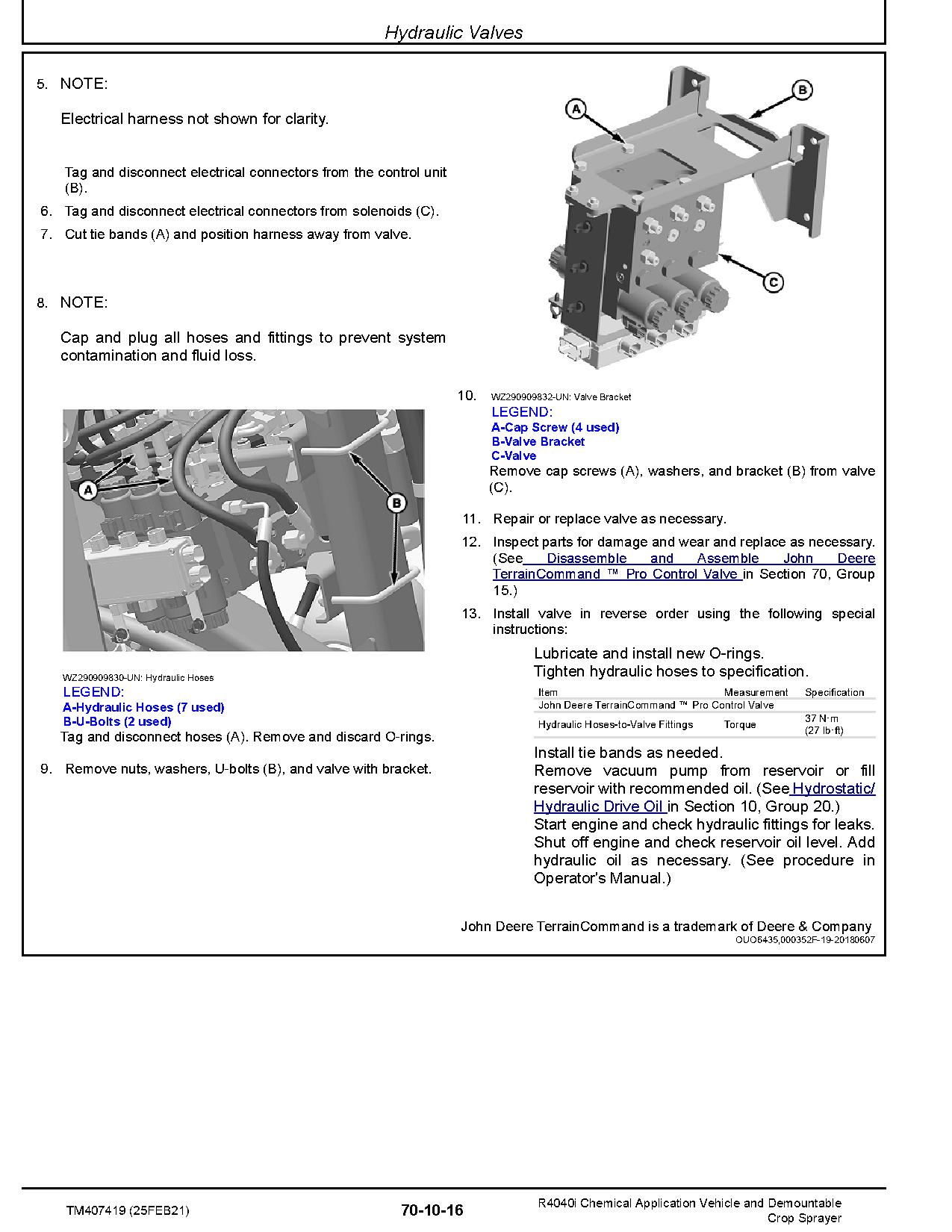

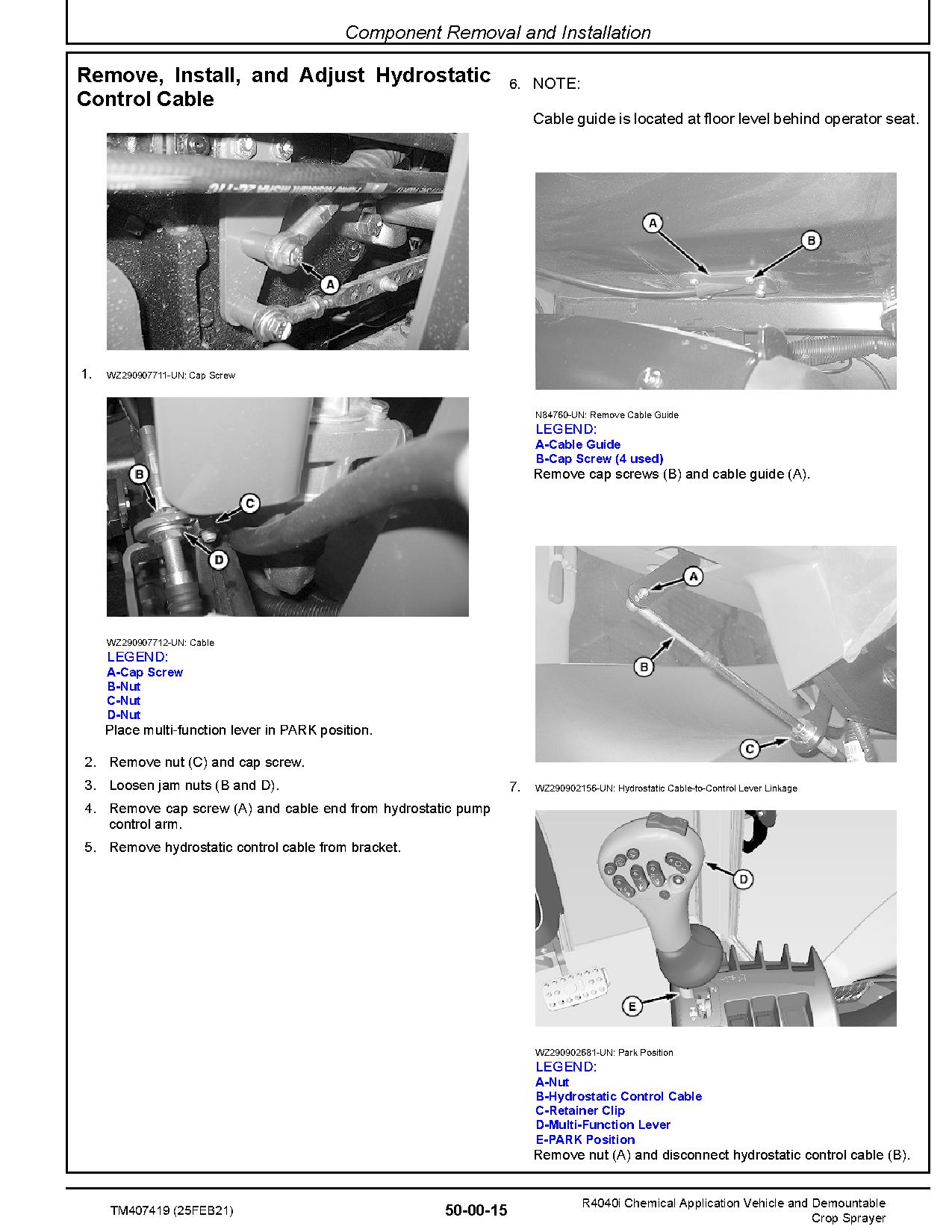

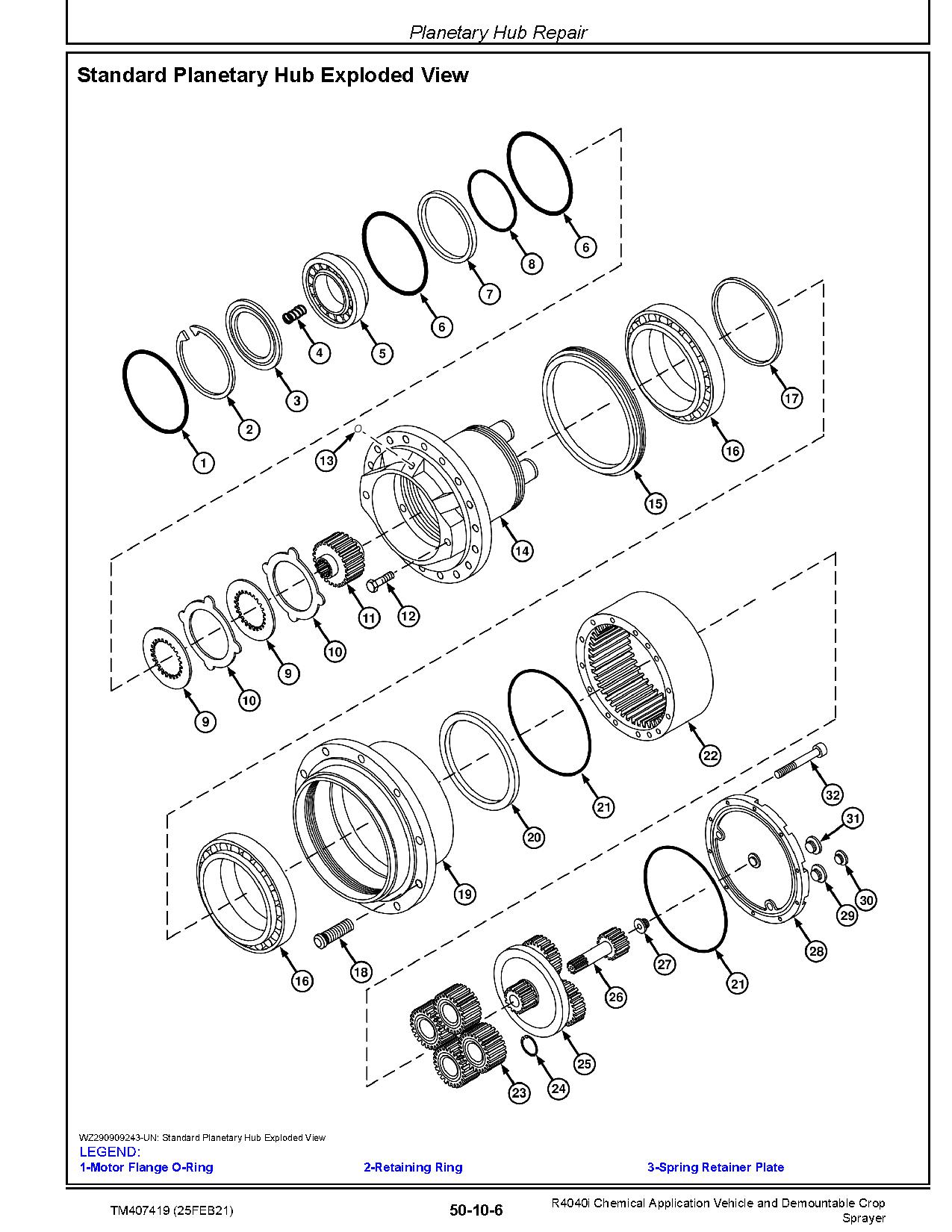

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 777 pages

Covered models:
  R4040i

Contents:


   Foreword
   General Information
      Safety
      Specifications
      Tune-Up and Adjustment
      Fuel and Lubricants
   Engine
      Remove and Install Components
   Fuel, Air Intake, and Cooling Systems
      Component Removal and Installation
      Diesel Fuel System
      Engine Cooling System
   Electrical System
      Battery
      Harness and Connector Repair
      Charging Circuit
      Starting Circuit
      Fuses and Relays
      Lighting
      Chassis Control System
      Engine Control System
      Spray Rate Control System
      Boom Control System
      Cab Components
      Wiring Harness Routings
   Power Train
      Component Removal and Installation
      Hydrostatic Drive Repair
   Steering and Brakes
      Component Removal and Installation
      Steering
      Service Brakes
   Suspension and Tread Adjust
      Component Removal and Installation
      Tread Adjust Valves
      Tread Adjust Cylinders
   Hydraulic System
      Component Removal and Installation
      Hydraulic Pump
      Hydraulic Valves
      Hydraulic Reservoir
   Solution Spray System
      Component Removal and Installation
      Solution Tank
      Solution Pump
      Spray Nozzles
      Solution Control Valves
      Eductor
      Fast Fill Pump
   Pneumatic System
      Component Removal and Installation
      Component Repair
   Operator`s Station
      Cab
      Controls
      Air Conditioning System
      Heating System
      Air Suspension Seat
      Cab Door and Windshield
   Boom Repair
      Boom Repair
   Dealer Fabricated Tools
      Dealer Fabricated Tools
Document
Document type Repair Manual
Covered
Type of Truck Sprayer
Models R4040I
Tags: R4040i
