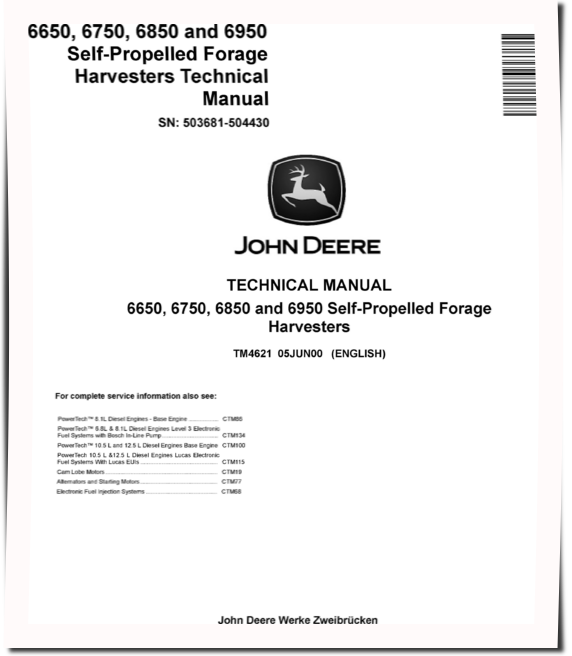

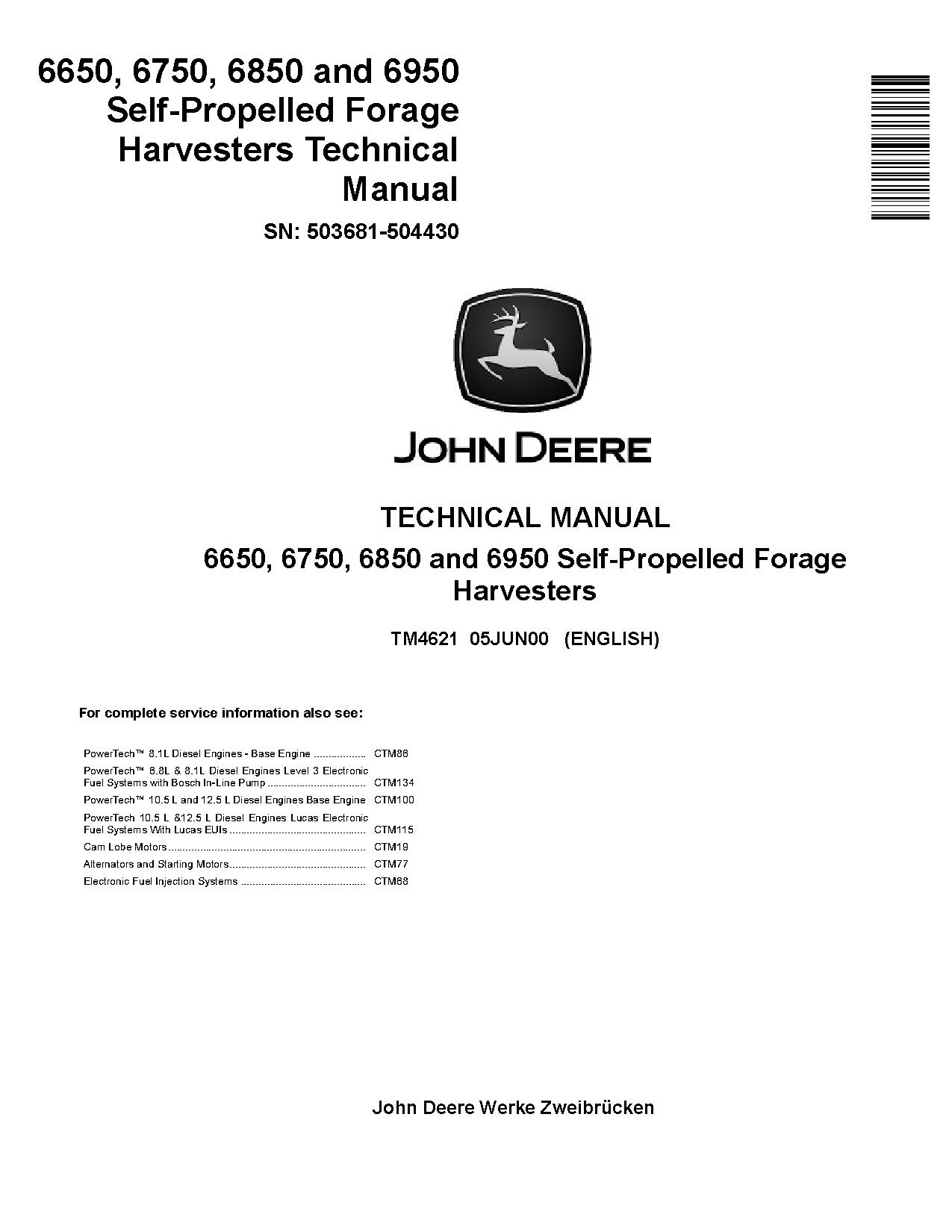

TM4621 - John Deere 6650, 6750, 6850, 6950 Forage Harvesters (SN.503681-504430) Diagnostic Service Manual

  • Brands: John Deere
  • Product Code: tm4621
  • Availability: In Stock
Illustrated Factory Diagnosis and Tests Service Manual for John Deere Self-Propelled Forage Harvesters Models 6650, 6750, 6850 and 6950

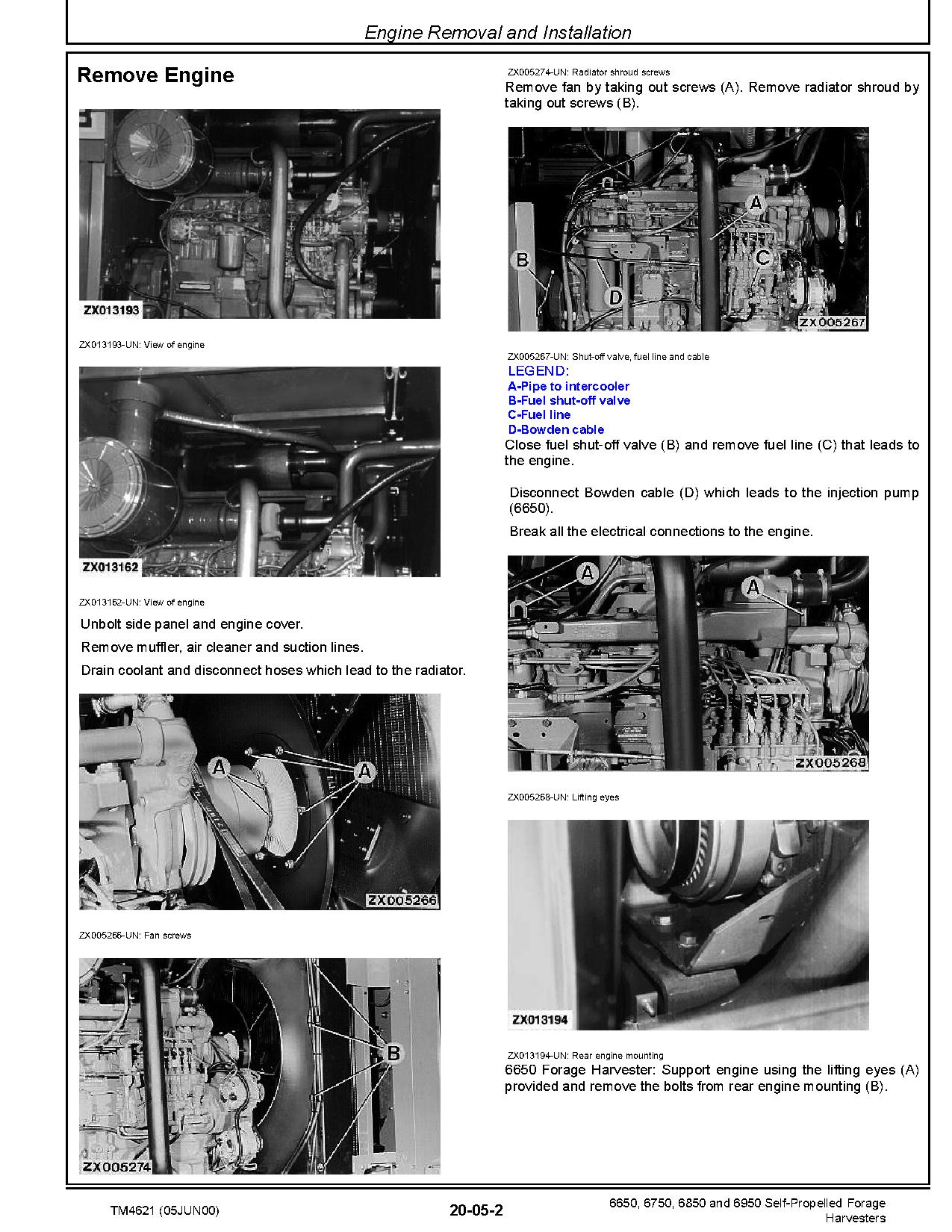

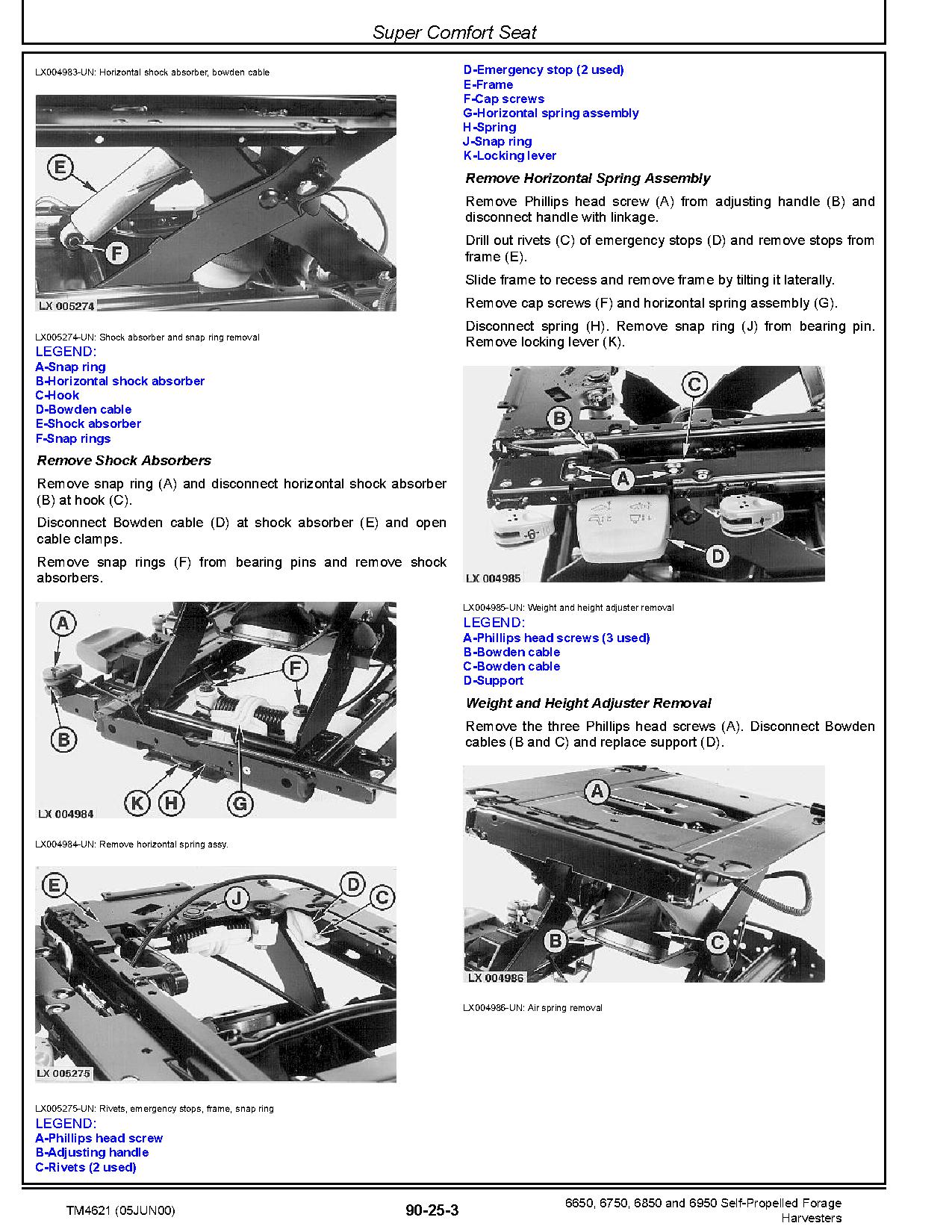

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

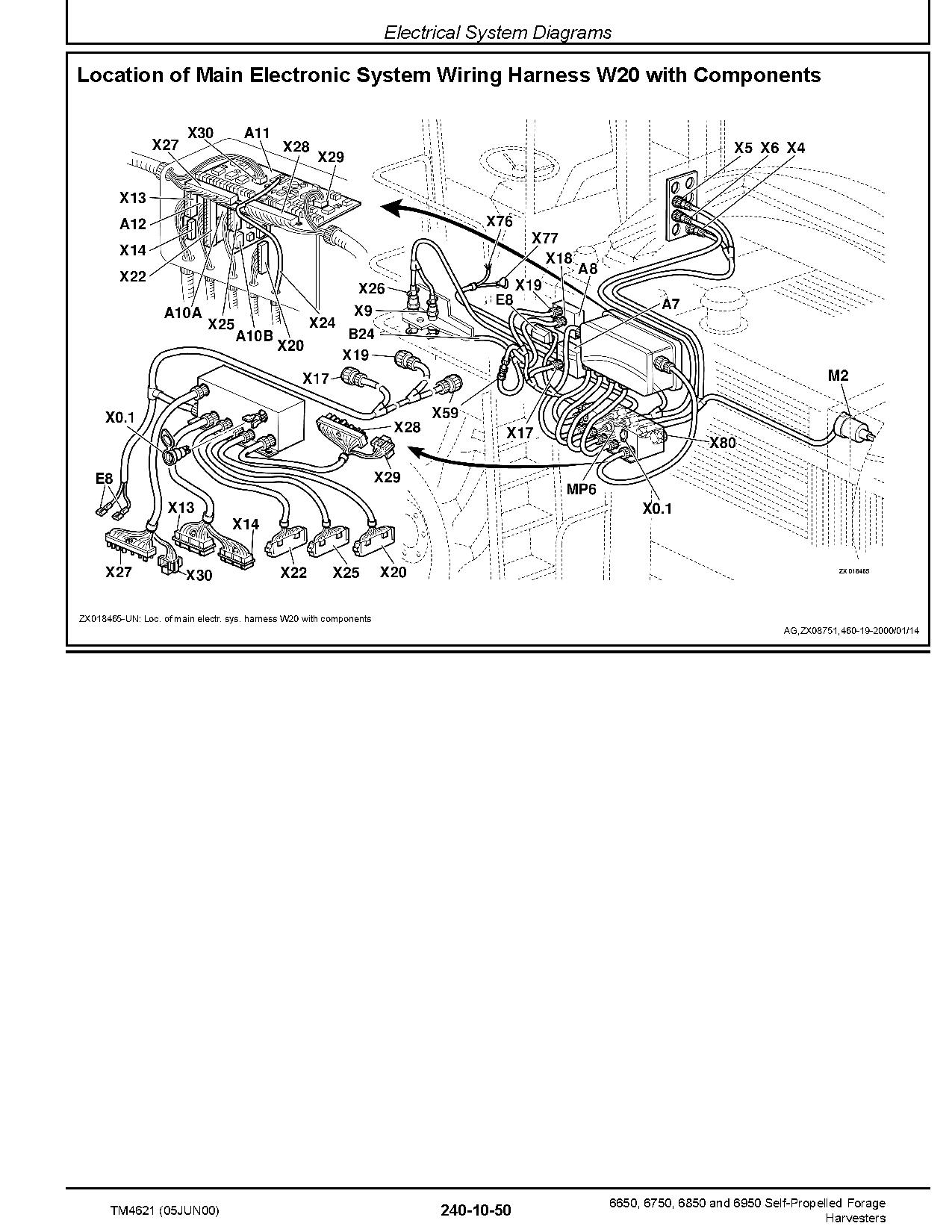

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 1068 pages

Covered models (SN. 503681-504430):
  6650
  6750
  6850
  6950

Contents:



   Engine
   Fuel, Air Intake and Cooling Systems
   Electrical System
   Power Train
      Main Drive Belt Replacement
      Bevel Gear Drive
      Transmission and Differential
      Final Drives
      Hydrostatic Drive, Variable Pump
      Hydrostatic Drive, Fixed-Displacement Motor
      Hydrostatic Drive, Oil Change
      Cam Lobe Motor
   Brakes, Steering and Rear Axle
   Hydraulic System
      Hydraulic Pressure Accumulator
      Triple Hydraulic Pump
      Electromagnetic Control Valve
      Reverser Motor
      Hydraulic Motor - Discharge Spout
   Miscellaneous
   Operator`s Cab, Air Conditioning System
      Control Levers
      Cab Ventilation
      Cab Window Replacement
      R134a Air Conditioning System
      Super Comfort Seat
   Harvesting Units
   Feeding System
      Length-of-Cut Transmission
      Reverser Clutch
      Electric Clutch
      Feed Roll Channel
      Feed Roll Assembly
      Locking Pawl
   Cutterhead Assembly
      Knife Sharpening Device
      Cutterhead
      Bottom and Outlet Bands
      Stationary Knife Removal and Installation
      Kernel Processor
      Power Chute
   Discharge Components
      Discharge Fan
      Blower Rotor and Rotor Bearings
      Discharge Spout
   General Information
      Drive Diagrams
      Ballast Charts
      Tread Widths
   Engine
   Fuel, Air Intake and Cooling Systems
   Electrical System
      Test Equipment
      Electrical System Diagrams
      Batteries, Starting Motor, Alternator
Safety Switches, Basic Relays
      Engine Shut-Off Device
      Gauges
      Electronic INFO-TRAK Monitor
      Turn Discharge Spout
      Raise/Lower Discharge Spout
      Horizontal Reel Adjustment
      Raise Reel
      Reel Speed Adjustment
      676 Rotary Harvesting Unit (North America)
      Attach Trailer
      Header Raise/Lower
      Pressure Valves, Trailer Dump
      Main Clutch, Reverser
      Four-Wheel Drive
      Lights
      Work Lights
      Stop Lights, Horn
      Beacon Lights
      Fan, Air Conditioning System
      Windshield Wiper/Washer System
      Radio, Interior Lighting
      Rotary Radiator Screen, Reverse Travel Alarm
      Cigarette Lighter, Seat Compressor
      Spout Rinsing System
      Discharge Spout Flap Adjustment
      Main Electronic System
      Metal Detector
      Electronic Control Unit
      ROW-TRAK System
      POWR-SAVR POWR-SAVR is a trademark of Deere & Company
      676 Rotary Harvesting Unit (North America)
   Power Train
   Brakes, Steering, Rear Axle
      Brake Operation
      Drum Brake
      ROW-TRAK System
      ROW-TRAK Steering Function
      ROW-TRAK Calibration
   Hydraulic System
      Electromagnetic Control Valve
      Hydraulic System Tests
      Header Float System
   Operator`s Cab
Document
Document type Diagnostic Manual
Covered
Type of Truck Forage Harvester
Models 6650, 6750, 6850, 6950
Tags: 6650, 6750, 6850, 6950
