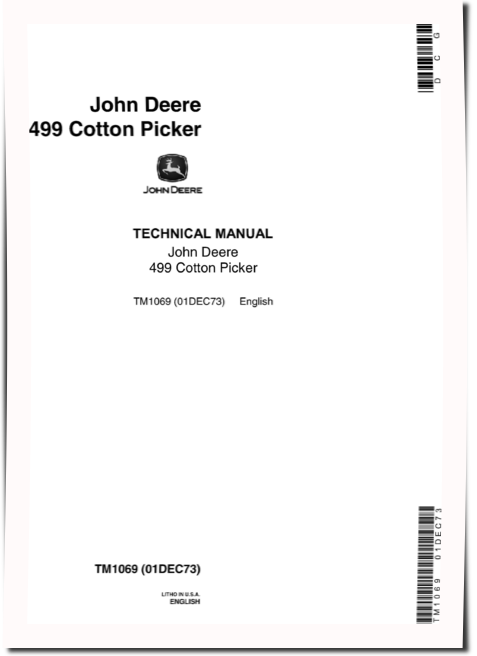

John Deere 499 Cotton Pickers Technical Manual (TM1069)

Illustrated factory Technical Manual for John Deere Cotton Pickers Models 499.

This manual will assist you in diagnosing, and repairing for your cotton picker.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   499

Format: PDF, 424 pages
Language: English
Publication Date: 01 Dec 1973
Table of Contents:
   General
      Specifications
      Tune-Up and Adjustment
      Lubrication
   Engine
      General Information, Diagnosis, and Removal

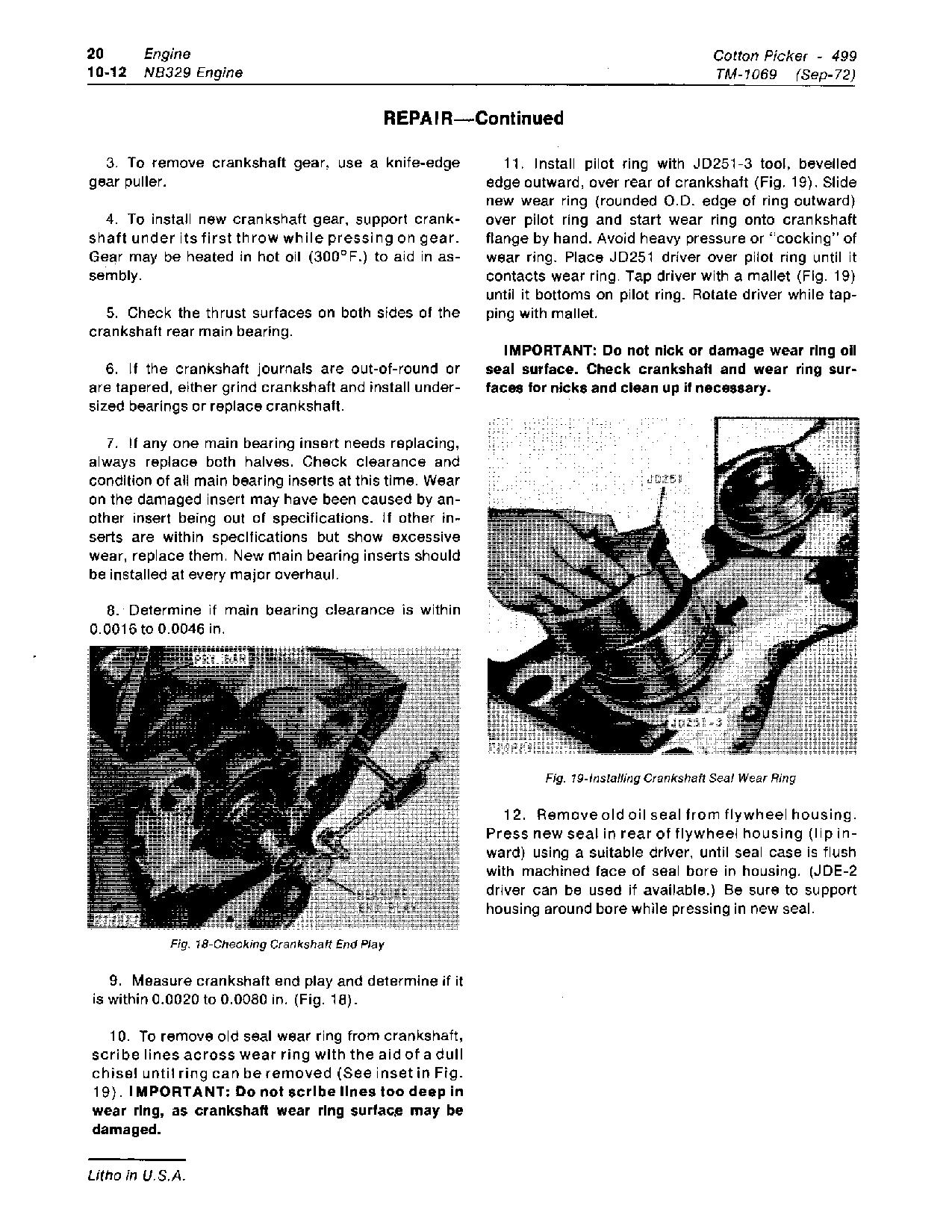

      NB329 Engine
      NA219 Engine
      NB217 Engine
      Specifications, Special Tools, and Torques
   Fuel Systems
      Diagnosing Malfunctions
      Diesel Fuel System
      Gasoline and LP-Gas Fuel Systems
      Specifications, Special Tools, and Torques
   Electrical System
      General Information and Wiring Diagrams
      Charging Circuit
      Starting Circuit
      Ignition Circuit
      Specifications, Special Tools, and Torques
   Power Train
      Clutch and Main Drive Shaft
      Transmission
      Differential
      Auxiliary Gear Housing

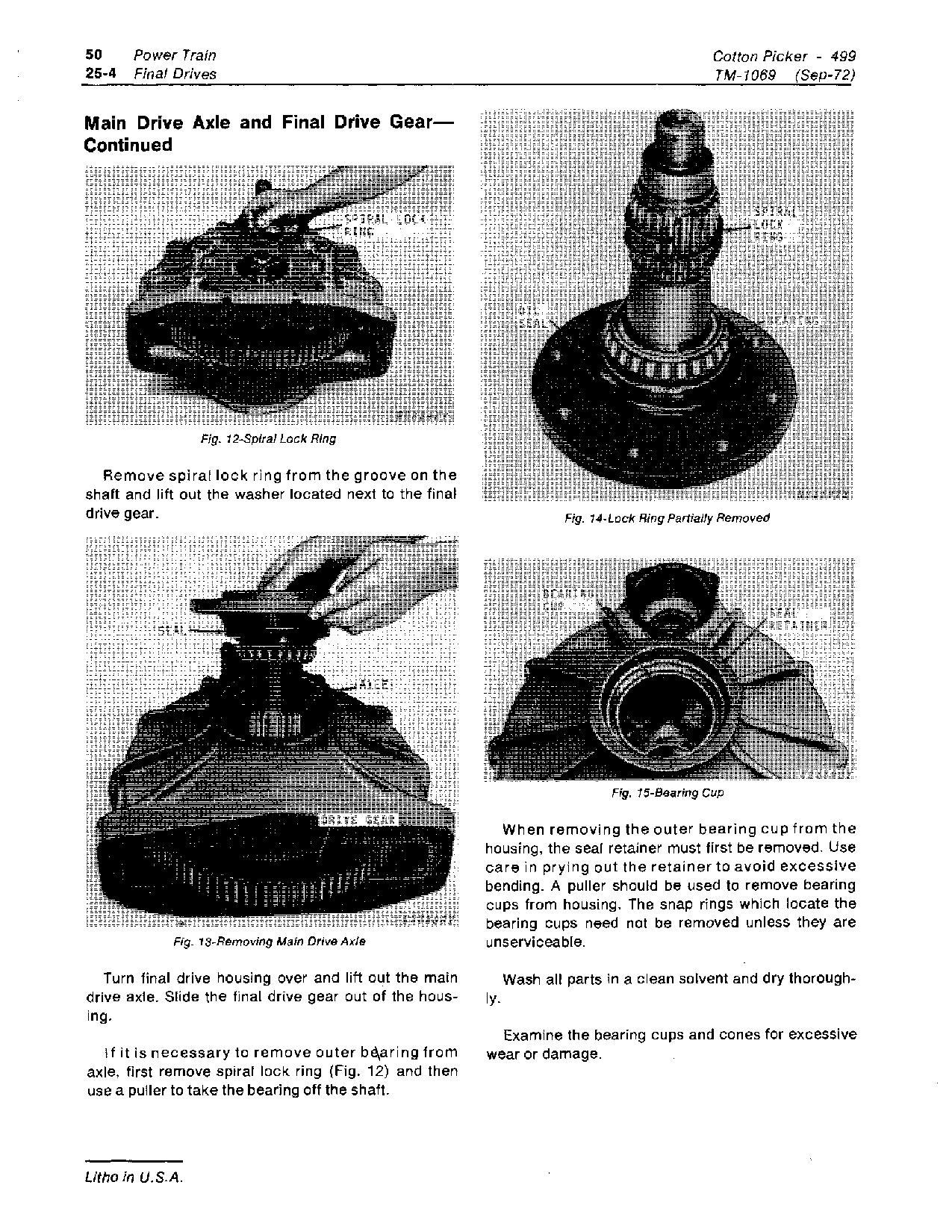

      Final Drives
      Specifications, Special Tools, and Torques
   Steering and Brakes
      Steering
      Brakes
   Hydraulic System
      General Information, Diagnosis, and Tests
      Hydraulic Pump
      Hydraulic Valve

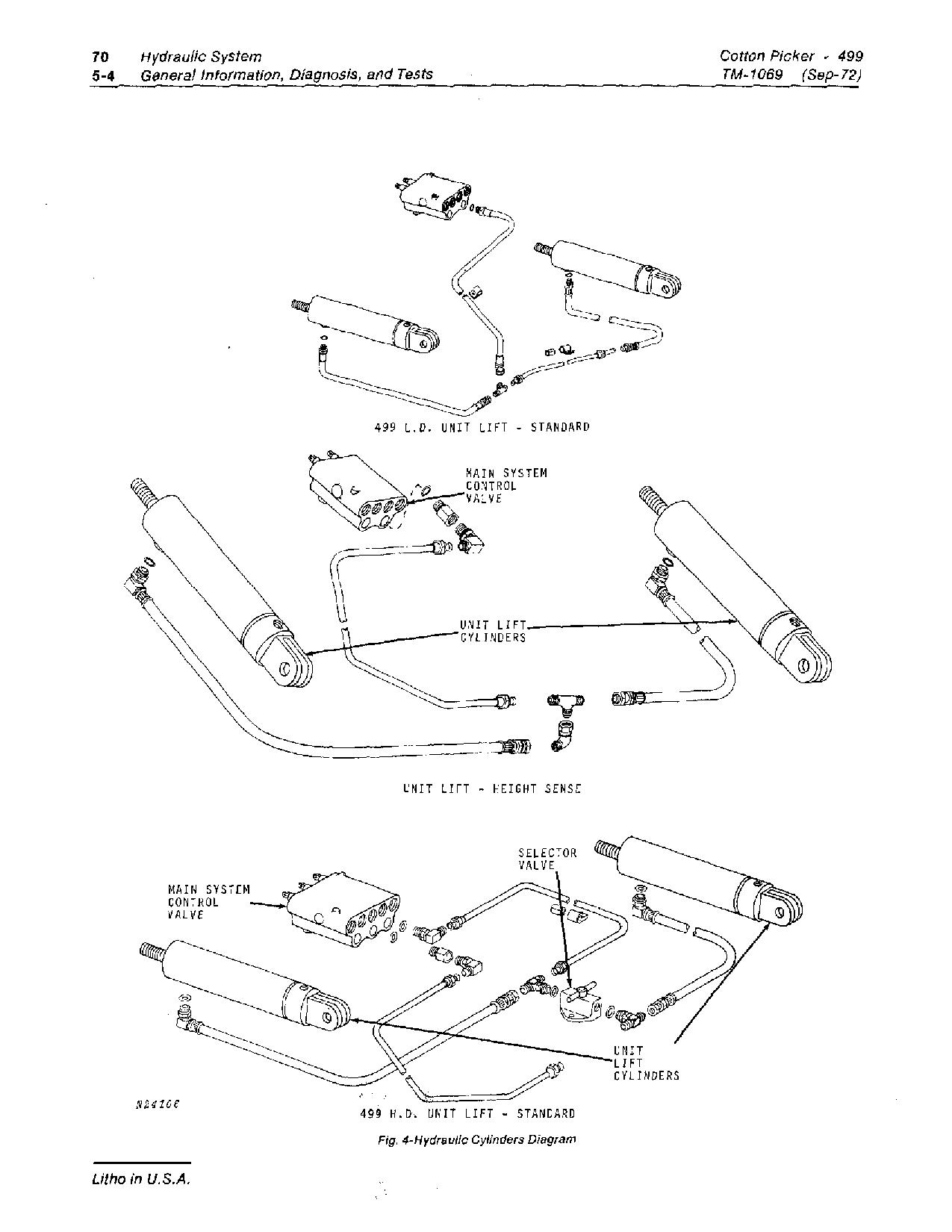

      Hydraulic Cylinders
      Steering
      Automatic Height Control
      Specifications, Special Tools, and Torques
   Picking Units, Water System, and Air System
      Picking Units
      Air System
      Precision Moistener System
      Specifications, Special Tools, and Torques
   Operator's Cab
      Pressurizer System
      Air Conditioning System
      Heating System
      Specifications, Torque and Special Tools

Covered
Models	499
