TM1161 - John Deere 250D, 300D Articulated Dump Truck (SN.609166-626760) Service Repair Manual
- Brands: John Deere
- Product Code: TM1161
- Availability: In Stock

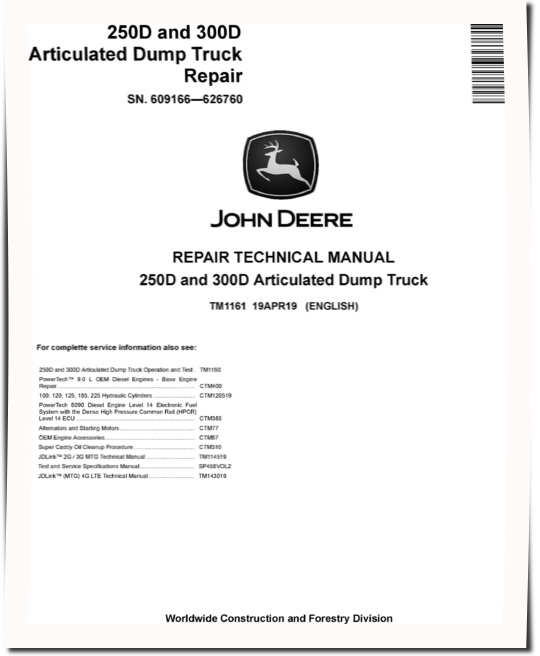

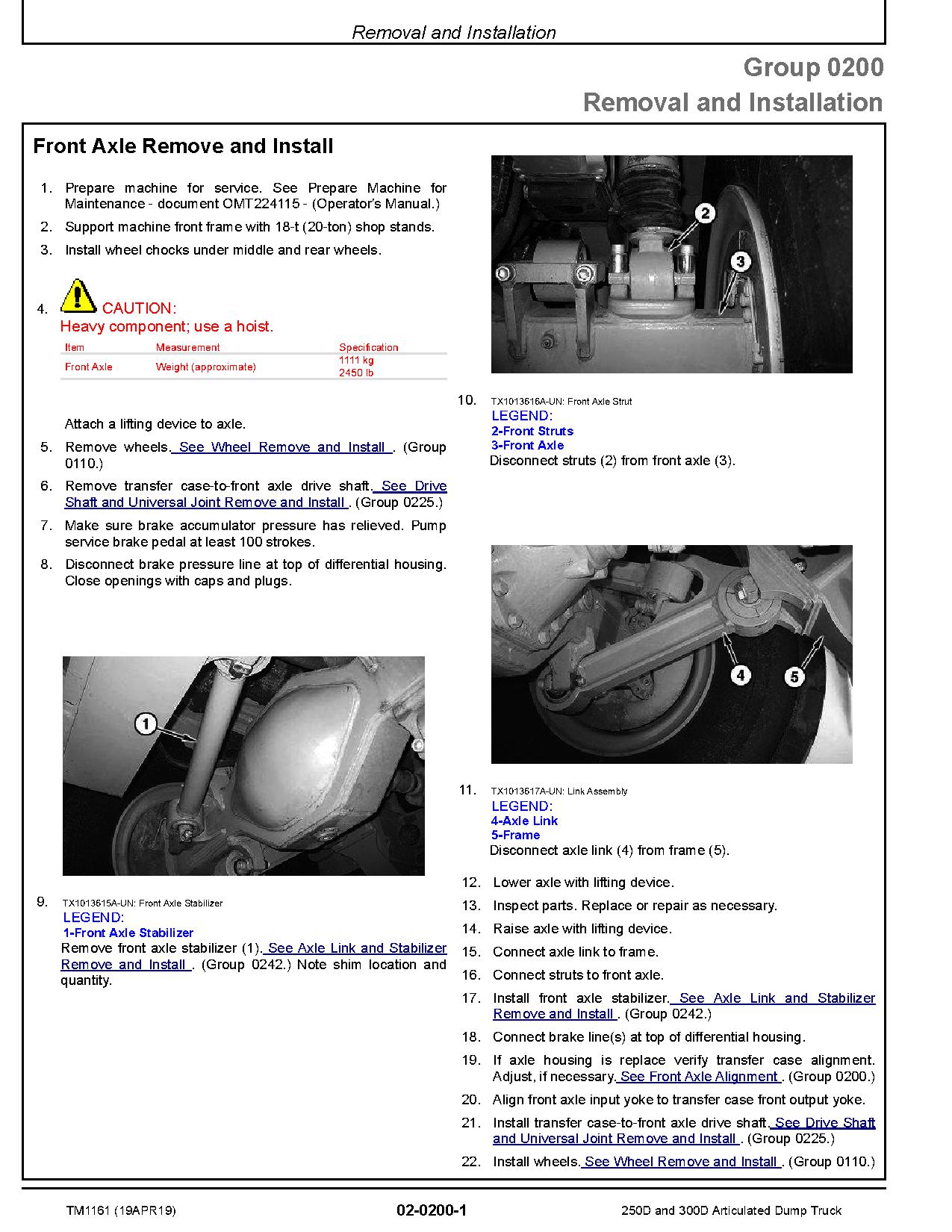

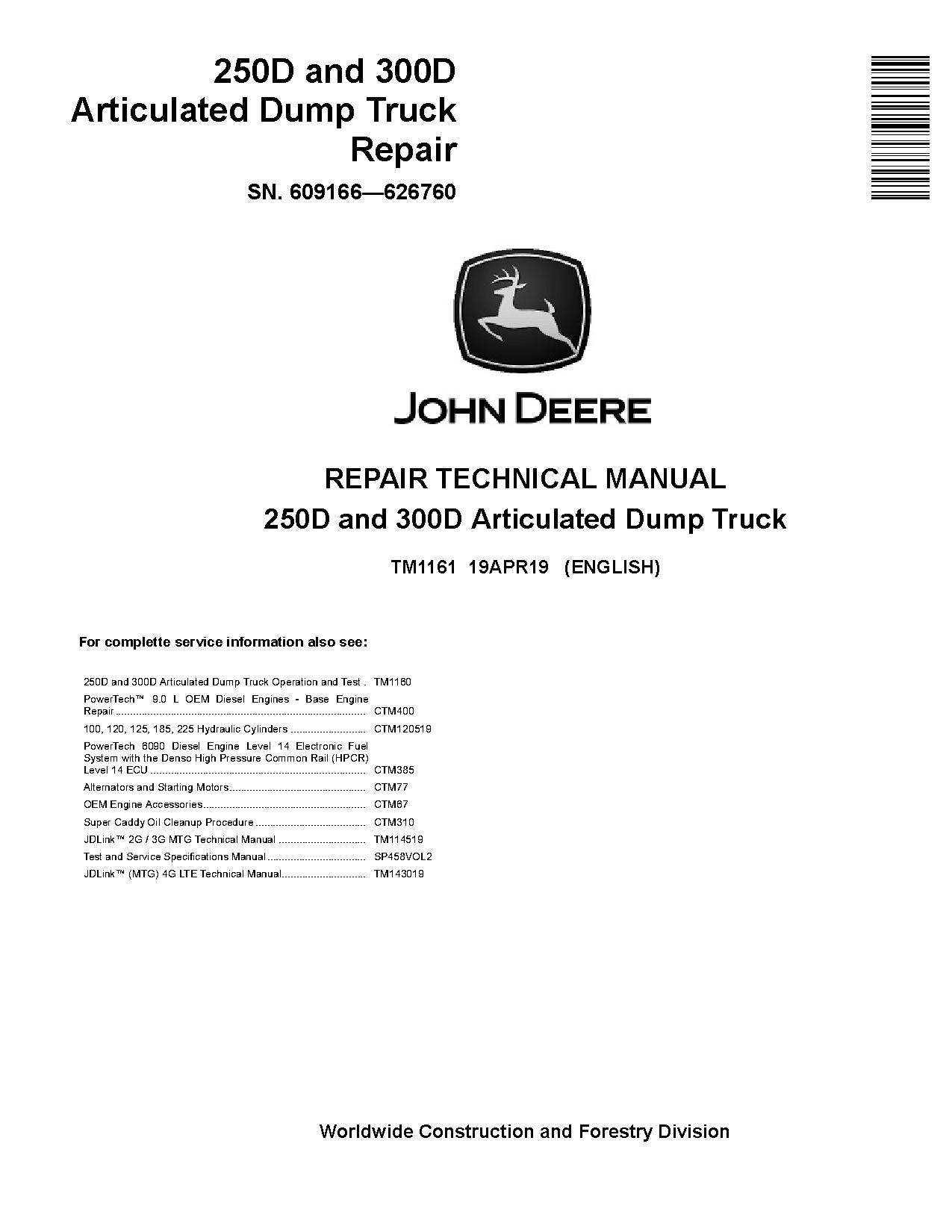

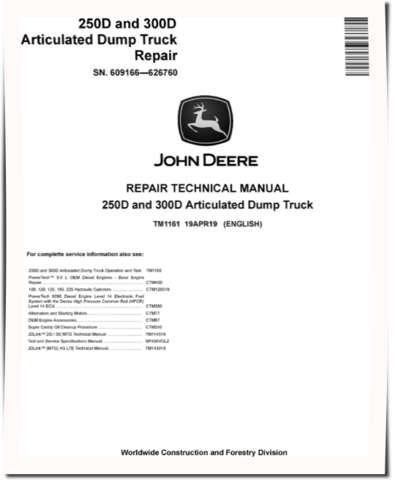

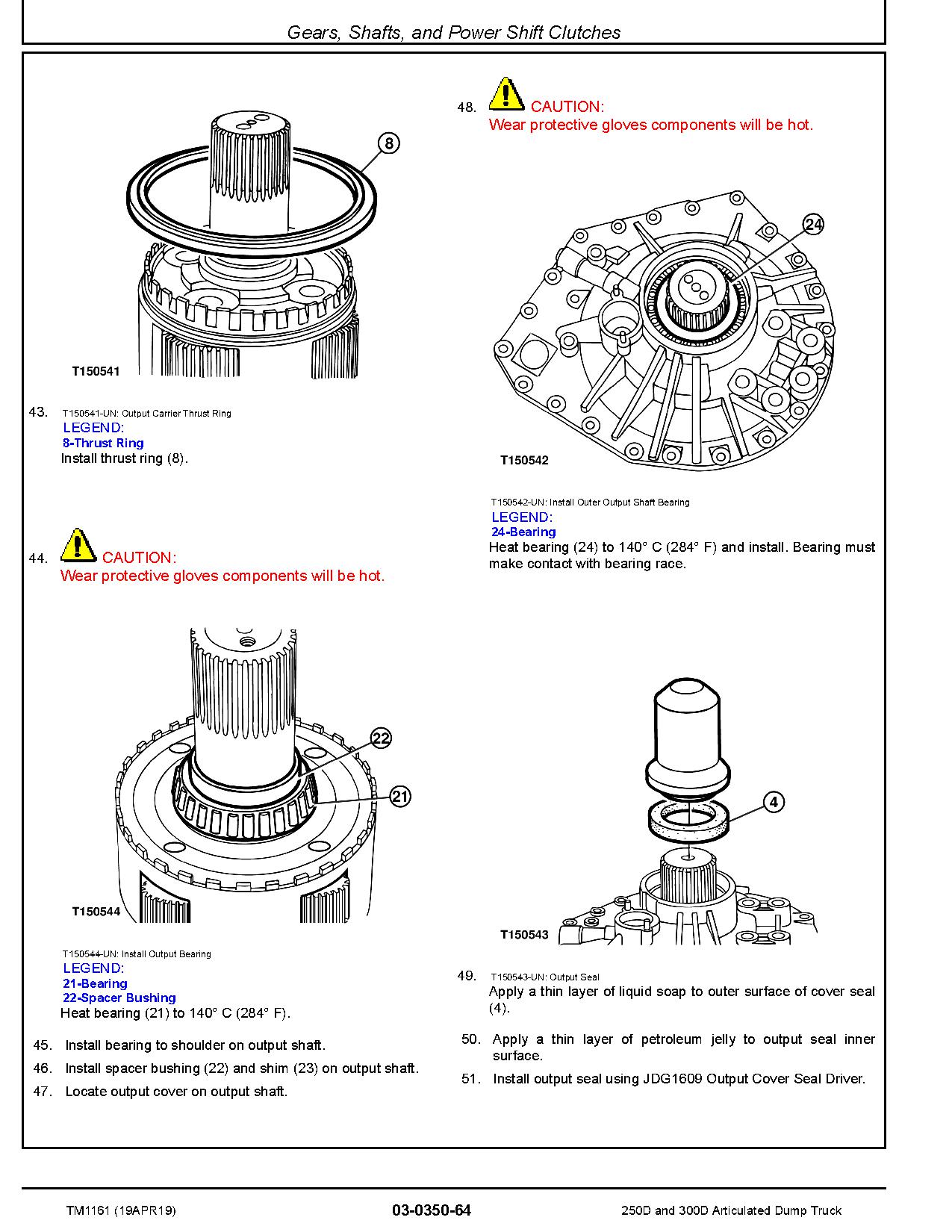

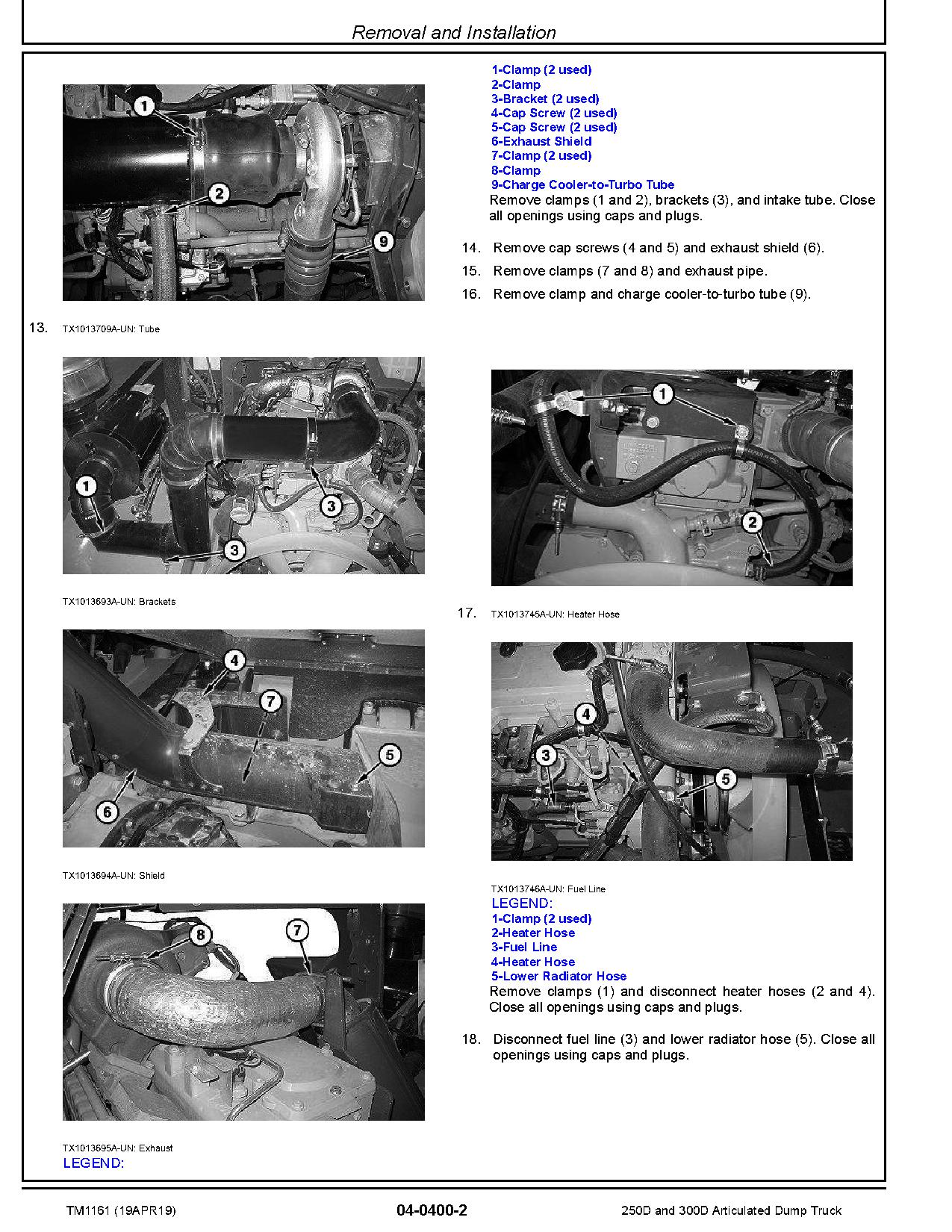

Illustrated Factory Service Repair Technical Manual for John Deere Articulated Dump Trucks Models 250D and 300D
This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.
Language: English
Format: PDF, 695 pages
Covered models:
250D (SN. 609166-626760)
300D (SN. 609166-626760)
Contents:
Foreword
Technical Information Feedback Form
General Information
Safety
Wheels
Powered Wheels and Fastenings
Axles and Suspension Systems
Removal and Installation
Differential or Bevel Drive
Input Drive Shafts and U-Joints
Axle Mounting Parts
Axle Shaft, Bearings, and Reduction Gears
Transmission
Removal and Installation
Input Drive Shafts and U-Joints
Gears, Shafts, and Power Shift Clutches
Hydraulic System
Engine
Removal and Installation
Engine Auxiliary System
Cooling System
Intake System
External Exhaust Systems
Engine Mounting
External Fuel Supply Systems
Connector Drive (Flexplate)
Elements
Transfer Drive
Removal and Installation
Gear Shafts and Bearings
Steering System
Secondary Steering
Hydraulic System
Service Brakes
Active Elements
Service Brake Hydraulic System
Park Brake
Active Elements
Frame and Supporting Structure
Frame Installation
Operator`s Station
Operator Enclosure
Seat and Seat Belt
Heating and Air Conditioning
Sheet Metal and Styling
Hood or Engine Enclosure
Main Hydraulic System
Hydraulic System
Pneumatic Systems
Pumps and Drives
Control Valves
Reservoir, Filter, and Trap
Haulage Device
Frames
Hydraulic System
Dealer Fabricated Tools
Dealer Fabricated Tools
This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.
Language: English
Format: PDF, 695 pages
Covered models:
250D (SN. 609166-626760)
300D (SN. 609166-626760)
Contents:
Foreword
Technical Information Feedback Form
General Information
Safety
Wheels
Powered Wheels and Fastenings
Axles and Suspension Systems
Removal and Installation
Differential or Bevel Drive
Input Drive Shafts and U-Joints
Axle Mounting Parts
Axle Shaft, Bearings, and Reduction Gears
Transmission
Removal and Installation
Input Drive Shafts and U-Joints
Gears, Shafts, and Power Shift Clutches
Hydraulic System
Engine
Removal and Installation
Engine Auxiliary System
Cooling System
Intake System
External Exhaust Systems
Engine Mounting
External Fuel Supply Systems
Connector Drive (Flexplate)
Elements
Transfer Drive
Removal and Installation
Gear Shafts and Bearings
Steering System
Secondary Steering
Hydraulic System
Service Brakes
Active Elements
Service Brake Hydraulic System
Park Brake
Active Elements
Frame and Supporting Structure
Frame Installation
Operator`s Station
Operator Enclosure
Seat and Seat Belt
Heating and Air Conditioning
Sheet Metal and Styling
Hood or Engine Enclosure
Main Hydraulic System
Hydraulic System
Pneumatic Systems
Pumps and Drives
Control Valves
Reservoir, Filter, and Trap
Haulage Device
Frames
Hydraulic System
Dealer Fabricated Tools
Dealer Fabricated Tools
| Document | |
| Document type | Repair Manual |
| Covered | |
| Models | 250D, 300D |
