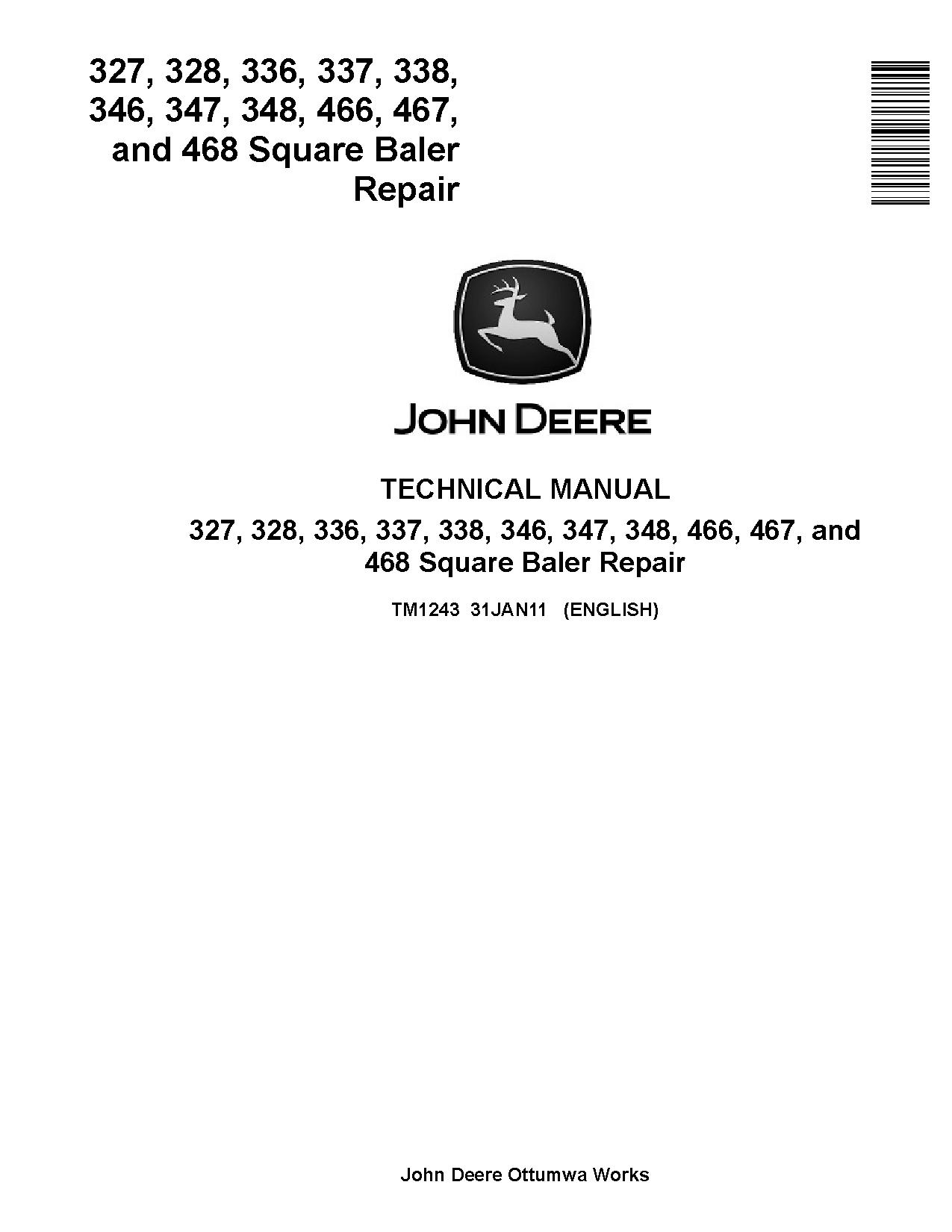

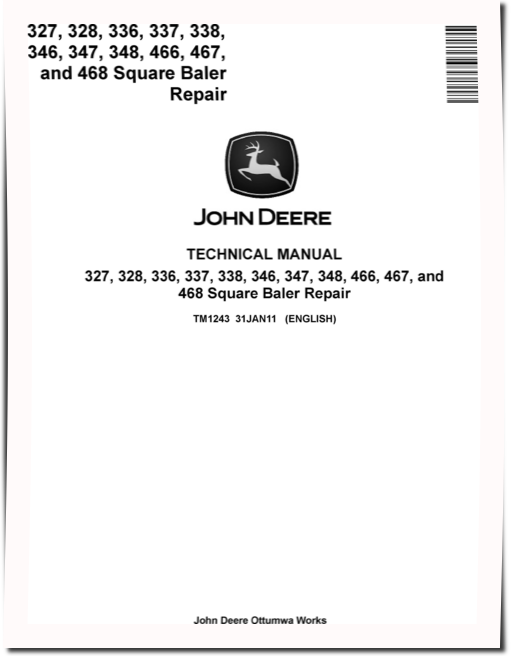

TM1243 - John Deere 327, 328, 336, 337, 338, 346, 347, 348, 466, 467, 468 Square Balers Technical Service Manual

Illustrated Factory All Inclusive Technical Manual for John Deere Hay and Forage Square Balers Models 327, 328, 336, 337, 338, 346, 347, 348, 466, 467, 468

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 299 pages

Covered models:
  327
  328
  336
  337
  338
  346
  347
  348
  466
  467
  468


Contents:


Foreword
   General
      Safety
      Specifications
      General Information
      Lubrication
   Power Train
      Diagnosing Malfunctions
      General Information
      PTO Hookup and Connections

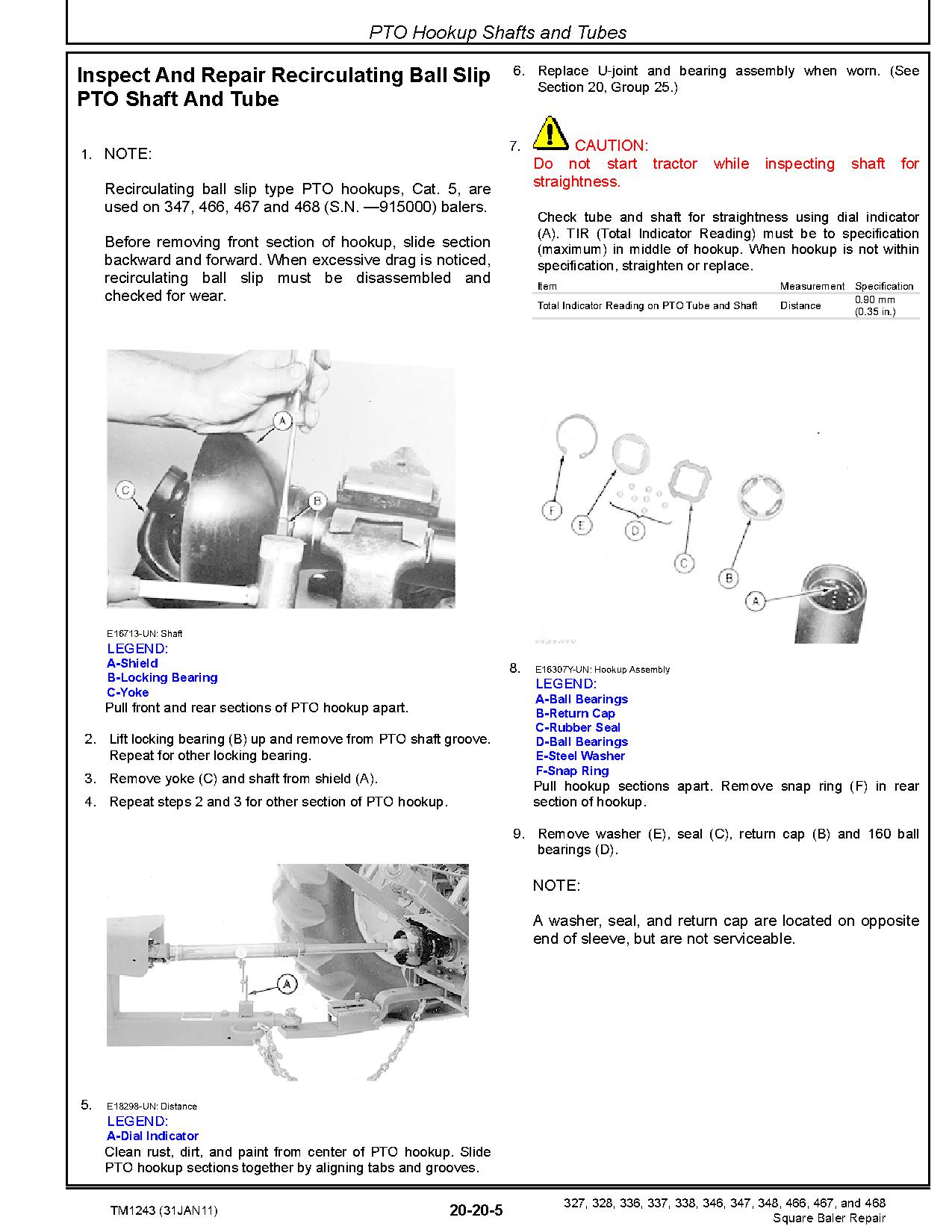

      PTO Hookup Shafts and Tubes
      PTO Hookup U-Joints
      Power Shaft
      Slip Clutch
      Gear Case
      Flywheel
      Shear Bolts
   Hydraulic System
      Diagnosing Malfunctions
      Pickup Cylinder
      Bale Tension Pump and Reservoir
      Bale Tension Cylinders
      Tongue Positioning Cylinder
   Bale Forming Components
      Diagnosing Malfunctions
      Cam and Followers
      Pickup
      Auger

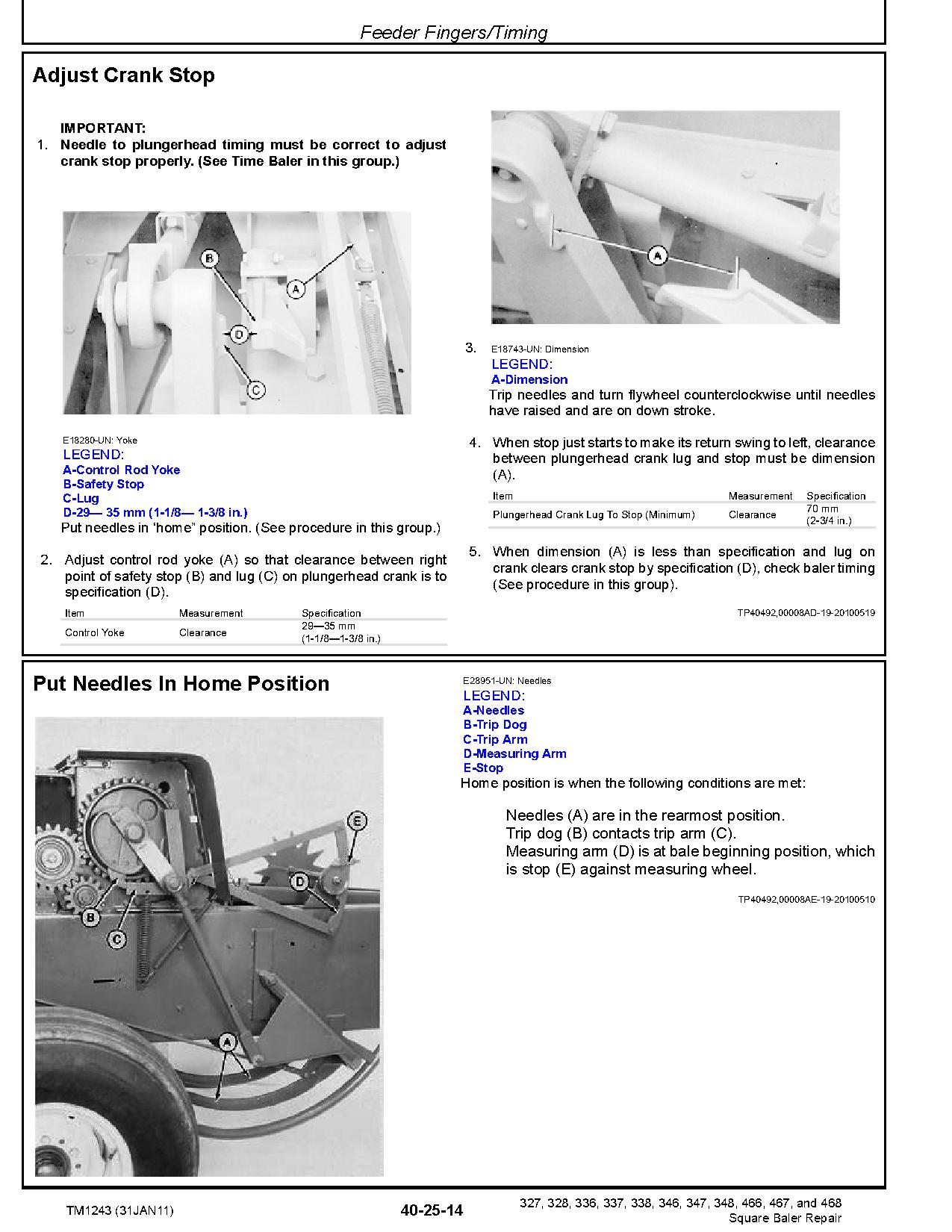

      Feeder Fingers/Timing
      Plungerhead
   Knotters and Twisters
      Diagnosing Twine Knotter Malfunctions
      Diagnosing Wire Twister Malfunctions

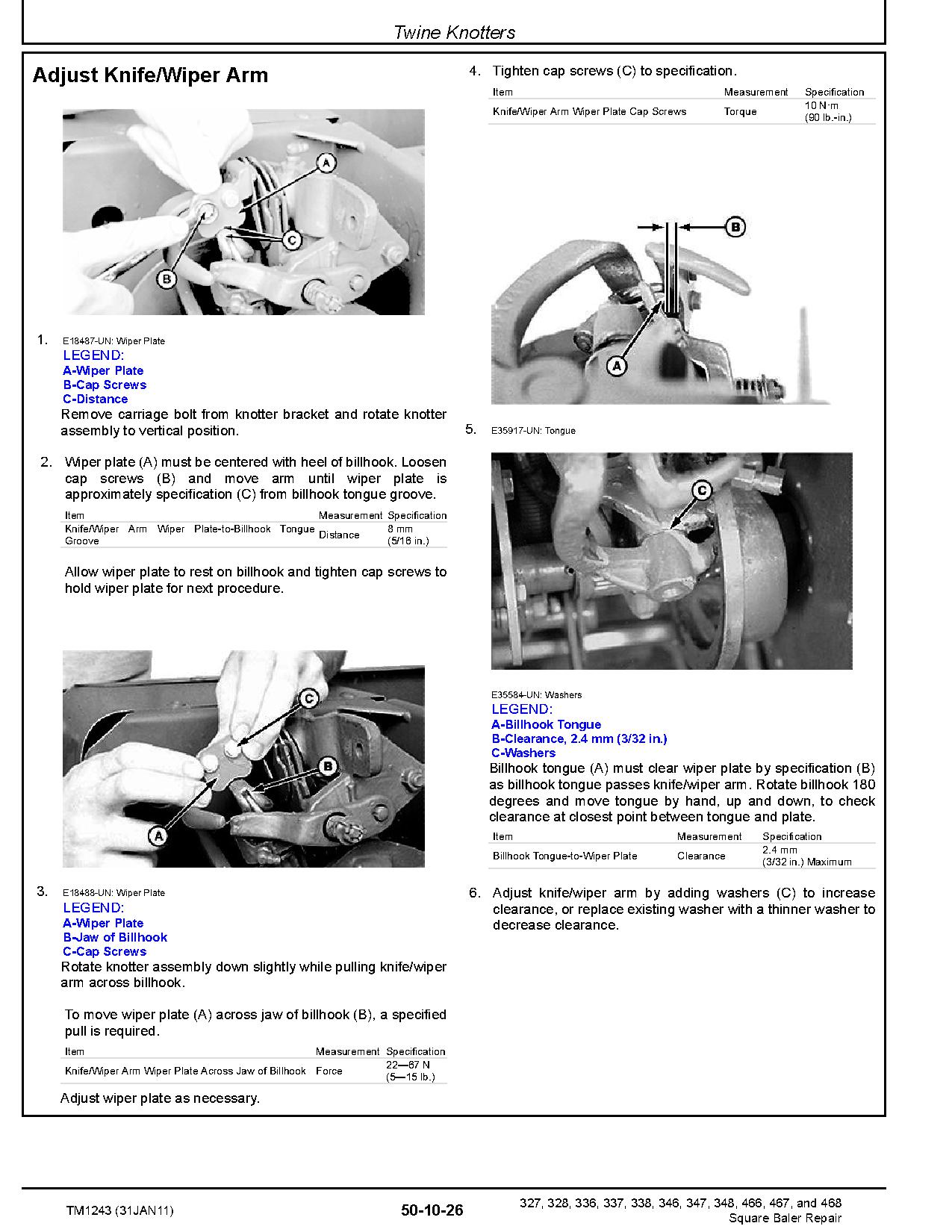

      Twine Knotters
      Wire Twisters
      Multi-Luber Repair
   Dealer Fabricated Tools
      Dealer Fabricated Tools

Document
Document type	All inclusive Manual
Covered
Type of Truck	Baler
Models	327, 328, 336, 337, 338, 346, 347, 348, 466, 467, 468
