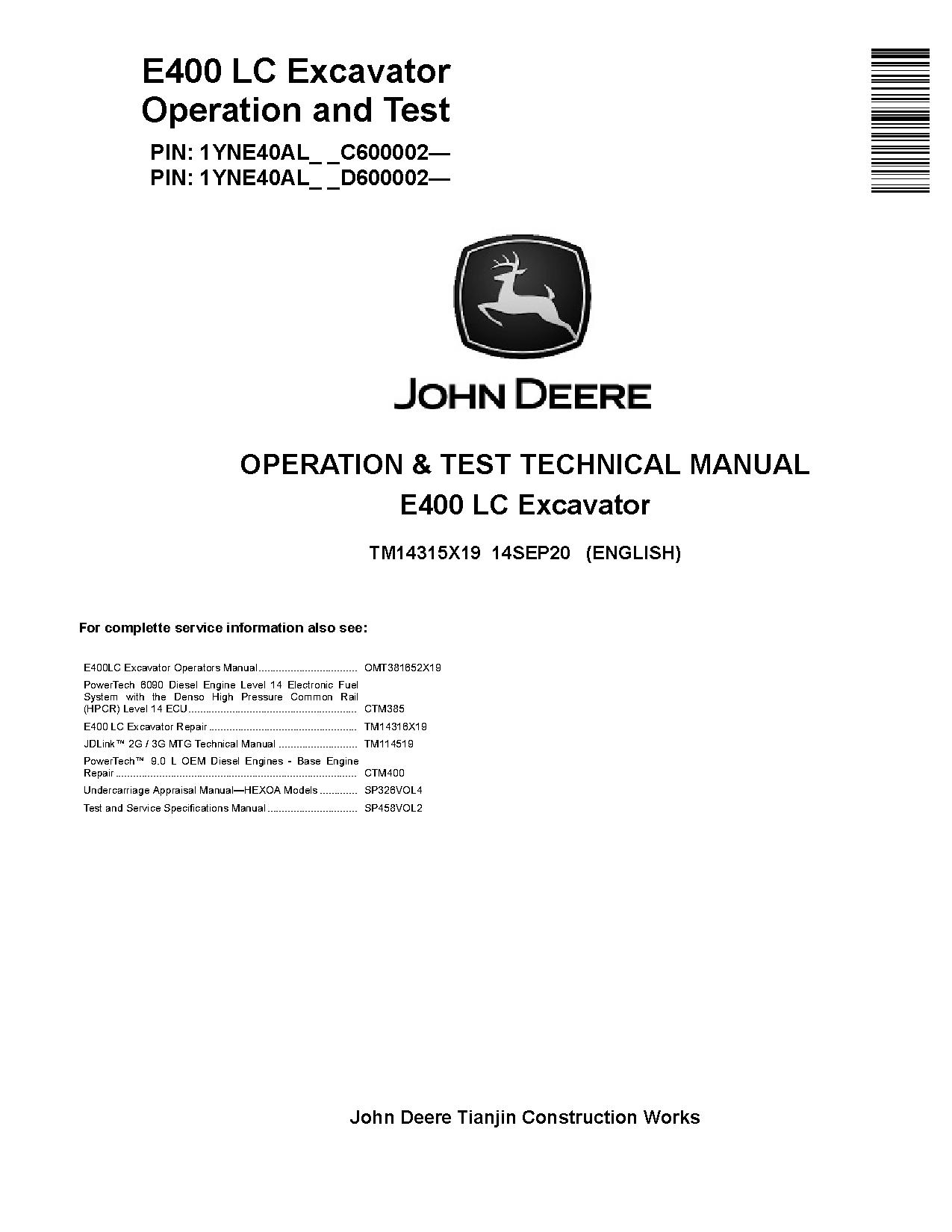

John Deere E400LC (SN.from C000001,D000001) Excavator Operation & Test Technical Manual (TM14315X19)

Illustrated Operation and Test Technical Manual for John Deere Excavators Models E400LC

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 843 pages

Covered models:
   E400LC (PIN: 1YNE40AL_ _Cxxxxxx—, PIN: 1YNE40AL_ _Dxxxxxx—)

Contents:

   Foreword
   Manual Identification - READ THIS FIRST!
   General Information
      Safety
   Diagnostics
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Automatic Temperature Control (ATC) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
      Sealed Switch Module (SSM) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      JDLink (JDL) Diagnostic Trouble Codes - If Equipped
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation

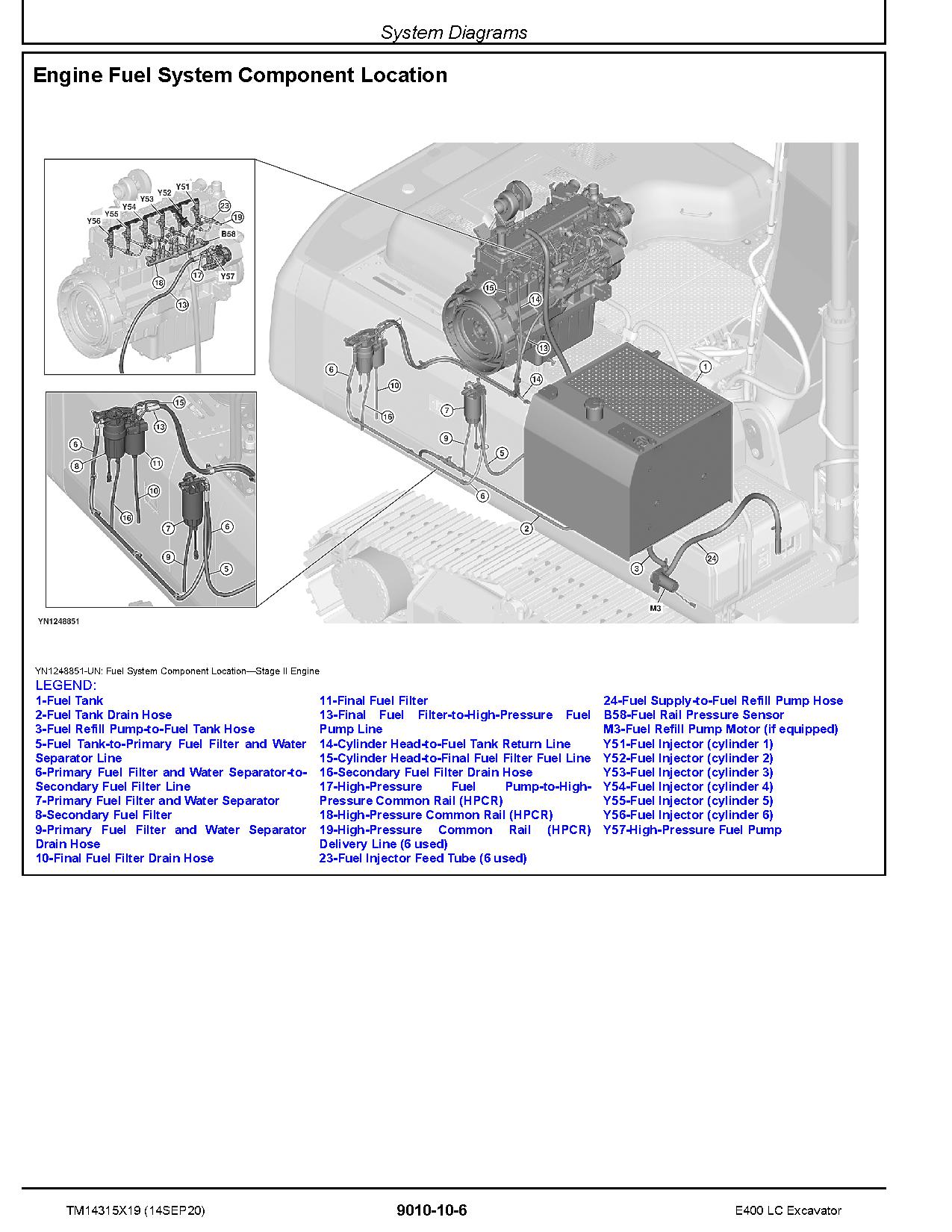

      System Diagrams
      Diagnostic Information
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Monitor Operation
      Tests
   Power Train
      Theory of Operation
      Diagnostic Information
   Hydraulic System

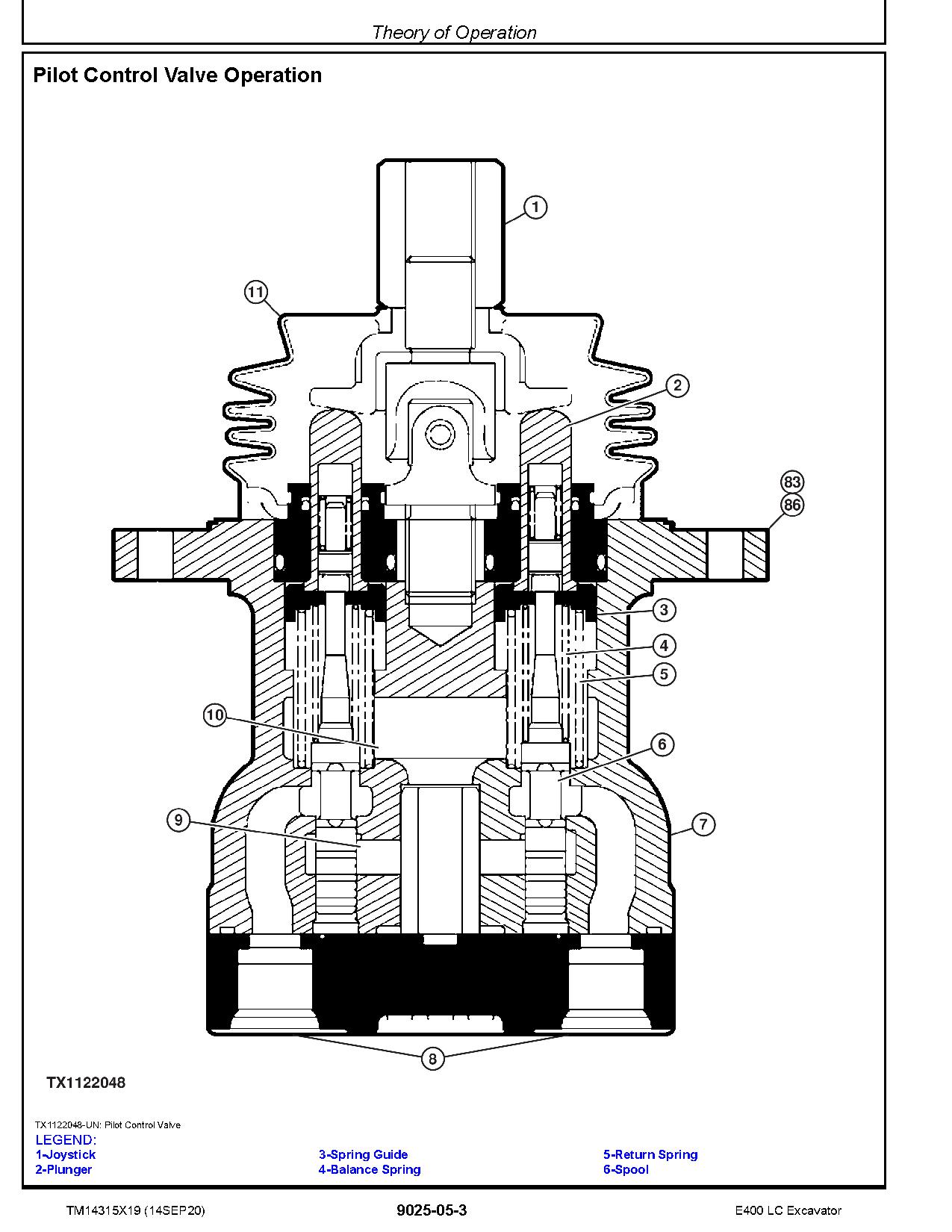

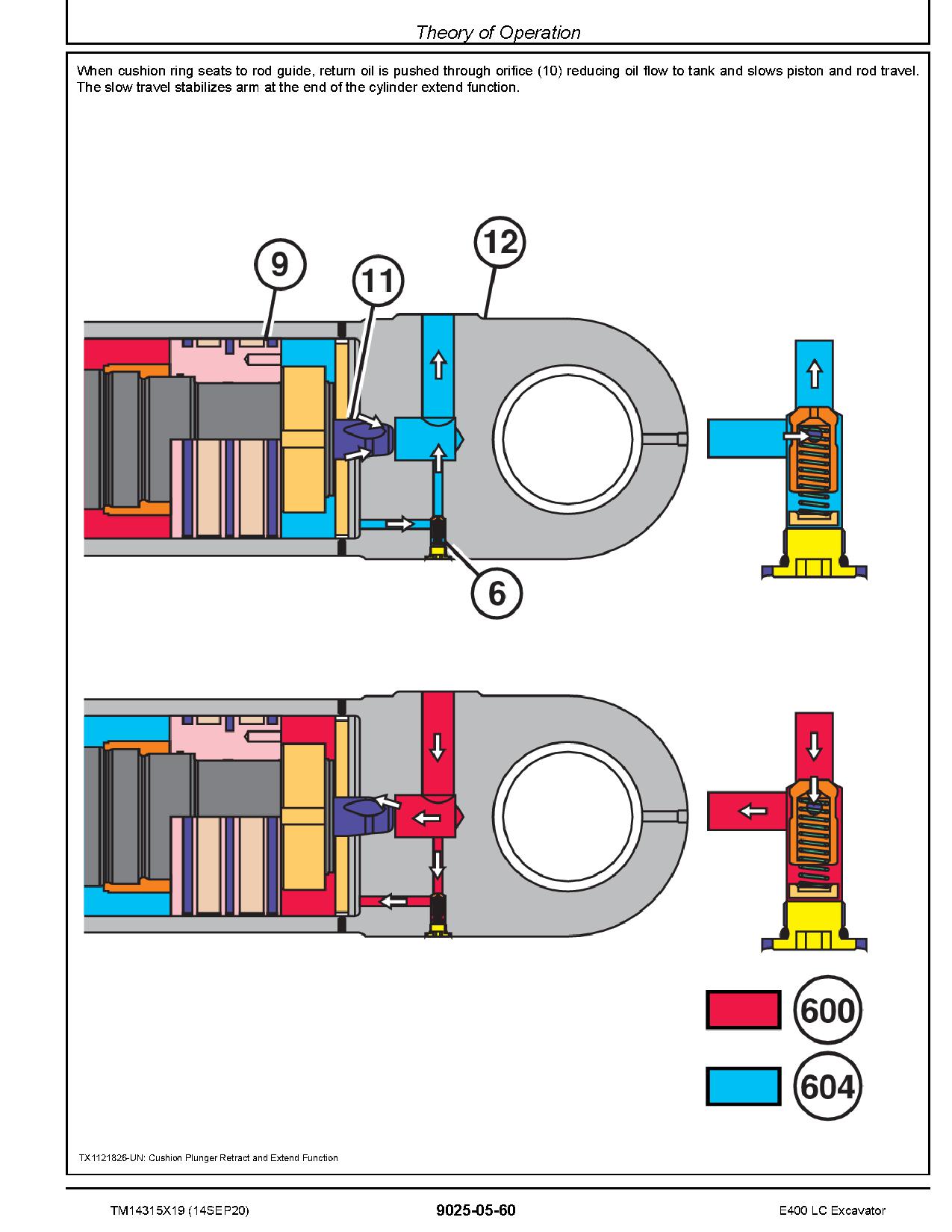

      Theory of Operation
      System Diagrams
      Diagnostic Information


Document
Document type	Diagnostic Manual
Covered
Type of Truck	Crawler Excavator
Models	E400LC
