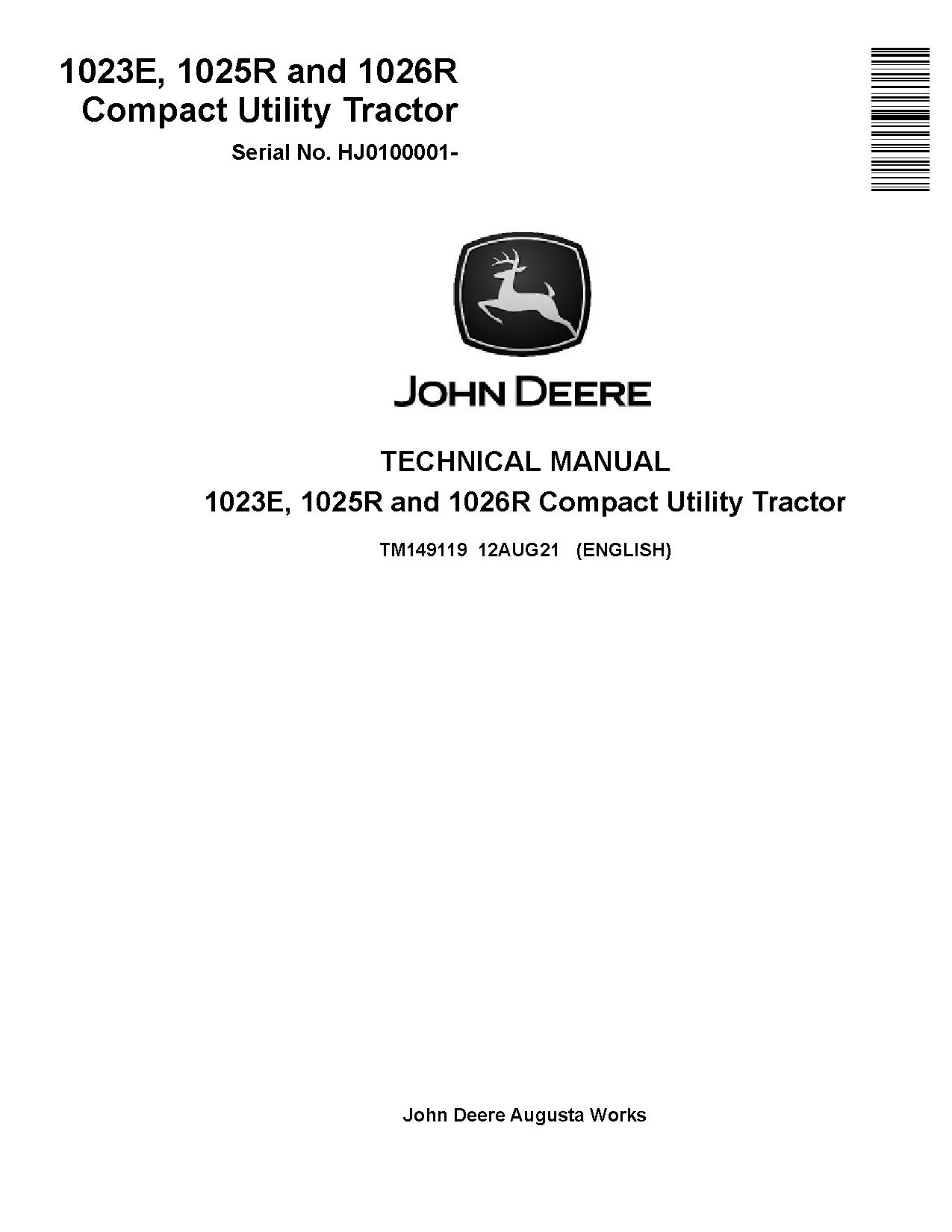

John Deere 1023E, 1025R, 1026R Compact Utility Tractor (SN. HJ0100001- ) Technical Manual (TM149119)

Illustrated Technical Service Manual for John Deere Compact Utility Tractors Models 1023E, 1025R & 1026R

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, troubleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 570 pages

Covered models (Serial No. HJ0100001-):
   1023E
   1025R
   1026R

Contents:

   Foreword
   General Information
      Safety
      General References
      Technical Specific References
      Fuel and Lubricants
      Serial Number Locations

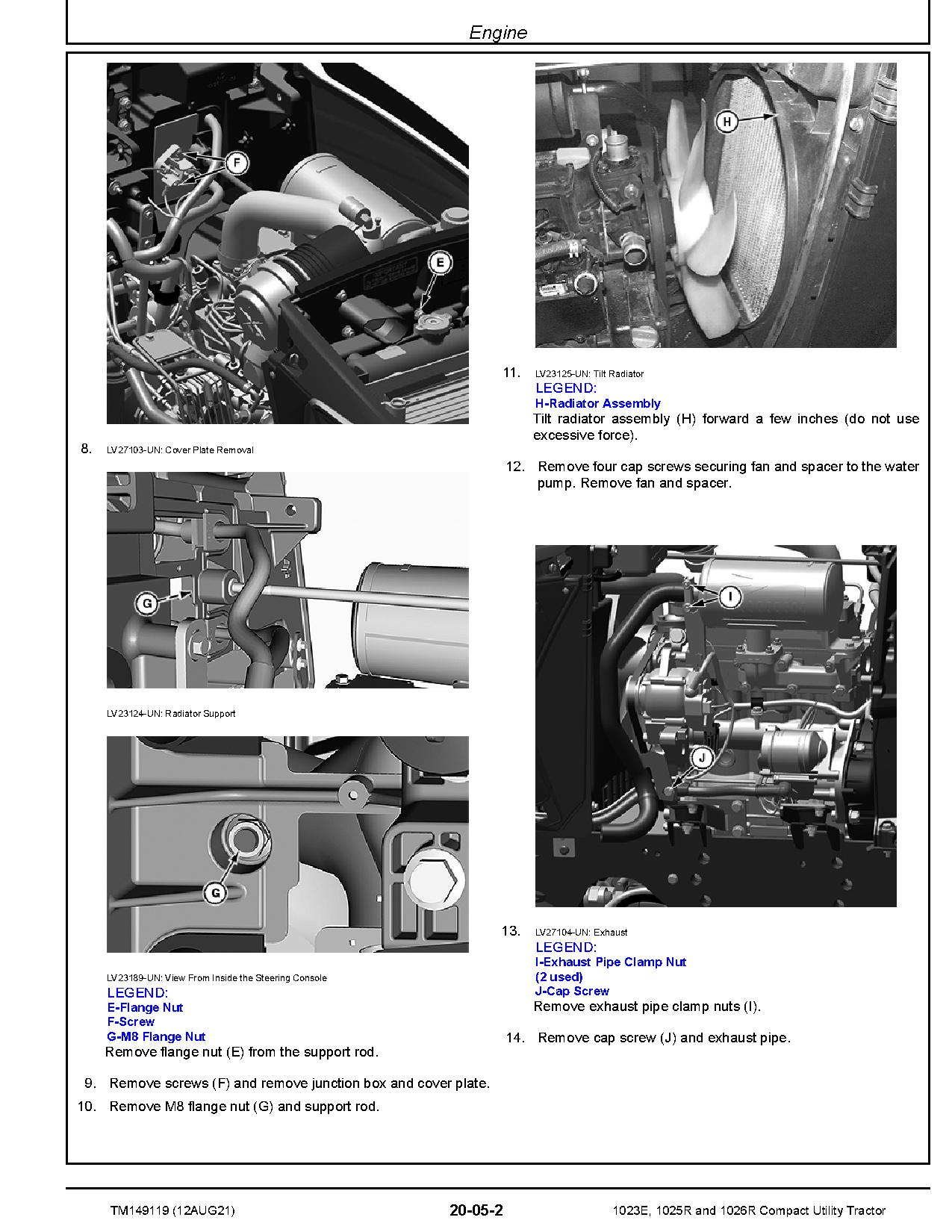

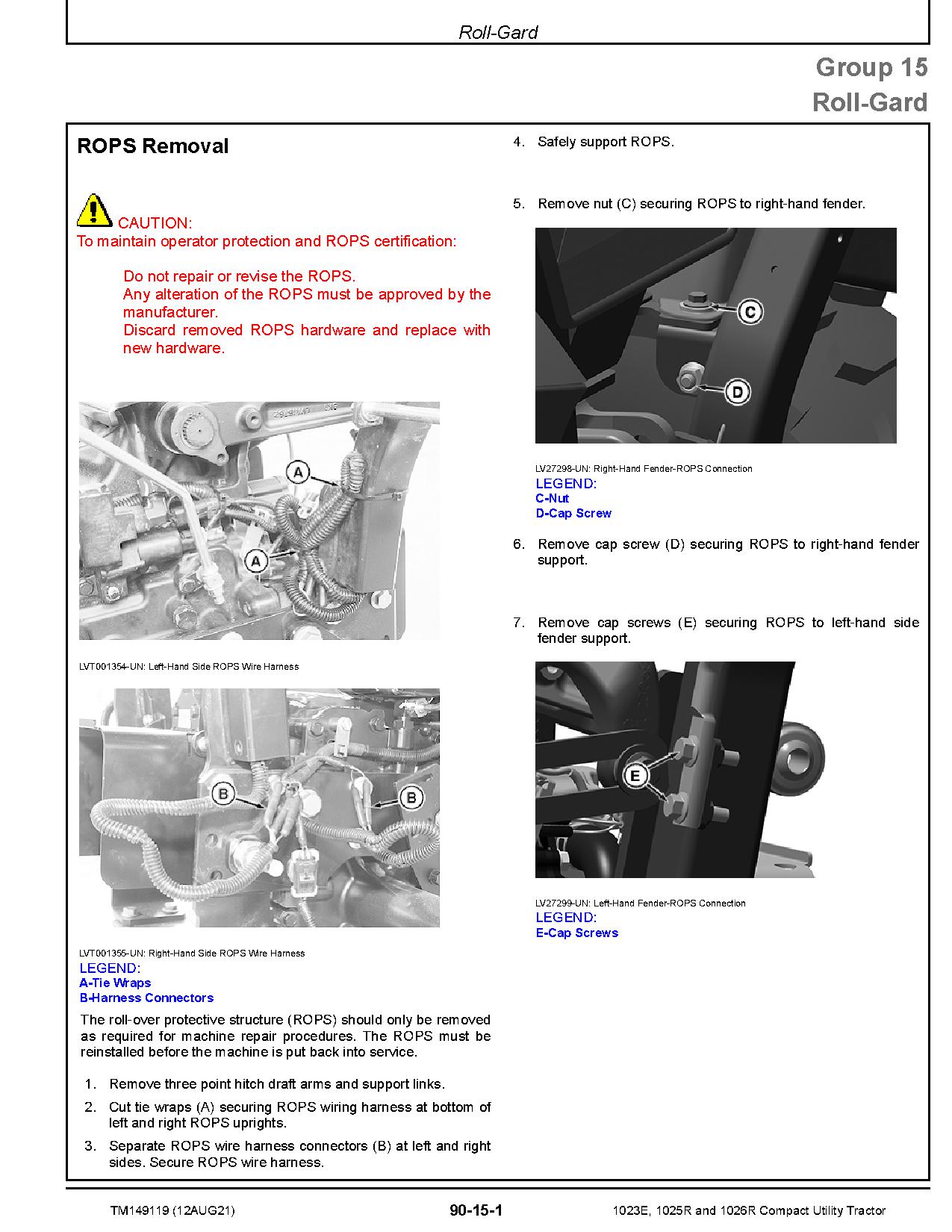

   Engine Repair
      Engine
      Cooling System
   Fuel, Air Intake, and Exhaust Repair
      Fuel
      Air Intake
      Exhaust
   Electrical Repair
      Connectors
      Battery, Starter and Alternator
      Electrical System Components
   Drive Systems and Transmission Repair
      Power Train
      MFWD
      Differential
      PTO
   Steering and Brake Repair
      Steering
      Brake
   Hydraulics Repair
      Hydraulic Pump and Filter
      Rockshaft
      Range Control and Three Point Hitch
      Selective Control Valve
      Hydraulic Lines
   Miscellaneous Repair
      Hood and Side Panels
      Wheels
      Mid-Mount Lift
   Cab/Open Operator`s Station Repair
   Diagnostic Trouble Codes
      General References
      Diagnostic Display Messages
   Observable Symptoms and System Diagnostics
      General References
      Engine System Diagnostics
      Fuel, Air Intake, Exhaust, and Cooling System Diagnostics
      Electrical System Diagnostics
      Drive Systems and Transmission System Diagnostics
      Steering and Brakes System Diagnostics
      Hydraulic System Diagnostics
   Engine Operation, Test, and Adjustments
      General References
      Calibrations, Preliminary Checks and Operational Checks
      Theory of Operation
      Component and Connector Information
      Tests and Adjustments
   Fuel , Air Intake, Exhaust, and Cooling Operation, Test, and Adjustments
      General References
      Calibrations, Preliminary Checks and Operational Checks
      Theory of Operation
      Component and Connector Information
      Tests and Adjustments
   Electrical General and Theory of Operation
      General References
      Starting and Charging
      Lighting-Without License Light
      Lighting-With License Light
      Instrument Cluster Control (ICC)
   Electrical Schematics
      General References
      Starting and Charging (SE1)
      Lighting-Without License Light (SE2A)
      Lighting-With License Light (SE2B)
      Brake Switch, Horn, And Rear Trailer Connector (SE2C)
      Instrument Cluster Control (ICC) (SE3)
      Kits (SE4)

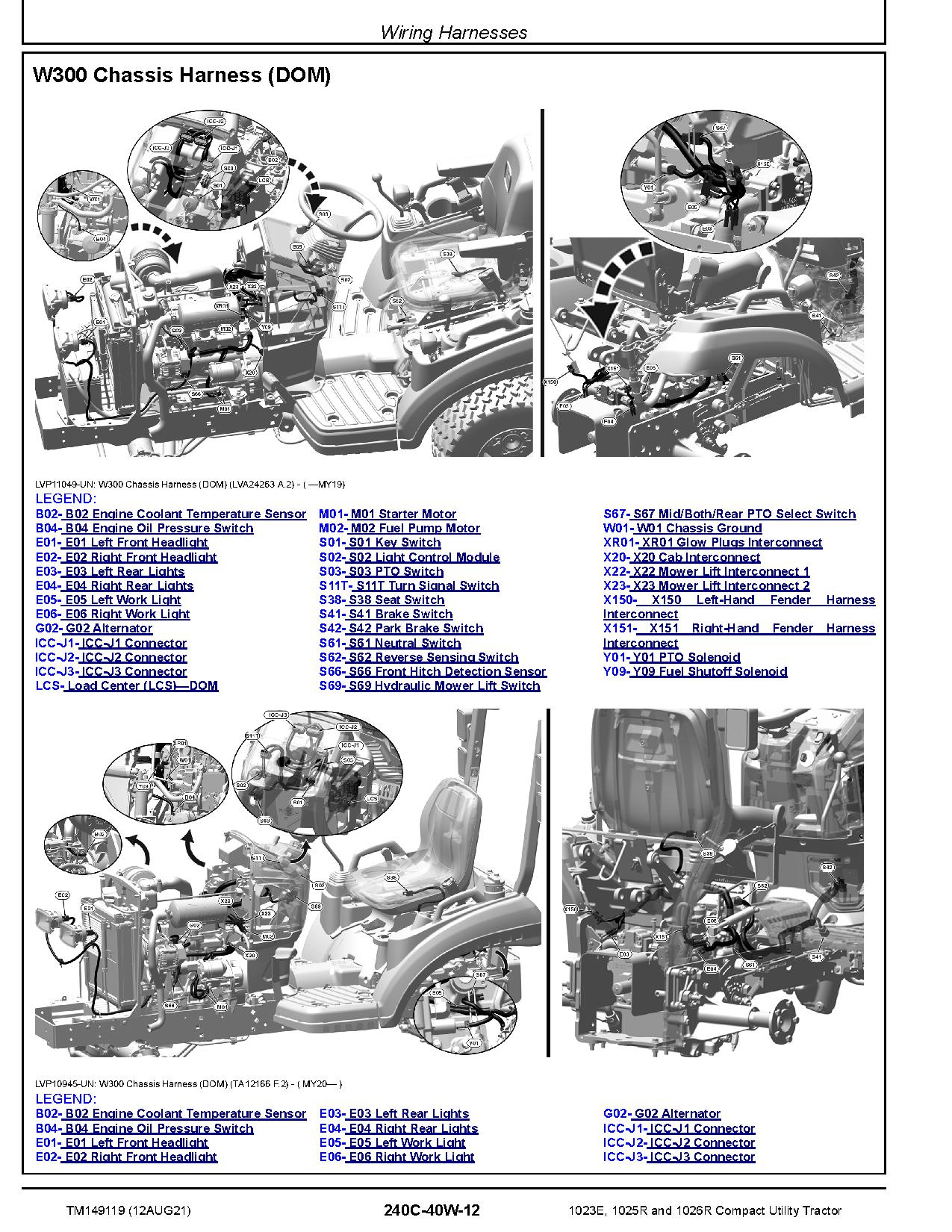

      Electrical Harness Diagrams
   Electrical Components and Connectors
      General References
      Starting and Charging (SE1)
      Lighting-Without License Light (SE2A)
      Lighting-With License Light (SE2B)
      Brake Switch, Cab Relay, Horn, And Rear Trailer Connector (SE2C)
      Instrument Cluster Control (ICC) (SE3)
     &n

Document
Document type	All inclusive Manual
Covered
Type of Truck	1xxx Series Tractors
Models	1023E, 1025R, 1026R
