John Deere CTS Rice Combines Technical Manual (TM1543)

Illustrated factory Technical Manual for John Deere Rice Combines Models CTS.

This manual will assist you in diagnosing, and repairing for your rice combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   CTS

Format: PDF, 585 pages
Language: English
Publication Date: 07 Jun 1995
Table of Contents:
   GENERAL
      Safety

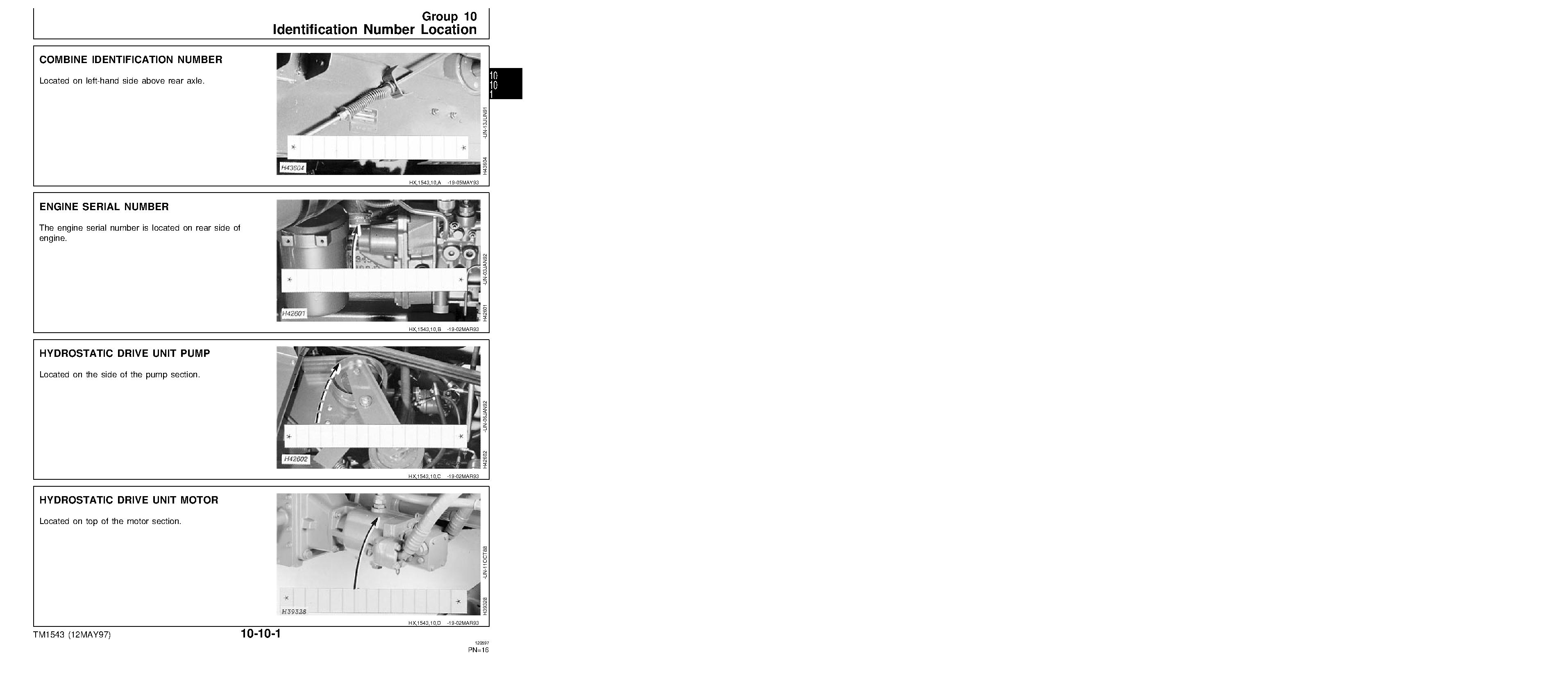

      Identification Number Location
      Specifications
   POWER TRAIN REPAIR
      Hydrostatic System
   HYDRAULIC REPAIR
      Hydraulic Valve Stack
   OPERATOR STATION REPAIR
      Cab
   COUNTER MASTER FEEDERHOUSE REPAIR
      Platform Driveshafts
      Tilt Cylinder
      Tilt Frame
      CONTOUR MASTER Feederhouse
   SEPARATOR REPAIR
      Beaters
      Shoe Supply Augers, Cleaning Fan and Chaffer and Sieve Frame

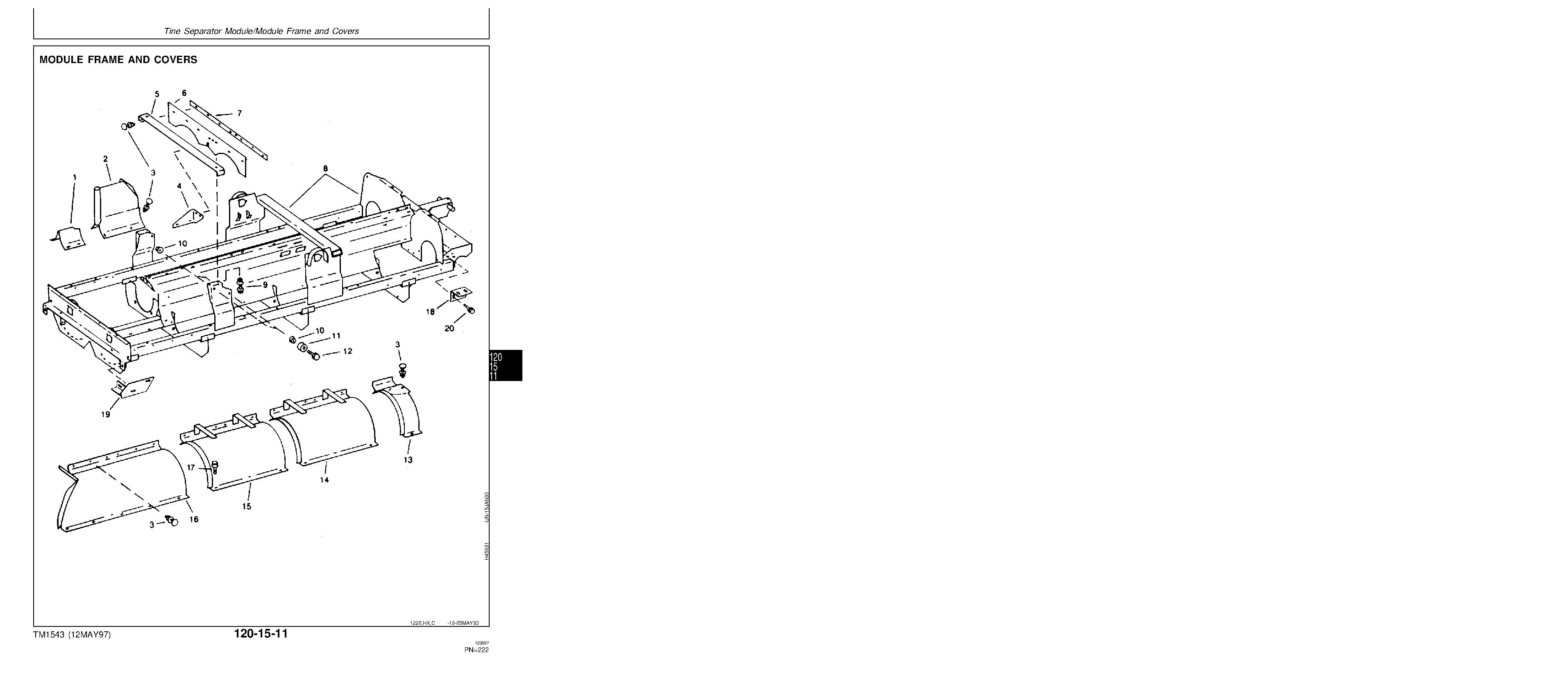

      Tine Separator Module
      Tine Separators
      Engine Gearcase to Module Drives
      Tine Separator Gearboxes
      Straw Chopper, Straw Spreader and Chaff Spreader
   GRAIN TANK AND UNLOADING SYSTEM REPAIR
      Upper Clean Grain Elevator
   ELECTRICAL DIAGNOSTICS AND TESTS
      How to Use This Diagnostic Information
      Warning Display Panel Diagnostics
      Low Shaft Speed Monitor Diagnostics

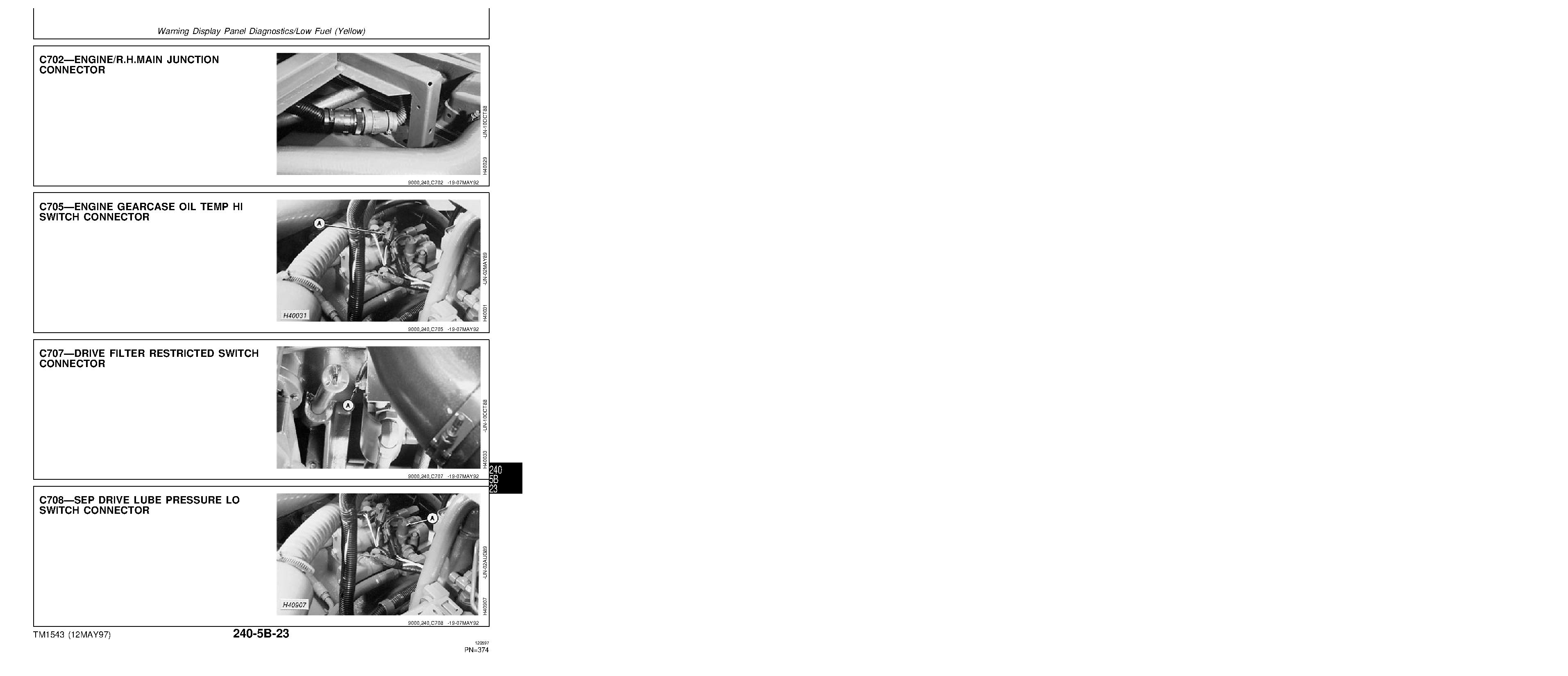

      HarvesTrak Diagnostics
      Lighting System Diagnostics
      Combine Data Center Diagnostics
      Bosch Engine Control DiagnosticsType C
      CONTOUR MASTER Diagnostics
      CONTOUR MASTER Tilt Control System Identification
      CONTOUR MASTER Type A Diagnostics
      CONTOUR MASTER Type B Diagnostics
   Index

Covered
Models	CTS
