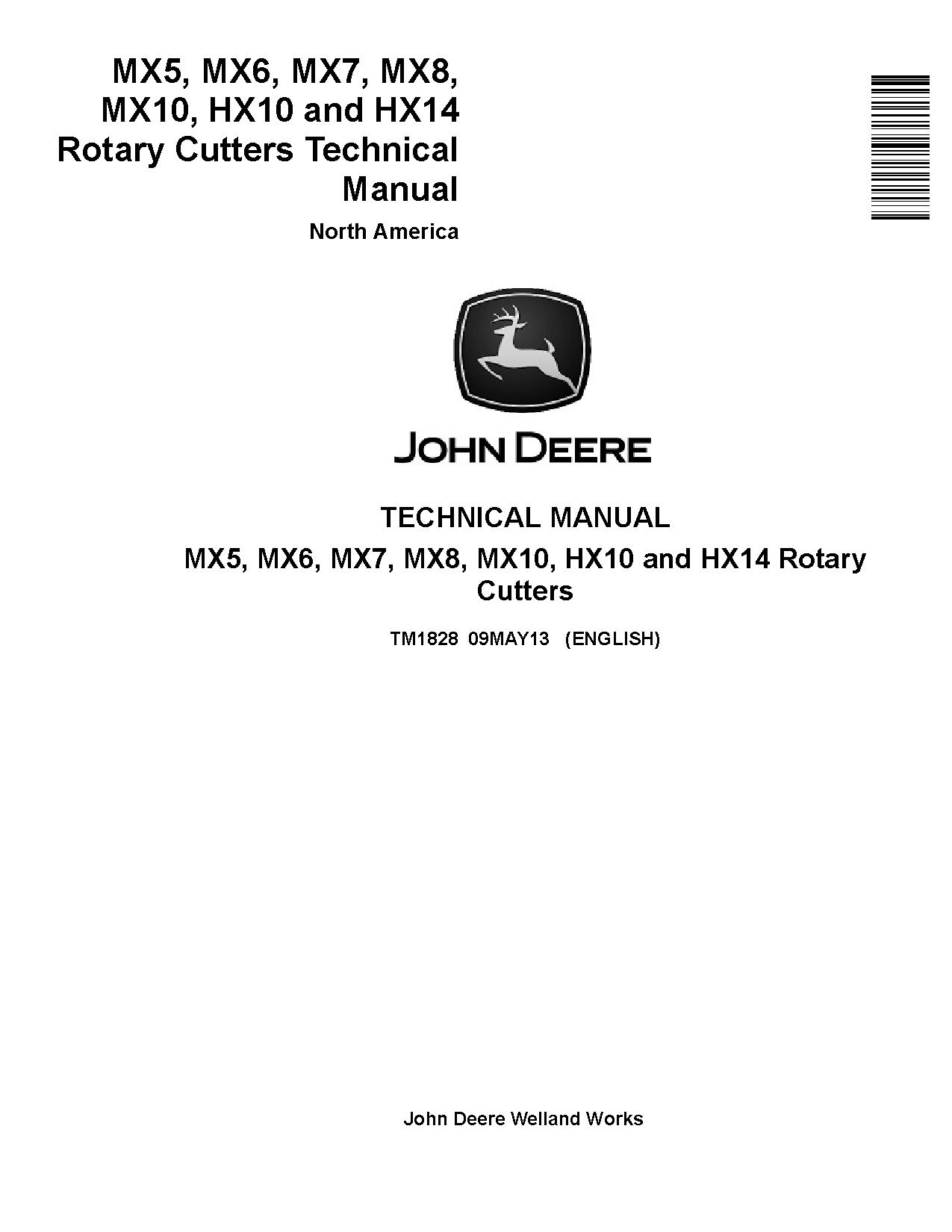

John Deere HX10, HX14, MX10, MX5, MX6, MX7 and MX8 Rotary Cutters (North America) Technical Manual (TM1828)

Illustrated factory Technical Manual for John Deere Rotary Cutters Models HX10, HX14, MX10, MX5, MX6, MX7 and MX8.

This manual will assist you in diagnosing, and repairing for your rotary cutter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (North America):
   HX10
   HX14
   MX10
   MX5
   MX6
   MX7
   MX8

Format: PDF, 180 pages
Language: English
Publication Date: 09 May 2013
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      Specifications
      General Information
      Lubricants
   Driveline Repair

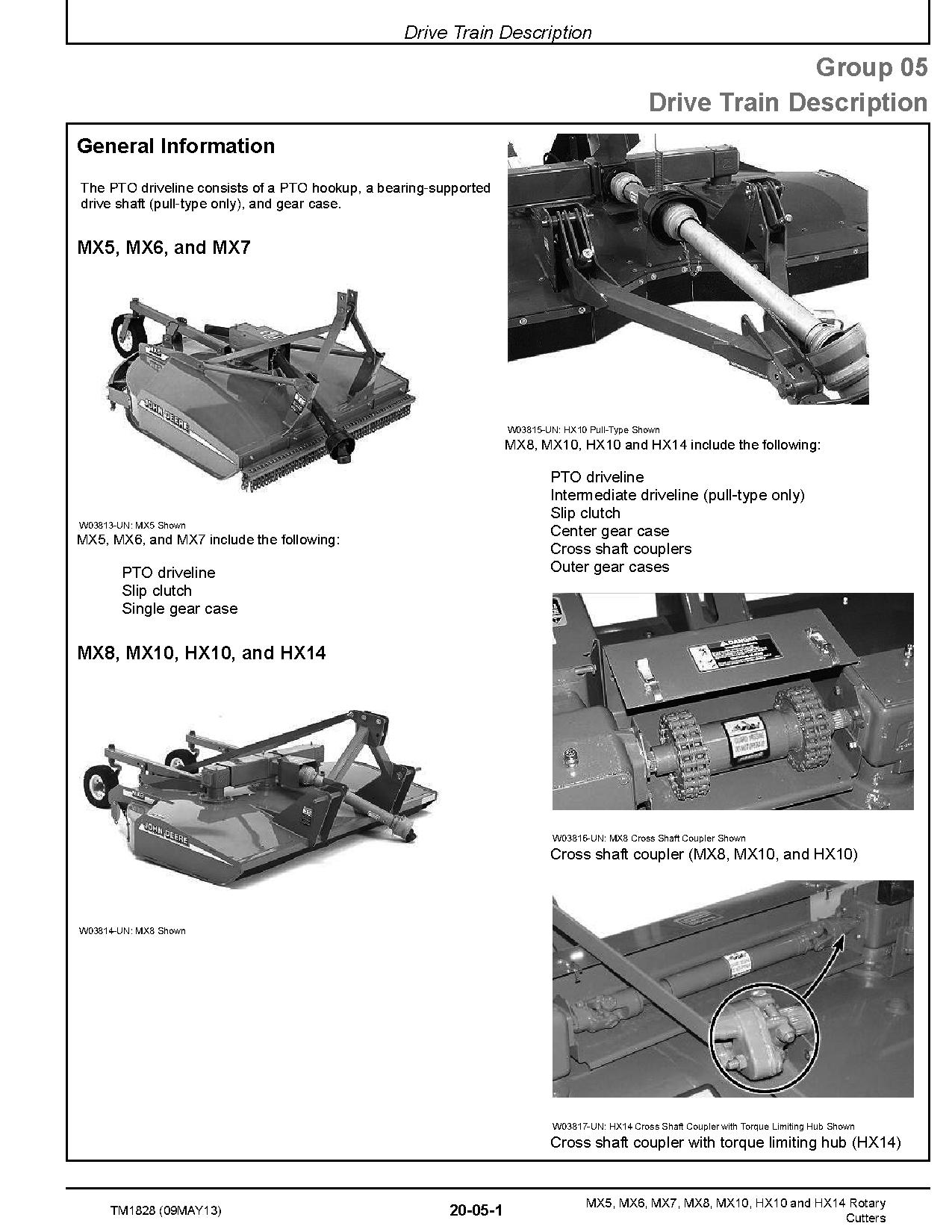

      Drive Train Description
      Diagnosing Malfunctions
      PTO Driveline Remove and Install
      PTO Driveline Repair, Bondioli &Pavesi
      PTO Driveline Repair, Walterscheid
      Pedestal Support Repair (Pull Type)
      Cross Shaft Repair (If Equipped)
   Slip Clutch and Torque Limiting Hub
      General Information
      Diagnosing Malfunctions
      Slip Clutch Repair, Bondioli & Pavesi

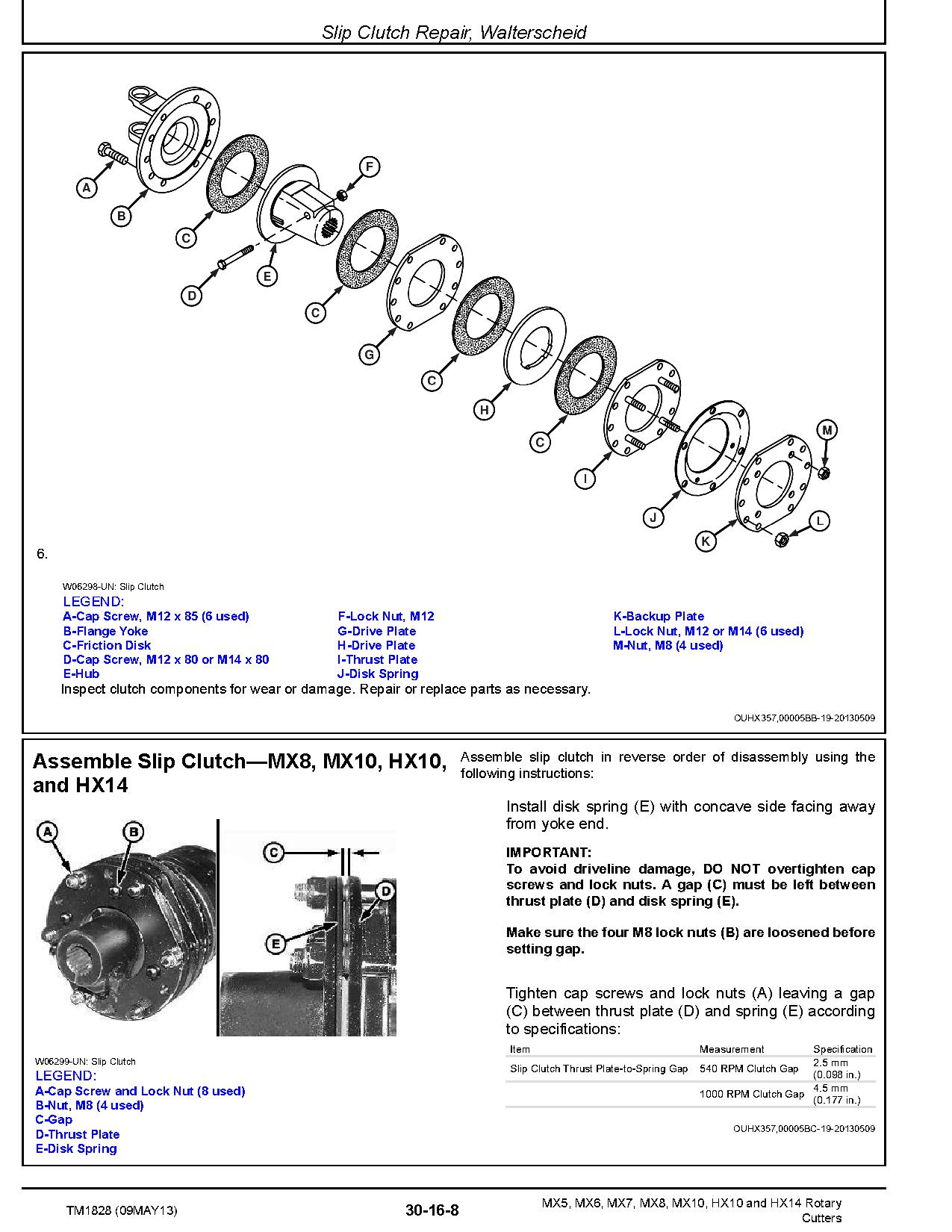

      Slip Clutch Repair, Walterscheid
      Torque Limiting Hub Repair (HX14)
   Gear Case
      General Information
      Diagnosing Malfunctions
      Gear Case-MX5, MX6, and MX7
      Center Gear Case-MX8, MX10, HX10, and HX14
      Outer Gear Case-MX8, MX10, HX10 and HX14
   Blade Assembly
      General Information
      Diagnosing Malfunctions
      Blade Repair

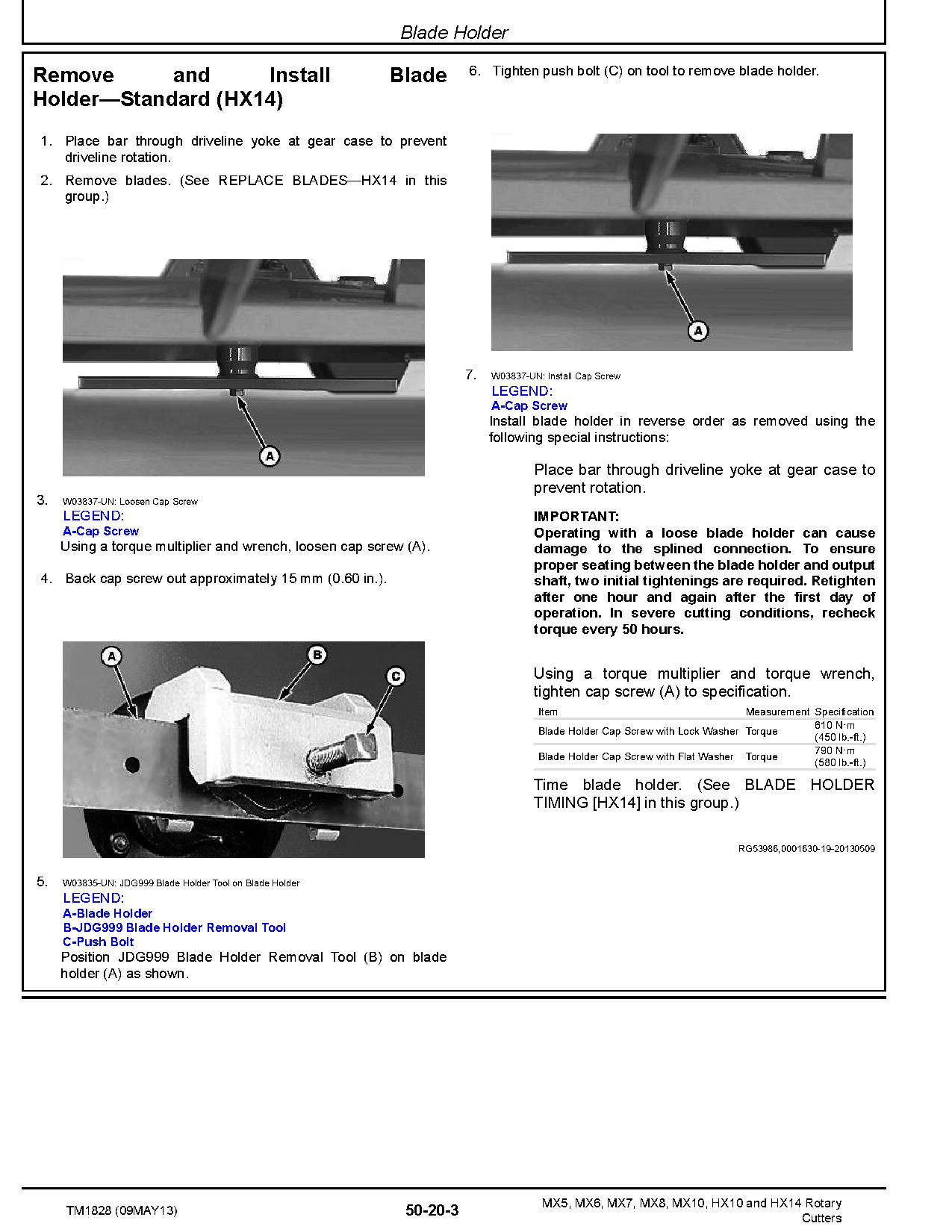

      Blade Holder
   Hydraulics
      General Information
      Diagnosing Malfunctions
      Lift Cylinder (Pull-Type and Semi-Mount, MX8, MX10, and HX10)
      Offset Cylinder (MX8, MX10, and HX10)
   Miscellaneous
      Tailwheel
      Electrical System (MX8, MX10, HX10, and HX14)

Covered
Type of Truck	Rotary Cutter
Models	MX5, MX6, MX7, MX8, MX10, HX10, HX14
