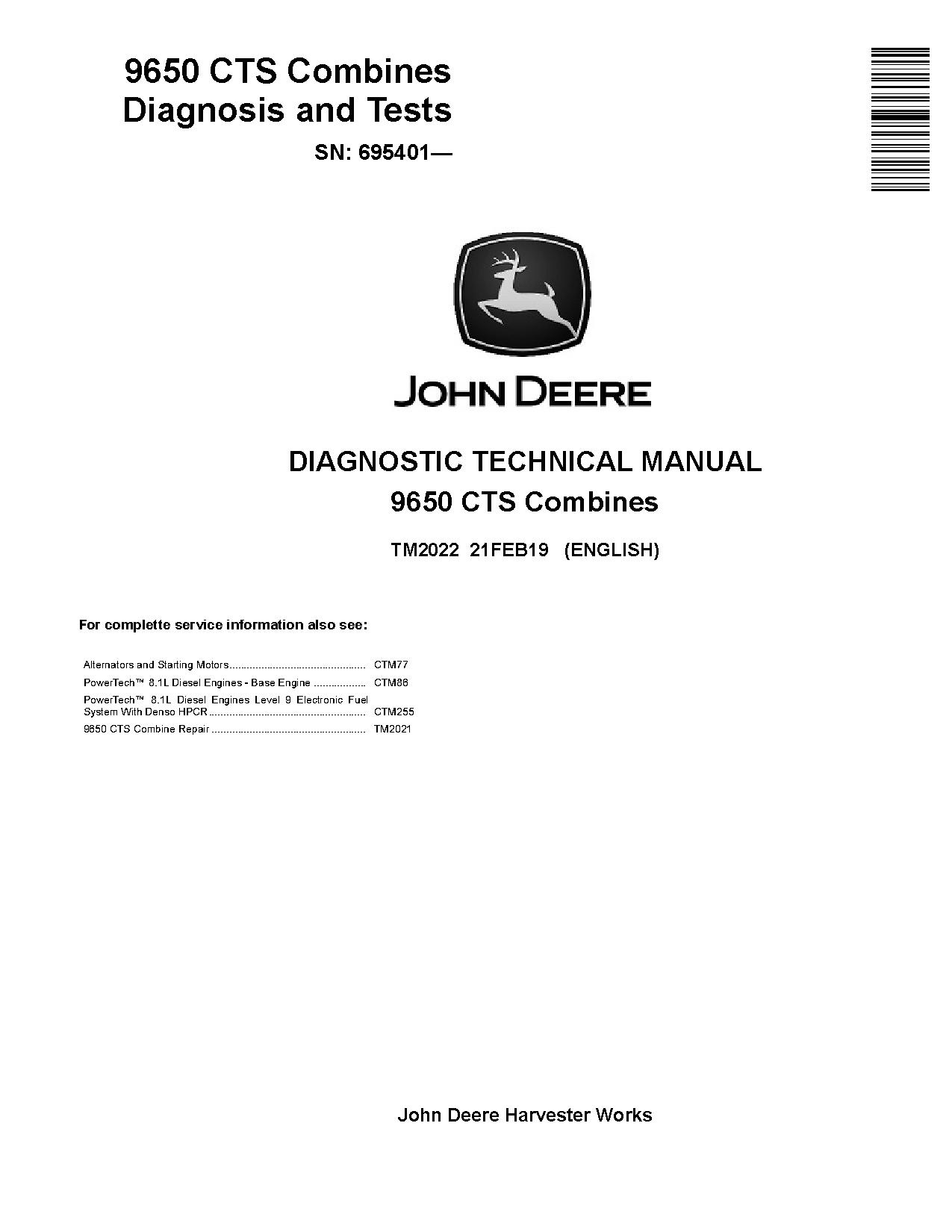

TM2022 - John Deere 9650 CTS Combines (SN. 695401-700400) Diagnosis and Tests Service Manual

Illustrated Factory Diagnosis and Tests Service Manual for John Deere Combines mosel 9650 CTS

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electical wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 3266 pages

Covered models:
  9650CTS (S.N. 695401-700400)

Contents:

   Foreword
   General
      Safety
      Combine and Component Identification
      General Specifications
      Diagnostic and Testing Procedures
   Diagnostic Trouble Codes
      A00 - Engine Control Unit Diagnostic Trouble Codes
      C00 - Armrest Control Unit Diagnostic Trouble Codes
      C03 - Cornerpost Control Unit Diagnostic Trouble Codes
      E00 - Tailing Master Sensor Diagnostic Trouble Codes
      E01 - Header Control Unit Diagnostic Trouble Codes
      E02 - Right Control Unit Diagnostic Trouble Codes
      E03 - Left Control Unit Diagnostic Trouble Codes
      GREENSTAR Display Warning Messages and Fault Codes
      GREENSTAR KeyCard and PC Data Storage Card Warning Messages
      GREENSTAR Mobile Processor Warning Messages
      HARVEST DOC Warning Messages
      Moisture Sensor Warning Messages
      STARFIRE Receiver Warning Messages
      Terrain Compensation Module Fault Codes
   Observable Symptoms
      Engine System
      Air Intake and Cooling Systems
      Electrical
      Power Train System
      Four Wheel Drive System
      Brake System
      Hydraulic System
      Main Gearcase System
      Steering System
      CLIMATRAK System
      Separator System
   Engine System
      General Information
      Test Procedures and Adjustments
      Engine Type Identification
      Engine Diagnostics - Type A
      Engine Diagnostics - Type B
      Component Identification and Location
   Air Intake and Cooling Systems
      General Information
      Test Procedures and Adjustments
      Air Intake System Diagnostics
      Engine Cooling Package Diagnostics
      Component Identification and Location
   Electrical System
      How To Use This Diagnostic Information
      Accessing Diagnostic Trouble Codes and Addresses
      Diagnostic Trouble Codes, Warning Messages and Fault Codes
      Diagnostic Addresses By Function
      Diagnostic Addresses By Controller
      Quick Cal Procedures
      Machine Setting Addresses
      Active Header Height Control Diagnostics - Type Identification
      Active Header Height Control Diagnostics - Type A
      Active Header Height Control Diagnostics - Type B
      Active Header Height Control Diagnostics - Type C
      Alternator and Battery - Type Identification
      Alternator and Battery Diagnostics - Type A
      Alternator and Battery Diagnostics - Type B
      Armrest Control Unit - Overall Diagnostics
      Auxiliary Power Strip Outlet Diagnostics
      CAN Bus - Type Identification
      CAN Bus Diagnostics - Type A
      CAN Bus Diagnostics - Type B
      CAN Bus Diagnostics - Type C
      Cleaning Fan Speed Adjust Diagnostics
      CLIMATRAKCLIMATRAK is a trademark of Deere & Company - Type Identification
      CLIMATRAKCLIMATRAK is a trademark of Deere & Company Diagnostics - Type A
      CLIMATRAKCLIMATRAK is a trademark of Deere & Company Diagnostics - Type B
      COMFORT COMMANDCOMFORT COMMAND is a trademark of Deere & Company Seat Diagnostics
      CONTOUR MASTERCONTOUR MASTER is a trademark of Deere & Company - Automatic Diagnostics
      CONTOUR MASTERCONTOUR MASTER is a trademark of Deere & Company - Manual Tilt Type Identification
      CONTOUR MASTER CONTOUR MASTER is a trademark of Deere & Company Diagnostics - Manual Tilt - Type A
      CONTOUR MASTER CONTOUR MASTER is a trademark of Deere & Company Diagnostics - Manual Tilt - Type B
      Cornerpost Control Unit Overall Diagnostics
      Cornerpost - Cleaning Fan Speed Diagnostics
      Cornerpost - CONTOUR MASTERCONTOUR MASTER is a trademark of Deere & Company Position Diagnostics
      Cornerpost - Deck Plate Spacing Diagnostics
      Cornerpost - Engine Hours Diagnostics
      Cornerpost - Engine Speed Diagnostics
      Cornerpost - Engine Temperature Gauge Diagnostics
      Cornerpost - Feeder House Speed Diagnostics
      Cornerpost - Fuel Gauge Diagnostics
      Cornerpost - Ground Speed Diagnostics
      Cornerpost - HYDRAFLEXHYDRAFLEX is a trademark of Deere & Company Pressure Diagnostics
      Cornerpost - Separator Hours Diagnostics
      Cornerpost - Threshing Clearance Diagnostics
      Cornerpost - Threshing Speed Diagnostics
      Deck Plate Adjust Type Identification
      Deck Plate Adjust Diagnostics - Type A
      Deck Plate Adjust Diagnostics - Type B
      Delayed Power Type Identification
      Delayed Power Diagnostics - Type A
      Delayed Power Diagnostics - Type B
      DIAL-A-SPEEDDIAL-A-SPEED is a trademark of Deere & Company Diagnostics
      Draper Speed Adjust Diagnostics
      Engine Compartment Relay Panel Diagnostics
      Engine Control Unit - Overall Diagnostics

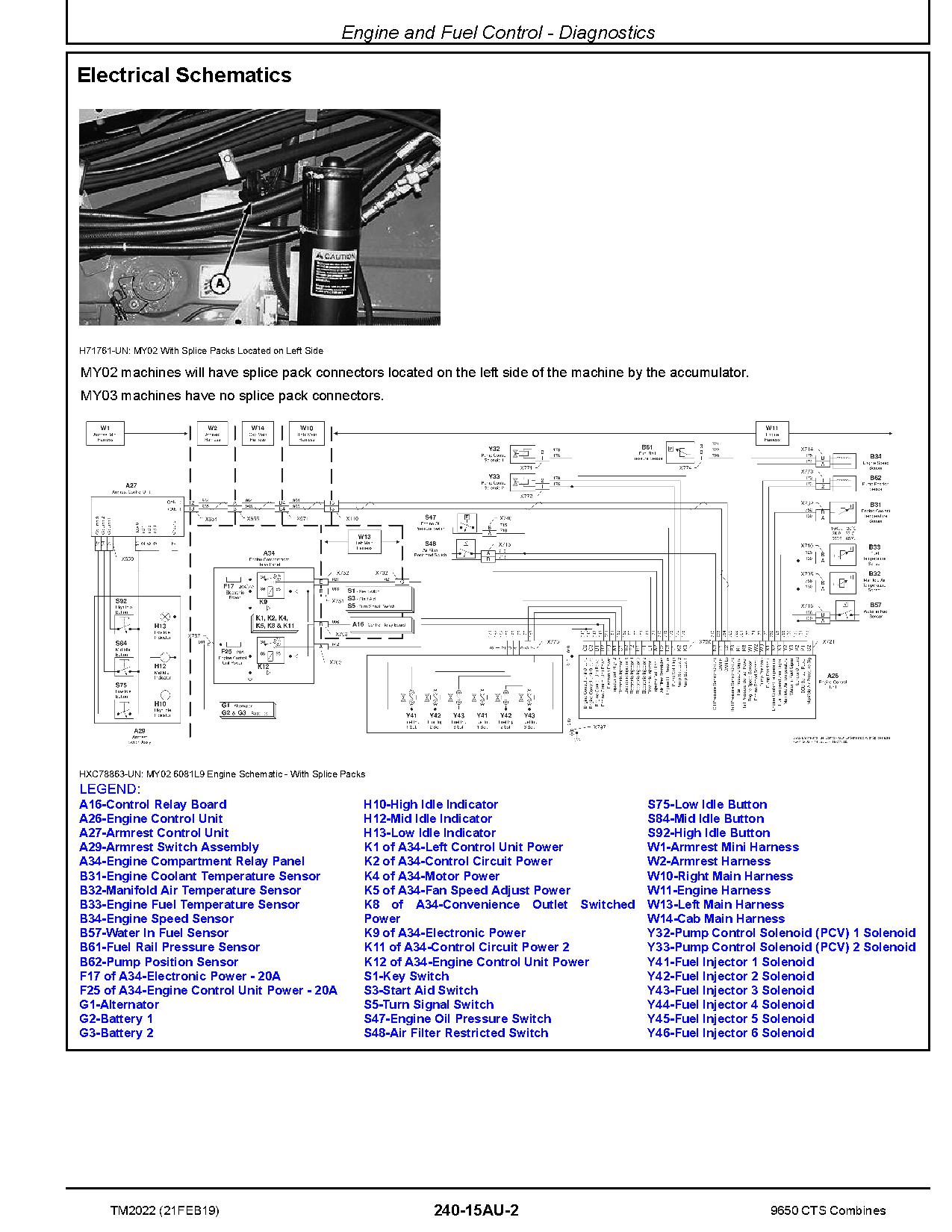

      Engine and Fuel Control - Diagnostics
      Four Wheel Drive Diagnostics
      GREENSTARGREENSTAR is a trademark of Deere & Company - Display Diagnostics
      GREENSTARGREENSTAR is a trademark of Deere & Company - GPS Receiver Type Identification
      GREENSTARGREENSTAR is a trademark of Deere & Company - GPS Receiver Diagnostics - Type A
      GREENSTARGREENSTAR is a trademark of Deere & Company - GPS Receiver Diagnostics - Type B
      GREENSTARGREENSTAR is a trademark of Deere & Company - GPS Receiver Diagnostics - Type C
      GREENSTARGREENSTAR is a trademark of Deere & Company - GPS Receiver Diagnostics - Type D
      GREENSTARGREENSTAR is a trademark of Deere & Company - KeyCard and PC Data Storage Card Diagnostics
      GREENSTARGREENSTAR is a trademark of Deere & Company - Mass Flow Sensor Type Identification
      GREENSTARGREENSTAR is a trademark of Deere & Company - Mass Flow Sensor Diagnostics - Type A
      GREENSTARGREENSTAR is a trademark of Deere & Company - Mass Flow Sensor Diagnostics - Type B
      GREENSTARGREENSTAR is a trademark of Deere & Company - Mobile Processor Type Identification
      GREENSTARGREENSTAR is a trademark of Deere & Company - Mobile Processor Diagnostics - Type A
      GREENSTARGREENSTAR is a trademark of Deere & Company - Mobile Processor Diagnostics - Type B
      GREENSTARGREENSTAR is a trademark of Deere & Company - Moisture Sensor Type Identification
      GREENSTARGREENSTAR is a trademark of Deere & Company - Moisture Sensor Diagnostics - Type A
      GREENSTARGREENSTAR is a trademark of Deere & Company - Moisture Sensor Diagnostics - Type B
      GREENSTARGREENSTAR is a trademark of Deere & Company System - Harvest/Yield Mapping/Monitoring Type Identification
      GREENSTARGREENSTAR is a trademark of Deere & Company System - HARVEST DOCHARVEST DOC is a trademark of Deere & Company Diagnostics - Type A
      GREENSTARGREENSTAR is a trademark of Deere & Company System - HARVEST DOCHARVEST DOC is a trademark of Deere & Company Diagnostics - Type B
      GREENSTARGREENSTAR is a trademark of Deere & Company System - Harvest Monitor Diagnostics
      GREENSTARGREENSTAR is a trademark of Deere & Company System - Parallel Tracking Diagnostics
      GREENSTAR -GREENSTAR is a trademark of Deere & Company System - Yield Mapping Diagnostics - Type A
      GREENSTAR - GREENSTAR is a trademark of Deere & Company System - Yield Mapping Diagnostics - Type B
      GREENSTAR - GREENSTAR is a trademark of Deere & Company System - Yield Monitor Diagnostics
      Header Control Unit Overall Diagnostics
      Header Engage Diagnostics
      Header Raise/Lower Type Identification
      Header Raise/Lower Type A Diagnostics
      Header Raise/Lower Type B Diagnostics
      Horn Diagnostics
      HYDRAFLEXHYDRAFLEX is a trademark of Deere & Company Pressure Adjustment Diagnostics
      Left Control Unit Overall Diagnostics
      Left Control Unit - Control Relay Board Link Diagnostics
      Lighting System Overall Diagnostics
      Lighting System - Daytime Running Lights Type Identification
      Lighting System - Daytime Running Lights Diagnostics - Type A
      Lighting System - Daytime Running Lights Diagnostics - Type B
      Lighting System - Dome Light Diagnostics
      Lighting System - Exit Lighting Diagnostics
      Lighting System - Field Lights Type Identification
      Lighting System - Field Lighting Diagnostics - Type A
      Lighting System - Field Lighting Diagnostics - Type B
      Lighting System - Hazard/Turn Lights Type Identification
      Lighting System - Hazard/Turn Lights Diagnostics - Type A
      Lighting System - Hazard/Turn Lights Diagnostics - Type B
      Lighting System - Marker Lights Type Identification
      Lighting System - Marker Lights Diagnostics - Type A
      Lighting System - Marker Lights Diagnostics - Type B
      Lighting System - Panel Lights Type Identification
      Lighting System - Panel Lights Diagnostics - Type A
      Lighting System - Panel Lights Diagnostics - Type B
      Lighting System - Rear Discharge Lights Type Identification
      Lighting System - Rear Discharge Lights Diagnostics - Type A
      Lighting System - Rear Discharge Lights Diagnostics - Type B
      Lighting System - Road Lights Type Identification
      Lighting System - Road Lights Diagnostics - Type A
      Lighting System - Road Lights Diagnostics - Type B
      Lighting System - Service Lights - Engine Area Diagnostics
      Lighting System - Service Lighting - Gullwing Doors Diagnostics
      Lighting System - Service Lights - Shoe Area Diagnostics
      Lighting System - Side Finder Lights Type Identification
      Lighting System - Side Finder Lights Diagnostics - Type A
      Lighting System - Side Finder Lights Diagnostics - Type B
      Lighting System - Stubble Lights Type Identification
      Lighting System - Stubble Lights Diagnostics - Type A
      Lighting System - Stubble Lights Diagnostics - Type B
      Lighting System - Unloading Auger Lights Type Identification
      Lighting System - Unloading Auger Light Diagnostics - Type A
      Lighting System - Unloading Auger Light Diagnostics - Type B
      Multifunction Control Handle Diagnostics
      Quick-Stop Diagnostics
      Radio - Type Identification
      Radio System Diagnostics - Type A
      Radio System Diagnostics - Type B
      Reel Fore/Aft Type Identification
      Reel Fore/Aft Diagnostics - Type A
      Reel Fore/Aft Diagnostics - Type B
      Reel Fore/Aft Resume Diagnostics
      Reel Raise/Lower Type Identification
      Reel Raise/Lower Diagnostics - Type A
      Reel Raise/Lower Diagnostics - Type B
      Reel Raise/Lower Resume Diagnostics
      Reel/Belt Speed Adjust Diagnostics
      Right Control Unit - Overall Diagnostics
      Road/Field System Diagnostics
      Separator Engage Diagnostics
      Service Power Diagnostics
      Start Aid Diagnostics
      Starting Motor System Diagnostics
      Tailings Monitor Diagnostics
      Threshing Clearance Adjust Diagnostics
      Threshing Speed Adjust Type Identification
      Threshing Speed Adjust Diagnostics - Type A
      Threshing Speed Adjust Diagnostics - Type B
      Unloading Auger Engage Diagnostics
      Unloading Auger Swing Type Identification
      Unloading Auger Swing Diagnostics - Type A
      Unloading Auger Swing Diagnostics - Type B
      Variable Speed Feeder House Adjust - Type Identification
      Variable Speed Feeder House Adjust Diagnostics - Type A
      Variable Speed Feeder House Adjust Diagnostics - Type B
      VISIONTRAK VISIONTRAK is a trademark of Deere & Company Diagnostics
      Warning Display Panel - Overall Type Identification
      Warning Display Panel - Overall Diagnostics - Type A
      Warning Display Panel Overall Diagnostics - Type B
      Warning - Beater Speed Diagnostics
      Warning - Clean Grain Elevator Speed Low Type Identification
      Warning - Clean Grain Elevator Speed Diagnostics - Type A
      Warning - Clean Grain Elevator Speed Diagnostics - Type B
      Warning - Conveyor Auger Speed Low Diagnostics
      Warning - Cylinder Speed Low Diagnostics
      Warning - Engine Air Filter Plugged Diagnostics
      Warning - Engine Oil Pressure Low Diagnostics
      Warning - Engine Speed Low Diagnostics
      Warning - Engine Temperature High Diagnostics
      Warning - Grain Separator Speed Low Diagnostics
      Warning - Grain Tank Full Type Identification
      Warning - Grain Tank Full Diagnostics - Type A
      Warning - Grain Tank Full Diagnostics - Type B
      Warning - Hydraulic Oil Temperature High Diagnostics
      Warning - Hydrostatic Charge Pressure Low Diagnostics
      Warning - Low Fuel Diagnostics
      Warning - Main Gearcase Filter Restricted Diagnostics
      Warning - Main Gearcase Pressure Low Diagnostics
      Warning - Main Gearcase Temperature High Diagnostics
      Warning - Parking Brake Diagnostics
      Warning - Straw Chopper Speed Low Diagnostics
      Warning - Tailings Elevator Speed Low Diagnostics
      Warning - Unloading Auger Engaged Diagnostics
      Warning - Voltage Low Diagnostics
      Wiper Diagnostics
      Circuit Code Listing

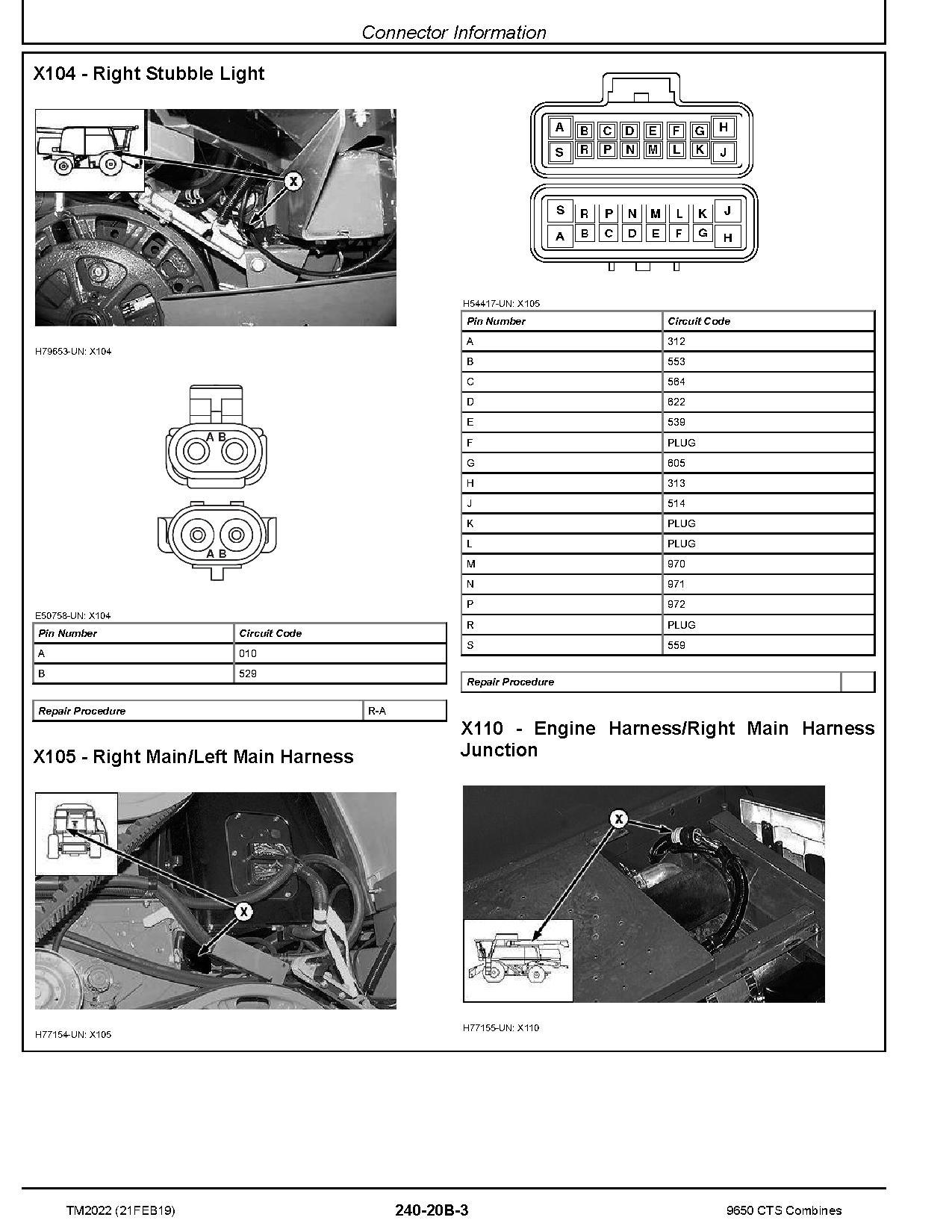

      Connector Information
      Connector Repair Procedures
   Power Train System
      General Information
      Test Procedures and Adjustments
      Final Drive Diagnostics
      Transmission Diagnostics
      Hydrostatic Diagnostics
      Component Identification and Location
   Four Wheel Drive System
      General Information
      Test Procedures and Adjustments
      Four Wheel Drive Two Speed Diagnostics
      Component Identification and Location
   Brake System
      General Information
      Test Procedures and Adjustments
      Park Brake Diagnostics
      Service Brakes Diagnostics
      Component Identification and Location
   Hydraulic System
      General Information
      Test Procedures And Adjustments
      Basic Hydraulic System Type Identification
      Basic Hydraulic System Diagnostics - Type A
      Basic Hydraulic System Diagnostics - Type B
      Chaff Spreader Drive Diagnostics
      CONTOUR MASTER™ Header Tilt Diagnostics
      Deck Plate Adjust Type Identification
      Deck Plate Adjust Diagnostics - Type A
      Deck Plate Adjust Diagnostics - Type B
      Draper Belt Drive Diagnostics
      Feeder House Gearcase Cooler Diagnostics
      Header Raise/Lower Diagnostics
      HYDRAFLEX™ Pressure Adjust Diagnostics
      Hydraulic System Overheating Type Identification
      Hydraulic System Overheating Diagnostics - Type A
      Hydraulic System Overheating Diagnostics - Type B
      Reel/Belt Drive Type Identification
      Reel/Belt Drive Diagnostics - Type A
      Reel/Belt Drive Diagnostics - Type B
      Reel Fore/Aft Type Identification

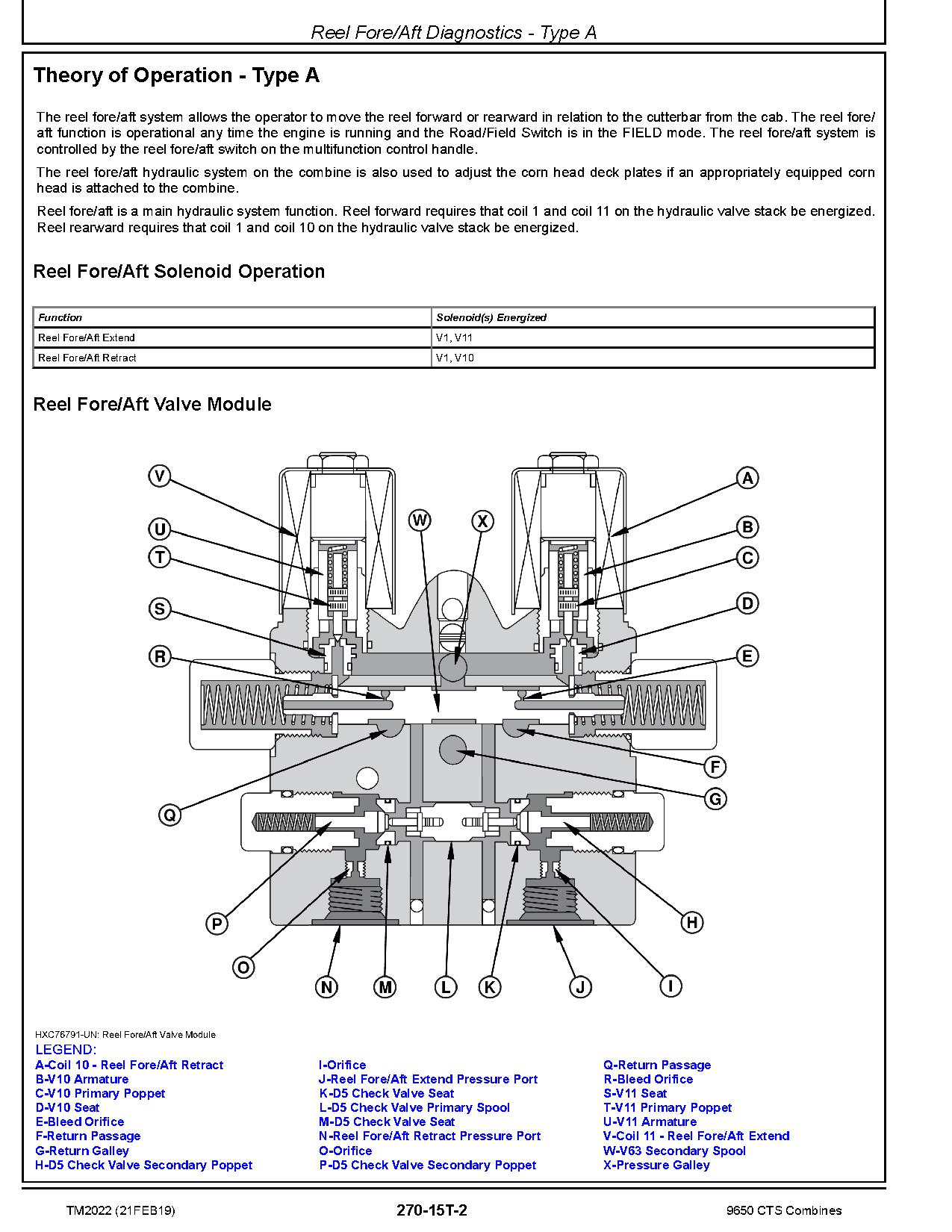

      Reel Fore/Aft Diagnostics - Type A
      Reel Fore/Aft Diagnostics - Type B
      Reel Raise/Lower Type Identification
      Reel Raise/Lower Diagnostics - Type A
      Reel Raise/Lower Diagnostics - Type B
      Reel Raise/Lower Diagnostics - Type C
      Reel Raise/Lower Diagnostics - Type D
      Threshing Speed Adjust Diagnostics
      Unloading Auger Swing Diagnostics
      Variable Speed Feeder House Type Identification
      Variable Speed Feeder House Diagnostics - Type A
      Variable Speed Feeder House Diagnostics - Type B
      Component Identification and Location
   Main Gearcase System
      General Information
      Test Procedures and Adjustments
      Main Gearcase Diagnostics
      Main Gearcase Pressure Low Diagnostics
      Main Gearcase Temperature High Diagnostics
      Main Gearcase Filter Restriction Diagnostics
      Separator Engage Main Gearcase Diagnostics
      Unloading Auger Engage Main Gearcase Diagnostics
      Component Identification and Location
   Steering System
      General Information
      Test Procedures and Adjustments
      Steering Diagnostics
      Component Identification and Location
   CLIMATRAK System
      General Information
      Test Procedures and Adjustments
      CLIMATRAK™ Diagnostics
      Component Identification and Location
   Separator System
      General Information
      Separator Vibration Diagnostics
      Component Identification and Location

Document
Document type	Diagnostic Manual
Covered
Type of Truck	Combine
Models	9650 CTS
