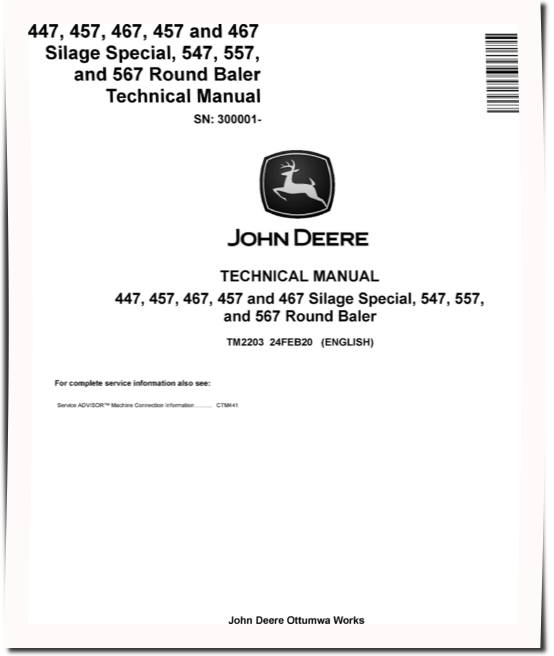

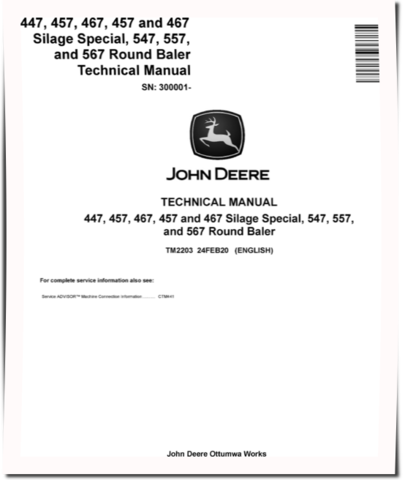

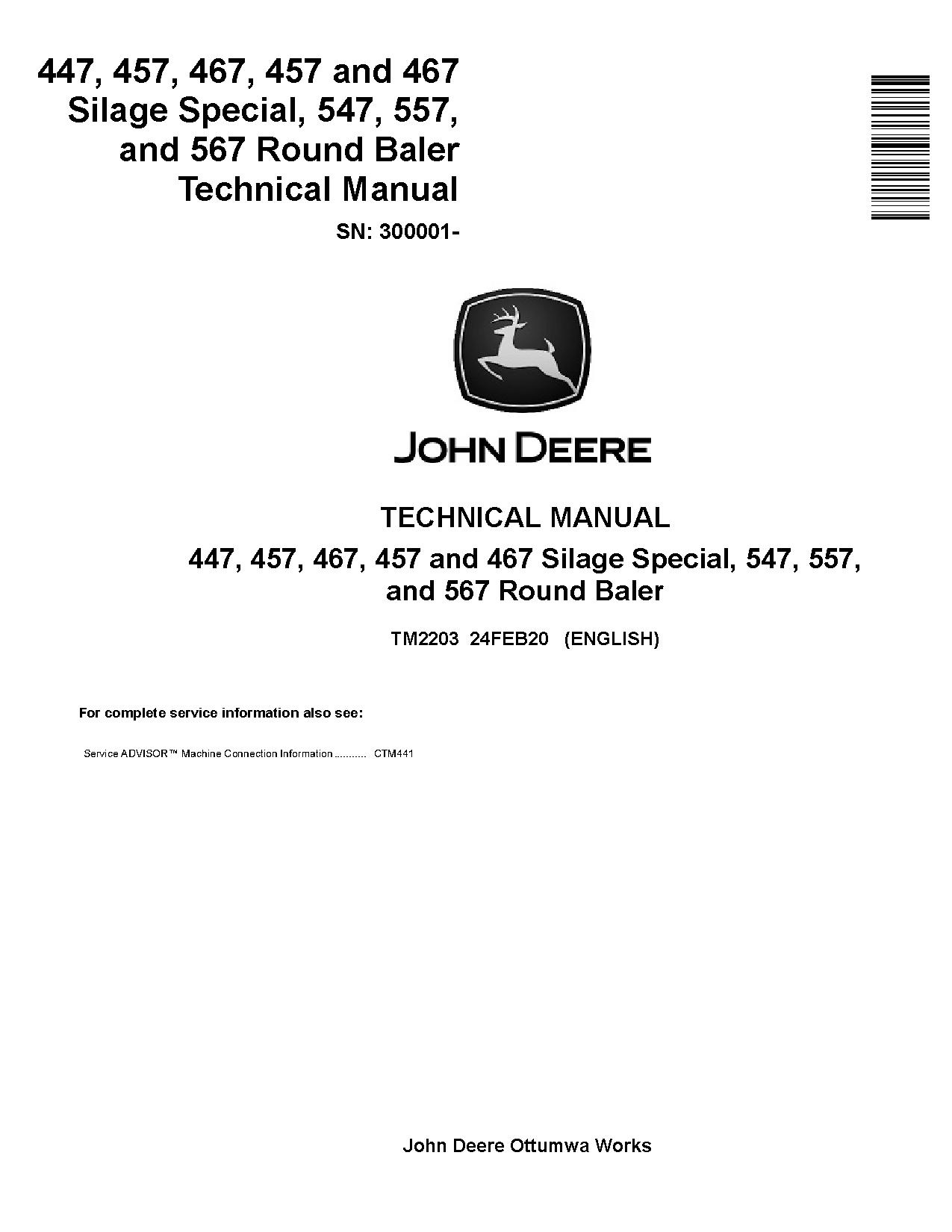

TM2203 - John Deere 457s, 467s Silage Special; 447, 457, 467, 547, 557, 567 Round Balers Repair Manual

Illustrated Factory Service Repair Manual Technical for John Deere Hay and Forage Round Balers Models 447, 457, 467, 547, 557, and 567; Silage Special Models 457s and 467s.

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 887 pages

Covered models (SN. from 300001):
  447
  457
  457S
  467
  467S
  547
  557
  567


Contents:


Foreword
   Service Technician Response
   General
      Safety
      Specifications
      General Information
      Lubricants
   Drive Train
      General Information
      Diagnosing Malfunctions
      Drive Train Protection
      PTO Driveline
      Gear Case Repair
      Roll Drives
      Rolls
      Miscellaneous
   Hydraulics
      General Information
      Diagnosing Malfunctions
      Operation and Tests-447, 457, 457S, 547 and 557
      Operation and Tests-467, 467S and 567
      Tensioning Valve Repair-447, 457, 457S, 547 and 557
      Tensioning Valve Repair-467, 467S and 567
      Gate Lock Valve Repair (457, 457S, 467, 467S, 557 and 567)
      Cylinder Repair
      Optional Hydraulic Bale Ramp Repair (457, 457S and 557)
   Twine Mechanism-Hydraulic (447, 457, 457S, 547, and 557)
      General Information
      Diagnosing Malfunctions

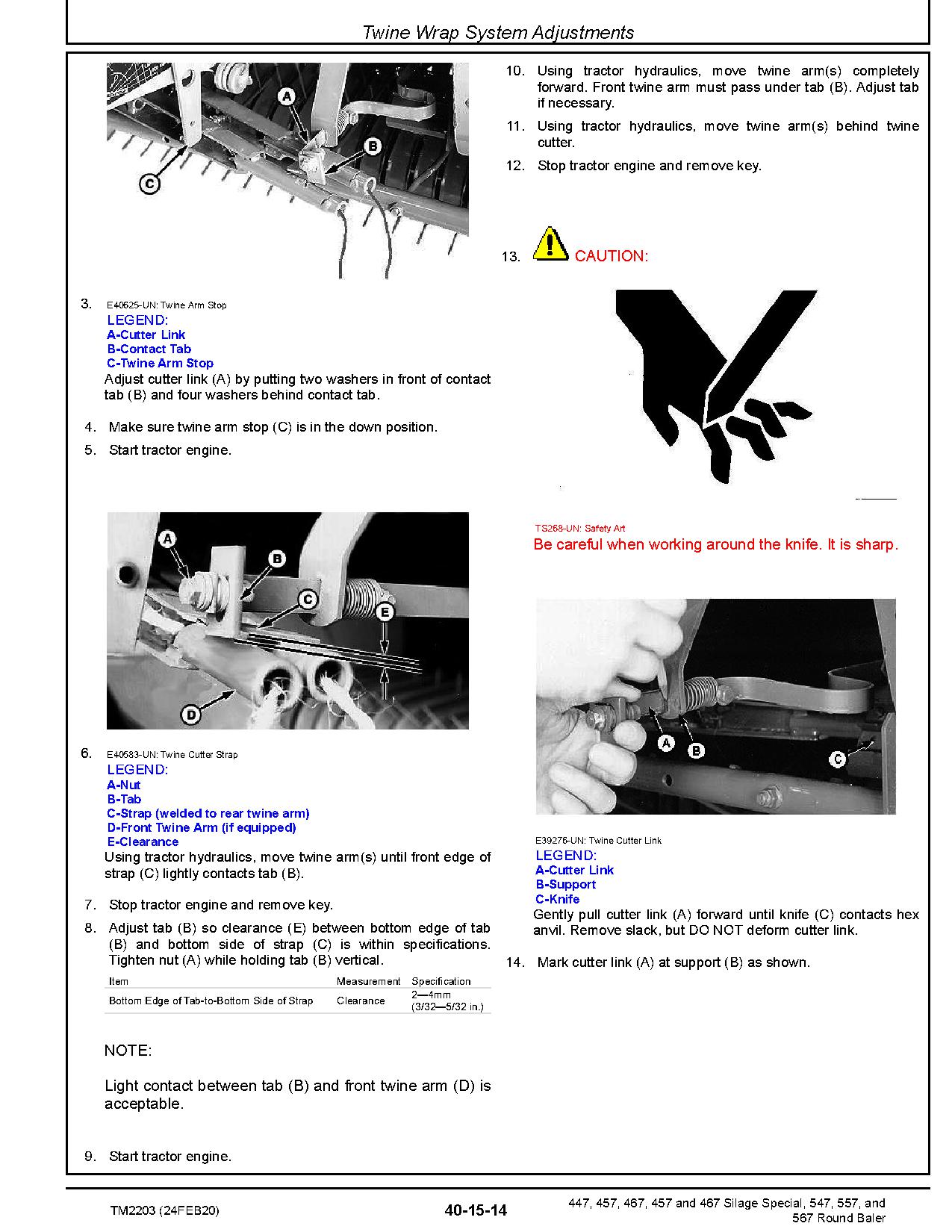

      Twine Wrap System Adjustments
      Twine Wrap System Repair
   Twine Mechanism-Electric
      General Information
      Diagnosing Malfunctions
      Twine Wrap System Adjustments-447 and 547
      Twine Wrap System Adjustments-457, 457S, 467, 467S, 557 and 567
      Twine Wrap System Repair
   COVEREDGE Net Wrap System (If Equipped)
      General Information
      Diagnosing Malfunctions
      Net Wrap Repair
   Electrical System
      General Information
      Common Electrical Tests and Checks
      Diagnosing Malfunctions-447, 547, and BALE WATCH System
      Tests and Adjustments-447, 547, and BALE WATCH System
      Diagnosing Malfunctions-BALETRAK Pro System

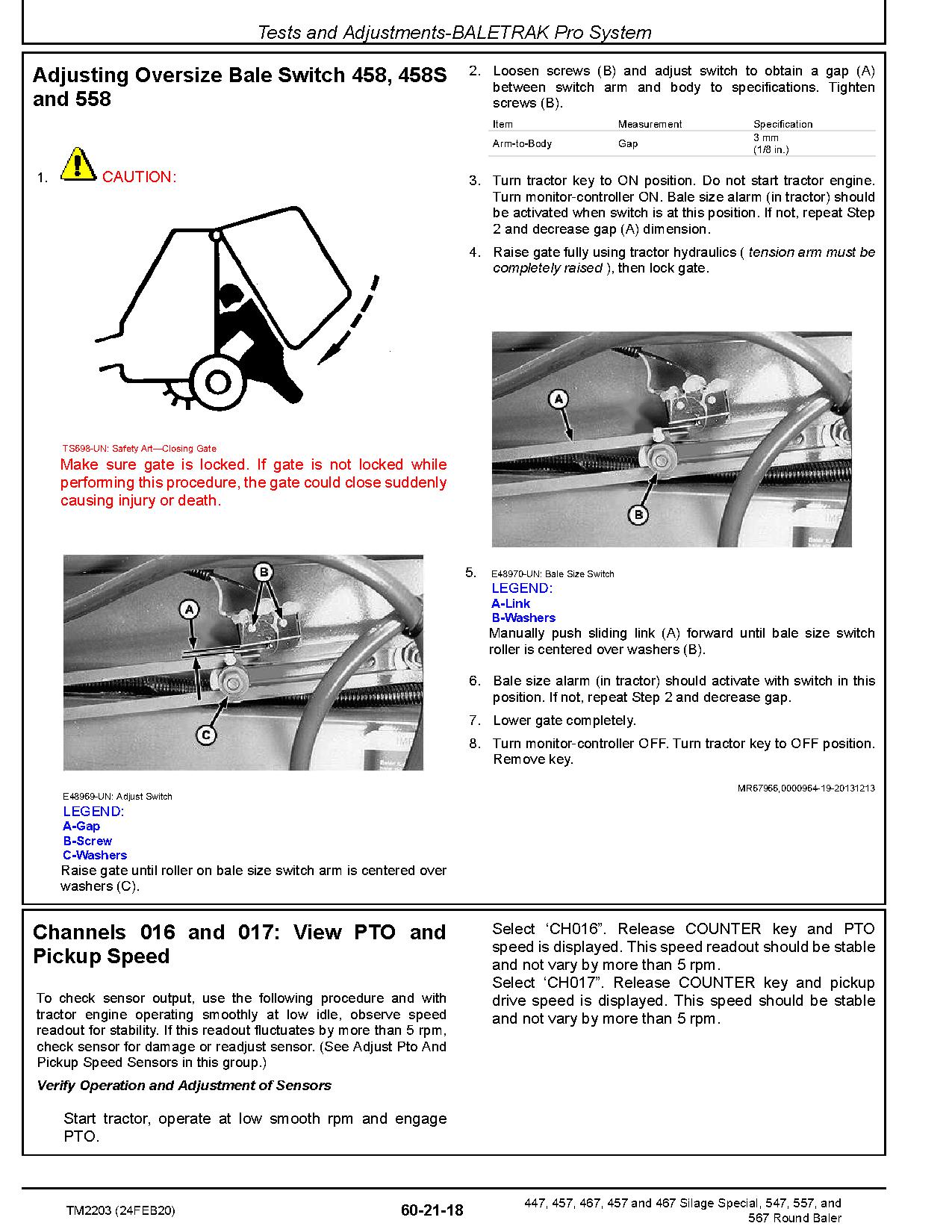

      Tests and Adjustments-BALETRAK Pro System
      Electrical Diagrams-447, 547, and BALE WATCH System
      Electrical Diagrams-BALETRAK Pro System
      BALETRAK Pro Monitor-Controller Operations
      Repair-447, 547, and BALE WATCH System
      Repair-BALETRAK Pro System
      Connector Repair
   Pickup
      General Information
      Diagnosing Malfunctions
      Regular Pickup Repair
      MEGATOOTH Pickup Repair

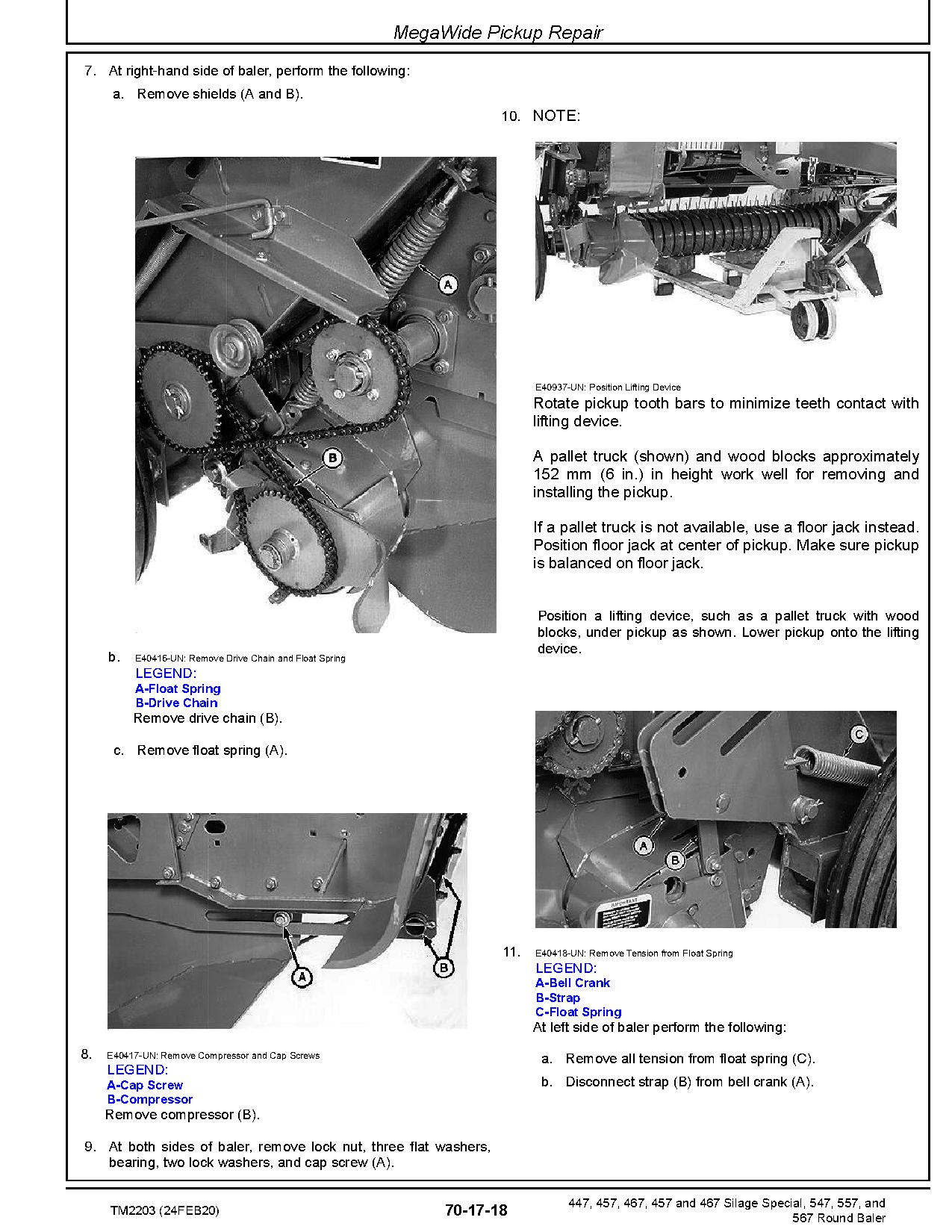

      MegaWide Pickup Repair
      Miscellaneous
   Miscellaneous
      Wheel Repair
      Gate Repair-447, 457, 457S, 547, and 557
      Gate Repair-467, 467S, and 567
      Tension Arm Repair-447, 457, 457S, 547, and 557
      Tension Arm Repair-467, 467S, and 567
      Tongue Repair
      Belt Repair
      Main Frame Repair
   Dealer Fabricated Tools
      Dealer Fabricated Tools

Document
Document type	Repair Manual
Covered
Type of Truck	Baler
Models	447, 457, 457S, 467, 467S, 547, 557, 567
