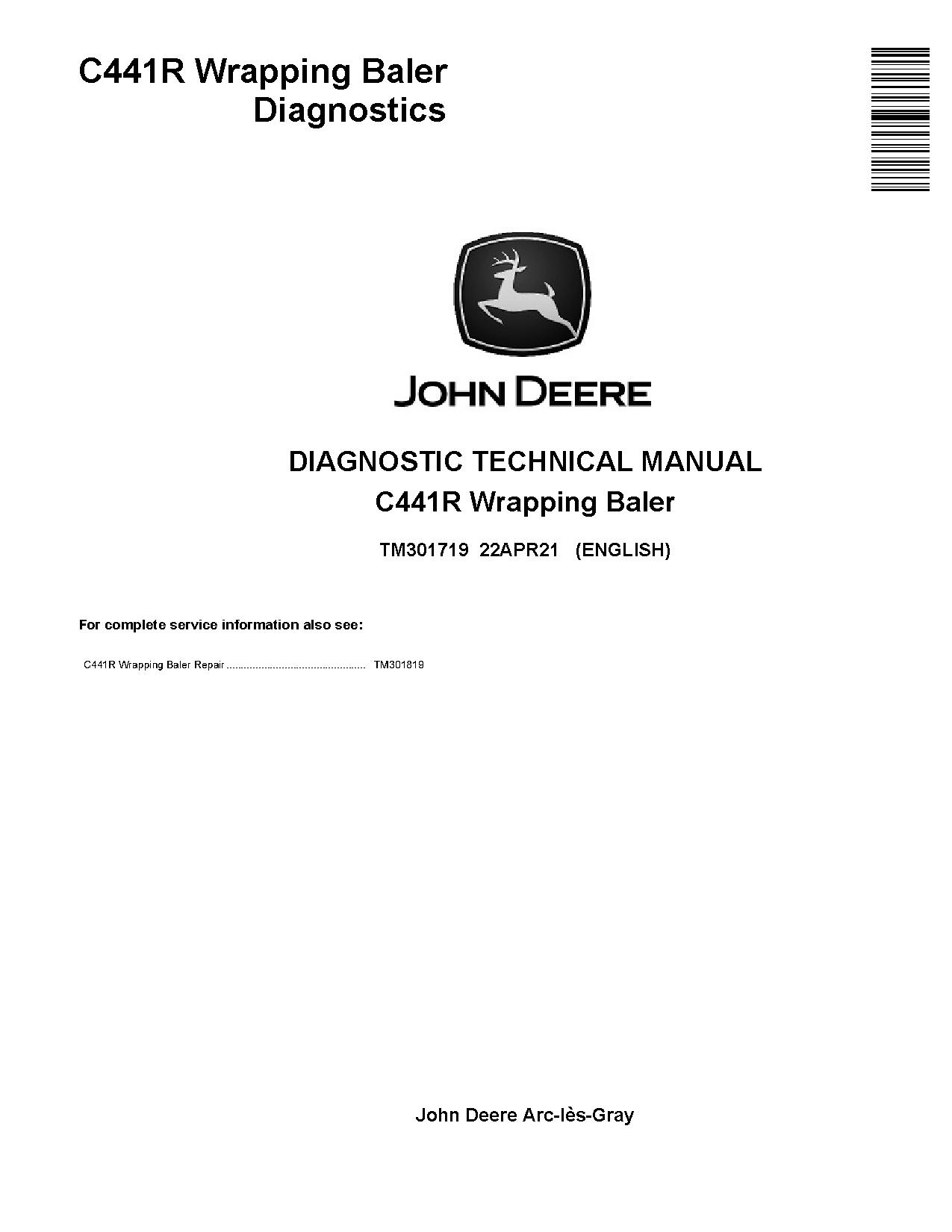

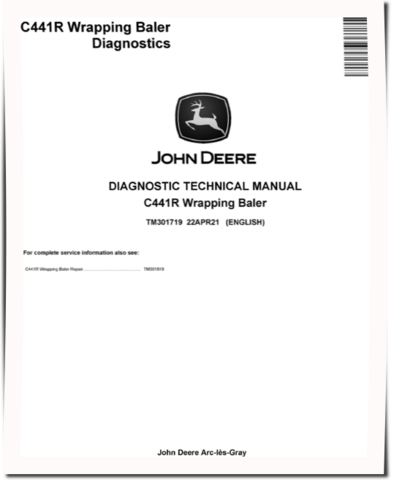

JD John Deere C441R Wrapping Baler Diagnostic Technical Service Manual (TM301719)

  • Brands: John Deere
  • Product Code: TM301719
  • Availability: In Stock
Illustrated Diagnostic Service Technical Manual for John Deere Wrapping Balers models C441R

This manual contains high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 509 pages

Covered models:
  C441R

Contents:


   Foreword
   General Information
      Safety Information
      General References
   Diagnostic Trouble Codes for Virtual Terminal Baler
      Description for Virtual Terminal Baler
      Diagnostic Trouble Code List for Virtual Terminal Baler
      Diagnostic Trouble Code List for Virtual Terminal Baler
   Troubleshooting
      Bale Density/Gate Control - Troubleshooting
   Electrical System - Virtual Terminal Baler
      General Information for Virtual Terminal Baler
      Schematic - Virtual Terminal Baler
      Diagnostic Test - Virtual Terminal Baler
      Diagnostic Modes - Virtual Terminal Baler
      Machine Setup - Virtual Terminal Baler
   Connector and Component Information
      Electrical Component Location
      Component Information - Assemblies
      Component Information - Lights
      Component Information - Fuses
      Component Information - Signalling Device
      Component Information - Relays
      Component Information - Actuators
      Component Information - Terminating Resistors
      Component Information - Potentiometers
      Component Information - Sensors and Switches
      Component Information - Semiconductors

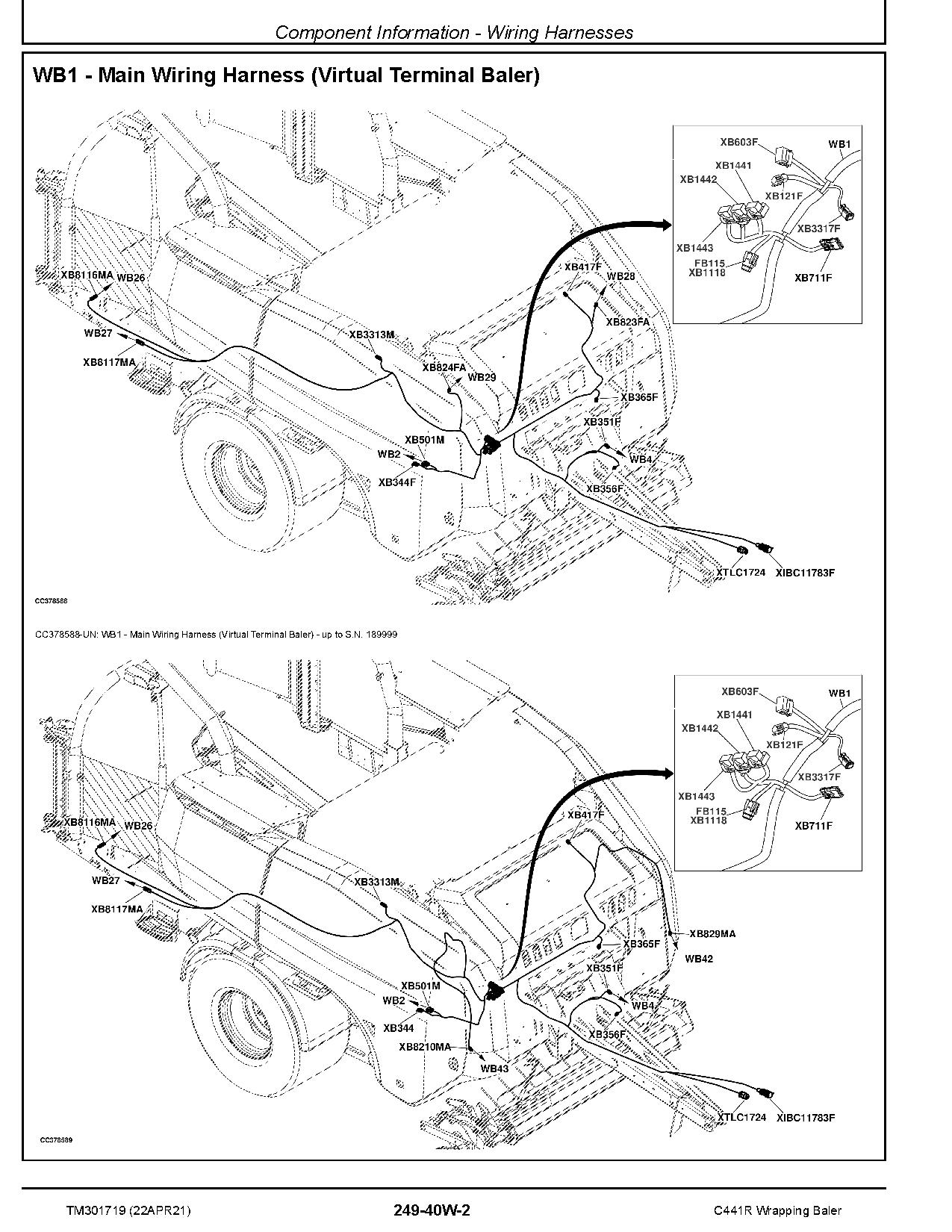

      Component Information - Wiring Harnesses
      Component Information - Connectors (XB101 to XB199)
      Component Information - Connectors (XB301 to XB399)
      Component Information - Connectors (XB401 to XB499)
      Component Information - Connectors (XB501 to XB599)

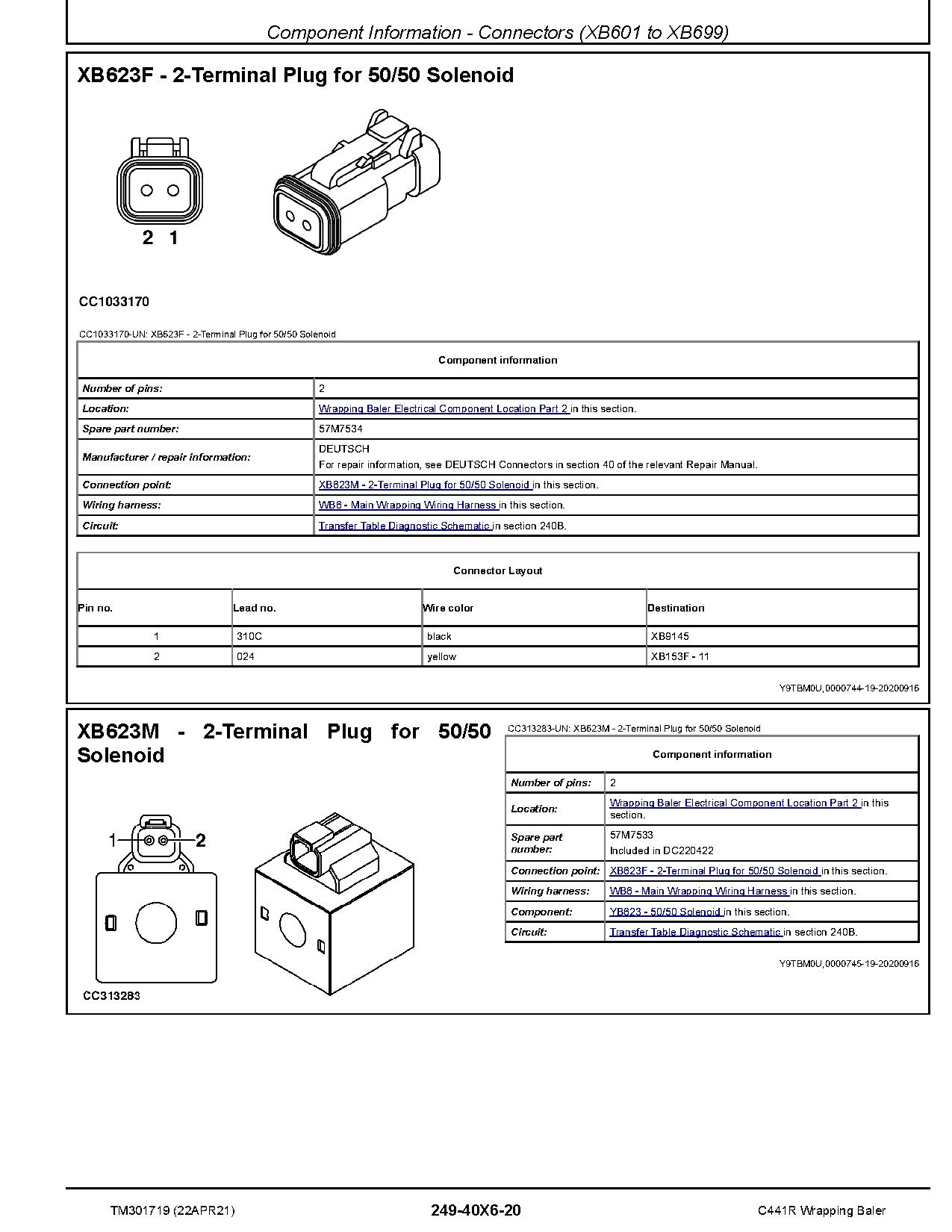

      Component Information - Connectors (XB601 to XB699)
      Component Information - Connectors (XB701 to XB799)
      Component Information - Connectors (XB801 to XB899)
      Component Information - Splices (XB901 to XB999)
      Component Information - Connectors (Others)
      Component Information - Solenoids
   Hydraulic System
      Hydraulic Systems - Safety and General Information
      Hydraulic Systems - Theory of Operation
      Hydraulic Schematic: Gate and Wrapping System
      Hydraulic Schematic: Rotary Feeder
      Hydraulic Systems - Diagnostic Tests and Adjustments
   Hydraulic System - Component Information
      Hydraulic Connections

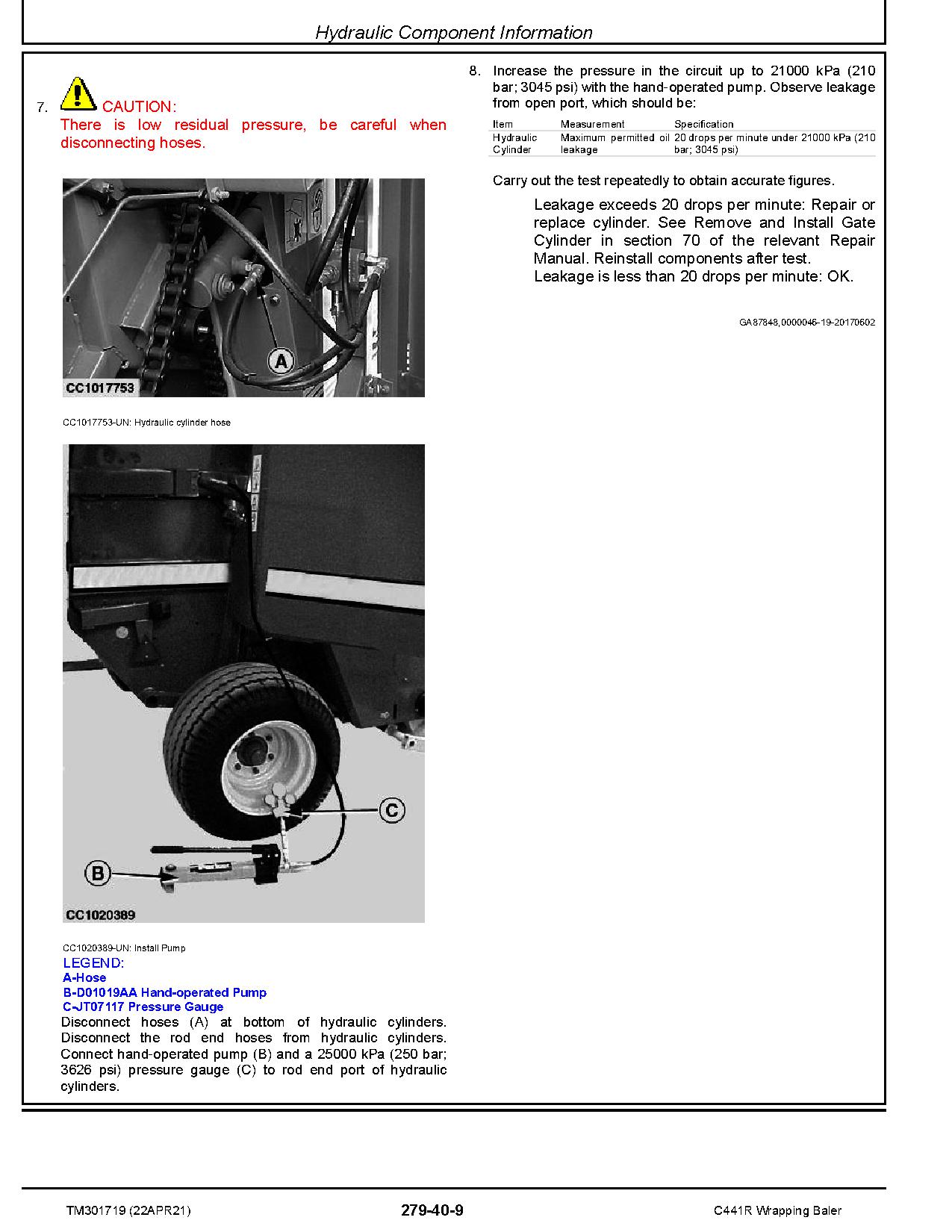

      Hydraulic Component Information
   Special Tools
      Special Tools (Dealer - Fabricated)
      Special Tools (Available as Spare Parts)
Document
Document type Diagnostic Manual
Covered
Type of Truck Baler
Models C441R
Tags: C441R
