TM403419 - John Deere 824, 832, 840 Trailed Crop Sprayers Diagnostic and Tests Service Manual
- Brands: John Deere
- Product Code: TM403419
- Availability: In Stock
Illustrated Factory Diagnosis and Tests Service Manual for John Deere Trailed Crop Sprayers Models 824, 832 and 840
This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
This is Diagnostic manual, including electical wiring diagrams, Repair manual are sold separate.
Language: English
Format: PDF, 297 pages
Covered models:
824
832
840
Contents:
Foreword
General Information
Safety
Electrical Diagnosis and Tests - 800se
Power Supply EL4
EL4 + EHS1 Connection 800SE
EL4+EHB1 Connection 800SE
EL4+EHS1 Connection 800SE V2
EL4+EHB1 Connection 800SE V2
LS for ELB1/EL4/EHC2 V1
Power Supply 3 pole Cobo connector
EL4 Connection V3 800SE
Update to B-motor
Electrical Diagnosis and Tests - 800i
Power Supply 3 Pole Cobo Connector
PCB Connection CAN box V3
Hydraulic Connection ISOBUS
Fuses
Electric Fusing Plan ISOBUS
Warning Screen Codes
Wiring Harness
Electrical Diagnosis and Tests - 800

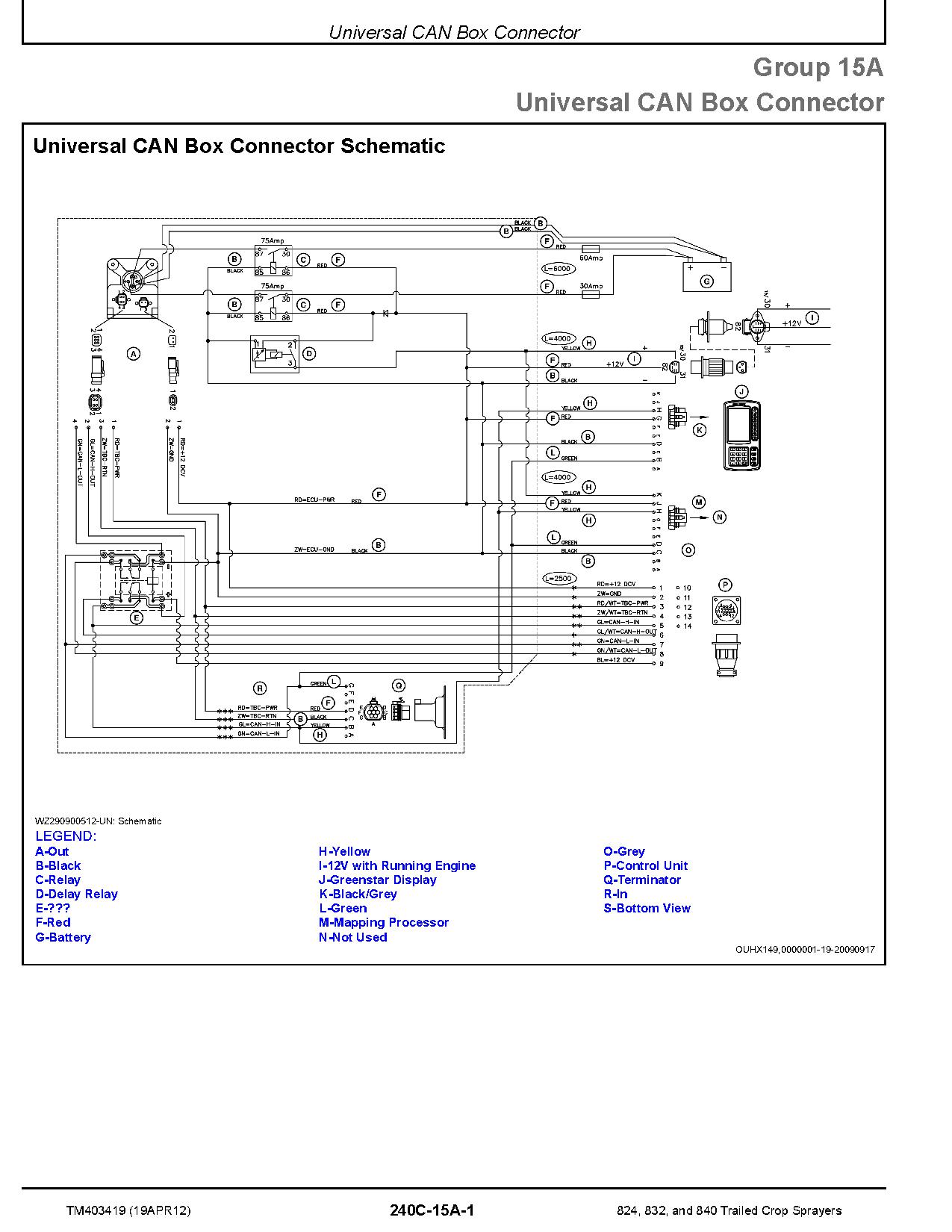

Universal CAN Box Connector
Power Supply EL4
ELC1+EHC2 Connection
Universal CAN Box Connector V2
ELC1+EHC2 Connection Left 800
ELC1+EHC2 Connection Right 800
EL4+Tilt Connection 800
EL4+Tilt Preselect+Edge Nozzle Connector 800
Drawbars Sensor Connection 800
Lightning Connection 800
T-split cable CAN connection
ELC1+EHC2 Connection 800
EL4 Electrical Connection 800
EL4+EHS1 Connection 800
EHC2 Connection Right 800
EHC2 Connection Left 800
EL4+EHB2 Connection 800
Droplethose Bracket Connection
Universal CAN Box Connection V3
PCB Connection CAN Box V2
Modification of Drawbar Sensors on EHC2 Hydraulic
Modification of PCB Security on EHC2
Modification of Drawbar Sensors on EHB2
Modification of Drawbar Sensors on HySelect
Modification of Drawbar Sensors on EHC2 Electrical
EL4 Electrical Connection 800 V2
EL4+EHS1 Connection 800 V2
EL4+EHB2 Connection 800 V2
LS For ELB1/EL4/EHC2 V1
LS For EL4+EHC2 V1
Power Supply 3 Pole Cobo Connector
PCB Connection CAN Box V3
EHC2 Connection Left 800 V2
BoomTrac Connection
LS For GSD4+EHC2 V2.01

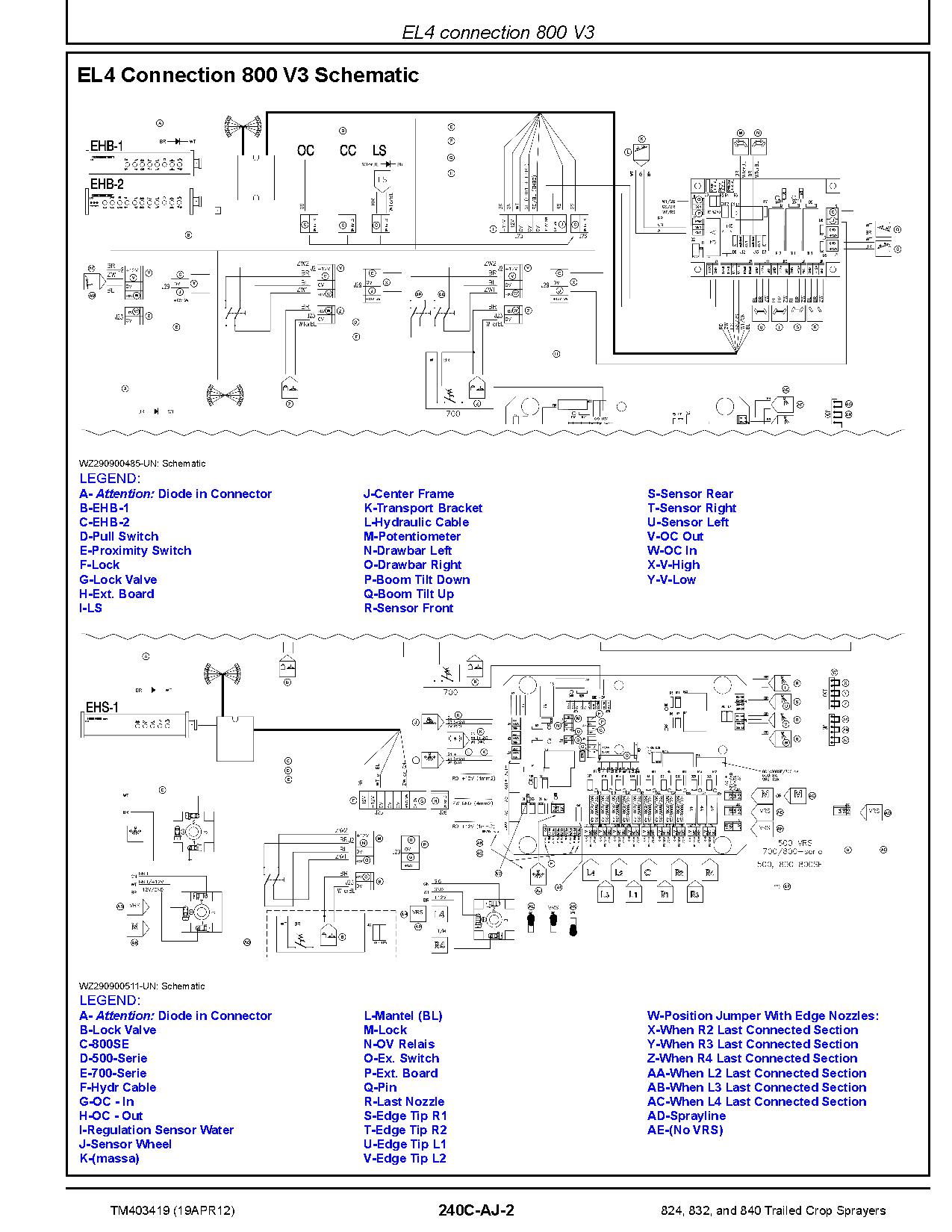

EL4 connection 800 V3
EL4 + Off Centre Nozzle Valves Connection 800
Update to B-motor
EL4 + Tankmatic Connection V2
Wiring Harness
Hydraulic Diagnostics - 800
SCV Lift/Symmetric Folding
SCV Lift/Asymmetric Folding
Electrohydraulic Lift/Symmetric Folding/Steering Drawbar
Electrohydraulic Lift/Assymmetric folding
Electrohydraulic Lift/Assymmetric Folding/Steering Drawbar
EH Lift/Symmetric Folding/Steering Drawbar/Variable Geometry
EH Lift/Asymmetric Folding/Steering Drawbar/Variable Geometry
HySelect Symmetric Folding/Steering Drawbar
HySelect Symmetric Folding
EHB2/EHC2 3 Part Folding Boom Tfi
EHS1 3 Part Folding Boom Tfi
EHB2/EHC2 2 Part Folding Boom No Variable Geometry
EHB2/EHC2 2 Part Folding Boom Variable Geometry
SCV Lift/Balance/Symmetric Folding
EHB2/EHC2 2 Part Folding Boom Tfi
Stand Alone Hydraulics 800
LS on EHB2/EHC2
Brakes 800
Hydraulic Diagnostics - 800SE
EHS1 800SE Hydraulics
EHB1 800SE Hydraulics
Stand Alone Hydraulics 800SE
Lift Balance Sequence Hydraulics 800SE
LS on EHB1, EHB2, EHC2 Hydraulics
Hydraulic Diagnostics - 800i
EHC2 3 Part Folding Boom Tfi Hydraulic
EHC2 2 Part Folding Boom Tfi Hydraulic
Stand Alone Hydraulic 800i
LS on EHC2 Hydraulic
Brake Hydraulics 800i
Plan Auto Dilute Hydraulics
This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.
This is Diagnostic manual, including electical wiring diagrams, Repair manual are sold separate.
Language: English
Format: PDF, 297 pages
Covered models:
824
832
840
Contents:
Foreword
General Information
Safety
Electrical Diagnosis and Tests - 800se
Power Supply EL4
EL4 + EHS1 Connection 800SE
EL4+EHB1 Connection 800SE
EL4+EHS1 Connection 800SE V2
EL4+EHB1 Connection 800SE V2
LS for ELB1/EL4/EHC2 V1
Power Supply 3 pole Cobo connector
EL4 Connection V3 800SE
Update to B-motor
Electrical Diagnosis and Tests - 800i
Power Supply 3 Pole Cobo Connector
PCB Connection CAN box V3
Hydraulic Connection ISOBUS
Fuses
Electric Fusing Plan ISOBUS
Warning Screen Codes
Wiring Harness
Electrical Diagnosis and Tests - 800
Universal CAN Box Connector
Power Supply EL4
ELC1+EHC2 Connection
Universal CAN Box Connector V2
ELC1+EHC2 Connection Left 800
ELC1+EHC2 Connection Right 800
EL4+Tilt Connection 800
EL4+Tilt Preselect+Edge Nozzle Connector 800
Drawbars Sensor Connection 800
Lightning Connection 800
T-split cable CAN connection
ELC1+EHC2 Connection 800
EL4 Electrical Connection 800
EL4+EHS1 Connection 800
EHC2 Connection Right 800
EHC2 Connection Left 800
EL4+EHB2 Connection 800
Droplethose Bracket Connection
Universal CAN Box Connection V3
PCB Connection CAN Box V2
Modification of Drawbar Sensors on EHC2 Hydraulic
Modification of PCB Security on EHC2
Modification of Drawbar Sensors on EHB2
Modification of Drawbar Sensors on HySelect
Modification of Drawbar Sensors on EHC2 Electrical
EL4 Electrical Connection 800 V2
EL4+EHS1 Connection 800 V2
EL4+EHB2 Connection 800 V2
LS For ELB1/EL4/EHC2 V1
LS For EL4+EHC2 V1
Power Supply 3 Pole Cobo Connector
PCB Connection CAN Box V3
EHC2 Connection Left 800 V2
BoomTrac Connection
LS For GSD4+EHC2 V2.01
EL4 connection 800 V3
EL4 + Off Centre Nozzle Valves Connection 800
Update to B-motor
EL4 + Tankmatic Connection V2
Wiring Harness
Hydraulic Diagnostics - 800
SCV Lift/Symmetric Folding
SCV Lift/Asymmetric Folding
Electrohydraulic Lift/Symmetric Folding/Steering Drawbar
Electrohydraulic Lift/Assymmetric folding
Electrohydraulic Lift/Assymmetric Folding/Steering Drawbar
EH Lift/Symmetric Folding/Steering Drawbar/Variable Geometry
EH Lift/Asymmetric Folding/Steering Drawbar/Variable Geometry
HySelect Symmetric Folding/Steering Drawbar
HySelect Symmetric Folding
EHB2/EHC2 3 Part Folding Boom Tfi
EHS1 3 Part Folding Boom Tfi
EHB2/EHC2 2 Part Folding Boom No Variable Geometry
EHB2/EHC2 2 Part Folding Boom Variable Geometry
SCV Lift/Balance/Symmetric Folding
EHB2/EHC2 2 Part Folding Boom Tfi
Stand Alone Hydraulics 800
LS on EHB2/EHC2
Brakes 800
Hydraulic Diagnostics - 800SE
EHS1 800SE Hydraulics
EHB1 800SE Hydraulics
Stand Alone Hydraulics 800SE
Lift Balance Sequence Hydraulics 800SE
LS on EHB1, EHB2, EHC2 Hydraulics
Hydraulic Diagnostics - 800i
EHC2 3 Part Folding Boom Tfi Hydraulic
EHC2 2 Part Folding Boom Tfi Hydraulic
Stand Alone Hydraulic 800i
LS on EHC2 Hydraulic
Brake Hydraulics 800i
Plan Auto Dilute Hydraulics
| Document | |
| Document type | Diagnostic Manual |
| Covered | |
| Type of Truck | Sprayer |
| Models | 824, 832, 840 |
