TM406619 - John Deere Tractor 6090MC, 6100MC, 6110MC, 6090RC, 6100RC,6110RC Service Repair Technical Manual

Illustrated Factory Repair Manual for John Deere 2WD or MFWD Tractors 6090MC, 6100MC, 6110MC, 6090RC, 6100RC & 6110RC (Worldwide Edition)

This manual contains high quality images,  instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 1434 pages

Covered models:
  6110RC
  6100RC
  6090RC
  6110MC
  6100MC
  6090MC


Contents:


Foreword
   Safety
      Safety
   General
      General Information - Specifications
      General Information - Tests and Adjustments
      General Information - Predelivery Inspection
   Engine
      Engine – Removal and Installation of Components
   Fuel, Air-Intake, Cooling, and Exhaust System
      Fuel System
      Air Intake System
      Cooling System
      Exhaust System
   Electrical System
      Electrical System - Connectors
      Electrical System - Charging Circuit
      Electrical System - Starter Circuit
      Electrical System - Headlights
   Electronic Control Units
      Removal and Installation of Control Units
      Terminating Resistors, Removal and Installation
   Drive Train (without Transmission)
      Drive Train (without Transmission) - Removal and Installation of Components
      Drive Train (without Transmission) - U.J. Shafts and Torsion Dampers
      Drive Train (without Transmission) - Mechanical Front-Wheel Drive
      Drive Train (without Transmission) - Differential
      Drive Train (without Transmission) - Hydraulic Pump Drive
      Drive Train (without Transmission) - Final Drives

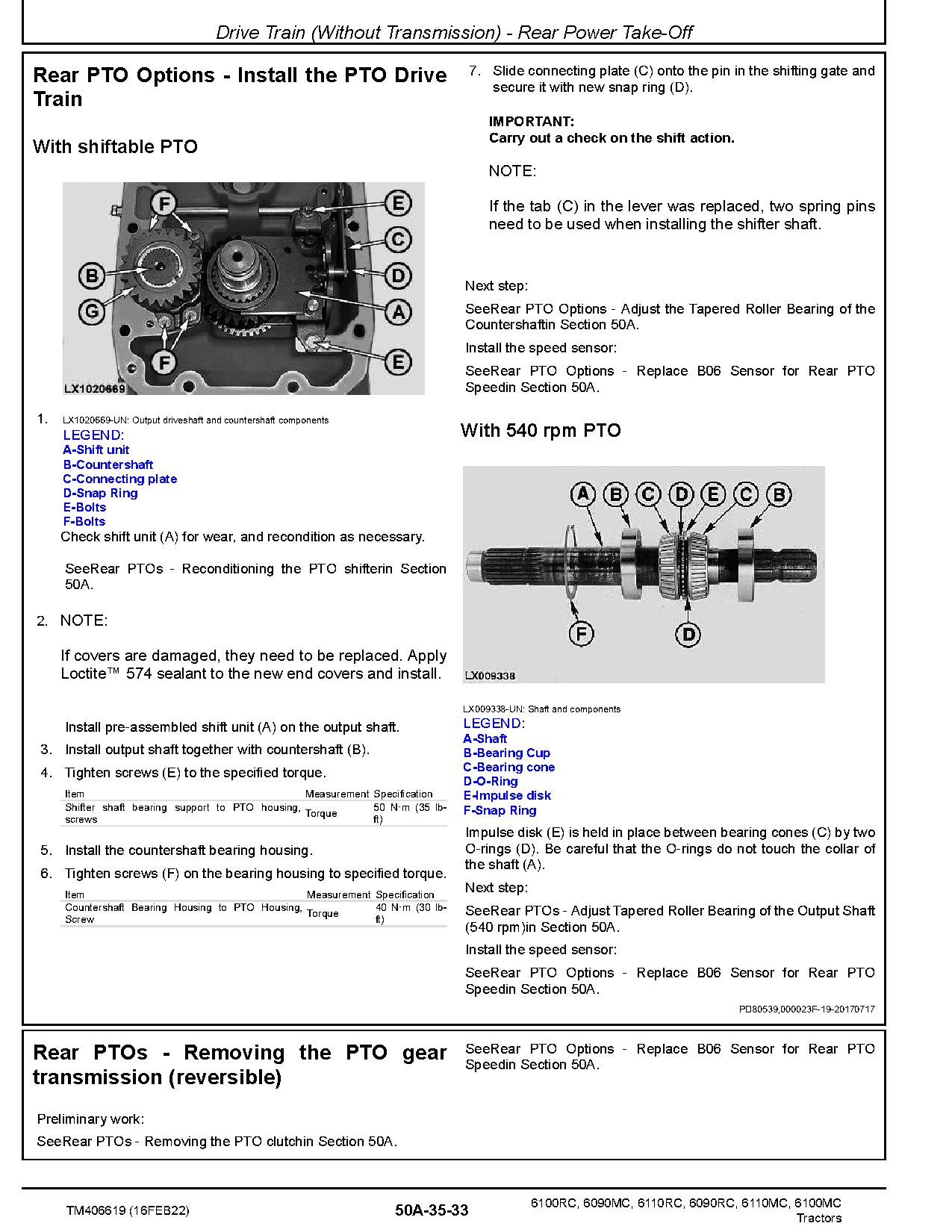

      Drive Train (without Transmission) - Rear PTO Options
      Drive Train (without Transmission) - Front PTO
      Drive Train (without Transmission) - Front Implement Drive
   PowrQuad™ Transmission
      PowrQuad™ Transmission - Removal and Installation of Components
      PowrQuad™ Transmission - Transmission Shift Control
      PowrQuad™ Transmission - PowrQuad™ Module
      PowrQuad™ Transmission - Creeper Transmission
      PowrQuad™ Transmission - Option Transmission
      PowrQuad™ Transmission - Range Transmission
   Steering
      Steering - Hydrostatic Steering
   Brakes

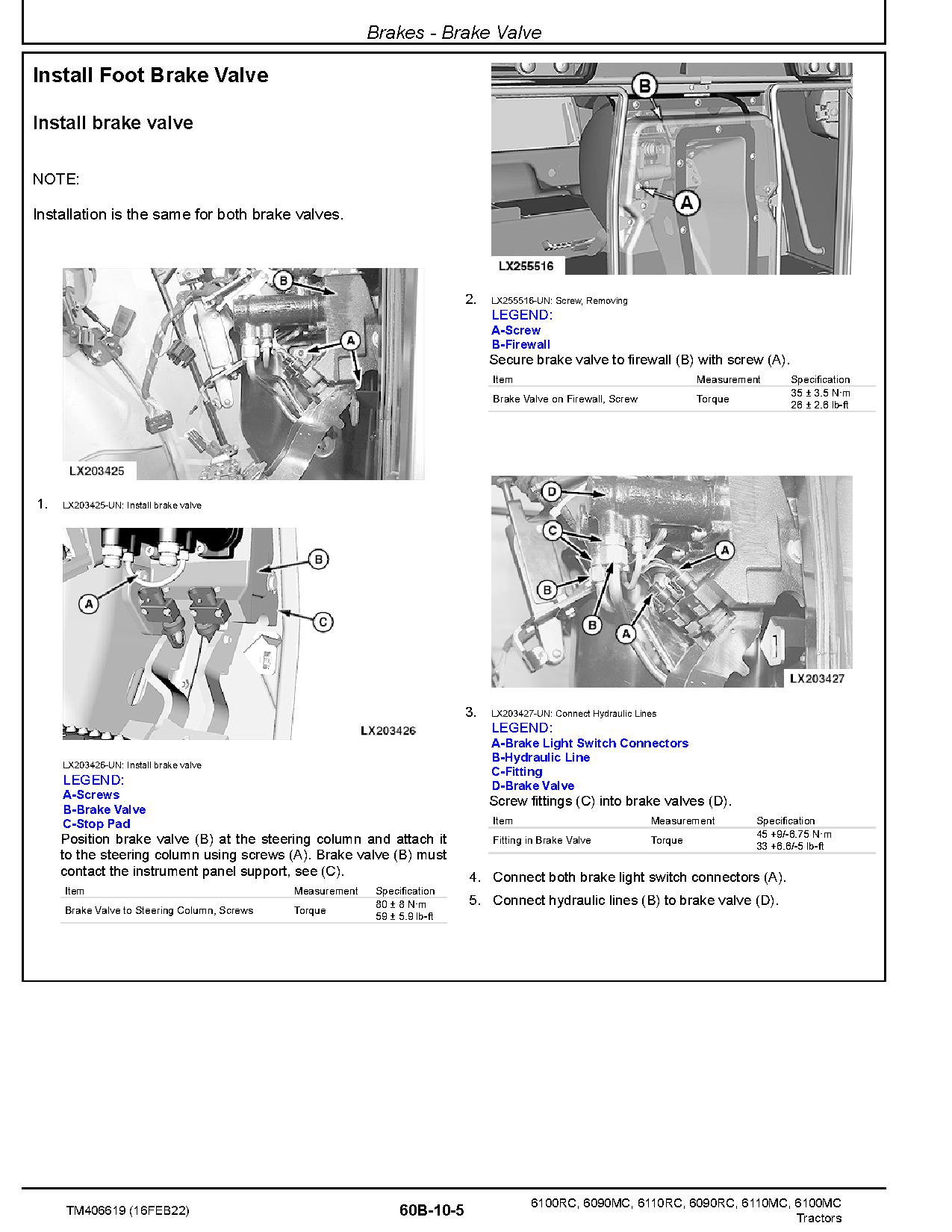

      Brakes - Brake Valve
      Brakes - Rear Brakes
      Brakes - Hydraulic Trailer Brake
      Brakes - Air-Brake System
      Brakes - Park Brake
   Hydraulic System
      Hydraulic System - General Information
      Hydraulic System - Controls
      Hydraulic System - Oil Filter, Additional Oil Reservoir, Charge Pump, and Hydraulic Pump
      Hydraulic System - Priority 1 to 3 Control Blocks
      Hydraulic System - Rear Hitch
      Hydraulic System - Selective Control Valves (SCVs) and Couplers
      Hydraulic System - Independent Control Valves (ICVs)
   Machine-Specific Systems
      Machine-Specific Systems - Removal and Installation of Components
      Machine-Specific Systems - Main Frame
      Machine-Specific Systems - Fenders, Front Wheels, and Rear Wheels

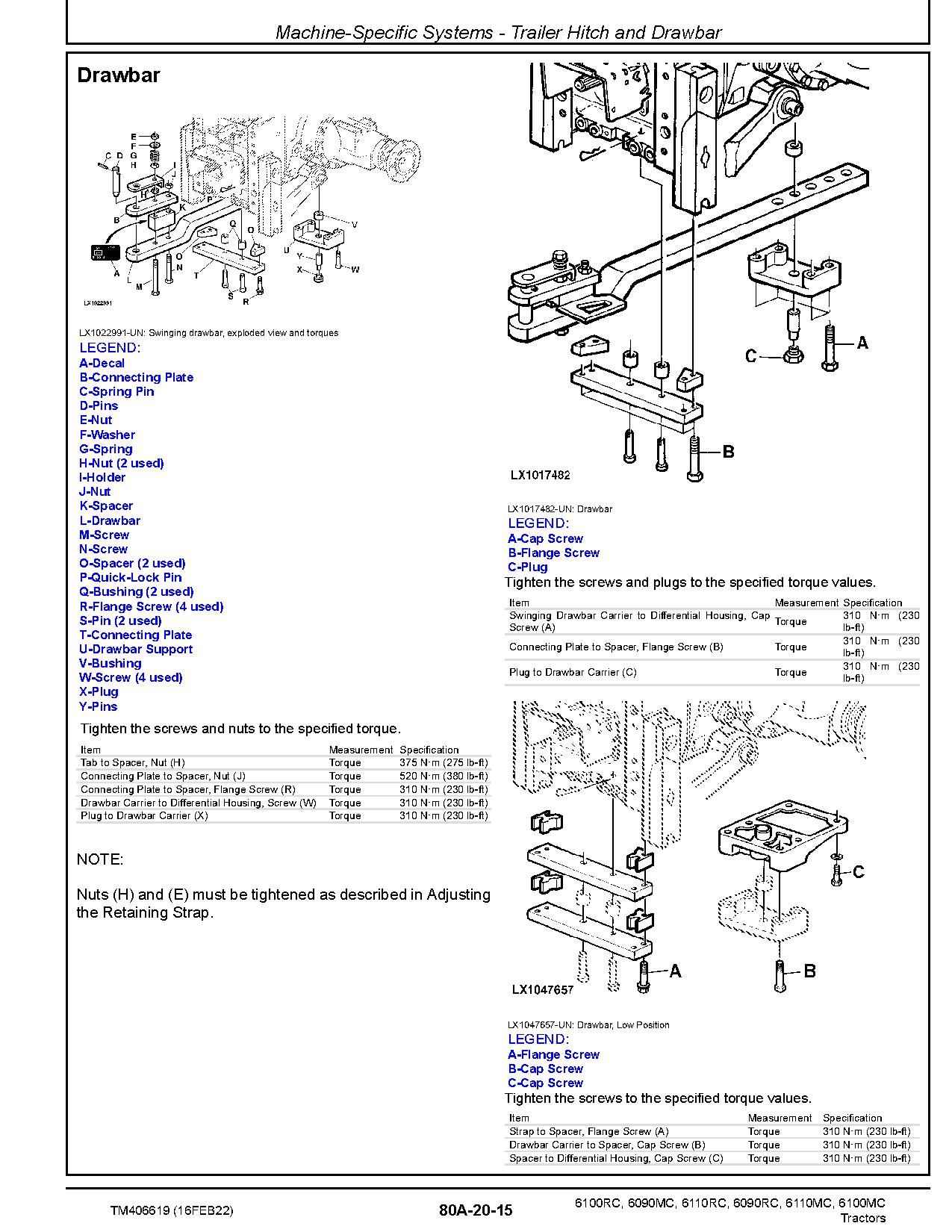

      Machine-Specific Systems – Trailer Hitch and Swinging Drawbar
      Machine-Specific Systems - Hydraul. Pick-Up Hitch
   Suspension Systems
      Suspension Systems - Suspended Front-Wheel Drive Axle
   Operator′s Cab
      Removal and Installation of Components
      Operator′s Cab - Operation and Control Devices
      Operator′s Cab - Air-Conditioning System
      Operator′s Cab - Seats
      Operator′s Cab - Operator′s Cab
   Special Tools
      General Information

Document
Document type	Repair Manual
Covered
Type of Truck	6xxx Series Tractors
Models	6090MC, 6090RC, 6100MC, 6100RC, 6110MC, 6110RC
