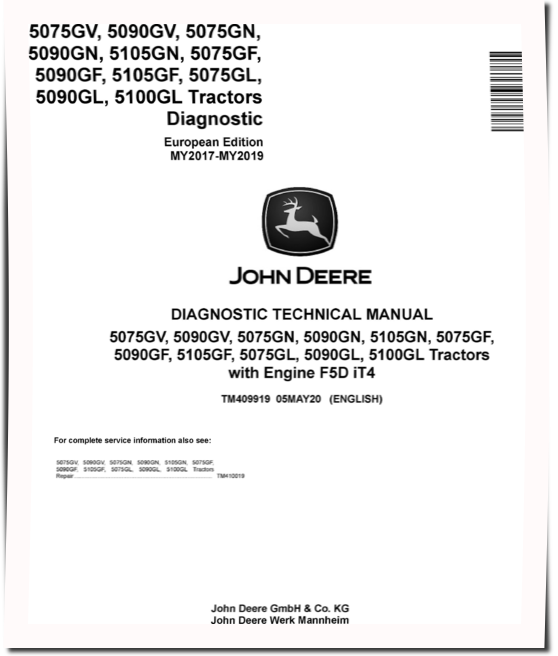

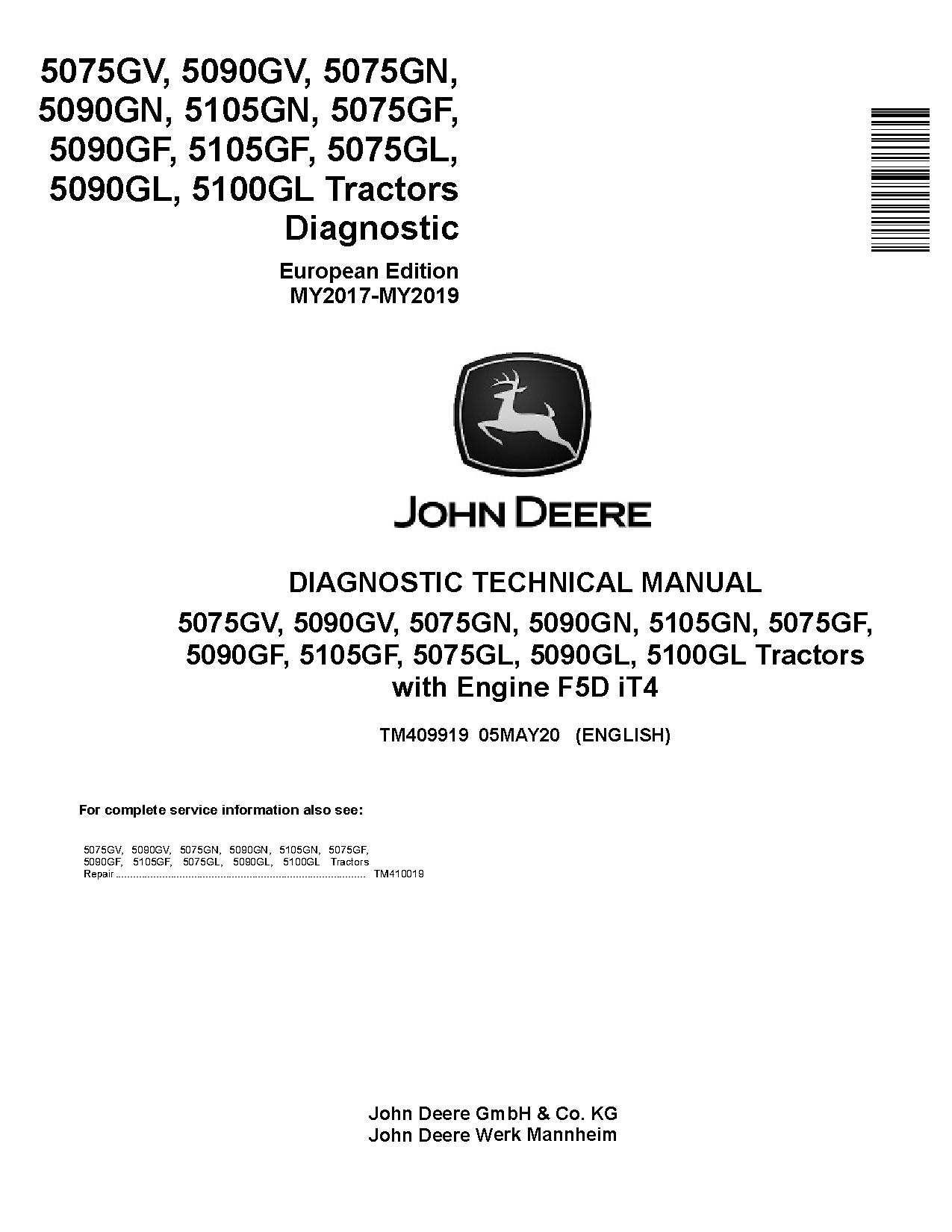

John Deere 5075GV/GN/GF/GL, 5090GV/GN/GF/GL, 5100GL, 5105GN/GF Tractors Diagnostic Manual (TM409919)

  • Brands: John Deere
  • Product Code: TM409919
  • Availability: In Stock
Illustrated Diagnostic Technical Manual for John Deere Tractors with It4 engine F5D, Models 5075GF, 5075GL, 5075GN, 5075GV, 5090GF, 5090GL, 5090GN, 5090GV, 5100GL, 5105GF, 5105GN

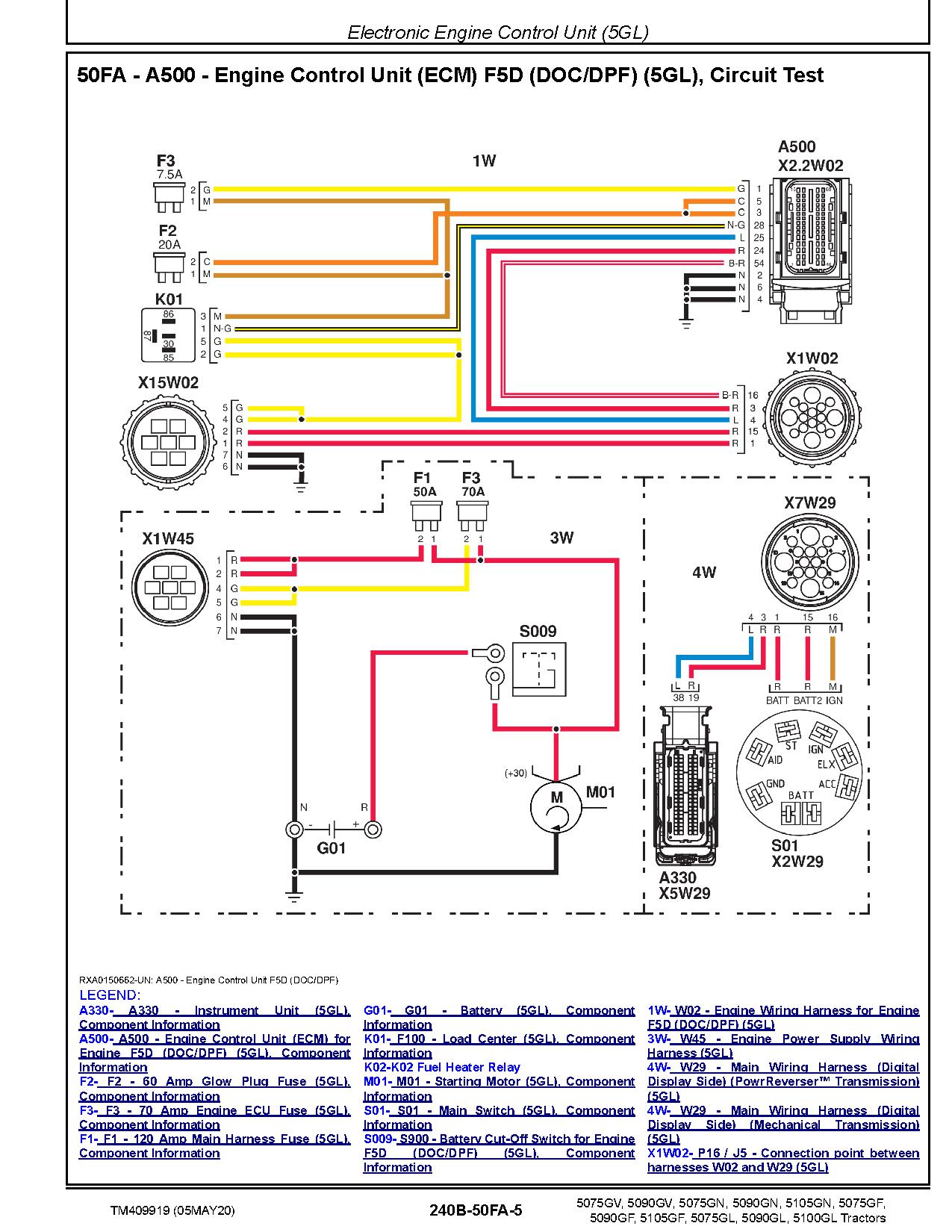

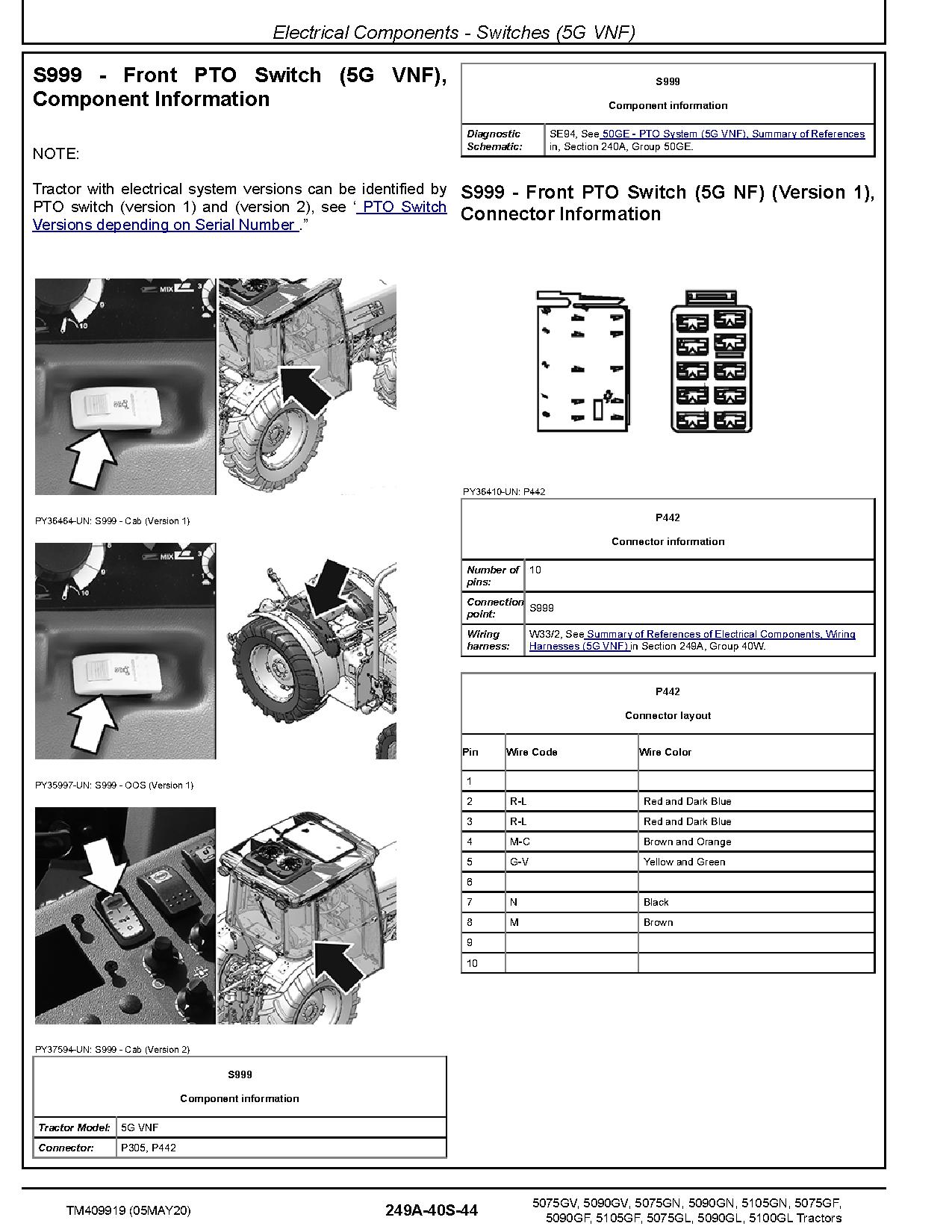

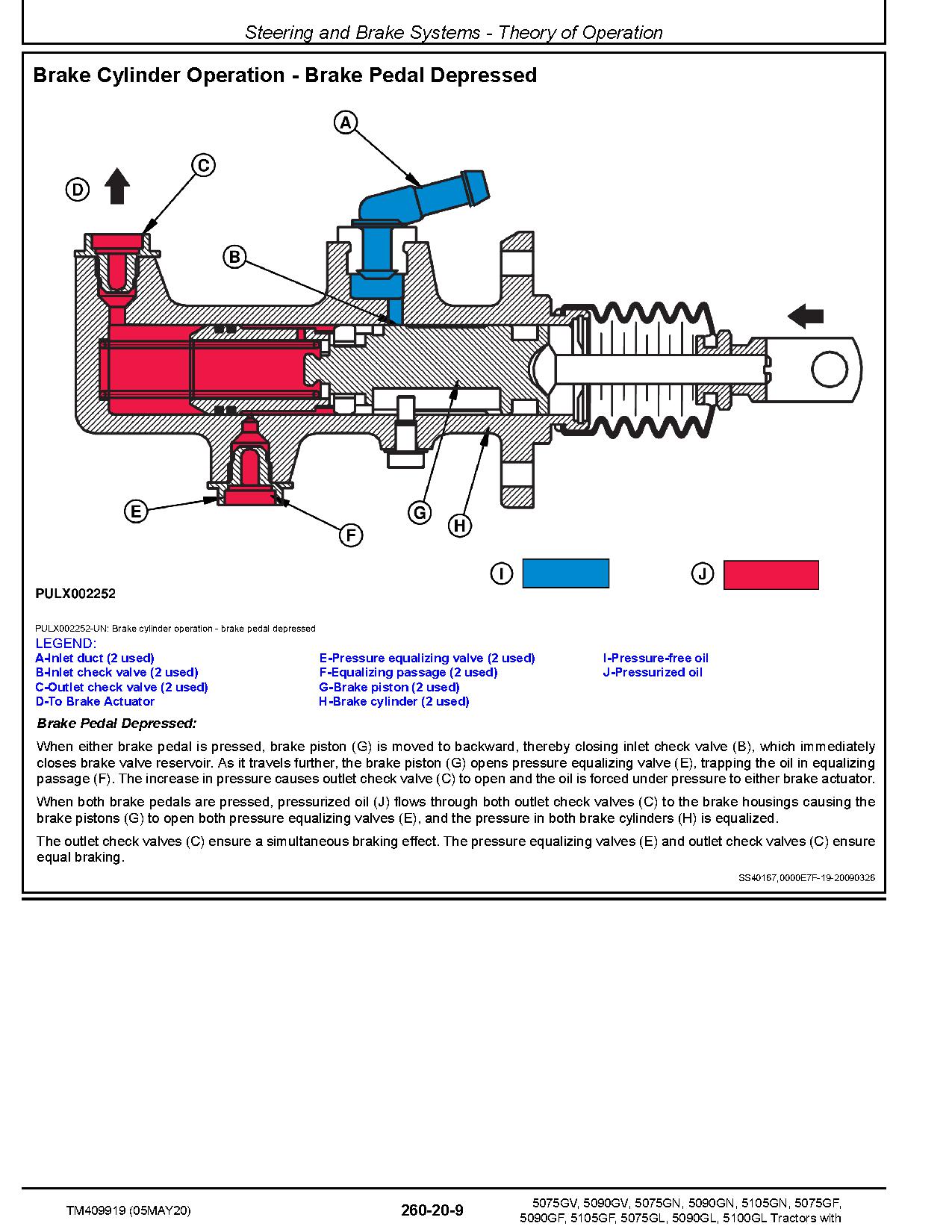

This manual contains high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 2029 pages

Covered models:
   5075GF
   5075GL
   5075GN
   5075GV
   5090GF
   5090GL
   5090GN
   5090GV
   5100GL
   5105GF
   5105GN

Contents:


   Foreword
   PTO Switch versions depending on Serial Number
   General Information
      Safety Measures
      General References
   Diagnostic Trouble Codes
      Engine Control Unit for Engine F5D (DOC/DPF)
      Electronic Hitch Sensing
      Transmission Control Unit
      E-SCV Control Unit
      Vehicle Control Unit
   Observable Symptoms
      Fuel and Air Intake System
      Electrical System
      Electronic Control Units
      Power Train
      Steering and Brakes
      Hydraulic System
      Front-Wheel Drive
      Air-Conditioning System
   Engine
      Engine - General Information
      Engine - Operational Checks
      Engine - Diagnostic Tests/Adjustments
   Fuel, Air Intake and Cooling Systems
      Fuel, Air Intake and Cooling System - Theory of Operation
      Fuel, Air Intake and Cooling Systems - Diagnostic Tests/Adjustments
   Electrical System (5G VNF)
      Electrical System - General Information (5G VNF)
      Electrical System - Schematics (5G VNF)
      Starting Motor and Charging System (5G VNF)
      Vehicle Lights (5G VNF)
      Roof Harness Systems (Lights, A/C, Radio and Wiper) (5G VNF)
     &nb
Document
Document type Diagnostic Manual
Covered
Type of Truck 5xxx Series Tractors
Models 5075GF, 5075GL, 5075GN, 5075GV, 5090GF, 5090GL, 5090GN, 5090GV, 5100GL, 5105GF, 5105GN
