TM8295 - John Deere 1107, 1109, 1111, 1113, 2109, 2111, 2115 Planters Technical Service Manual

  • Brands: John Deere
  • Product Code: TM8295
  • Availability: In Stock
Illustrated Factory Technical Service Manual for John Deere 1100 Series Planters Models 1107, 1109, 1111, 1113 and 2100 VacuMeter™ and RadialMeter Planters Models 2109, 2111, 2115

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, troubleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 336 pages

Covered models:
   1107
   1109
   1111
   1113
   2109
   2111
   2115


Contents:



Foreword
   Model Identification and Chassis Covered in this Manual

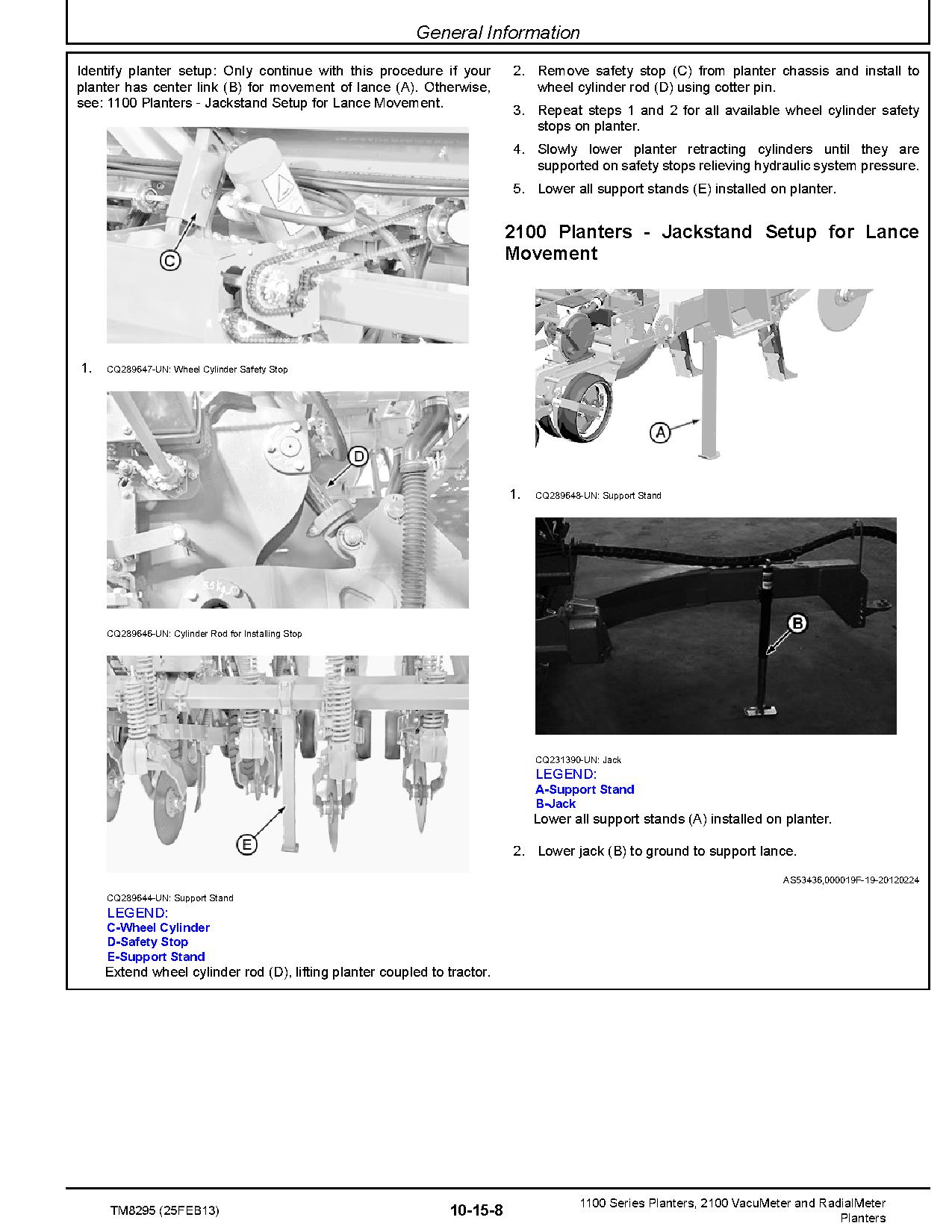

   General Information
      Safety
      Lubricants
      General Information
   Vacuum System
      Vacuum System
   Central Seed Box
      Collectors and Seed Tanks-2100
      Seed Delivery Hose-2100
      Central Seed Box Blower-2100
   Planting Units
      Row Units-1100
      Row Units-2100

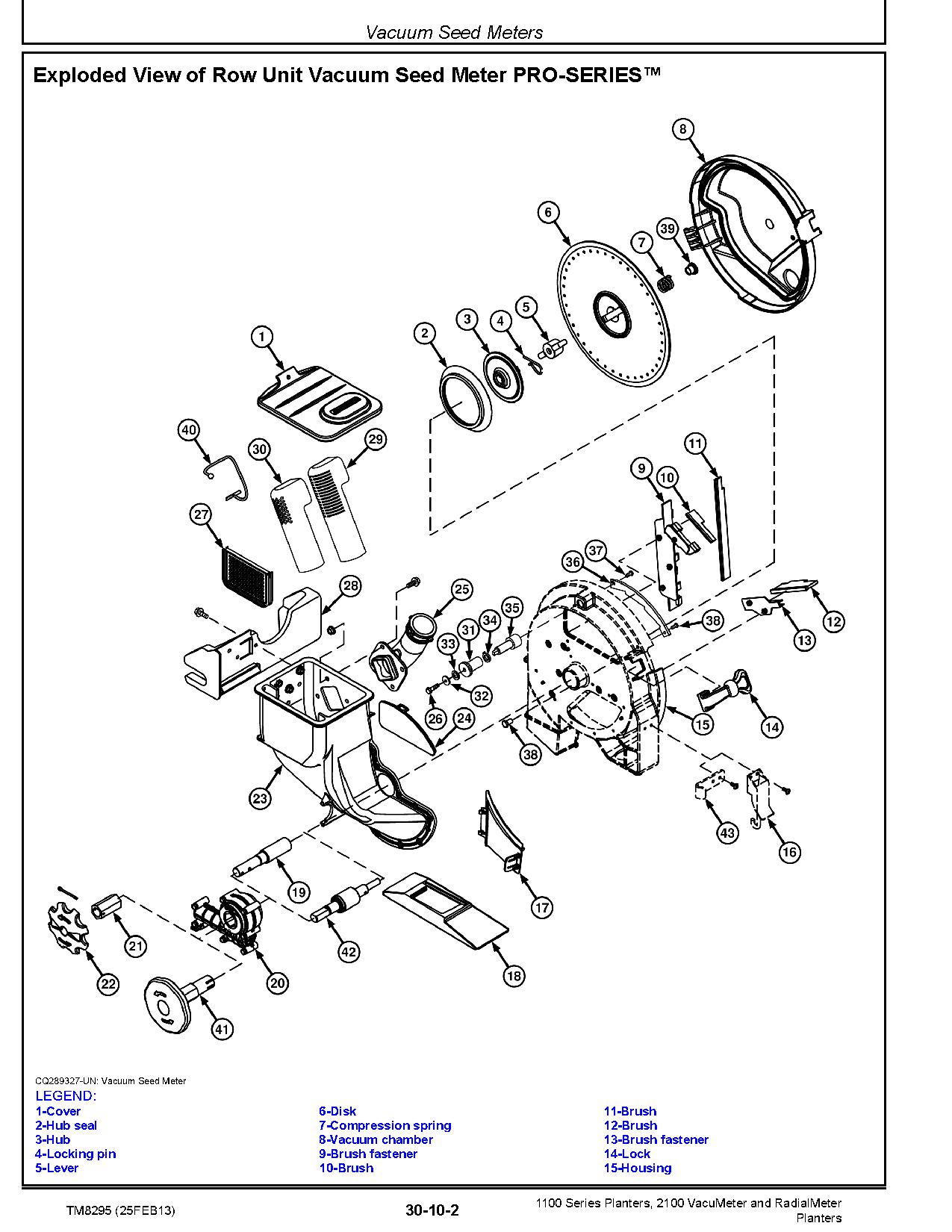

      Vacuum Seed Meters
      Non-Disk Seed Meter
      Closing Wheels
      Row Unit Pressure-2100
   Lance, Wheel Support and Row Markers
      Lance-2100
      Wheel Support-2100
      Wheel Hub-1100
      Wheel Hub-2100
      Row Markers
   Electrical System
      How To Use Diagnostic Information
      Repairing Wiring Harnesses
   Transmissions
      Clutch-1100
      Clutch-2100
   Cutter Disks and Fertilizer System
      Fertilizer Meters

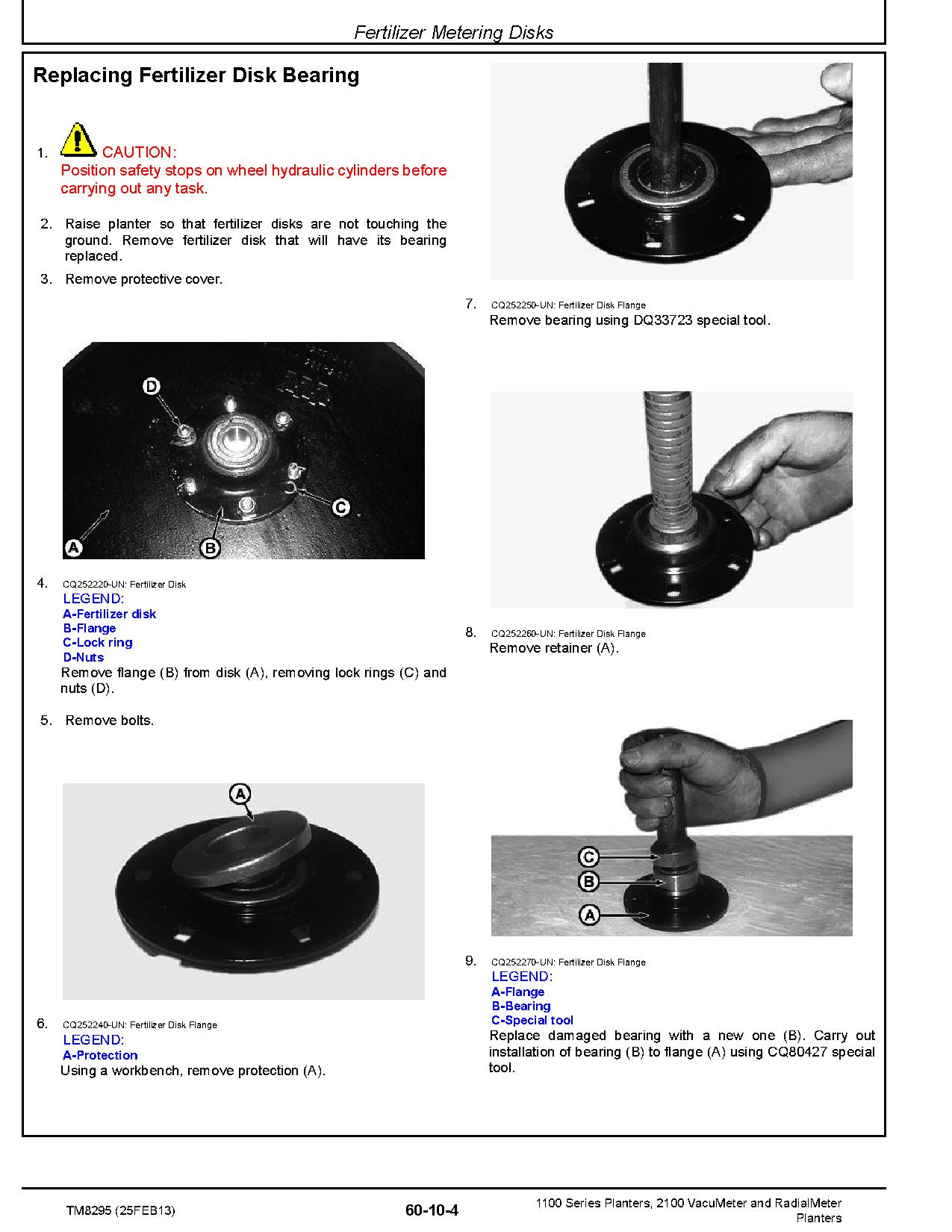

      Fertilizer Metering Disks
      Cutter Disks
   Hydraulic System
      General Information
      Engines
      Valves
      Others
      Hydraulic Cylinders
   Others
      Repairing Polyethylene Tank
   Dealer Fabricated Tools
      Dealer Fabricated Tools
   Electrical Diagrams
      General Information
      Electrical System Schematics-2100
   Hydraulic Schematics
      General Information
      Hydraulic Schematics
      Hydraulic Diagnosis
Document
Document type All inclusive Manual
Covered
Type of Truck Planter
Models 1107, 1109, 1111, 1113, 2109, 2111, 2115
Tags: 1107, 1109, 1111, 1113, 2109, 2111, 2115
