John Deere 620G,620GP,622G,622GP (SN.F680878-,L700954-) Motor Graders Diagnostic Manual (TM14240X19)

Illustrated Operation and Test Technical Manual for John Deere Motor Graders Models 620G, 620GP, 622G, 622GP

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Language: English
Format: PDF, 1257 pages

Covered models:
   620G, 620GP (PIN: 1DW620G_ _ _F680878—; PIN: 1DW620G_ _ _L700954—)
   622G, 622GP (PIN: 1DW622G_ _ _F680878—;PIN: 1DW622G_ _ _L700954—)

Contents:

   Foreword
   Manual Identification - READ THIS FIRST!
   General Information
      Safety
   Diagnostics

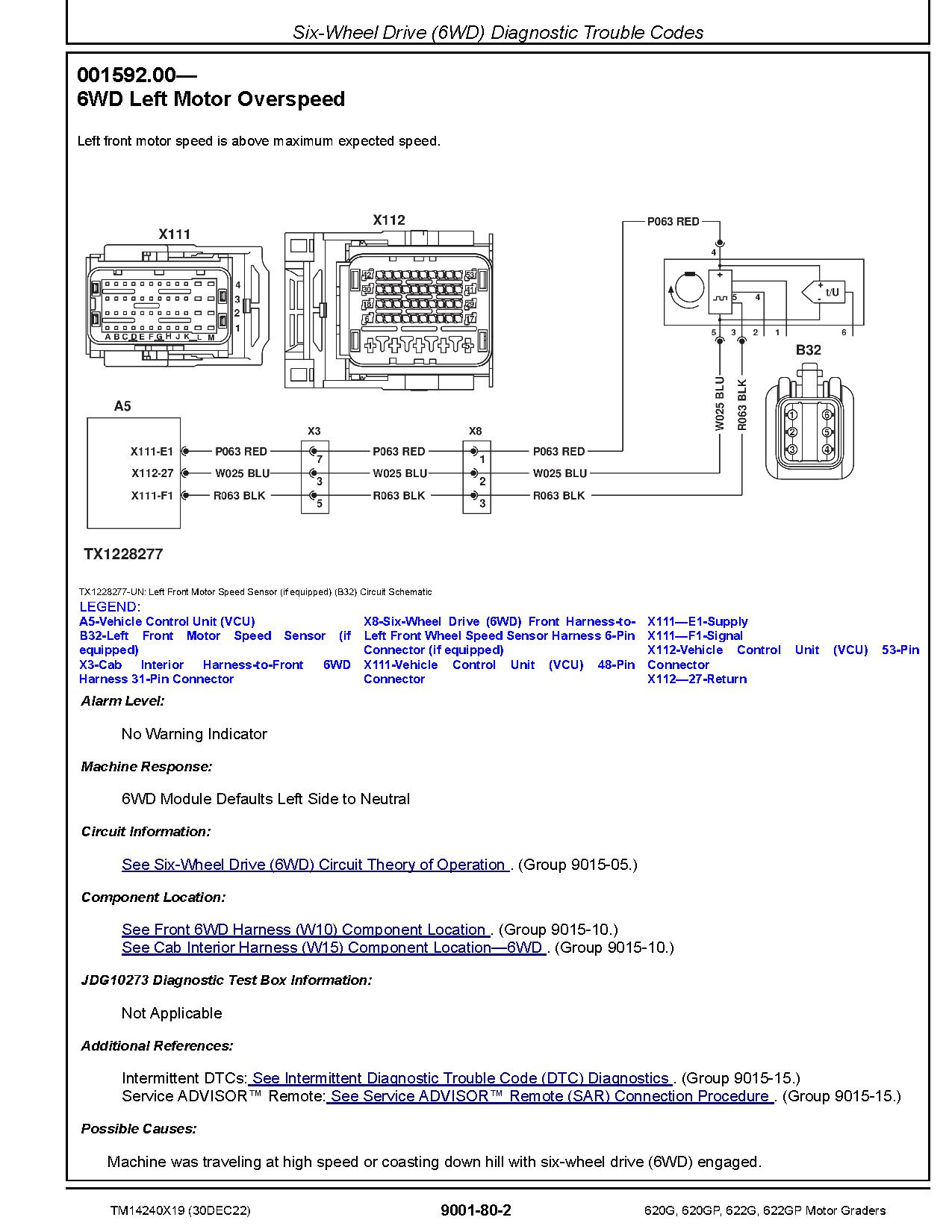

      Transmission Control Unit (TCU) Diagnostic Trouble Codes
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Primay Display Unit (PDU) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Hydraulic Valve Controller (HVC) Diagnostic Trouble Codes
      Auxiliary Valve Controller (AVC) Diagnostic Trouble Codes
      Switch Module 1 (SM1) Diagnostic Trouble Codes
      Six - Wheel Drive (6WD) Diagnostic Trouble Codes
      Cab Video Display (VC1) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine

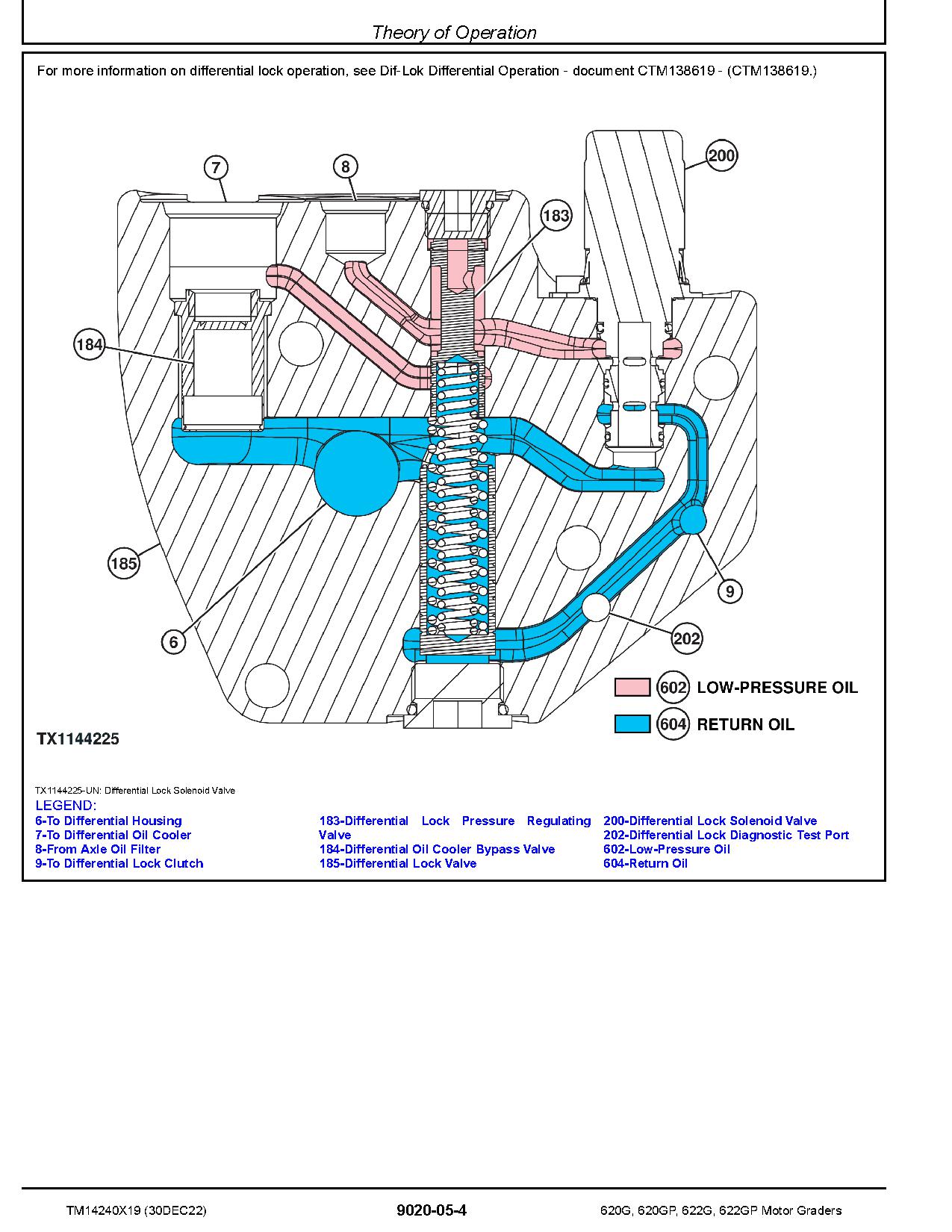

      Theory of Operation

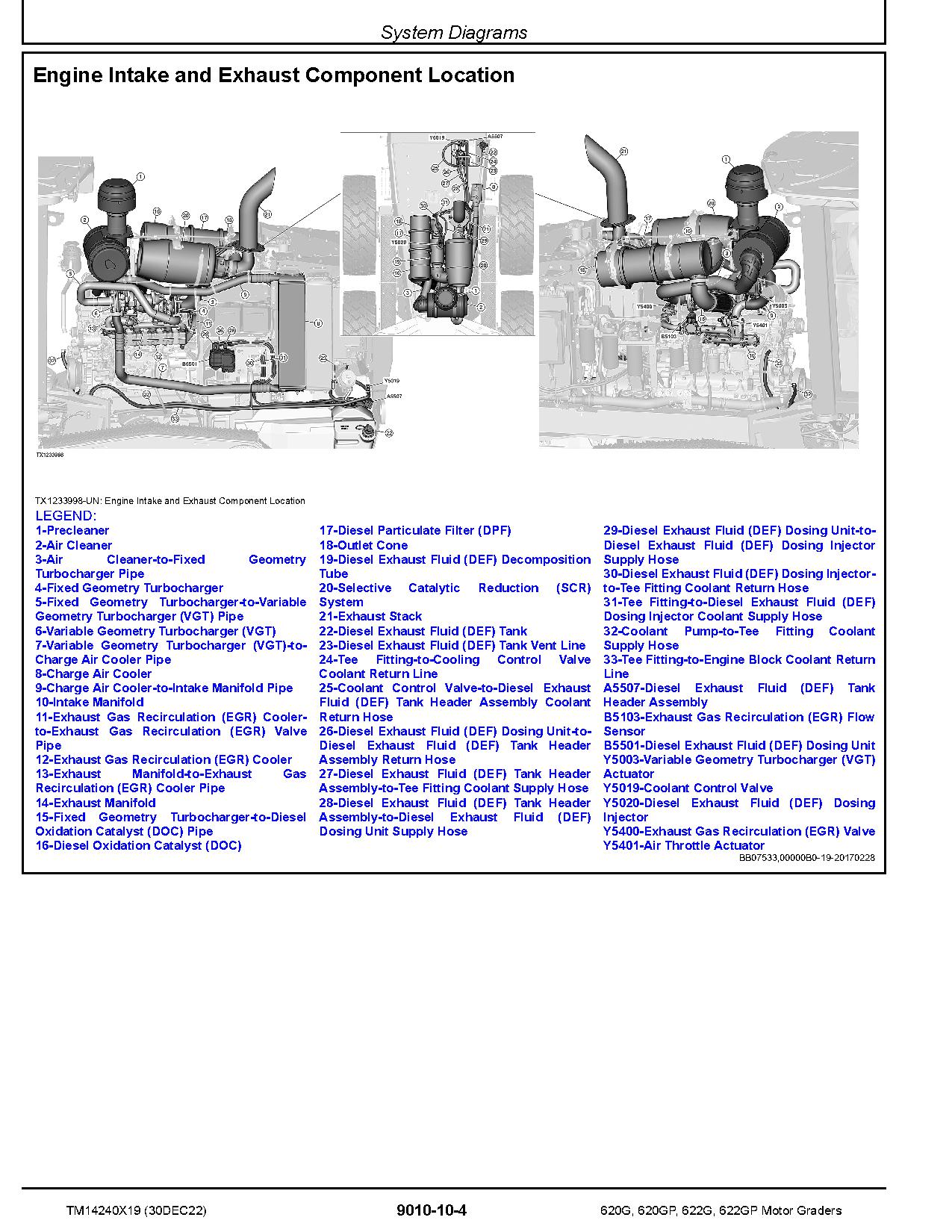

      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box
      Adjustments
      Tests
   Six - Wheel Drive (6WD)
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Power Train
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Hydraulic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   APPENDIX
      System Functional Schematic
      Hydraulic System Schematic
      Hydraulic System Schematic-EH Controls

Document
Document type	Diagnostic Manual
Covered
Type of Truck	Motor Grader
Models	620G, 620GP, 622G, 622GP
