John Deere 620G, 620GP, 622G, 622GP (SN.F680878-,L700954-) Motor Graders Repair Manual (TM14241X19)

  • Brands: John Deere
  • Product Code: TM14241X19
  • Availability: In Stock
Illustrated Service Repair Manual for John Deere Motor Graders Models 620G, 620GP, 622G, 622GP

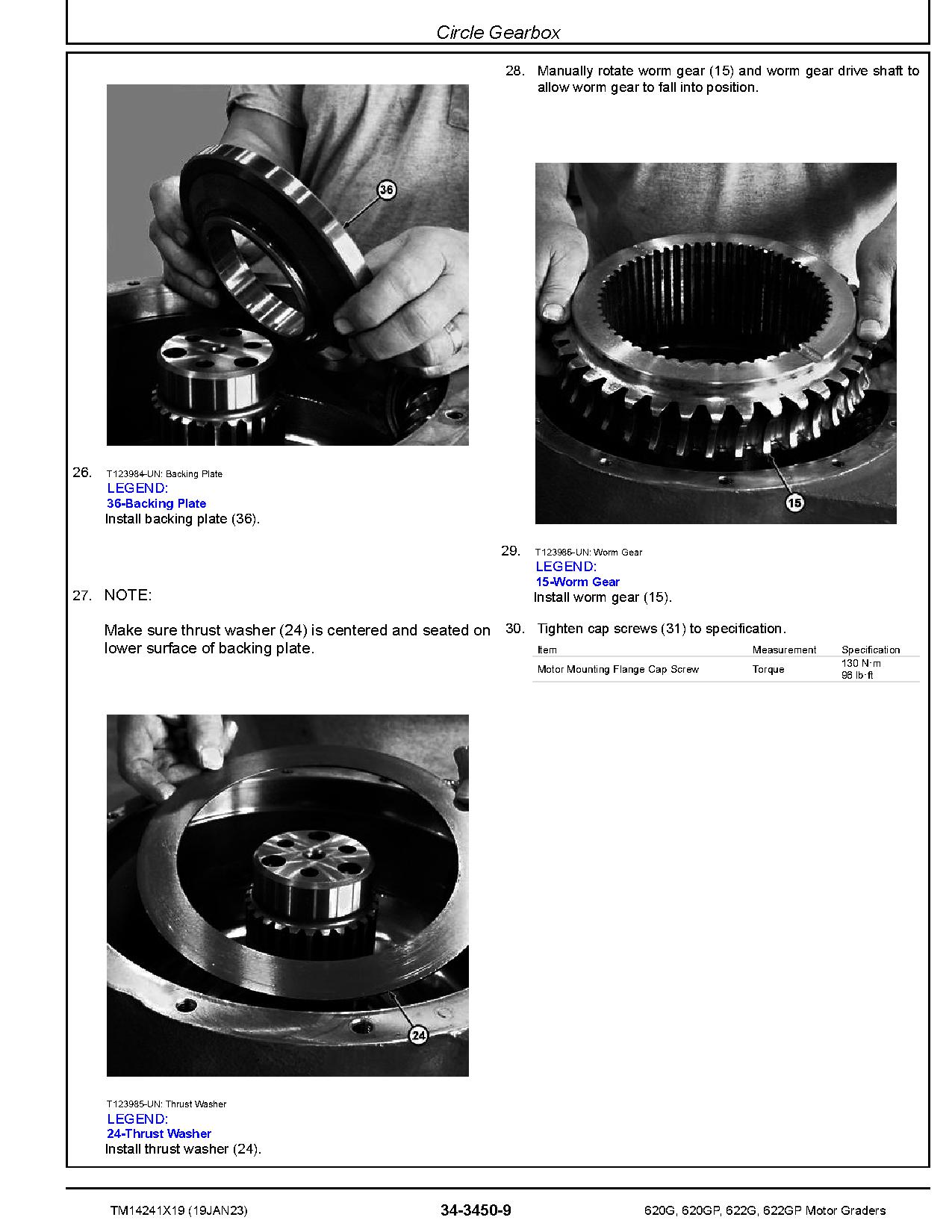

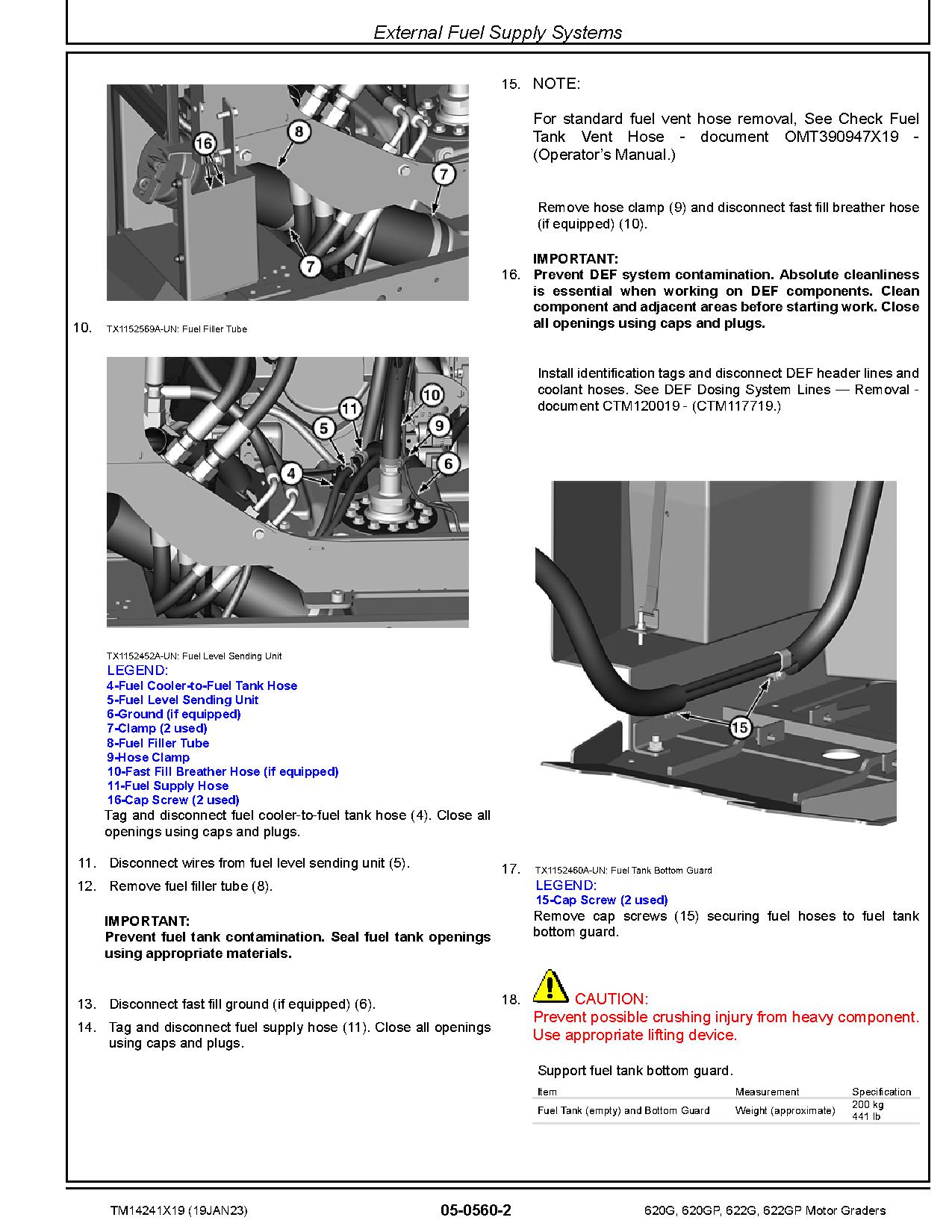

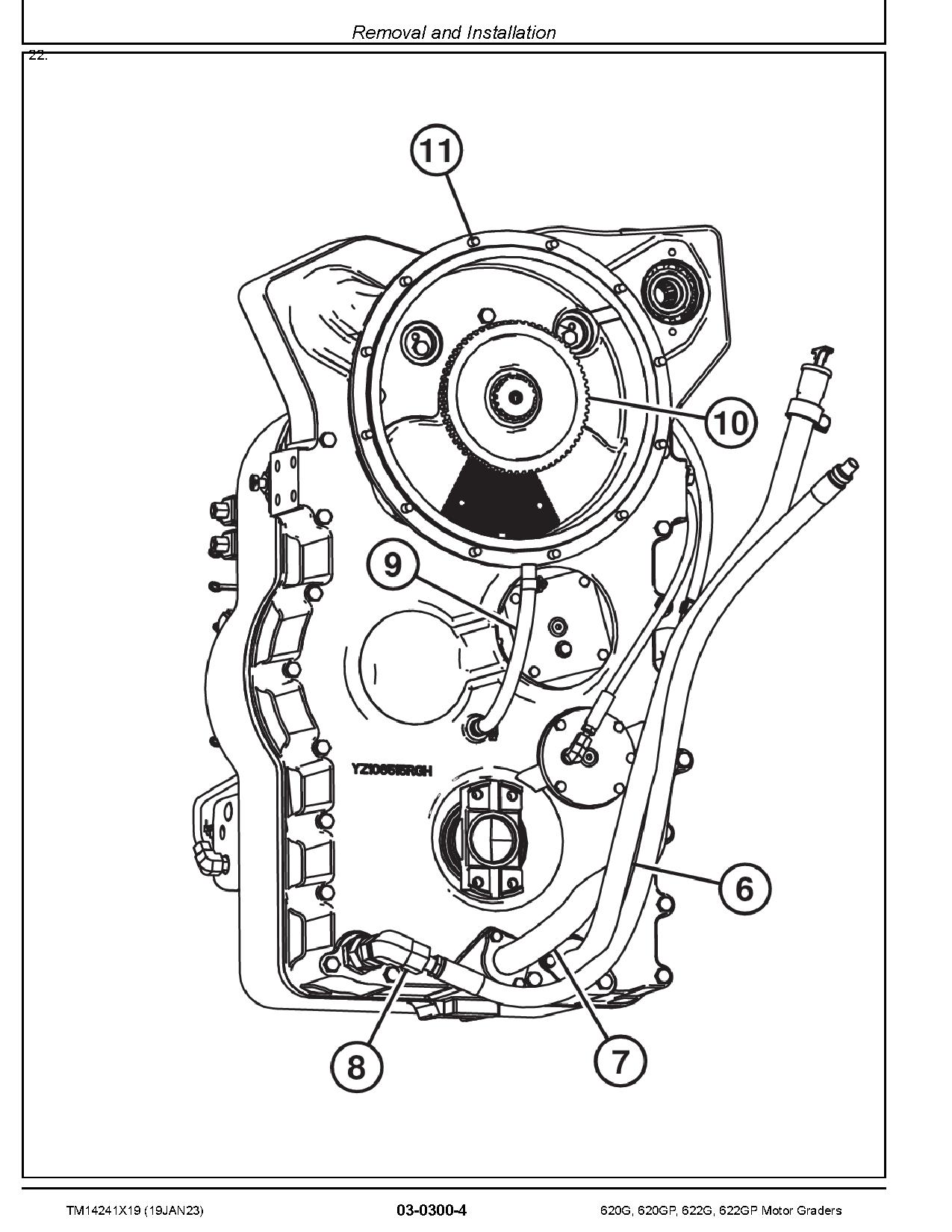

This manual contains high quality images, instructions to help you to disaseemble, troubleshoot, repair and assemble your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 440 pages

Covered models:
    620G, 620GP (PIN: 1DW620G_ _ _F680878—; PIN: 1DW620G_ _ _L700954—)
    622G, 622GP (PIN: 1DW622G_ _ _F680878—; PIN: 1DW622G_ _ _L700954—)

Contents:


   Foreword
   Manual Identification - READ THIS FIRST!
   General Information
      Safety
      Torque Values
   Wheels
      Powered Wheels and Fasteners
   Axles and Suspension Systems
      Input Drive Shafts and U - Joints
      Non - Powered Wheel Axles
      Powered Wheel Axles
      Axle Shaft, Bearings, and Reduction Gears
      Hydraulic System
   Transmission
      Removal and Installation
      Hydraulic System
   Engine
      Removal and Installation
   Engine Auxiliary System
      Cooling System
      External Exhaust System
      External Fuel Supply Systems
   Torsional Isolator
      Elements
   Steering System
      Power Steering
      Hydraulic System
   Service Brakes
      Active Elements
      Hydraulic System
   Park Brake
      Active Elements
   Electrical System
      Removal and Installation
   Frame or Supporting Structure
      Frame Installation
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Pedal Assembly
      Steering Tilt Console
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Engine Enclosure
      Grille and Grille Housing
   Main Hydraulic System
      Hydraulic System
   Grading Device
      Controls Linkage
      Frames
      Circle Gearbox
      Hydraulic System
   Ground Conditioning Tool
      Frames
   Dealer Fabricated Tools
      Dealer Fabricated Tools
Document
Document type REPAIR MANUAL
Covered
Type of Truck Motor Grader
Models 620G, 620GP, 622G, 622GP
Tags: 620G, 620GP, 622G, 622GP
