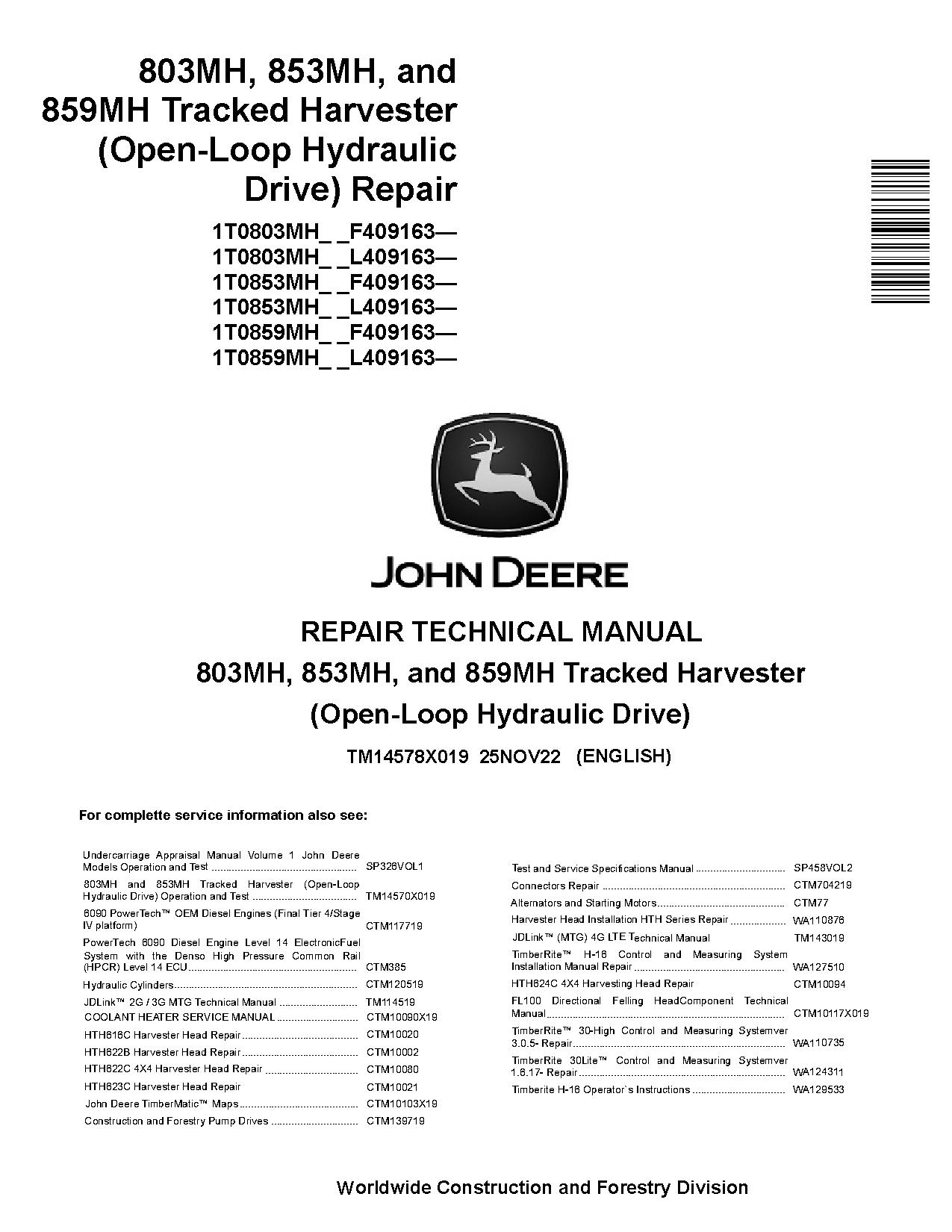

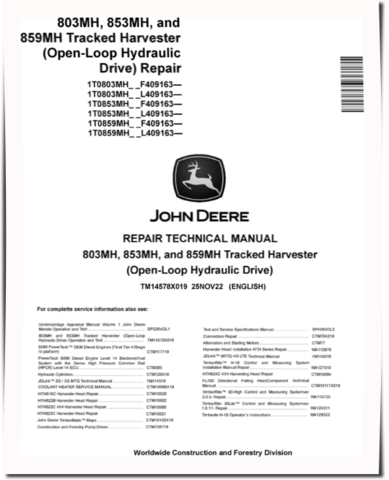

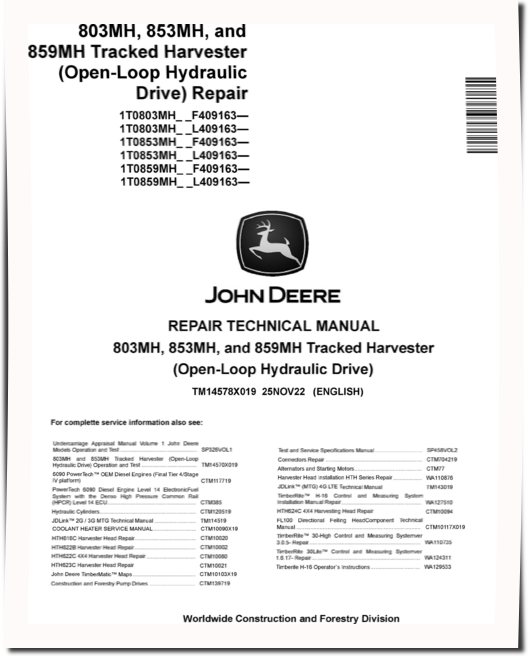

John Deere 803MH, 853MH and 859MH (Open Loop Hydraulic Drive) Tracked Harvesters Repair Manual (TM14578X019)

Illustrated factory Repair Manual for John Deere Tracked Harvesters with Open Loop Hydraulic Drive Models 803MH, 853MH and 859MH.

This manual will assist you in assembling, disassembling, and repairing for your harvester.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Open Loop Hydraulic Drive):
   803MH (PIN: 1T0803MH_ _ F409163-; 1T0803MH_ _ L409163-)
   853MH (PIN: 1T0853MH_ _ F409163-; 1T0853MH_ _ L409163-)
   859MH (PIN: 1T0859MH_ _ F409163-; 1T0859MH_ _ L409163-)

Format: PDF, 391 pages
Language: English
Publication Date: 25 Nov 2022
Table of Contents:
   Introduction
      Foreword
      Manual Identification - READ THIS FIRST!
      Serial Number Listing Information
   General Information
      Safety
      Torque Values
   Tracks
      Track System
   Axles and Suspension Systems
      Axle Shaft, Bearings, and Reduction Gears
      Hydraulic System
   Engine
      Removal and Installation
   Engine Auxiliary System
      Cooling Systems
      Exhaust Systems
      Engine Mounts
      External Fuel Supply System
   Electrical System
      Removal and Installation
   Frame or Supporting Structure
      Frame Installation
      Leveler Frames
      Chassis Weights
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling

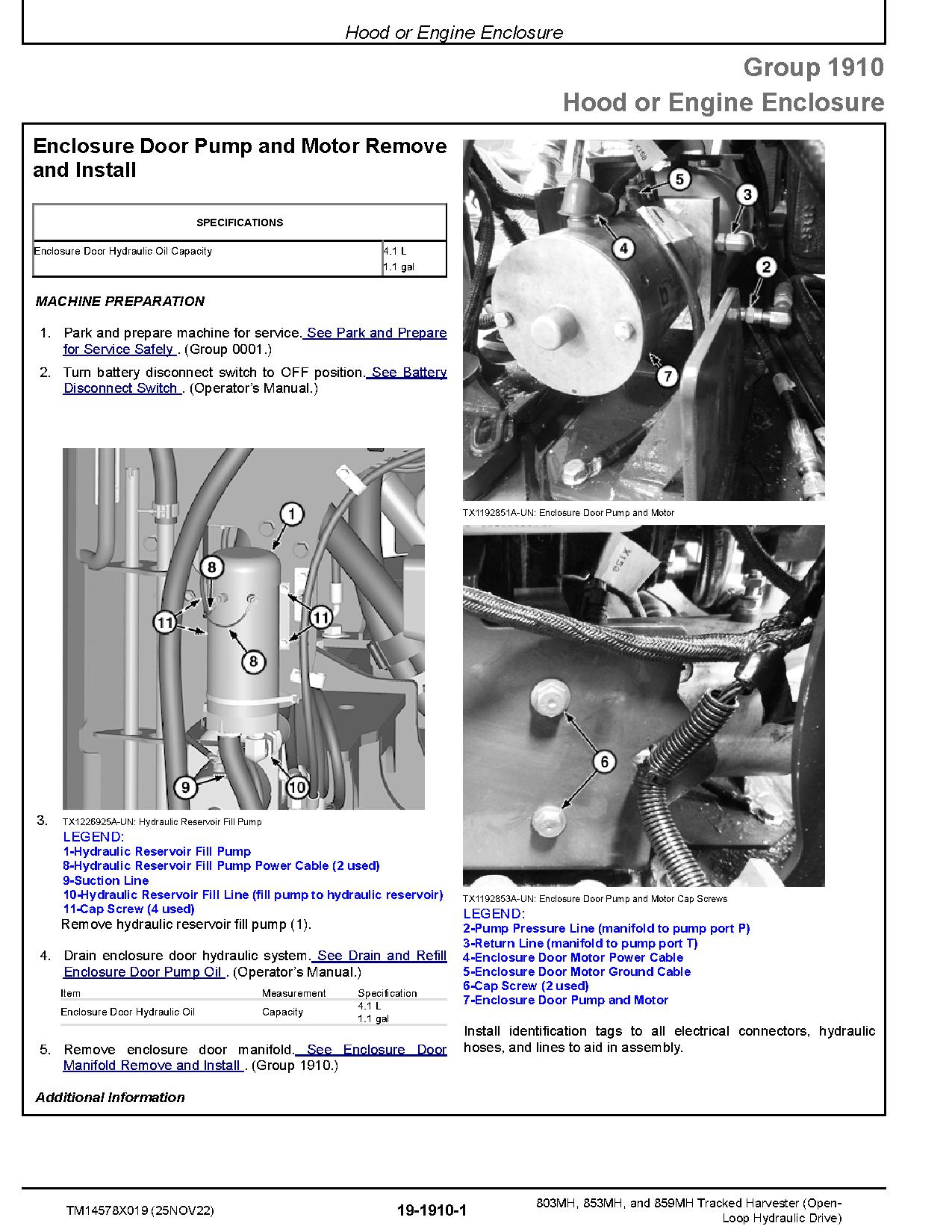

      Hood or Engine Enclosure
   Main Hydraulic System
      Removal and Installation

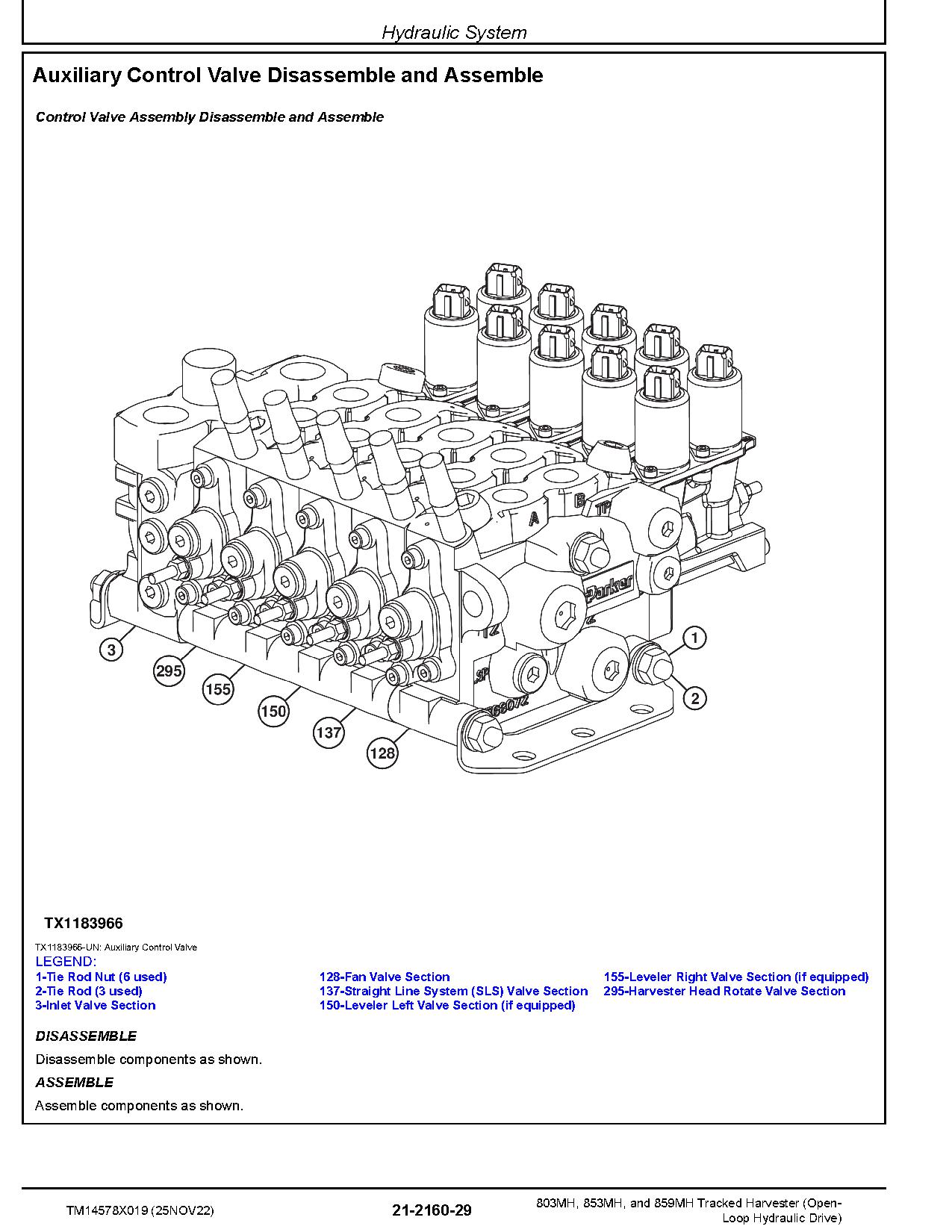

      Hydraulic System
   Boom and Stick
      Frames
      Hydraulic System
   Swing or Pivoting System
      Remove and Install
      Swing Brake

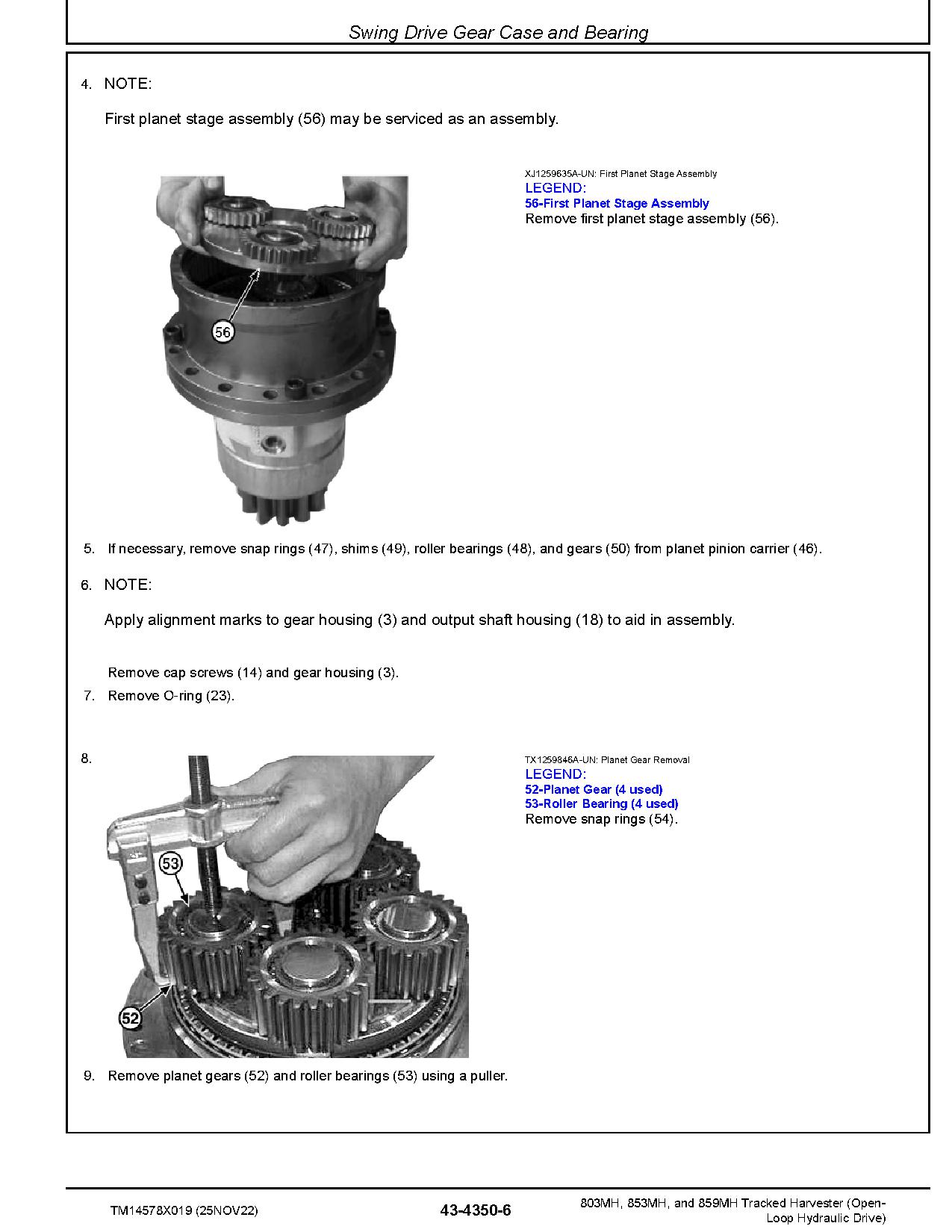

      Swing Drive Gear Case and Bearing
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools

Covered
Models	803MH, 853MH, 859MH
