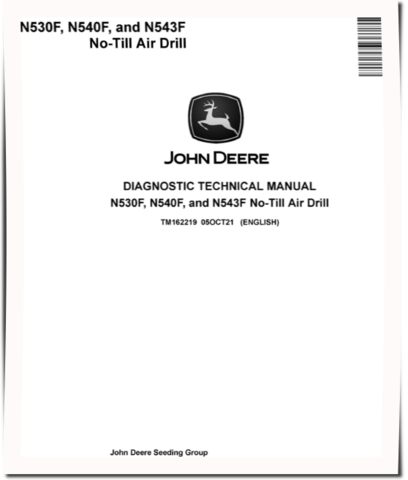

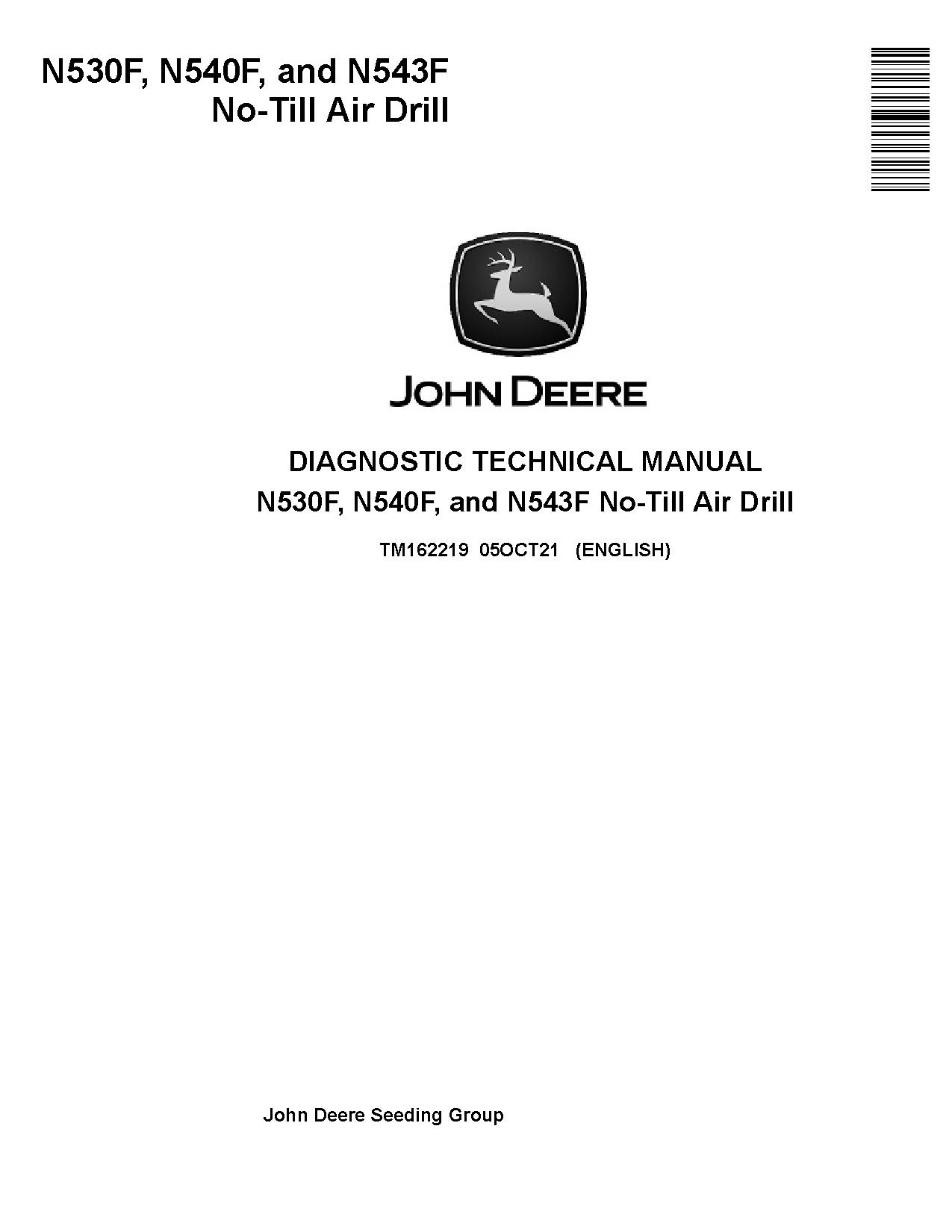

John Deere N530F, N540F and N543F No-Till Air Drills Diagnostic Manual (TM162219)

Illustrated factory Diagnostic Manual for John Deere Air Drills Models N530F, N540F and N543F.

This manual will assist you in diagnosing for your air drill.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   N530F
   N540F
   N543F

Format: PDF, 486 pages
Language: English
Publication Date: 05 Oct 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      References for Technical Information
   Diagnostic Trouble Codes (DTC)
      Blockage Monitoring Unit (BMU)
      Tower Blockage Module (TBM)
   Observable Symptom and System Diagnostics
      All Run Blockage Observable Symptoms
      CAN Bus Observable Symptoms
      Combination Blockage Observable Symptoms
      Primary Blockage Observable Symptoms
   Electrical
      General Information
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Electronic Control Units
      General Information
      Programming Electronic Control Units
      Blockage Monitoring Control Unit (BMU) Diagnostic Addresses
      Independent Depth Control (IDC) Unit Diagnostic Addresses
      Tower Blockage Monitoring (TBM) Diagnostic Addresses
      Reprogramming Control Units
   Electrical Component Information

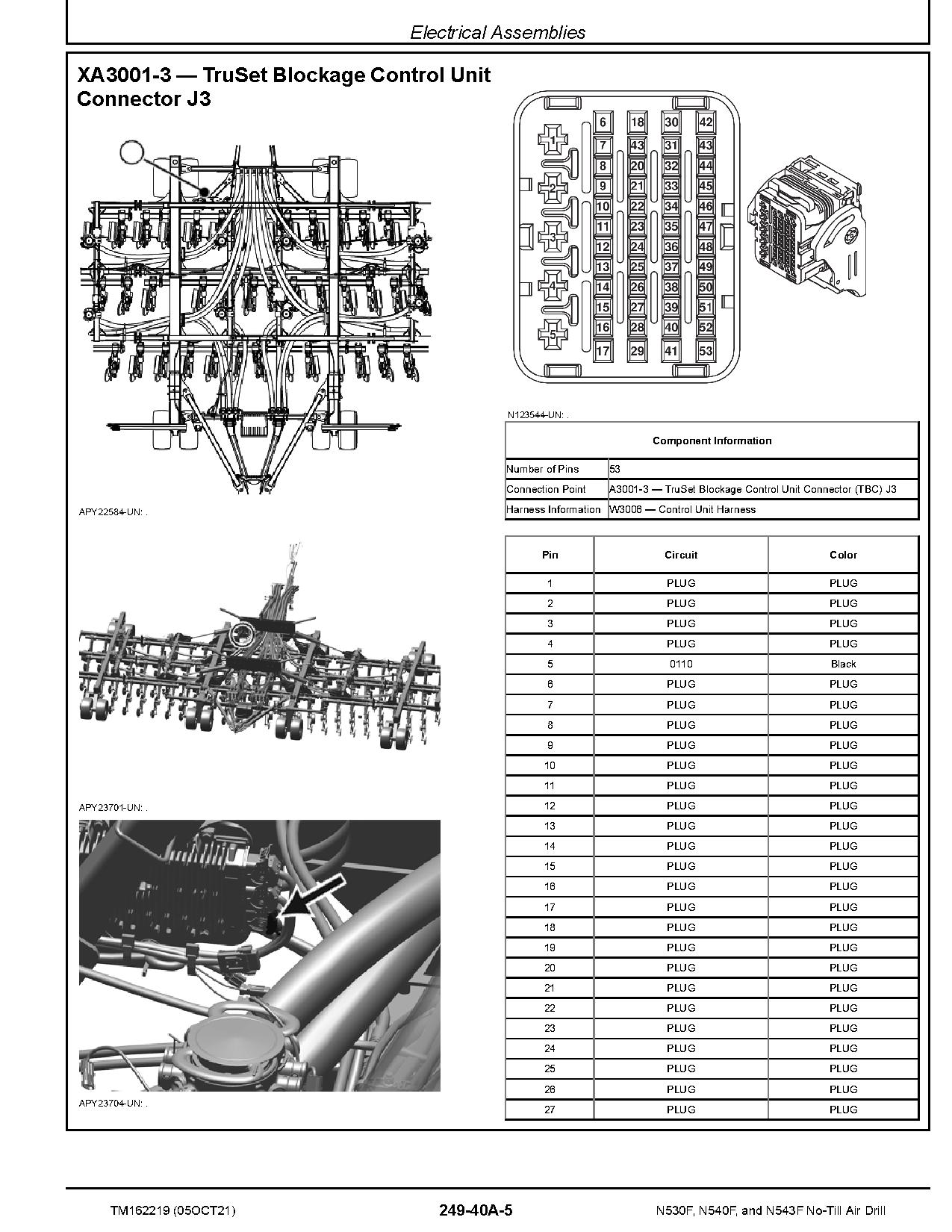

      Electrical Assemblies
      Sensors
      Lights
      Fuses

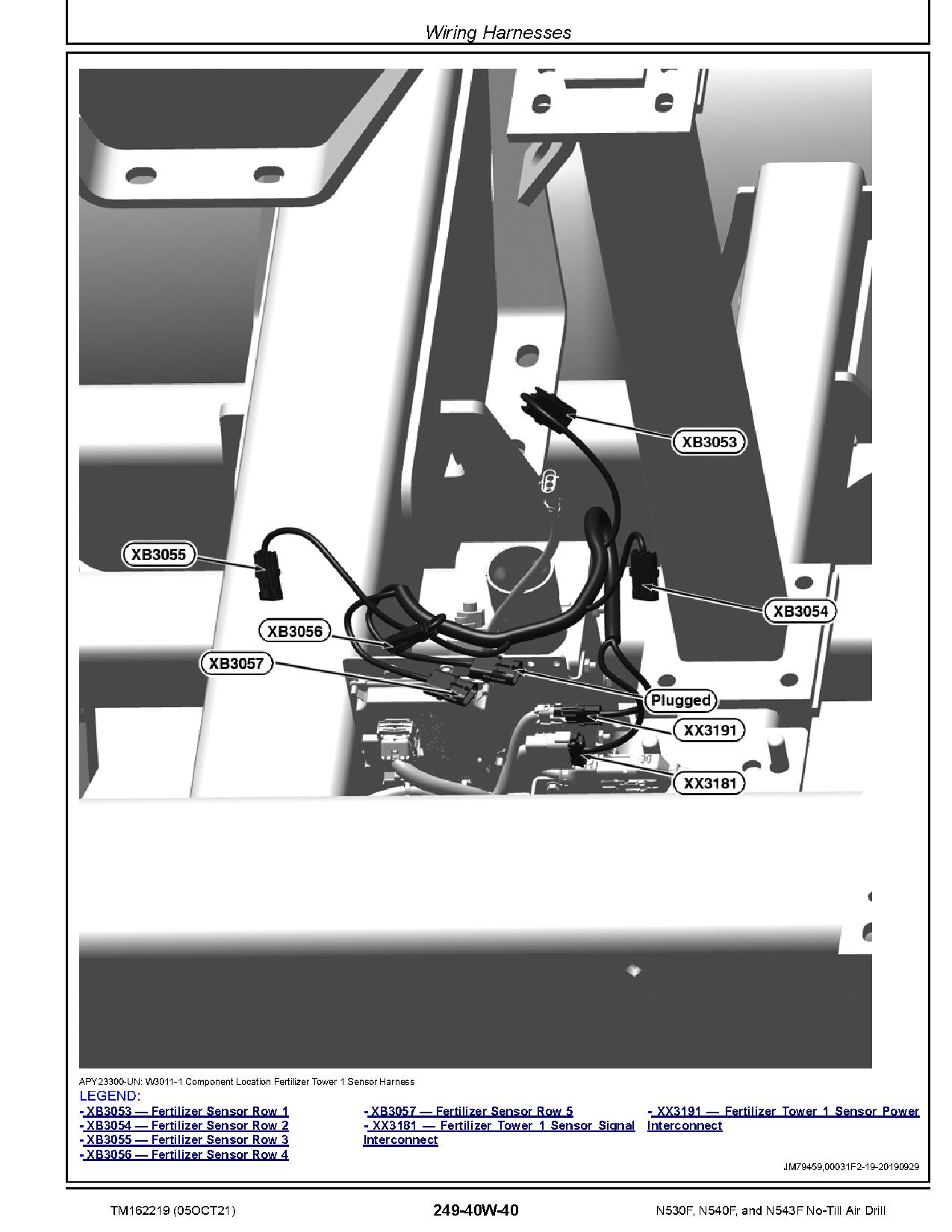

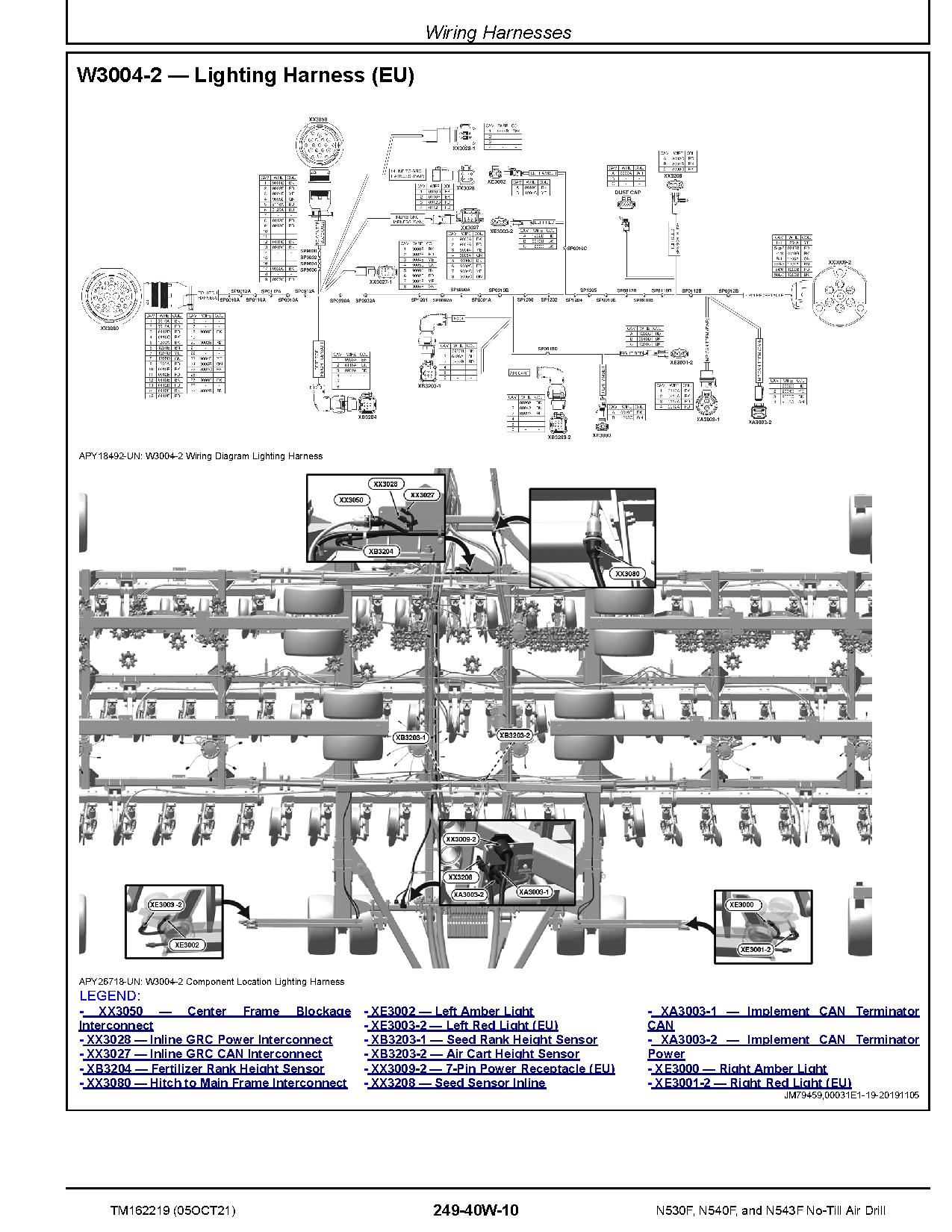

      Wiring Harnesses
      Interconnects and Ground Points
   Hydraulics
      General Information
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Hydraulics Component Information
      Sensor or Gauge
      Cylinder
      Check Valve
      Valve, Block, Assembly, or Gearcase
      Orifice
      Valve
      Diagnostic Receptacle or Coupler
      Solenoid Valve

Covered
Models	N530F, N540F, N543F
